TASK 72-41-21-300-004 HPC Stage 7 Rotor Path Ring - Surface Protection Replacement Repair, Repair-004 (VRS6161)

DMC:V2500-A0-72-41-2120-00A-609A-C|Issue No:004.00|Issue Date:2018-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-41-21-300-004 HPC Stage 7 Rotor Path Ring - Surface Protection Replacement Repair, Repair-004 (VRS6161)

Effectivity

FIG/ITEM

PART NO.

03-300

6B1430

03-300

6A6540

03-300C

6A7577

03-450

6A3651

03-450

6A4101

03-450

6A4161

03-450

6A5992

03-450

6A5995

03-450

6A7623

03-450

6A7626

Material of component

PART IDENT

SYMBOL

MATERIAL

HPC Stage 7 Rotor Path Ring

EAK or EBL or EAE

Corrosion Resistant Steel

General

This Repair replaces the surface protection on the HPC Stage 7 Rotor Path Ring.

Preliminary Requirements

Pre-Conditions

Action/ConditionData Module/Technical Publication
Make sure that all the cleaning and inspection procedures, including any required FPI and other needed repairs, are done before this repair.

Support Equipment

NONE

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 06-073 INK, METAL MARKING88303CoMat 06-073
CoMat 07-035 CORROSION RESISTANT COATINGLOCALCoMat 07-035
CoMat 07-104 ALUMINIUM HIGH HEAT RESISTANT PAINTLOCALCoMat 07-104
CoMat 07-125 LACQUER0W199CoMat 07-125
CoMat 07-175 COATING COMPOUND - ALUMINUM, INORGANIC BINDER53012CoMat 07-175

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-41-21-350-276 Mark the Part

    1. Mark the part with the part number and VRS6161 adjacent to the assembly part number.

      2. Use vibration peen by SPM TASK 70-09-00-400-501.

      1. For PN 6A3651, PN 6A4101, PN 6A4161, PN 6A5992, PN 6A5995, PN 6A7623 and PN 6A7626, refer to Figure.

      2. For PN 6A6540, PN 6A7577 and PN 6B1430, refer to Figure.

    2. SUBTASK 72-41-21-380-153 Apply Surface Protection

      1. Prepare the surface and apply the surface protection coating and examine the coated surface on the part by one of the following procedures. Refer to Figure and Figure.

        1. For PN 6A3651, PN 6A4101, PN 6A4161, PN 6A5992, PN 6A5995, PN 6A7623 and PN 6A7626, refer to Figure.

        2. For PN 6A6540, PN 6A7577 and PN 6B1430, refer to Figure.

        1. For PN 6A3651, PN 6A4101, PN 6A4161, PN 6A5992, PN 6A5995, PN 6A7623 and PN 6A7626, refer to Figure.

        2. For PN 6A6540, PN 6A7577 and PN 6B1430, refer to Figure.

        3. NOTE

          CoMat 07-175 COATING COMPOUND - ALUMINUM, INORGANIC BINDER is a non-chromated alternative to CoMat 07-035 CORROSION RESISTANT COATING and CoMat 07-104 ALUMINIUM HIGH HEAT RESISTANT PAINT.

        1. For PN 6A3651, PN 6A4101, PN 6A4161, PN 6A5992, PN 6A5995, PN 6A7623 and PN 6A7626, refer to Figure.

        2. For PN 6A6540, PN 6A7577 and PN 6B1430, refer to Figure.

    3. SUBTASK 72-41-21-350-277 Mark the Part

      1. Mark the part with the part number and VRS6161 adjacent to the assembly part number.

      1. Use temporary marking by SPM TASK 70-09-01-400-501.

        1. CoMat 06-073 INK, METAL MARKING must be completely dry prior to application of CoMat 07-125 LACQUER.

        2. Apply two thin coats of CoMat 07-125 LACQUER to avoid dissolving ink pigment. Allow each layer to dry prior to the next coat.

        3. Heavier application of CoMat 07-125 LACQUER is permitted after the light application of the coating completely dries.

      3. For PN 6A3651, PN 6A4101, PN 6A4161, PN 6A5992, PN 6A5995, PN 6A7623 and PN 6A7626, refer to Figure.

      4. For PN 6A6540, PN 6A7577 and PN 6B1430, refer to Figure.

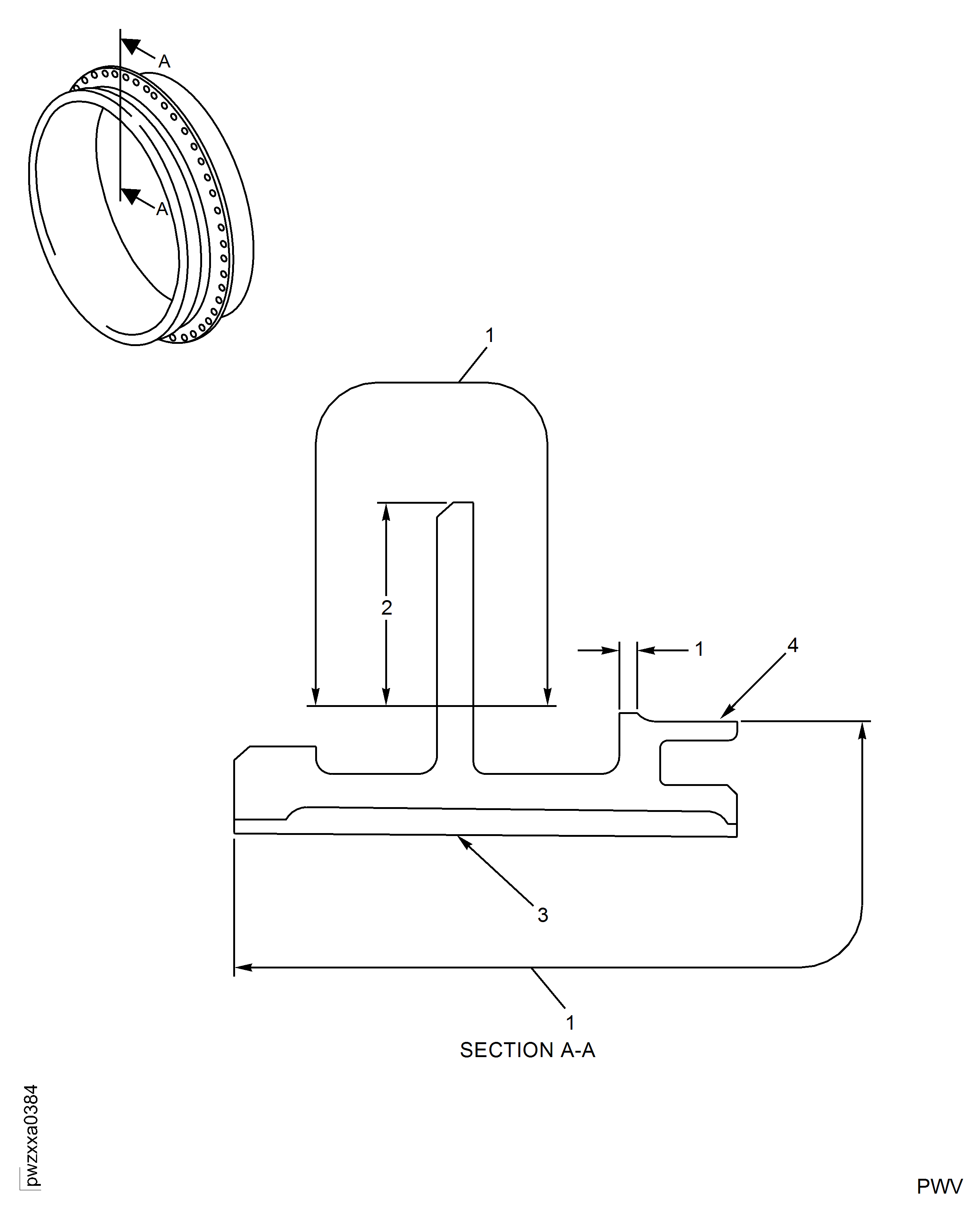

    4. Figure: Repair Details and Dimensions

    Areas To Be Masked. Dry Abrasive Blast And Coat Not Allowed In These Areas And Holes.

    Legend
    1

    Areas To Be Masked. Dry Abrasive Blast And Coat Not Allowed In These Areas And Holes.

    2

    0.551 - 0.630 Inch (14.00 - 16.00 mm).

    3

    Lining

    4

    Marking Location

    Close

    Figure: Repair Details and Dimensions

    Areas To Be Masked. Dry Abrasive Blast And Coat Not Allowed In These Areas And Holes.

    Legend
    [1]

    Areas To Be Masked. Dry Abrasive Blast And Coat Not Allowed In These Areas And Holes.

    [2]

    0.531 - 0.610 Inch (13.50 - 15.50 mm) Diameter, No Coat Zone Around Holes, Area To Be Masked, Typical 70 Positions. Dry Abrasive Blast And Coat Not Allowed In These Areas And Holes.

    [3]

    For PN 6B1434, 0.453 - 0.531 Inch (11.50 - 13.50 mm) Diameter, No Coat Zone Around Holes, Area To Be Masked, Typical 53 Positions. Dry Abrasive Blast And Coat Not Allowed In These Areas And Holes.

    For All Other PNs, 0.453 - 0.531 Inch (11.50 - 13.50 mm) Diameter, No Coat Zone Around Holes. Area To Be Masked, Typical 54 Positions. Dry Abrasive Blast And Coat Not Allowed In These Areas And Holes.

    [4]

    For PN 6A6540, Pitch Circle To Fillet Radius, Area To Be Masked. Dry Abrasive Blast And Coat Not Allowed In These Areas And Holes.

    For PN 6A7577, 0.201 - 0.240 Inch (5.10 mm - 6.10 mm). Area To Be Masked. Dry Abrasive Blast And Coat Not Allowed In These Areas And Holes.

    For PN 6B1430, 0.157 - 0.197 Inch (4.00 mm - 5.00 mm). Area To Be Masked. Dry Abrasive Blast And Coat Not Allowed In These Areas And Holes.

    [5]

    0.315 - 0.394 Inch (8.00 - 10.00 mm). Area To Be Masked. Dry Abrasive Blast And Coat Not Allowed In These Areas And Holes.

    [6]

    Marking Location

    Close

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Revised the full procedure. (17VG004)

Manufacturer Code:0W199
Enterprise Name:THE SHERWIN-WILLIAMS CO
