TASK 72-41-21-300-022 HPC Stage 12 Rotor Path Ring - Replace The Lining, Repair-022 (VRS6024)

DMC:V2500-A0-72-41-2130-00A-920A-C|Issue No:002.00|Issue Date:2016-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-41-21-300-022 HPC Stage 12 Rotor Path Ring - Replace The Lining, Repair-022 (VRS6024)

Effectivity

FIG/ITEM

PART NO.

ASSEMBLY

04-700

6A3656

A

04-700

6A4166

B

04-600

6A6552

C

04-600

6B1436

D

Material of component

PART IDENT

MATERIAL

HP Compressor Stage 12 Rotor Path Ring

Heat resistant alloy

General

This Repair must only be done when the instruction to do so is given in inspection procedures (identified by the applicable part number) located in section 72-41-21.

This TASK gives the procedure to replace the damaged rotor path linings on the HP Compressor Stage 12 Rotor Path Ring.

TASKS identified by SPM TASK are in the Standard Practices and Processes Manual (SPM).

Price and availability

Refer to International Aero Engines

Related repairs - none

NOTE

Equipment and materials necessary to do this repair are in the SPM TASKS given below:
SPM TASK 70-09-00-400-501
SPM TASK 70-11-03-300-503
SPM TASK 70-11-39-300-503
SPM TASK 70-12-02-120-501
SPM TASK 70-23-05-230-501
SPM TASK 70-33-59-300-503
SPM TASK 70-34-01-340-501

NOTE

It is possible that some materials in the Consumable Materials chart cannot be used for some or all of the necessary applications. Before you use the materials, make sure the types, quantities and applications of the materials necessary are legally permitted in your location. All persons must obey all applicable federal, state, local and provincial laws and regulations when it is necessary to work with these materials.

NOTE

To identify the consumable materials, refer to the overhaul Processes and Consumables Index (PCI).

NOTE

Other necessary consumable materials are referred to in the SPM TASKS.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Abrasive blast equipmentLOCALAbrasive blast equipment
Air grinderLOCALAir grinder
Chemical cleaning equipmentLOCALChemical cleaning equipment
Dial indicatorLOCALDial indicator
Hardness testerLOCALHardness tester
LatheLOCALLathe
Masking fixtureLOCALMasking fixture
Metal spray equipmentLOCALMetal spray equipment
Penetrant Crack Test EquipmentLOCALPenetrant crack test equipment
Rotary burrLOCALRotary burr
Vibrating marking pencilLOCALVibrating marking pencil
Workshop inspection equipmentLOCALWorkshop inspection equipment
IAE 3R18232 Lifting beam0AM53IAE 3R18232
IAE 3R18570 Turning fixture0AM53IAE 3R18570
IAE 3R19082 Turning fixture0AM53IAE 3R19082

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-001 ADHESIVE TAPE (MASKING)LOCALCoMat 02-001
CoMat 02-006 ADHESIVE TAPE ALUMINIUM FOILK0993CoMat 02-006
CoMat 02-198 ADHESIVE TAPE (MASKING METAL SPRAY)LOCALCoMat 02-198
CoMat 03-036 METAL SPRAYING WIRE, Ni,AlLOCALCoMat 03-036
CoMat 03-038 METAL SPRAYING POWDER NICKEL ALUMINIUM (95/5)IE200CoMat 03-038
CoMat 03-089 METAL SPRAYING POWDER Ni/Al (95/5)00741CoMat 03-089
CoMat 03-090 METAL SPRAYING POWDER Ni/Al (95/5)LOCALCoMat 03-090
CoMat 03-238 METAL SPRAY POWDER, Ni-Cr-AlLOCALCoMat 03-238
CoMat 05-003 ABRASIVE MEDIUM ALUMINUM OXIDE, 120/220 GRADELOCALCoMat 05-003
CoMat 05-015 ABRASIVE MEDIUM, ALUMINUM OXIDELOCALCoMat 05-015
CoMat 06-064 FLUORESCENT PENETRANT (WATER WASHABLE MEDIUM SENSITIVITY)LOCALCoMat 06-064

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-41-21-325-051-A00 Remove the Abradable Lining, Assembly A

    1. Refer to Figure.

      2. Assemble the fixture on the machine.

      2. Set to turn correctly.

      3. Install the rotor path ring on the turning fixture and machine to remove abradable lining.

      1. Turn to remove lining.

      2. You must not remove material from the rotor path ring.

    2. SUBTASK 72-41-21-325-051-B00 Remove the Abradable Lining, Assembly B

    1. Refer to Figure.

      2. Assemble the fixture on the machine.

      2. Set to turn correctly.

      3. Assemble rotor path ring on to the turning fixture and machine to remove abradable lining.

      1. Turn to remove lining.

      2. You must not remove material from the rotor path ring.

    3. SUBTASK 72-41-21-325-051-C00 Remove the Abradable Lining, Assembly C

    1. Refer to Figure.

      2. Assemble the fixture on the machine.

      2. Set to turn correctly.

      3. Assemble the rotor path ring on to the turning fixture and machine to remove the abradable lining.

      1. Turn to remove the abradable lining.

      2. You must not remove material from the rotor path ring.

    4. SUBTASK 72-41-21-325-051-D00 Remove the Abradable Lining, Assembly D

    1. Refer to Figure.

      2. Assemble the fixture on the machine.

      1. Use a IAE 3R18570 Turning fixture, 1 off, with a Lathe.

      2. Set to turn correctly.

      3. Assemble the rotor path ring on the turning fixture and machine to remove the abradable lining.

      1. Turn to remove the abradable lining.

      2. You must not remove material from the rotor path ring.

    5. SUBTASK 72-41-21-350-055 Remove the Remaining Lining

    1. NOTE

      This SUBTASK is an alternative to Step.

      Refer to Figure, Figure, Figure and Figure.

      2. Remove the lining material.

      1. Use an Air grinder with a Rotary burr or applicable alternatives.

      2. You must not remove material from the rotor path ring.

    6. SUBTASK 72-41-21-330-051 Remove the Remaining Lining

    1. NOTE

      This SUBTASK is an alternative to Step.

      Refer to Figure, Figure, Figure and Figure.

      2. Chemically remove the lining material.

      1. Refer to SPM TASK 70-33-59-300-503, SUBTASK 70-33-59-300-002.

    7. SUBTASK 72-41-21-120-051 Abrasive Blast the Repair Area(s)

      2. Lightly dry blast the repaired area(s) to fully remove the lining.

      1. Refer to SPM TASK 70-12-02-120-501.

    3. Remove the masks.

    8. SUBTASK 72-41-21-110-128 Cold Ferric Chloride Etch

      1. Swab etch the repaired area(s).

      1. Refer to SPM TASK 70-11-39-300-503, SUBTASK 70-11-39-300-001.

    9. SUBTASK 72-41-21-220-207 Examine the Repaired Area(s)

    1. Refer to Figure, Figure, Figure and Figure.

      2. Visually examine and measure the dimensions of the repaired area(s).

      1. Make sure the damaged lining is fully removed.

    10. SUBTASK 72-41-21-230-078 Do a Crack Test

      1. Do a penetrant crack test of the repaired area(s).

      1. Refer to SPM TASK 70-23-05-230-501.

      4. Cracks are not permitted.

    11. SUBTASK 72-41-21-110-105 Clean the Rotor Path Ring

      1. Chemically clean the rotor path ring.

      1. Refer to SPM TASK 70-11-03-300-503.

    12. SUBTASK 72-41-21-350-056 Seal Surfaces not to be Repaired

    13. SUBTASK 72-41-21-120-067 Clean the Area(s) to be Sprayed

      CAUTION

      DO NOT TOUCH AREA(S) TO BE REPAIRED AFTER THEY ARE CLEANED.

      CAUTION

      TOO MUCH ABRASIVE BLAST CAN CAUSE DETERIORATION OF THE PREPARED SURFACE CONDITION AND MUST BE PREVENTED.

      1. Abrasive blast the area(s) to be sprayed.

      1. Refer to the SPM TASK 70-12-02-120-501.

      2. Use new masking tape, if necessary.

      1. Apply masking tape again to the area(s) where the masking is missing or damaged.

      2. Be careful not to touch prepared surfaces before plasma spraying.

    14. SUBTASK 72-41-21-340-051 Apply the Abradable Lining

    1. Refer to Figure, Figure and Figure.

      2. Apply the bond coat.

      1. Refer to the SPM TASK 70-34-01-340-501, SUBTASK 70-34-01-340-025 and SUBTASK 70-34-01-340-010.

      3. Alternatively for the wire feed combustion spray gun use CoMat 03-036 METAL SPRAYING WIRE, Ni,Al.

      4. Pre-heat the seal ring to 221 deg F to 257 deg F (105 deg C to 125 deg C).

      5. Apply a thickness of 0.004 in. to 0.007 in. (0.10 mm to 0.18 mm).

      3. Apply the abradable lining.

      1. Refer to SPM TASK 70-34-01-340-501, SUBTASK 70-34-01-340-029.

    4. Remove the masks.

    15. SUBTASK 72-41-21-220-208 Examine the Rotor Path Lining

    1. Refer to Figure, Figure and Figure.

      2. Visually examine the sprayed coating on the ring.

      1. Refer to the SPM TASK 70-34-01-340-501.

      3. Measure the repaired dimensions.

      4. Hardness test the sprayed coating.

      1. Refer to the SPM TASK 70-34-01-340-501, SUBTASK 70-34-01-340-004.

      2. Average hardness must be 45 to 55 R15Y outer limits of 40 minimum to 60 maximum.

    16. SUBTASK 72-41-21-350-058 Identify the Repair

    1. Refer to Figure, Figure, Figure and Figure.

      2. Identify VRS6024 adjacent to the part number.

      1. Refer to SPM TASK 70-09-00-400-501, SUBTASK 70-09-00-400-001.

    17. SUBTASK 72-41-21-350-235 Machine and Examine the Rotor Path Ring Lining

      1. Machine and examine the rotor path ring lining.

      1. Refer to TASK 72-41-20-440-006 (ASSEMBLY-006).

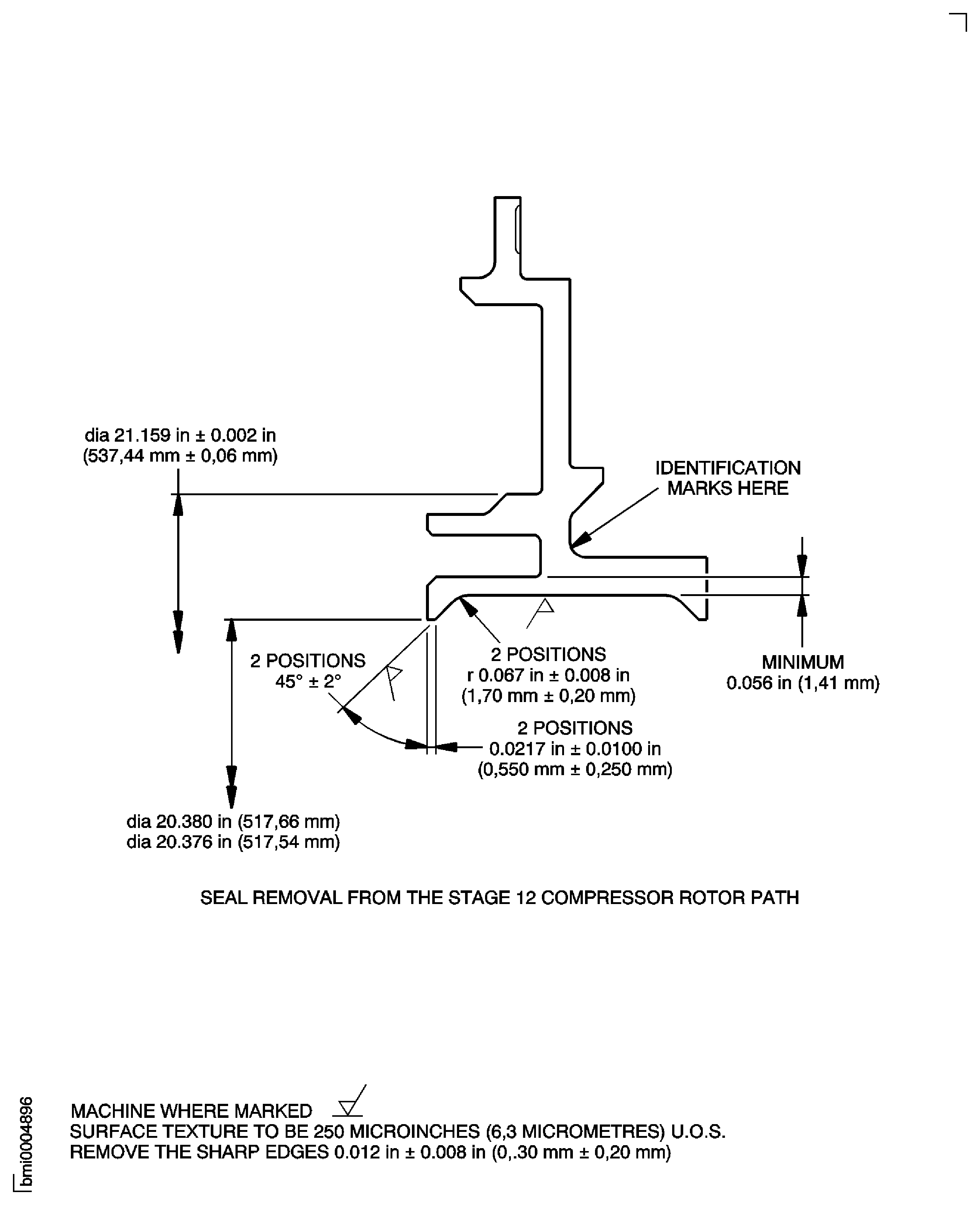

    18. Figure: Repair Details and Dimensions - Assembly A

    Repair Details and Dimensions - Assembly A

    Figure: Repair Details and Dimensions - Assembly B

    Repair Details and Dimensions - Assembly B

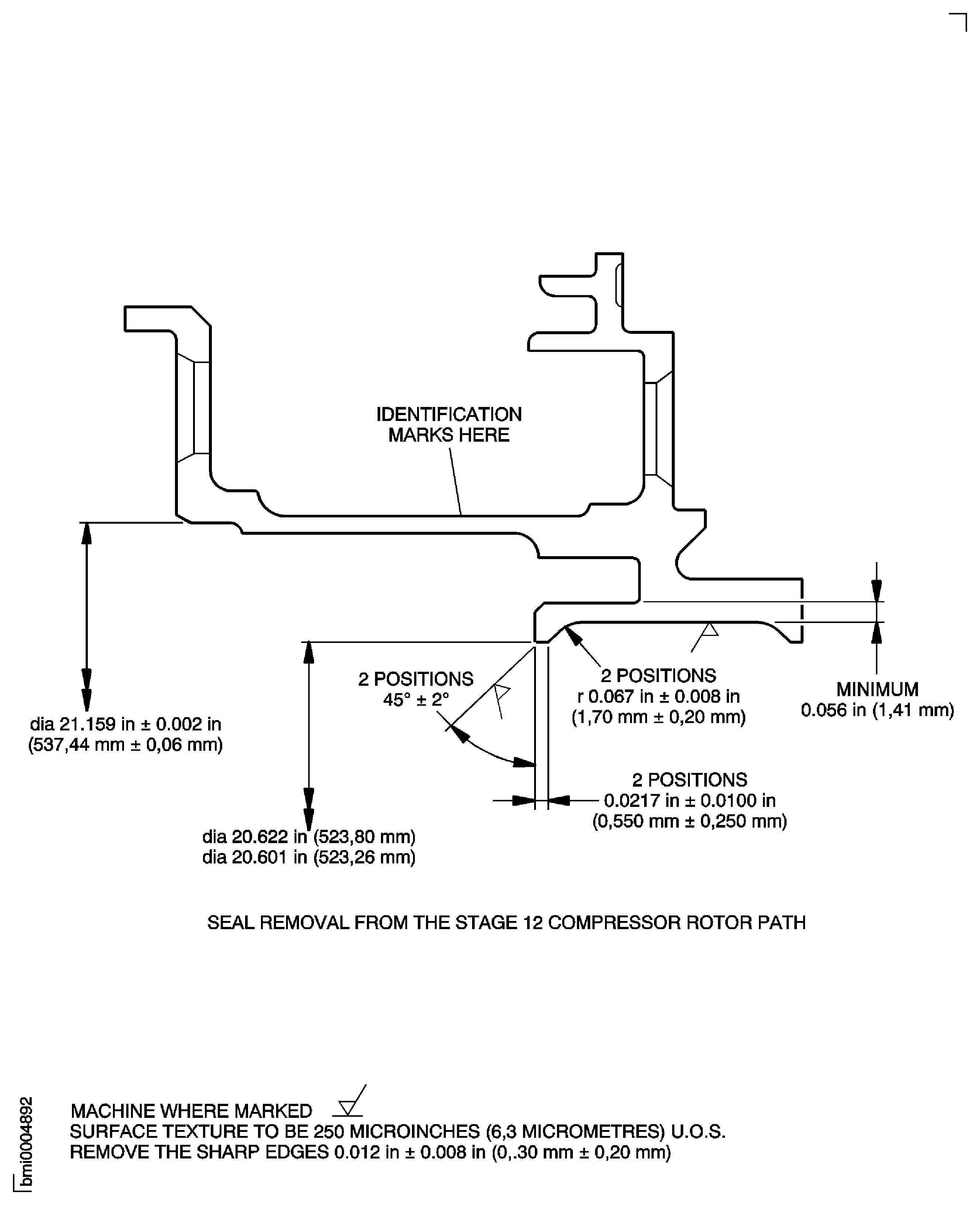

    Figure: Repair Details and Dimensions - Assembly C

    Repair Details and Dimensions - Assembly C

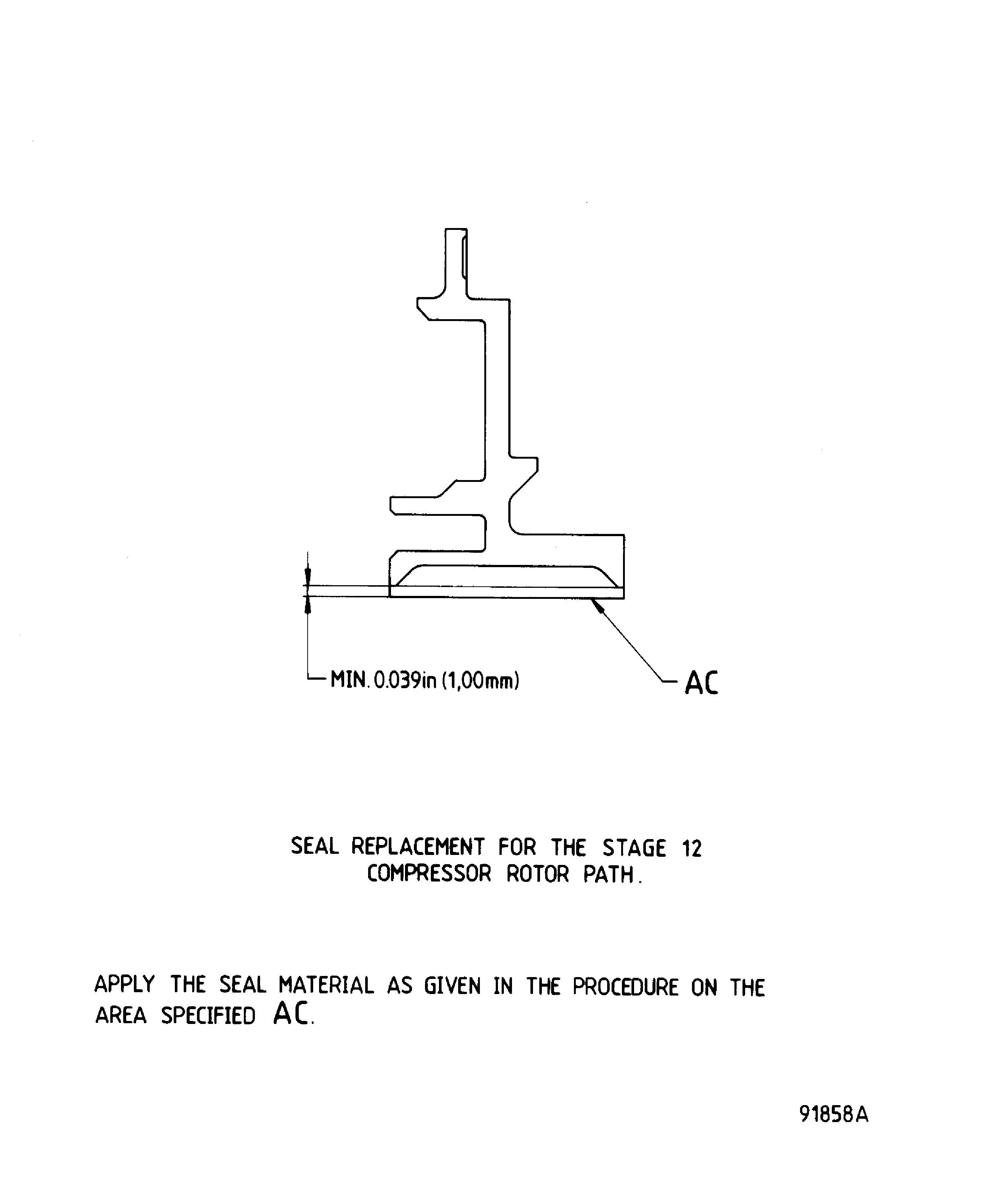

    Figure: Repair Details and Dimensions - Assembly A and Assembly B

    Repair Details and Dimensions - Assembly A and Assembly B

    Figure: Repair Details and Dimensions - Assembly C

    Repair Details and Dimensions - Assembly C

    Figure: Repair Details and Dimensions - Assembly D

    Repair Details and Dimensions - Assembly D

    Figure: Repair Details and Dimensions - Assembly D

    Repair Details and Dimensions - Assembly D

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Added new part number to the effectivity table and revised the procedure to add new subtask to remove the abradable lining and added new figure. (87VR090D)
