TASK 72-41-22-300-025 HPC Stage 6 Stator Vane - Vibro Polish To Restore The Surface Finish, Repair-025 (VRS6499)

DMC:V2500-A0-72-41-2206-00A-648A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-41-22-300-025 HPC Stage 6 Stator Vane - Vibro Polish To Restore The Surface Finish, Repair-025 (VRS6499)

Effectivity

FIG/ITEM

PART NO.

ASSEMBLY

01-350

6A4231

A

01-350

6A7424

A

01-350

6A8767

B

01-400

6A4230C01

A

01-400

6A7423C01

A

01-400

6A8765

B

01-448

6A4230C01

A

01-448

6A7423C01

A

01-448

6A8765

B

01-450

6A4230C02

A

01-450

6A7423C02

A

01-450

6A8766

B

Material of component

DESCRIPTION

MATERIAL

HP compressor stage 6

stator vane

Nickel alloy

General

This repair must only be done when the instruction to do so is given in 72-41-22 Inspection/Check.

This repair gives the procedure to vibro-polish the HP compressor stage 6 stator Vane.

The stage 6 stator vane must have been repaired, where necessary, and inspected before vibro-polishing.

The stage 6 stator vane can only have this repair completed on it three times.

The practices and processes referred to in the procedure by the TASK/SUBTASK numbers are in the SPM.

Price and Availability

Refer to International Aero Engines

Related Repairs - None

NOTE

Equipment and materials necessary to do this repair are in the SPM TASKs given below:
SPM TASK 70-09-00-400-501
SPM TASK 70-11-03-300-503
SPM TASK 70-38-25-380-501

NOTE

To identify the consumable materials, refer to the PCI

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Chemical Cleaning EquipmentLOCALChemical Cleaning Equipment
Surface Finish Measuring EquipmentLOCALSurface Finish Measuring Equipment
Vibrating marking pencilLOCALVibrating marking pencil
Vibro-polishing EquipmentLOCALVibro-polishing Equipment
IAE 3R19097 TBD0AM53IAE 3R190971

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-003 ADHESIVE TAPE BLACK WATERPROOFLOCALCoMat 02-003
CoMat 05-003 ABRASIVE MEDIUM ALUMINUM OXIDE, 120/220 GRADELOCALCoMat 05-003
CoMat 05-093 SUPERFINISHING MEDIA, CERAMIC, ANGLE CUT TRIANGLE IAE56CoMat 05-093
CoMat 05-093A SUPERFINISHING MEDIA, CERAMIC TRISTARIAE56CoMat 05-093A
CoMat 05-093B SUPERFINISHING MEDIA, CERAMIC, ANGLE CUT TRIANGLEIE429CoMat 05-093B
CoMat 05-093C SUPERFINISHING MEDIA, CERAMIC ANGLE CUT TRISTARIE429CoMat 05-093C
CoMat 05-093D SUPERFINISHING MEDIA, CERAMIC TRIANGLEU2008CoMat 05-093D
CoMat 05-095 LIQUID COMPOUND (VIBROPOLISHING FINISHING FLUID)IE230CoMat 05-095
CoMat 05-095A LIQUID COMPOUND (VIBROPOLISHING FINISHING FLUID) IE429CoMat 05-095A
CoMat 05-181 VIBRO POLISHING MEDIA, CERAMIC PINLOCALCoMat 05-181
CoMat 05-182 VIBRO POLISHING COMPOUND, LIQUIDIAE56CoMat 05-182
CoMat 05-183 VIBRO POLISHING PASTEIAE56CoMat 05-183

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-41-22-220-155 Make Sure that the Stage 6 Stator Vane can be Vibro-polished

    1. Refer to Figure and Figure.

      2. Examine the vane root to find if VRS6499 has been completed before (look for the repair identification symbol).

      1. If the repair identification symbol and /2 is engraved adjacent to the part number then the vane cannot be vibro-polished.

    3. Examine the vanes to make sure all the necessary repairs have been completed.

    2. SUBTASK 72-41-22-110-071 Clean the Stage 6 Stator Vane

      1. Chemically clean the vane.

      1. Refer to the SPM TASK 70-11-03-300-503.

      2. Use chemical cleaning equipment.

    3. SUBTASK 72-41-22-350-083 Apply the Mask to the Stage 6 Stator Vane

    1. Refer to Figure and Figure.

      2. Apply the mask to the vane tip and platform.

      1. NOTE

        Apply the mask to the minimum area of the vane air washed surface.

    4. SUBTASK 72-41-22-380-062-A00 Vibro-Polish the Stage 6 Stator Vane Airfoil, Assembly A

      CAUTION

      DO NOT ABRASIVE BLAST THE VANE AS IT IS A GLASS BEAD PEENED COMPONENT.

    1. Refer to Figure.

      2. Vibro-polish the airfoil and adjacent surfaces. Prepare the component for inspection.

      1. Refer to the SPM TASK 70-38-25-380-501.

      2. Polish the surfaces in the area specified AA.

      3. The surface finish is to be 20 microinches (0.50 micrometers) on a minimum of 70 percent of the surface area.

      4. On the remainder of the vane the surface finish is to be between 20 microinches (0.50 micrometers) and 32 microinches (0.80 micrometers).

      5. Do not have more than 40 vanes for one cubic foot of the superfinishing media.

      6. Use vibro polishing equipment.

    5. SUBTASK 72-41-22-380-062-B00 Vibro-Polish the Stage 6 Stator Vane Airfoil, Assembly B

    1. Refer to Figure.

      2. Vibro-polish the airfoil and adjacent surfaces. Prepare the component for inspection.

      1. Refer to the SPM TASK 70-38-25-380-501.

      2. Polish the surfaces in the area specified AA.

      3. The vane airfoil and fillet surface are to have a surface finish of 10 microinches (0.25 micrometers).

      4. On the remainder of the vane the surface finish is to be 16 microinches (0.40 micrometers).

      5. Do not have more than 40 vanes for one cubic foot of the suprfinishing media.

      6. Use vibro polishing equipment.

    6. SUBTASK 72-41-22-220-156-A00 Examine the Stage 6 Stator Vane Surface Finish, Assembly A

    1. Refer to Figure.

      2. Examine the surface finish of the vanes.

      1. Refer to the SPM TASK 70-38-25-380-501.

      2. Use surface measuring equipment.

        NOTE

        Examine the surface finish on the two sides of the airfoil and the adjacent surfaces in the area specified AA. The surface finish is to be 20 microinches (0.50 micrometers) on a minimum of 70 percent of the surface area. On the remainder of the vane the surface finish is to be between 20 microinches (0.50 micrometers) and 32 microinches (0.80 micrometers).

    7. SUBTASK 72-41-22-220-156-B00 Examine the Stage 6 Stator Vane Surface Finish, Assembly B

    1. Refer to Figure.

      2. Examine the surface finish of the vanes.

      1. Refer to the SPM TASK 70-38-25-380-501.

      2. Use surface measuring equipment.

        NOTE

        Examine the surface finish on the two sides of the airfoil and the adjacent surfaces in the area specified AA. The vane airfoil is to have a surface finish of 10 microinches (0.25 micrometers). On the remainder of the vane the surface finish is to be 16 microinches (0.40 micrometers) maximum.

    8. SUBTASK 72-41-22-350-084 Identify the Repair

      CAUTION

      DO NOT VIBRO-ENGRAVE ON THE VANE AIRFOIL OR LOCATION FACES.

    1. Refer to Figure and Figure.

      2. Identify the repair.

      1. Refer to the SPM TASK 70-09-00-400-501, SUBTASK 70-09-00-400-001.

      2. If this is the first time this repair has been completed on the vane vibro-engrave a 1 in a triangle adjacent to the part number.

      3. If this is the second time this repair has been completed on the vane vibro-engrave /1 adjacent to the triangle.

      4. If this is the third time this repair has been completed on the vane vibro-engrave /2 adjacent to the triangle.

      5. Use vibro engraving equipment.

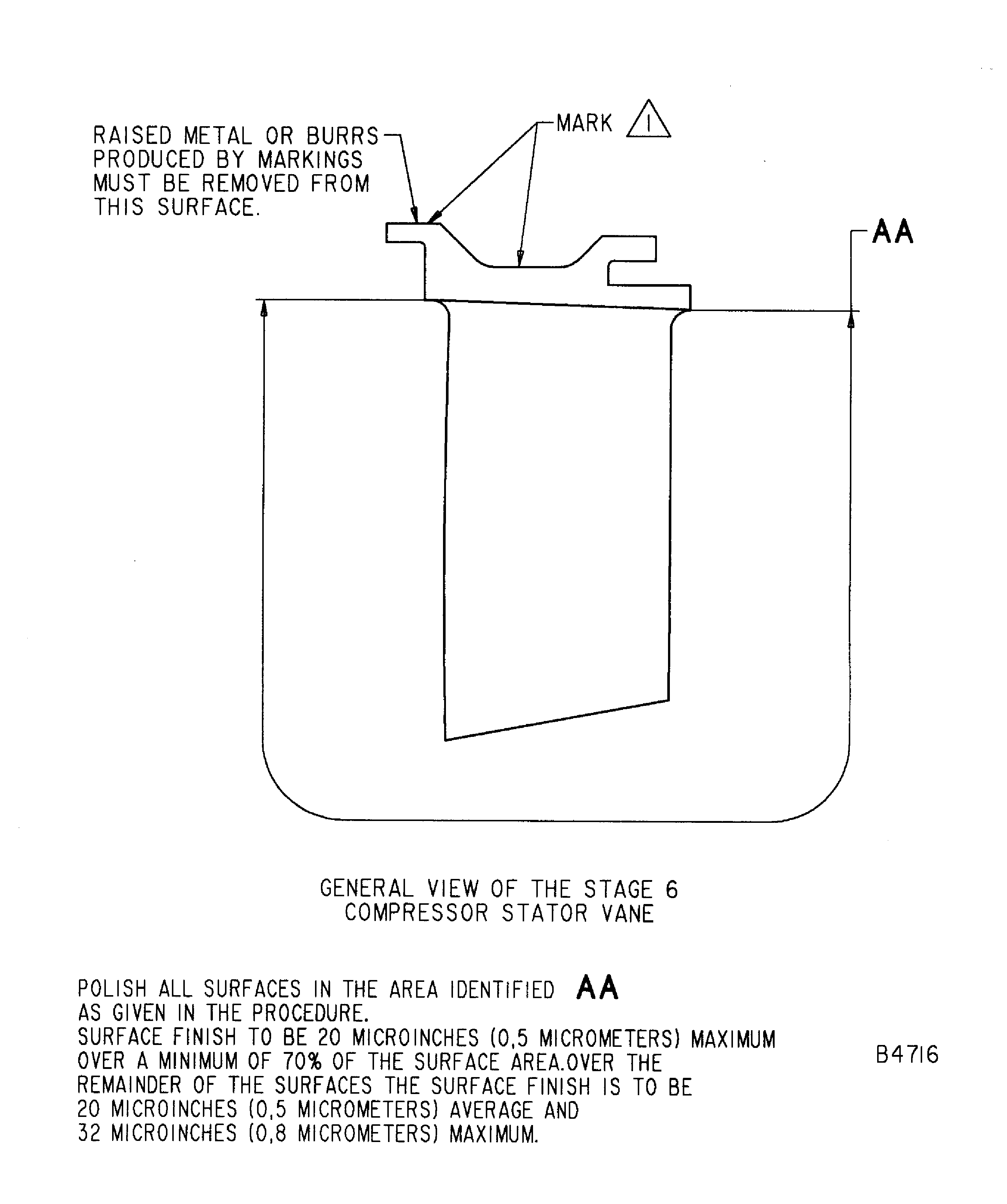

    9. Figure: Repair Details and Dimensions - Assembly A

    Repair Details and Dimensions - Assembly A

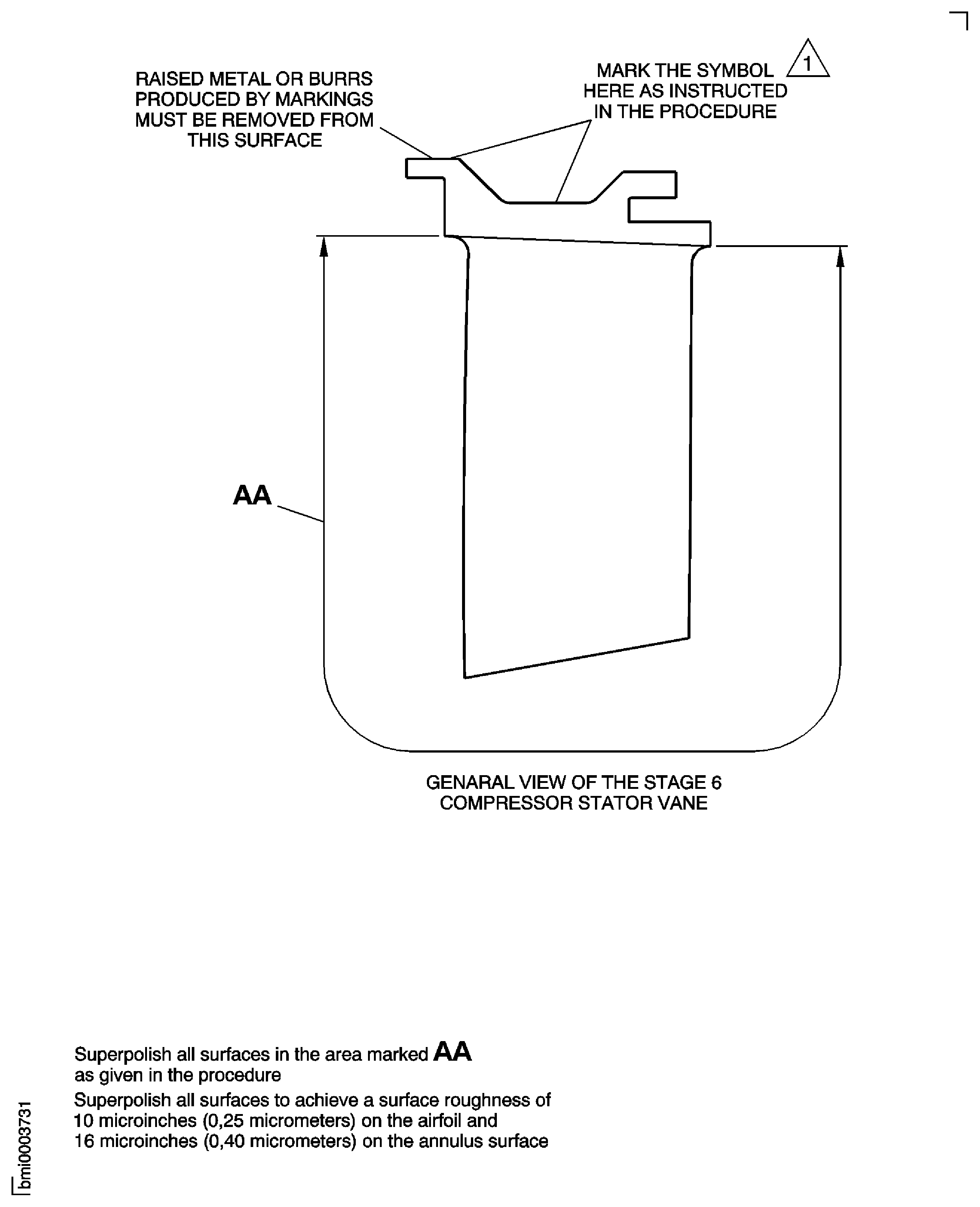

    Figure: Repair Details and Dimensions - Assembly B

    Repair Details and Dimensions - Assembly B

Requirements After Job Completion

Follow-On Conditions

NONE
Manufacturer Code:0AM53
Enterprise Name:IAE INTERNATIONAL AERO ENGINES AG
BU Name:NULL
Building:SUITE 400
Street:628 HEBRON AVENUE
City:GLASTONBURY
State:CT
Zip Code:06033
Country:USA
