TASK 72-41-22-300-024 HPC Stage 6 Stator Vane - Repair The Airfoil By Material Removal, Repair-024 (VRS6503)

DMC:V2500-A0-72-41-2206-00A-649A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-41-22-300-024 HPC Stage 6 Stator Vane - Repair The Airfoil By Material Removal, Repair-024 (VRS6503)

Effectivity

FIG/ITEM PART NO.

01-350

6A4231

01-350

6A7424

01-350

6A8767

01-400

6A4230 C01

01-400

6A7423 C01

01-400

6A8765

01-448

6A4230 C01

01-448

6A7423 C01

01-448

6A8765

01-450

6A4230 C02

01-450

6A7423 C02

01-450

6A8766

Material of component

PART IDENT

MATERIAL

Stage 6

HP compressor stator vane

Nickel alloy

General

This repair must only be done when the instruction to do so is given in 72-41-22 Inspection/Check.

This repair gives the instruction to remove damage on the HP compressor stator vane, Stage 6 by material removal.

Not more than ten percent of stator vanes dressed to the maximum Limit of this repair should be included in any one stator stage.

Stator vanes must be repaired as soon as damage or wear is monitored, to get back HP compressor efficiency and extend the stator vane life.

Material removal from the HP compressor stator vane airfoil fillet radius is not permitted.

When the depth of cut away material is more than 0.002 in. (0.05 mm), it is necessary to glass bead peen the HP compressor stator vane, Stage 6, to restore the airfoil surface finish, refer to VRS6210, TASK 72-41-22-300-022 (Repair-022).

The practices and processes referred to in the procedure by the TASK/SUBTASK number are in the SPM.

Price and availability

Refer to International Aero Engines

Related repairs

HP Compressor - Stage 6 to 11 - stator vanes - Restore airfoil surface finish, Refer to VRS6210, TASK 72-41-22-300-022 (REPAIR-022).

NOTE

  1. Equivalent materials or equipment can be used.

  2. More equipment and materials necessary to do this repair are in the SPM TASKS given below.

NOTE

To identify the consumable materials, refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Penetrant Crack Test EquipmentLOCALPenetrant crack test equipment
Portablegrinding equipmentLOCALPortable grinding equipment
Dimensional inspection equipmentLOCALDimensional inspection equipment
Chemical cleaning equipmentLOCALChemical cleaning equipment
Vibrating marking pencilLOCALVibrating marking pencil

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 05-075 WATERPROOF SILICON CARBIDEIE241CoMat 05-075
CoMat 05-076 WATERPROOF SILICON CARBIDEK3895CoMat 05-076
CoMat 05-077 WATERPROOF SILICON CARBIDEK6835CoMat 05-077
CoMat 05-079 WATERPROOF SILICON CARBIDEK3895CoMat 05-079
CoMat 05-082 WATERPROOF SILICON CARBIDE44197CoMat 05-082

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-41-22-230-072 Do a Crack Test

      1. Do a penetrant crack test.

      1. Refer to the SPM TASK 70-23-01-230-501.

      2. Use penetrant crack test equipment.

    2. SUBTASK 72-41-22-220-181 Visually Examine

      1. Visually examine the crack test.

      1. Indications of defects on the stator are not permitted and must be removed.

    3. SUBTASK 72-41-22-350-082 Remove Damage from the HP Compressor Stator Vane, Stage 6

    1. Refer to Figure, Figure, Figure and Figure.

      2. Remove damage on the leading and trailing edges by material removal.

      1. Use portable grinding equipment.

      2. Continue to remove material until all the damage is removed.

      3. Remove damage on the airfoil surfaces by material removal.

      1. Refer to Figure.

      2. Use portable grinding equipment.

      3. Continue to remove material until all the damage is removed.

      4. The maximum depth to remove the damage must not be more than 0.005 in. (0.13mm).

      5. The diameter of the repaired area is to be 50 times the depth.

      4. Make smooth the repaired area.

      2. Make sure all the damage marks are completely removed and the area is made smooth into the adjacent material.

      5. Polish the repaired area.

      2. Polish the repaired area to remove scratches and to give a surface finish the same as the adjacent material.

    4. SUBTASK 72-41-22-220-154 Examine the Repaired HP Compressor Stator Vane, Stage 6,and.

    1. Refer to Figure, Figure, Figure and Figure.

      2. Visually examine and measure the dimensions of the leading, trailing edges and airfoil surfaces.

      1. Discard the vanes, if more than the limits specified.

      2. Use dimensional inspection equipment.

    5. SUBTASK 72-41-22-110-070 Cold Ferric Chloride Etch

      1. Swab etch the repaired area(s).

      1. Refer to the SPM TASK 70-11-39-300-503, SUBTASK 70-11-39-300-001.

      2. Use chemical cleaning equipment.

    6. SUBTASK 72-41-22-230-073 Do a Crack Test

      1. Do a penetrant crack test on the repaired vanes.

      1. Refer to the SPM TASK 70-23-01-230-501.

      2. Use penetrant crack test equipment.

      3. No cracks are permitted.

    7. SUBTASK 72-41-22-350-103 Identify the Repair

    1. Refer to Figure.

      2. Mark a code symbol adjacent to the assembly number.

      1. Refer to the SPM TASK 70-09-00-400-501, SUBTASK 70-09-00-400-001.

      2. Use vibro-engraving equipment.

    8. SUBTASK 72-41-22-380-071 Restore the Airfoil Surface Finish

      NOTE

      This SUBTASK is necessary to restore the airfoil surface finish only when the depth of cut away material is more than 0.002 in. (0.05 mm).

      1. Restore the airfoil surface finish.

      1. Refer to VRS6210, TASK 72-41-22-300-022 (Repair-022).

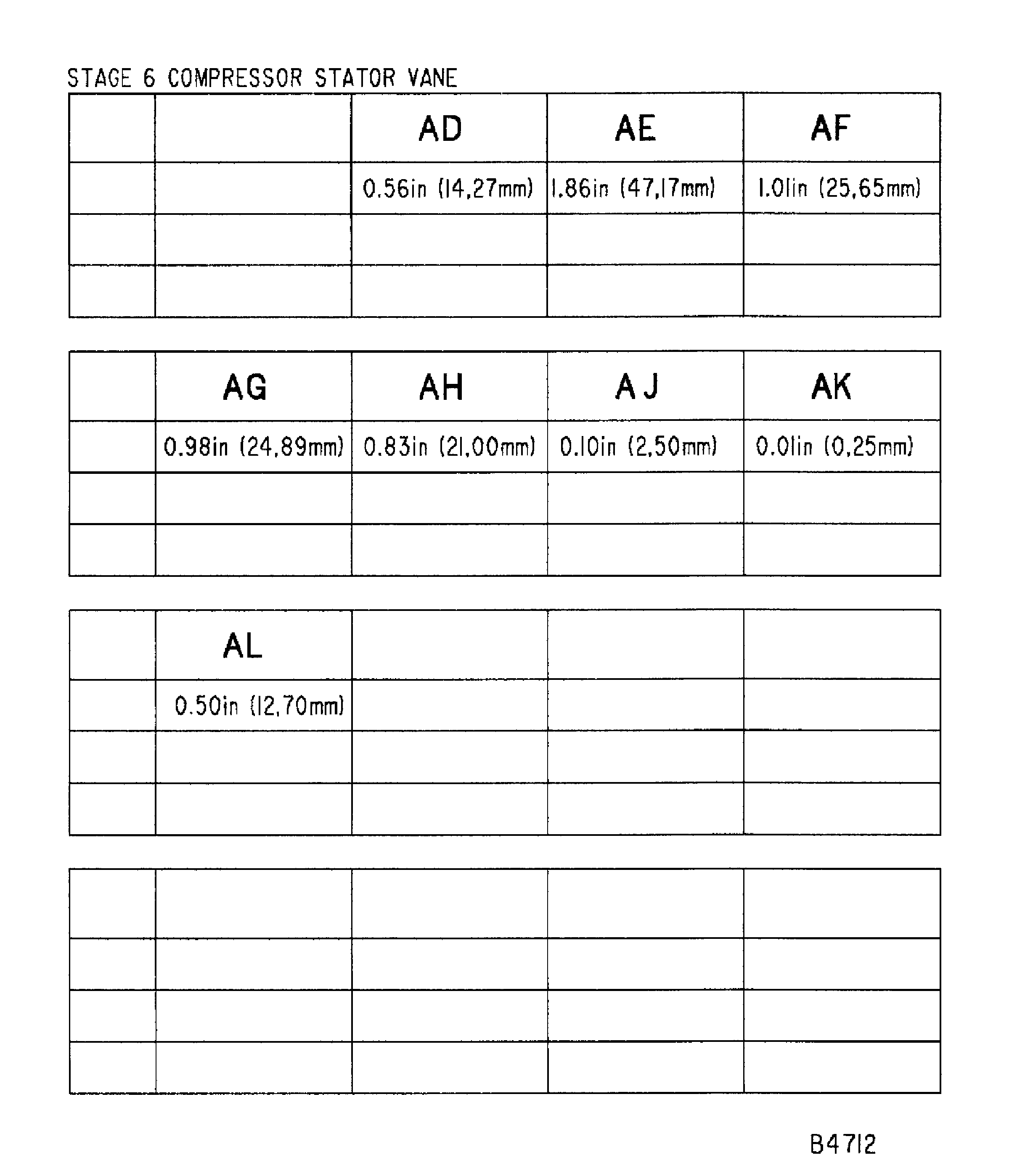

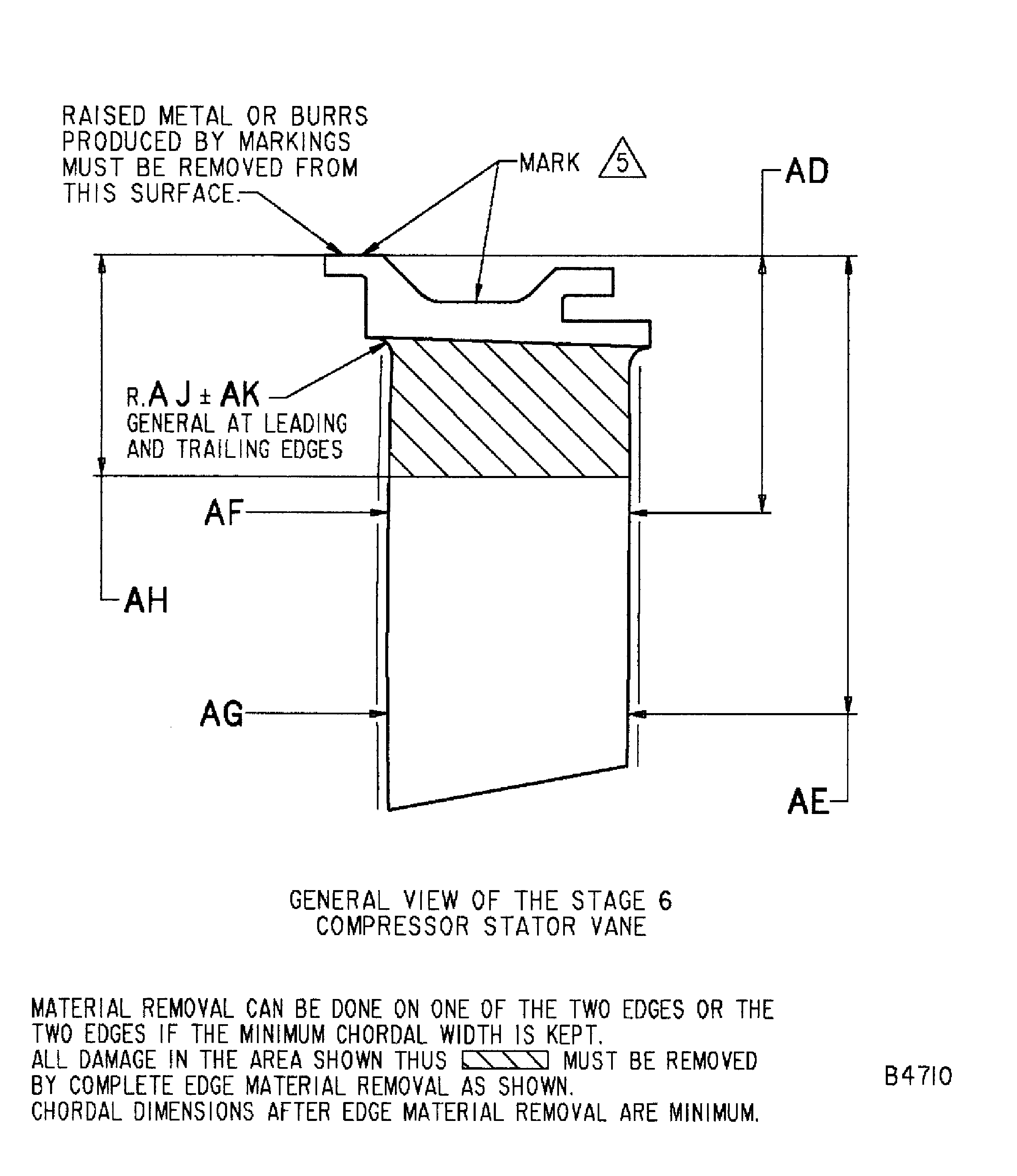

    9. Figure: Repair details and dimensions

    Repair details and dimensions

    Figure: Repair details and dimensions

    Repair details and dimensions

    Figure: Repair details and dimensions

    Repair details and dimensions

    Figure: Repair details and dimensions

    Repair details and dimensions
