TASK 72-41-22-300-002 HPC Stage 7 Stator Vane - Vibro Polish To Restore The Surface Finish, Repair-002 (VRS6080)

DMC:V2500-A0-72-41-2207-00A-648A-C|Issue No:002.00|Issue Date:2017-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-41-22-300-002 HPC Stage 7 Stator Vane - Vibro Polish To Restore The Surface Finish, Repair-002 (VRS6080)

Effectivity

FIG/ITEM

PART NO.

ASSEMBLY

02-150

6A4215

A

02-150

6A7426

A

02-350

6A3266

A

02-350

6A4216

A

02-350

6A7427

A

02-350

6A8770

B

02-400

6A3265C01

A

02-400

6A4213C01

A

02-400

6A7425C01

A

02-400

6A8768

B

02-448

6A3265C01

A

02-448

6A4213C01

A

02-448

6A7425C01

A

02-448

6A8768

B

02-450

6A3265C02

A

02-450

6A4213C02

A

02-450

6A7425C02

A

02-450

6A8769

B

Material of component

PART IDENT

MATERIAL

HP compressor stage 7

stator vanes

Nickel chromium alloy

General

This repair must only be done when instruction to do so is given in 72-41-22 inspection/check.

This repair gives the procedure to vibro polish the HP compressor stage 7 stator vane.

The stage 7 stator vane must have been repaired, where necessary, and inspected before vibro polishing.

The stage 7 stator vane can only have this repair completed on it three times.

The practices and processes referred to in the procedure by the TASK/SUBTASK numbers are in the SPM.

Price and Availability

Refer to International Aero Engines

Related Repairs - None

NOTE

Equipment and materials necessary to do this repair are given in the SPM TASKS given below:
SPM TASK 70-09-00-400-501
SPM TASK 70-11-03-300-503
SPM TASK 70-38-25-380-501

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Chemical cleaning equipmentLOCALChemical cleaning equipment
Surface finish measuring equipmentLOCALSurface finish measuring equipment
Vibrating marking pencilLOCALVibrating marking pencil
Vibro-polishing equipmentLOCALVibro-polishing equipment
IAE 3R18565 Mask0AM53IAE 3R185651

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-003 ADHESIVE TAPE BLACK WATERPROOFLOCALCoMat 02-003
CoMat 05-093 SUPERFINISHING MEDIA, CERAMIC, ANGLE CUT TRIANGLE IAE56CoMat 05-093
CoMat 05-093A SUPERFINISHING MEDIA, CERAMIC TRISTARIAE56CoMat 05-093A
CoMat 05-093B SUPERFINISHING MEDIA, CERAMIC, ANGLE CUT TRIANGLEIE429CoMat 05-093B
CoMat 05-093C SUPERFINISHING MEDIA, CERAMIC ANGLE CUT TRISTARIE429CoMat 05-093C
CoMat 05-093D SUPERFINISHING MEDIA, CERAMIC TRIANGLEU2008CoMat 05-093D
CoMat 05-095 LIQUID COMPOUND (VIBROPOLISHING FINISHING FLUID)IE230CoMat 05-095
CoMat 05-095A LIQUID COMPOUND (VIBROPOLISHING FINISHING FLUID) IE429CoMat 05-095A
CoMat 05-181 VIBRO POLISHING MEDIA, CERAMIC PINLOCALCoMat 05-181
CoMat 05-182 VIBRO POLISHING COMPOUND, LIQUIDIAE56CoMat 05-182
CoMat 05-183 VIBRO POLISHING PASTEIAE56CoMat 05-183

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-41-22-220-119 Make sure that the Stage 7 Stator Vane can be Vibro Polished, Assembly A and Assembly B

    1. Refer to Figure and Figure.

      2. Examine the vane platform to find if VRS6080 has been completed before (Look for the repair identification symbol).

      1. If the repair identification symbol and /2 is engraved adjacent to the part number, the vane cannot be vibro-polished.

    3. Examine the vane to make sure that all the repairs have been completed.

    2. SUBTASK 72-41-22-110-054 Clean the Stage 7 Stator Vane

      1. Remove the grease.

      1. Refer to the SPM TASK 70-11-03-300-503.

      2. Use chemical cleaning equipment.

    3. SUBTASK 72-41-22-350-056 Apply the Mask to the Vane

    1. Refer to Figure and Figure.

      2. Apply the mask to the vane tip and platform.

    3. NOTE

      Apply the mask to the minimum area of the vane air washed surface.

    4. SUBTASK 72-41-22-380-051-A00 Vibro-Polish the Stage 7 Stator Vane Airfoil, Assembly A

      CAUTION

      DO NOT ABRASIVE BLAST THE VANE AS IT IS A GLASS BEAD PEENED COMPONENT.

    1. Refer to Figure.

      2. Vibro-polish the airfoil.

      1. Refer to the SPM TASK 70-38-25-380-501.

      2. The surface finish is to be 20 microinches (0.50 micrometers) maximum on a minimum of 70 percent of the surface area.

      3. On the remainder of the surfaces the surface finish is to be between 20 microinches (0.50 micrometers) average and 32 microinches (0.80 micrometers) maximum.

      4. Do not have more than 40 vanes for one cubic foot of the superfinishing media.

      5. Use vibro polishing equipment.

      6. Use one of the superfinishing media and one of the liquid compounds or the Keramo polishing media given below:

        NOTE

        The maximum size of the superfinishing media given above is 10 mm x 10 mm.

        NOTE

        The maximum size of the superfinishing media given above is 6 mm x 10 mm.

        CoMat 05-183 VIBRO POLISHING PASTE Vibro-Polish Paste (Keramo)

    5. SUBTASK 72-41-22-380-051-B00 Vibro-Polish the Stage 7 Stator Vane Airfoil, Assembly B

    1. Refer to Figure.

      2. Vibro-polish the airfoil.

      1. Refer to the SPM TASK 70-38-25-380-501.

      2. Polish the surfaces in the area specified AB as given in the procedure.

      3. The vane airfoil surfaces are to have a surface finish of 10 microinches (0.25 micrometers).

      4. On the remainder of the vane the surface finish is to be 16 microinches (0.40 micrometers) maximum.

      5. Do not have more than 40 vanes for one cubic foot of the superpolishing media.

      6. Use vibro-polishing equipment.

      7. Use one of the superpolishing media and one of the liquid compounds or the Keramo polishing media given below:

        NOTE

        The maximum size of the superfinishing media given above is 10 mm x 10 mm.

        NOTE

        The maximum size of the superfinishing media given above is 6 mm x 10 mm.

        CoMat 05-183 VIBRO POLISHING PASTE Vibro-Polish Paste (Keramo)

    6. SUBTASK 72-41-22-220-120-A00 Examine the Stage 7 Stator Vanes Surface Finish, Assembly A

    1. Refer to Figure.

      2. Examine the surface finish of the vanes.

      1. Refer to the SPM TASK 70-38-25-380-501.

      2. Use surface measuring equipment.

        NOTE

        Examine the surface finish on the two sides of the airfoil and the adjacent surfaces in the area specified AB. The surface finish is to be 20 microinches (0.50 micrometers) on a minimum of 70 percent of the surface area. On the remainder of the surfaces the surface finish is to be 20 microinches (0.50 micrometers) average and 32 microinches (0.80 micrometers) maximum.

    7. SUBTASK 72-41-22-220-120-B00 Examine the Stage 7 Stator Vanes Surface Finish, Assembly B

    1. Refer to Figure.

      2. Examine the surface finish of the vanes.

      1. Refer to the SPM TASK 70-38-25-380-501.

      2. Use surface measuring equipment.

    3. NOTE

      Examine the surface finish on the two sides of the airfoil and the adjacent surfaces in the area specified AB. The airfoil surface finish is to be 10 microinches (0.25 micrometers). On the remainder of the vane the surface finish is to be 16 microinches (0.40 micrometers) maximum.

    8. SUBTASK 72-41-22-350-057 Identify the Repair

      CAUTION

      DO NOT VIBRO-ENGRAVE ON THE VANE AIRFOIL OR LOCATION FACES.

    1. Refer to Figure and Figure.

      2. Identify the repair.

      1. Refer to the SPM TASK 70-09-00-400-501 SUBTASK 70-09-00-400-001.

        If this is the first time this repair has been completed on the vane vibro engrave a 1 in a triangle adjacent to the part number.

        If this is the second time this repair has been completed on the vane vibro engrave /1 adjacent to the triangle.

        If this is the third time this repair has been completed on the vane vibro-engrave /2 adjacent to the triangle.

        Use vibro-engraving equipment.

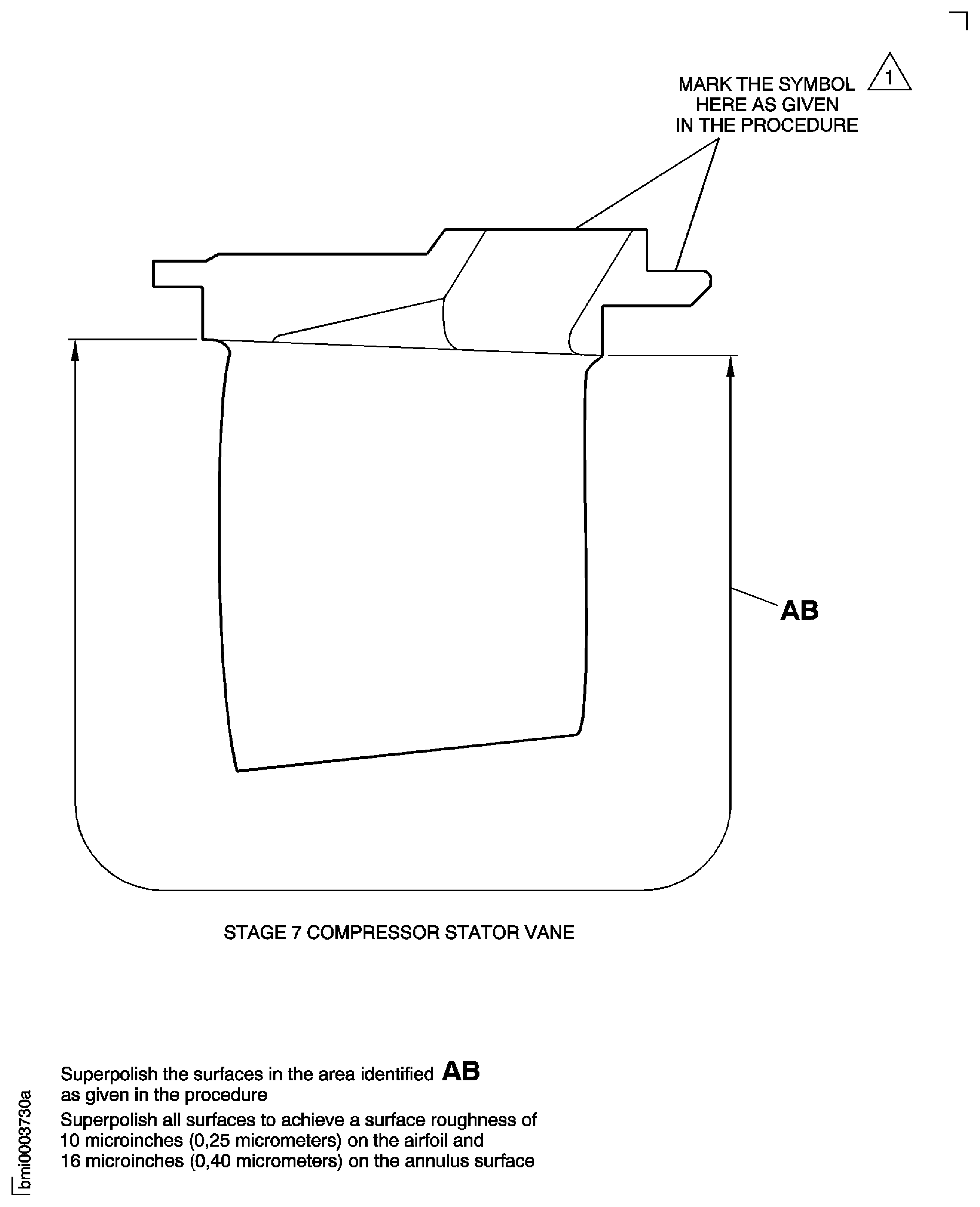

    9. Figure: Repair Details and Dimensions - Assembly A

    Repair Details and Dimensions - Assembly A

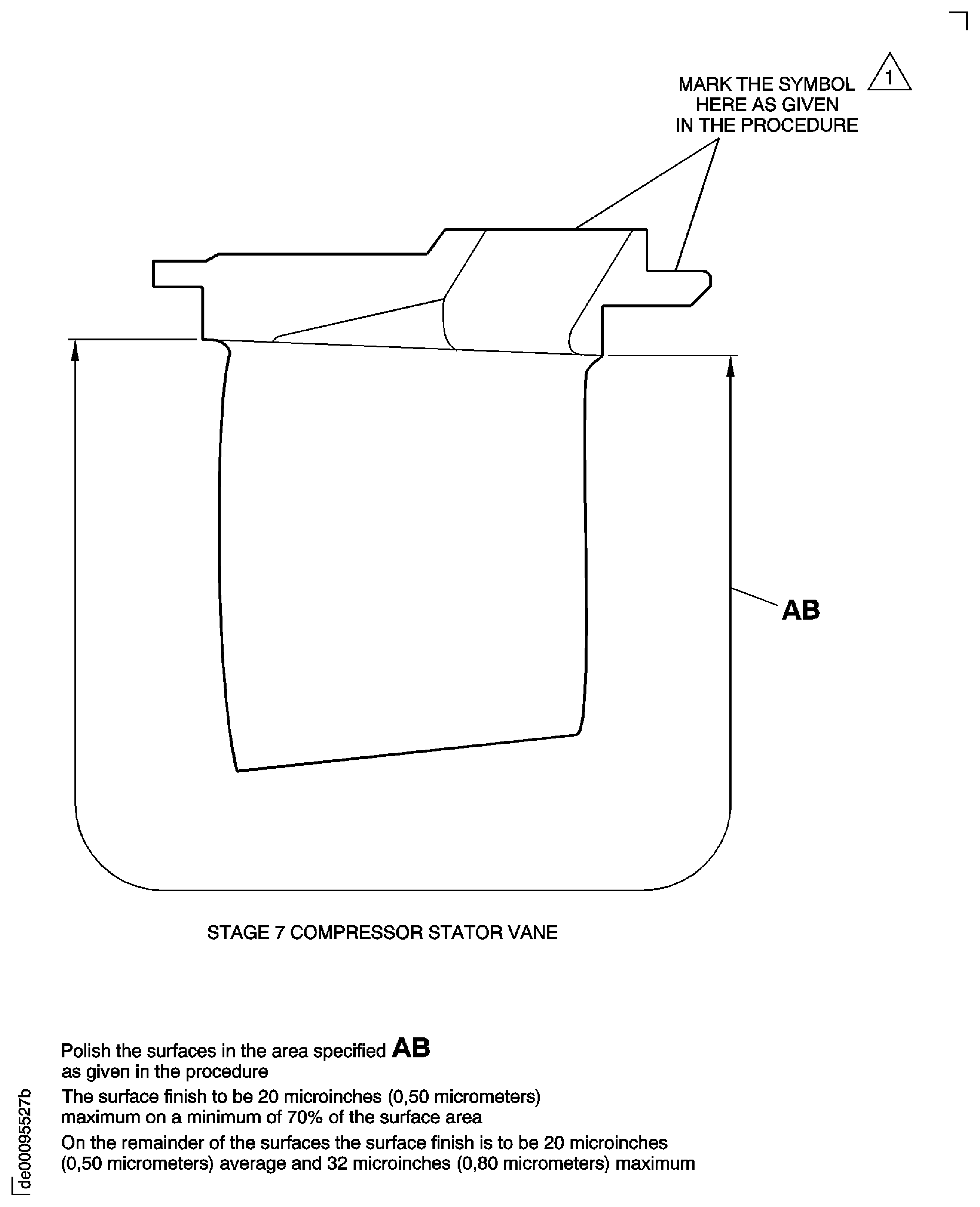

    Figure: Repair Details and Dimensions - Assembly B

    Repair Details and Dimensions - Assembly B
