TASK 72-41-22-300-006 HPC Stage 8 Stator Vane - Vibro Polish To Restore The Surface Finish, Repair-006 (VRS6081)

DMC:V2500-A0-72-41-2208-00A-648A-C|Issue No:002.00|Issue Date:2017-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-41-22-300-006 HPC Stage 8 Stator Vane - Vibro Polish To Restore The Surface Finish, Repair-006 (VRS6081)

Effectivity

FIG/ITEM

PART NO.

ASSEMBLY

03-150

6A3409

A

03-150

6A4250

A

03-200

6A3407

A

03-200

6A4246

A

03-200

6A8774

B

03-250

6A3408

A

03-250

6A4248

A

03-250

6A8775

B

03-350

6A3410

A

03-350

6A4249

A

03-350

6A8776

B

03-400

6A3267C01

A

03-400

6A4245C01

A

03-400

6A8772

B

03-448

6A3267C01

A

03-448

6A4245C01

A

03-448

6A8772

B

03-450

6A3267C02

A

03-450

6A4245C02

A

03-450

6A8773

B

Material of component

DESCRIPTION

MATERIAL

HP compressor stage 8

stator vane

Nickel chromium alloy

General

This repair must only be done when the instruction to do so is given in 72-41-22 inspection/check.

This repair gives the procedure to vibro polish the HP compressor stage 8 stator vanes.

The stage 8 stator vane must have been repaired, where necessary, and inspected before vibro polishing.

The stage 8 stator vane can only have this repair, completed on it three times.

The practices and processes referred to in the procedure by the TASK/SUBTASK numbers are in the SPM.

Price and Availability

Refer to International Aero Engines

Related Repairs - None

NOTE

Equipment and materials necessary to do this repair are given in the SPM TASKs given below:
SPM TASK 70-09-00-400-501
SPM TASK 70-11-03-300-503
SPM TASK 70-38-25-380-501

NOTE

To identify the consumable materials refer to the PCI.

NOTE

Special tools are identified in the procedure by the tool primary number

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Chemical cleaning equipmentLOCALChemical cleaning equipment
Surface finish measuring equipmentLOCALSurface finish measuring equipment
Vibro-polishing equipmentLOCALVibro-polishing equipment
Vibrating marking pencilLOCALVibrating marking pencil
IAE 3R18566 Mask0AM53IAE 3R185661

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-003 ADHESIVE TAPE BLACK WATERPROOFLOCALCoMat 02-003
CoMat 05-093 SUPERFINISHING MEDIA, CERAMIC, ANGLE CUT TRIANGLE IAE56CoMat 05-093
CoMat 05-093A SUPERFINISHING MEDIA, CERAMIC TRISTARIAE56CoMat 05-093A
CoMat 05-093B SUPERFINISHING MEDIA, CERAMIC, ANGLE CUT TRIANGLEIE429CoMat 05-093B
CoMat 05-093C SUPERFINISHING MEDIA, CERAMIC ANGLE CUT TRISTARIE429CoMat 05-093C
CoMat 05-093D SUPERFINISHING MEDIA, CERAMIC TRIANGLEU2008CoMat 05-093D
CoMat 05-095 LIQUID COMPOUND (VIBROPOLISHING FINISHING FLUID)IE230CoMat 05-095
CoMat 05-095A LIQUID COMPOUND (VIBROPOLISHING FINISHING FLUID) IE429CoMat 05-095A
CoMat 05-181 VIBRO POLISHING MEDIA, CERAMIC PINLOCALCoMat 05-181
CoMat 05-182 VIBRO POLISHING COMPOUND, LIQUIDIAE56CoMat 05-182
CoMat 05-183 VIBRO POLISHING PASTEIAE56CoMat 05-183

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-41-22-220-121 Make sure that the Stage 8 Stator Vane can be Vibro Polished

    1. Refer to Figure and Figure.

      2. Examine the vane platform to find if VRS6081 has been completed before (Look for the repair identification symbol).

      1. If the repair identification symbol and /2 is engraved adjacent to the part number, the vane cannot be vibro-polished.

    3. Examine the vane to make sure that all the repairs have been completed.

    2. SUBTASK 72-41-22-110-055 Clean the Stage 8 Stator Vane

      1. Chemically clean the vane.

      1. Refer to the SPM TASK 70-11-03-300-503.

        Use chemical cleaning equipment.

    3. SUBTASK 72-41-22-350-058 Apply the Mask to the Vane

    1. Refer to Figure and Figure.

      2. Apply the mask to the vane tip and platform.

    3. NOTE

      Apply the mask to the minimum area of the vane air washed surface.

    4. SUBTASK 72-41-22-380-052-A00 Vibro-Polish the Stage 8 Stator Vane Airfoil, Assembly A

      CAUTION

      DO NOT ABRASIVE BLAST THE VANE AS IT IS A GLASS BEAD PEENED COMPONENT.

    1. Refer to Figure.

      2. Vibro-polish the airfoil and adjacent surfaces. Prepare the component for inspection.

      1. Refer to the SPM TASK 70-38-25-380-501.

      2. Polish the surfaces in the area specified AB as given in the procedure.

      3. The surface finish is to be 20 microinches (0.50 micrometers) maximum on a minimum of 70 percent of the surface area.

      4. On the remainder of the surfaces the surface finish is to be 20 microinches (0.50 micrometers) average and 32 microinches (0.80 micrometers) maximum.

      5. Do not have more than 40 vanes for one cubic foot of the superfinishing media.

      6. Use vibro-polishing equipment.

    5. SUBTASK 72-41-22-380-052-B00 Vibro-Polish the Stage 8 Stator Vane Airfoil, Assembly B

      CAUTION

      DO NOT ABRASIVE BLAST THE VANE AS IT IS A GLASS BEAD PEENED COMPONENT.

    1. Refer to Figure.

      2. Vibro-polish the airfoil and adjacent annulus surfaces. Prepare the component for inspection.

      1. Refer to the SPM TASK 70-38-25-380-501.

        Polish the surfaces in the area specified AB as given in the procedure.

        The vane airfoil surface is to have a surface finish of 10 microinches (0.25 micrometers).

        On the remainder of the vane the surface finish is to be 16 microinches (0.40 micrometers) maximum.

        Do not have more than 40 vanes for one cubic foot of the superfinishing media.

        Use vibro-polishing equipment.

        Use one of the superfinishing media and one of the liquid compounds or the Keramo polishing media given below:

    6. SUBTASK 72-41-22-220-122-A00 Examine the Stage 8 Stator Vane Surface Finish, Assembly A

    1. Refer to Figure.

      2. Examine the surface finish of the vanes.

      1. Refer to the SPM TASK 70-38-25-380-501.

      2. Use surface measuring equipment.

        NOTE

        Examine the surface finish on the two sides of the airfoil and the adjacent surfaces in the area specified AB. The surface finish is to be 20 microinches (0.50 micrometers) maximum on a minimum of 70 percent of the surface area. On the remainder of the surfaces the surface finish is to be 20 microinches (0.50 micrometers) average and 32 microinches (0.80 micrometers) maximum.

    7. SUBTASK 72-41-22-220-122-B00 Examine the Stage 8 Stator Vane Surface Finish, Assembly B

    1. Refer to Figure.

      2. Examine the surface finish of the vanes.

      1. Refer to the SPM TASK 70-38-25-380-501.

        Use surface measuring equipment.

    3. NOTE

      Examine the surface finish on the two sides of the airfoil and the adjacent surfaces in the area specified AB. The vane airfoil surface is to have a surface finish of 10 microinches (0.25 micrometers). On the remainder of the vane the surface finish is to have a surface finish of 16 microinches (0.40 micrometers) maximum.

    8. SUBTASK 72-41-22-350-059 Identify the Repair

      CAUTION

      DO NOT VIBRO-ENGRAVE ON THE VANE AIRFOIL OR LOCATION FACES.

    1. Refer to Figure and Figure.

      2. Identify the repair.

      1. Refer to the SPM TASK 70-09-00-400-501, SUBTASK 70-09-00-400-501.

        If this is the first time this repair has been completed on the vane vibro engrave a 1 in a triangle adjacent to the part number.

        If this is the second time the repair has been completed on the vane vibro engrave /1 adjacent to the triangle.

        If this is the third time the repair has been completed on the vane vibro-engrave /2 adjacent to the triangle.

        Use vibro engraving equipment.

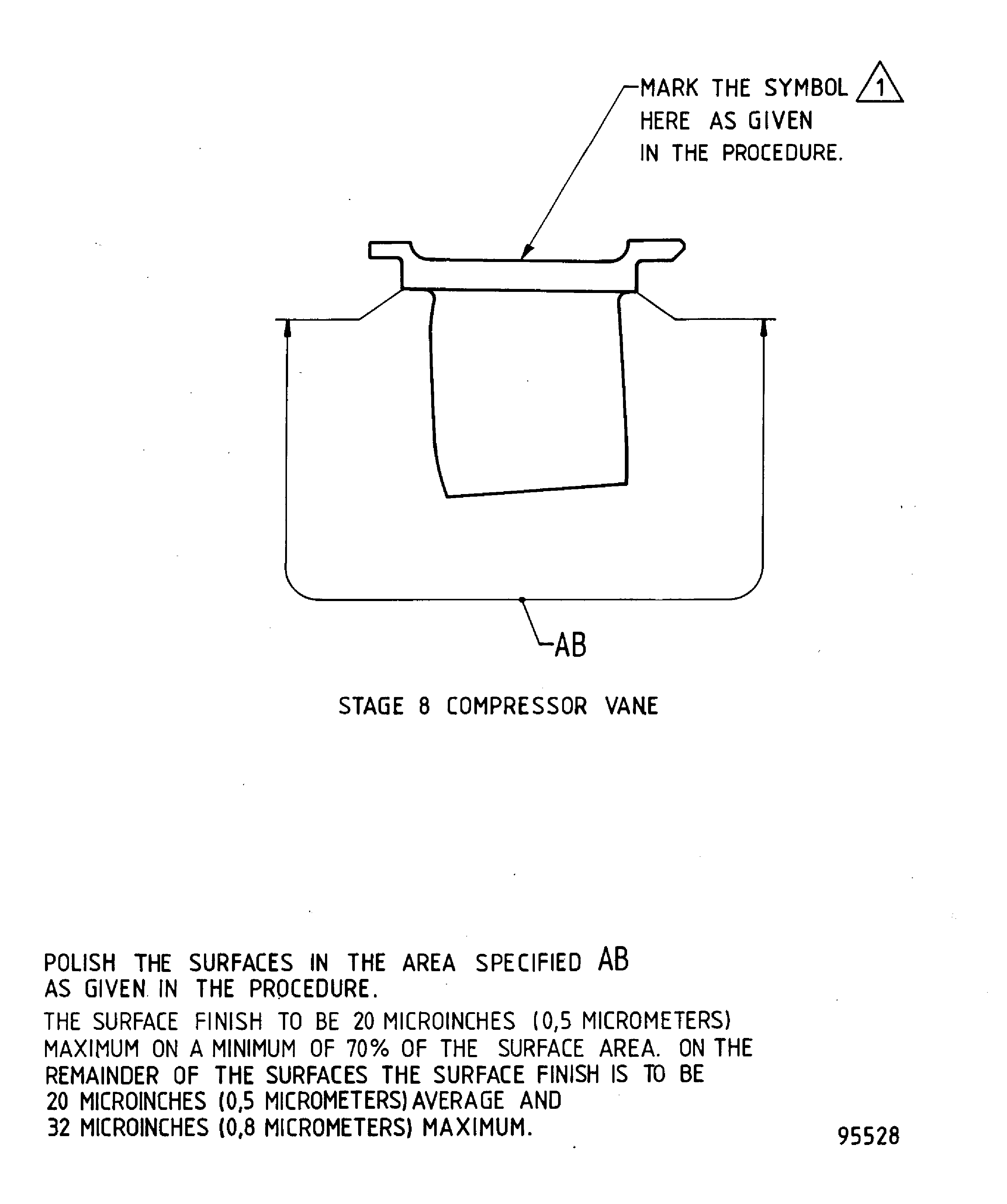

    9. Figure: Repair Details and Dimensions - Assembly A

    Repair Details and Dimensions - Assembly A

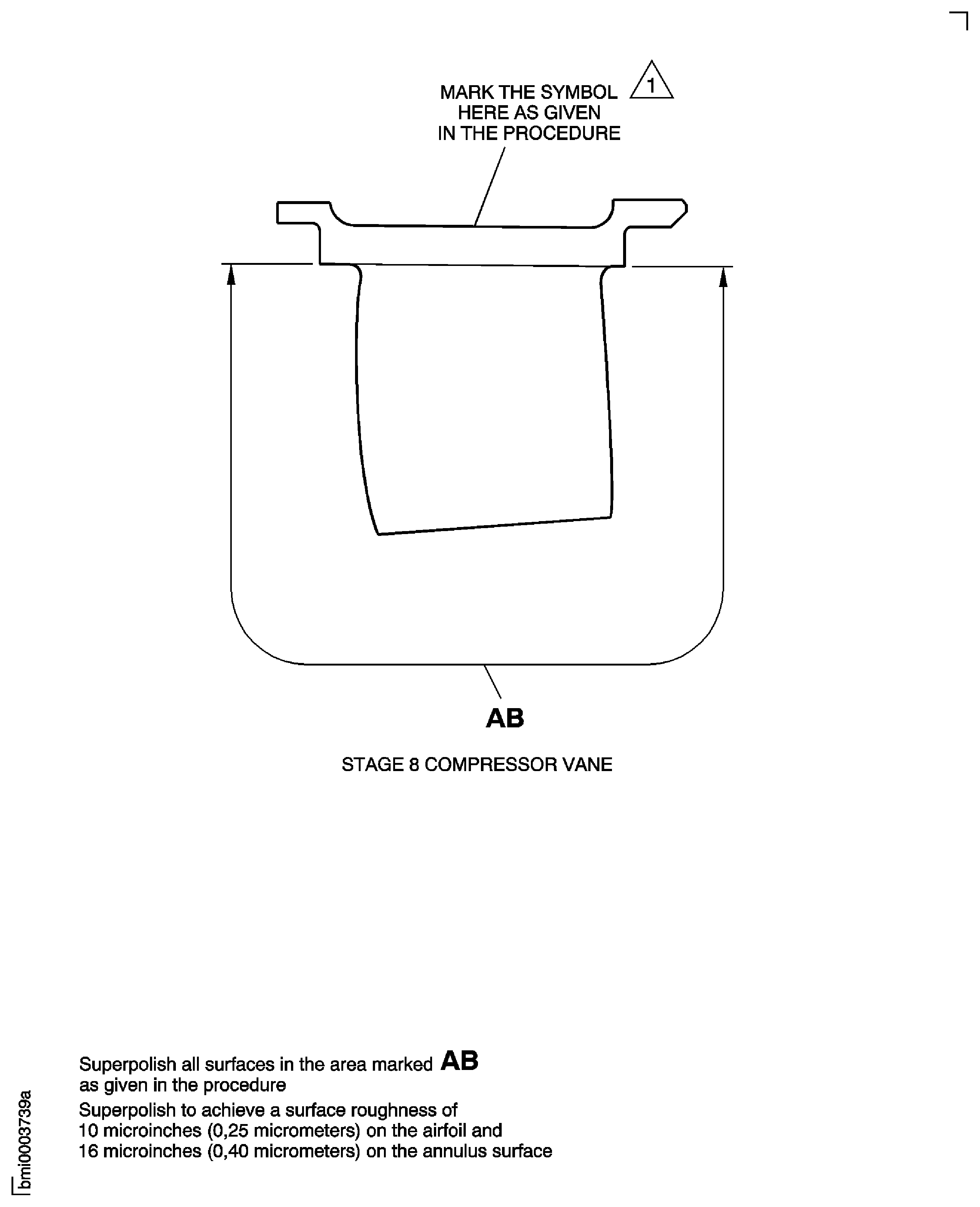

    Figure: Repair Details and Dimensions - Assembly B

    Repair Details and Dimensions - Assembly B
