TASK 72-41-22-300-013 HPC Stage 10 Stator Vane - Repair The Airfoil By Material Removal, Repair-013 (VRS6028)

DMC:V2500-A0-72-41-2210-00A-655A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-41-22-300-013 HPC Stage 10 Stator Vane - Repair The Airfoil By Material Removal, Repair-013 (VRS6028)

Effectivity

FIG/ITEM

PART NO.

ASSEMBLY

05-350

6A3276

A

05-350

6A4224

B

05-350

6A7429

B

05-350

6A8786

C

05-355

6A4225

B

05-355

6A7430

B

05-355

6A8785

C

05-400

6A3275 C01

A

05-400

6A4223 C01

B

05-400

6A7428 C01

B

05-400

6A8783

C

05-448

6A3275 C01

A

05-448

6A4223 C01

B

05-448

6A7428 C01

B

05-448

6A8783

C

05-450

6A3275 C02

A

05-450

6A4223 C02

B

05-450

6A7428 C02

B

05-450

6A8784

C

Material of component

PART IDENT

MATERIAL

Stage 10

HP compressor stator vane

Nickel alloy

General

This repair must only be done when the instruction to do so is given in 72-41-22 Inspection/Check.

This repair gives the instruction to remove damage on the HP compressor stator vanes, stage 10 by material removal.

Not more than ten percent of stator vanes dressed to the maximum limit of this repair should be included in any one stator stage.

Stator vanes must be repaired as soon as damage or wear is monitored, to get back HP compressor efficiency and extend the stator vane life.

Material removal from the HP compressor stator vane airfoil fillet radius is not permitted.

When the depth of cut away material is more than 0.002 in. (0.05 mm), it is necessary to glass bead peen the HP compressor stator vane, stage 10, to restore the airfoil surface finish. Refer to REPAIR VRS6210, TASK 72-41-22-300-022 (REPAIR-022).

Stator vanes repaired in this procedure must be as near to their initial shape and surface condition as possible.

Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only primary Fig/item numbers are used. For the service bulletin alpha variants refer to the IPC.

The practices and processes referred to in the procedure by the TASK/SUBTASK number are in the SPM.

Price and availability

Refer to International Aero Engines.

Related Repairs

HP Compressor - Stage 6 to 11 - Stator Vanes - Restore Airfoil Surface Finish, refer to REPAIR VRS6210, TASK 72-41-22-300-022 (REPAIR-022).

NOTE

Equipment and materials necessary to do this repair are in the SPM TASKs given below:
SPM TASK 70-09-00-400-501
SPM TASK 70-11-39-300-503
SPM TASK 70-23-01-230-501

NOTE

To identify the consumable materials, refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Penetrant Crack Test EquipmentLOCALPenetrant crack test equipment
Portablegrinding equipmentLOCALPortable grinding equipment
Dimensional inspection equipmentLOCALDimensional inspection equipment
Chemical cleaning equipmentLOCALChemical cleaning equipment
Vibrating marking pencilLOCALVibrating marking pencil

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 05-075 WATERPROOF SILICON CARBIDEIE241CoMat 05-075
CoMat 05-076 WATERPROOF SILICON CARBIDEK3895CoMat 05-076
CoMat 05-077 WATERPROOF SILICON CARBIDEK6835CoMat 05-077
CoMat 05-079 WATERPROOF SILICON CARBIDEK3895CoMat 05-079
CoMat 05-082 WATERPROOF SILICON CARBIDE44197CoMat 05-082

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-41-22-230-084 Do a Crack Test

      1. Do a penetrant crack test.

      1. Refer to the SPM TASK 70-23-01-230-501.

        Use penetrant crack test equipment.

    2. SUBTASK 72-41-22-230-085 Visually Examine

      1. Visually examine the crack test.

      1. Indications of defects on the stator vane are not permitted and must be removed.

    3. SUBTASK 72-41-22-350-054-A00 Remove Damage from the HP Compressor Stator Vane, Stage 10, Assembly A

    1. Refer to Figure, Figure and Figure.

      2. Remove damage on the leading and trailing edges by material removal.

      1. Use portable grinding equipment.

        Continue to remove material until all the damage is removed.

      3. Remove damage on the airfoil surfaces by material removal.

      1. Use portable grinding equipment.

        Continue to remove material until all the damage is removed.

        The maximum depth to remove the damage must not be more than 0.005 in. (0.13 mm).

        The diameter of the repaired area is to be 50 times the depth.

      4. Make smooth the repaired area.

      1. Make sure all the damage marks are completely removed and the area is made smooth into the adjacent material.

      5. Polish the repaired area.

      1. Polish the repaired area to remove scratches and to give a surface finish the same as the adjacent material.

        Make sure both the leading and trailing edges have radiused profiles.

    6. NOTE

      The last polish is to be in a radial direction.

    4. SUBTASK 72-41-22-350-105-B00 Remove Damage from the HP Compressor Stator Vane, Stage 10, Assembly B and Assembly C

    1. Refer to Figure, Figure and Figure.

      2. Remove damage on the leading and trailing edges by material removal.

      1. Use portable grinding equipment.

        Continue to remove material until all the damage is removed.

      3. Remove damage on the airfoil surfaces by material removal.

      1. Use portable grinding equipment.

        Continue to remove material until all the damage is removed.

        The maximum depth to remove the damage must not be more than 0.005 in. (0.13 mm).

        The diameter of the repaired area is to be 50 times the depth.

      4. Make smooth the repaired area.

      1. Make sure all the damage marks are completely removed and the area is made smooth into the adjacent material.

      5. Polish the repaired area.

      1. Polish the repaired area to remove scratches and to give a surface finish the same as the adjacent material.

        Make sure both the leading and trailing edges have radiused profiles.

    6. NOTE

      The last polish is to be in a radial direction.

    5. SUBTASK 72-41-22-220-104-A00 Examine the Repaired HP Compressor Stator Vane, Stage 10, Assembly A

    1. Refer to Figure, Figure and Figure.

      2. Visually examine and measure the dimensions of the leading, trailing edges and airfoil surfaces.

      1. Use dimensional inspection equipment.

        AA 0.050 in. (1.27 mm).

        AD 0.707 in. (17.95 mm).

        AE 1.041 in. (26.45 mm).

        AF 0.8244 in. (20.941 mm).

        AG 0.8222 in. (20.883 mm).

        AH 0.512 in. (13.00 mm).

        AJ 0.069 in. (1.75 mm).

        AK 0.010 in. (0.25 mm).

        AL 0.500 in. (12.70 mm).

        Discard the vanes, if more than the limits specified.

    6. SUBTASK 72-41-22-220-104-B00 Examine the Repaired HP Compressor Stator Vane, Stage 10, Assembly B and Assembly C

    1. Refer to Figure, Figure and Figure.

      2. Visually examine and measure the dimensions of the leading, trailing edges and airfoil surfaces.

      1. Use dimensional inspection equipment.

        AA 0.050 in. (1.27 mm).

        AD 0.609 in. (15.47 mm).

        AE 1.087 in. (27.62 mm).

        AF 0.7224 in. (18.349 mm).

        AG 0.7187 in. (18.256 mm).

        AH 0.551 in. (14.00 mm).

        AJ 0.069 in. (1.75 mm).

        AK 0.010 in. (0.25 mm).

        AL 0.500 in. (12.70 mm).

        Discard the vanes, if more than the limits specified.

    7. SUBTASK 72-41-22-110-088 Cold Ferric Chloride Etch

      1. Swab etch the repaired area(s).

      1. Refer to the SPM TASK 70-11-39-300-503, SUBTASK 70-11-39-300-001.

        Use chemical cleaning equipment.

    8. SUBTASK 72-41-22-230-059 Do a Crack Test

      1. Do a penetrant crack test on the repaired vanes.

      1. Refer to the SPM TASK 70-23-01-230-501.

        Use penetrant crack test equipment.

        No cracks are permitted.

    9. SUBTASK 72-41-22-350-106-A00 Identify the Repair, Assembly A

    1. Refer to Figure.

      2. Mark a code symbol adjacent to the assembly number.

      1. Refer to the SPM TASK 70-09-00-400-501, SUBTASK 70-09-00-400-001.

        Use vibro-engraving equipment.

    10. SUBTASK 72-41-22-350-106-B00 Identify the Repair, Assembly B and Assembly C

    1. Refer to Figure.

      2. Mark a code symbol adjacent to the assembly number.

      1. Refer to the SPM TASK 70-09-00-400-501, SUBTASK 70-09-00-400-001.

        Use vibro-engraving equipment.

    11. SUBTASK 72-41-22-380-072 Restore the Airfoil Surface Finish

      NOTE

      This SUBTASK is necessary to restore the airfoil surface finish only when the depth of cut away material is more than 0.002 in. (0.05 mm).

      1. Restore the airfoil surface finish.

      1. Refer to REPAIR VRS6210, TASK 72-41-22-300-022 (REPAIR-022).

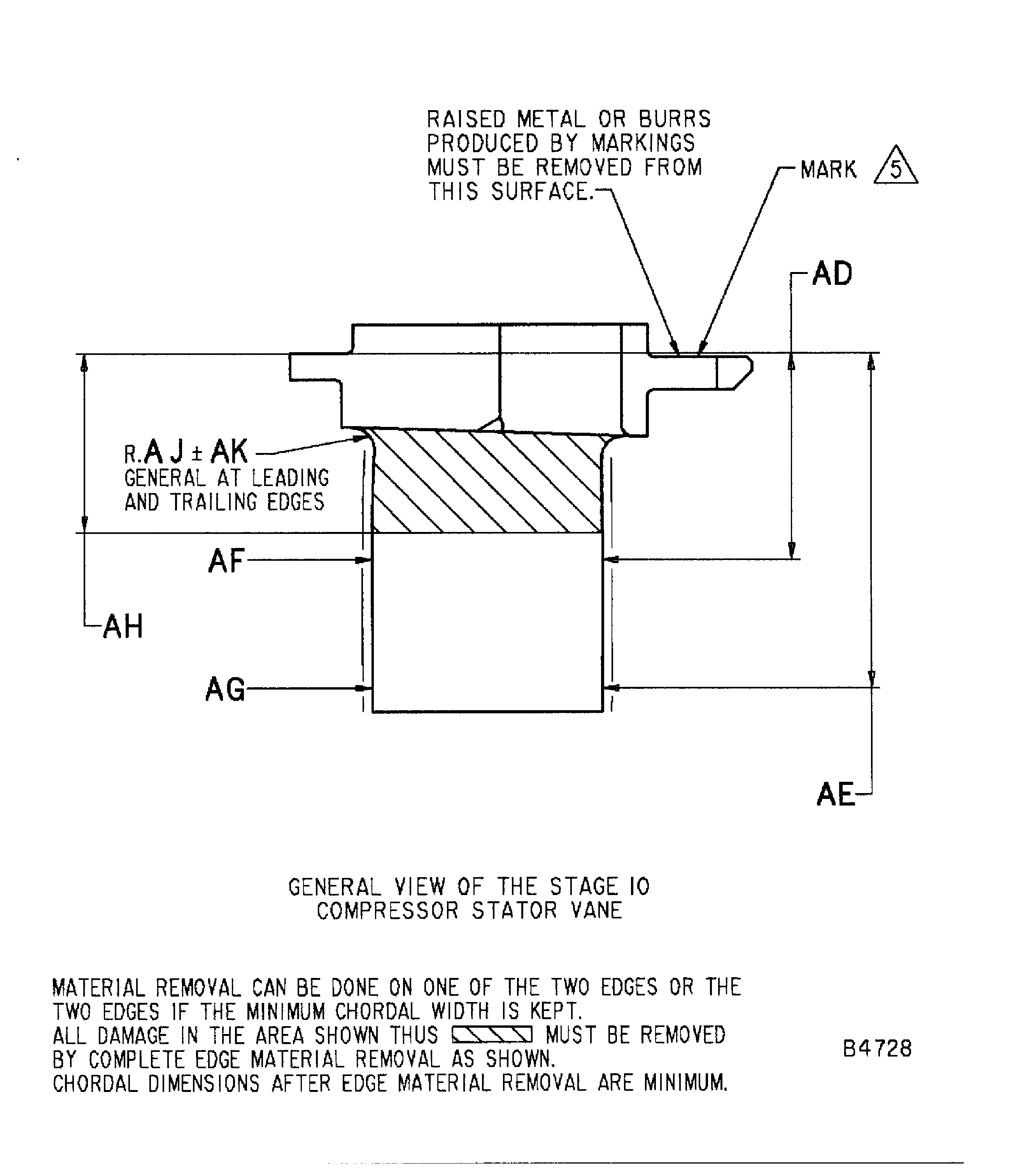

    12. Figure: Repair Details and Dimensions (Assembly A)

    Sheet 1

    Legend
    Repair Details and Dimensions (Assembly A)

    Sheet 1

    Close

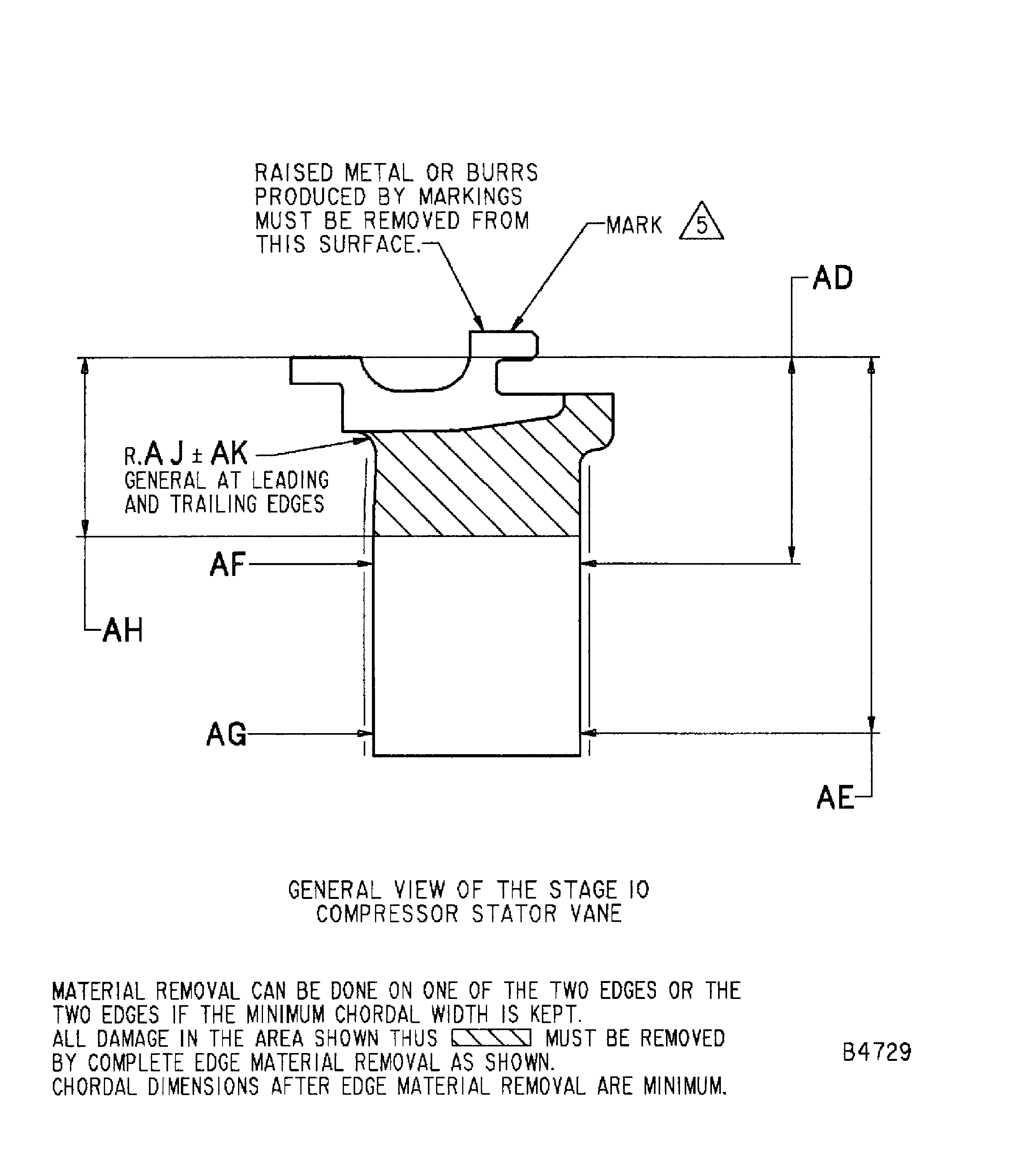

    Figure: Repair Details and Dimensions (Assembly B or Assembly C)

    Sheet 2

    Legend
    Repair Details and Dimensions (Assembly B or Assembly C)

    Sheet 2

    Close

    Figure: Repair Details and Dimensions (Assembly A, Assembly B or Assembly C)

    Sheet 3

    Legend
    Repair Details and Dimensions (Assembly A, Assembly B or Assembly C)

    Sheet 3

    Close

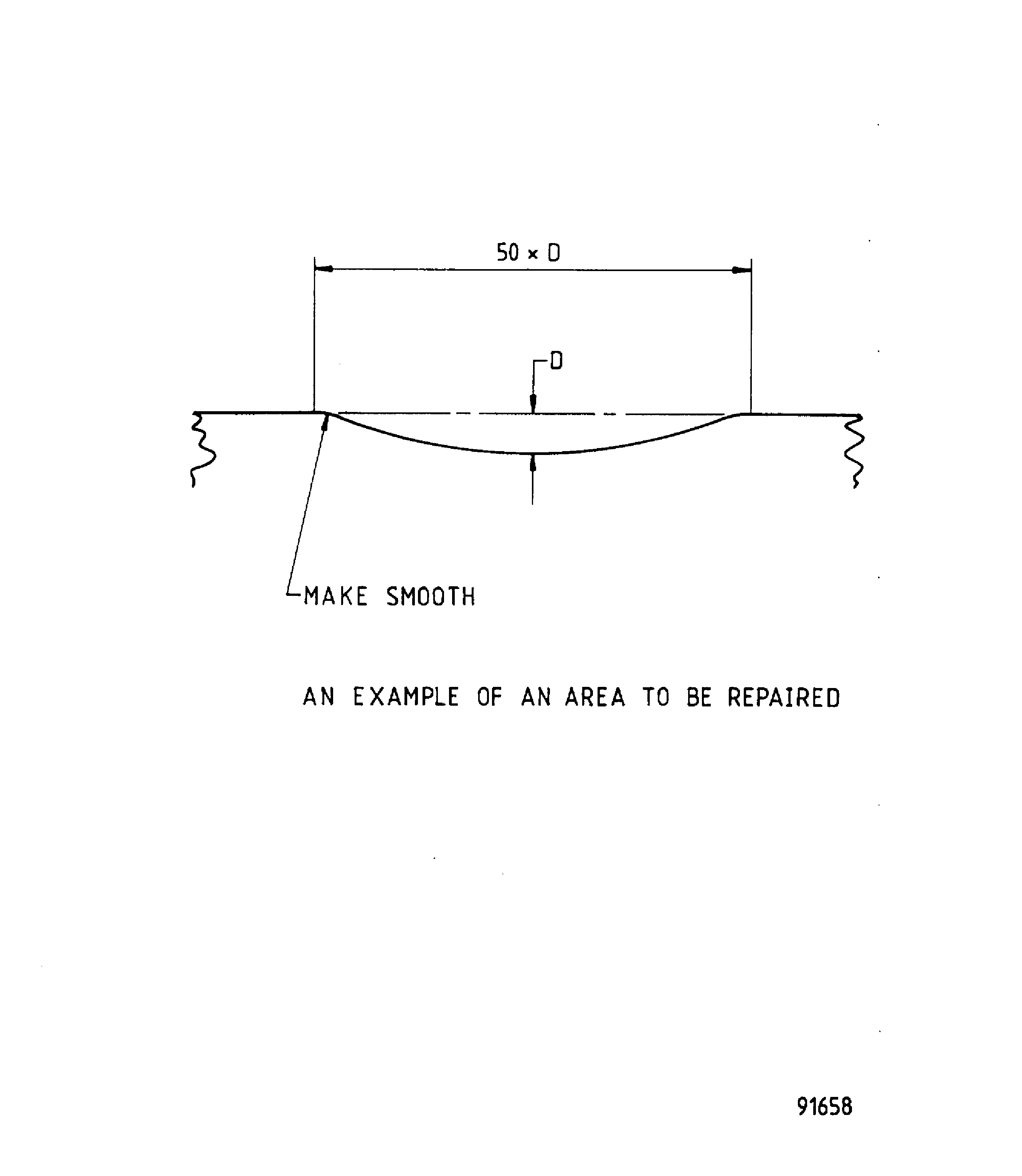

    Figure: Repair Details and Dimensions (Assembly A, Assembly B or Assembly C)

    Sheet 4

    Legend
    Repair Details and Dimensions (Assembly A, Assembly B or Assembly C)

    Sheet 4

    Close

Requirements After Job Completion

Follow-On Conditions

NONE
Manufacturer Code:44197
Enterprise Name:SAINT-GOBAIN INDUSTRIAL CERAMICS INC.
BU Name:SAINT-GOBAIN ABRASIVES, INC
Street:ONE NEW BOND STREET
P.O. Box:PO BOX 15008
City:WORCESTER
State:MA
Zip Code:01615-0008
Country:USA
Phone Number:1-508-795-5000
Fax Number:1-508-795-2828
Internet:www.saint-gobain-northamerica.com
Manufacturer Code:IE241
Enterprise Name:DELETED. Was ANGLO ABRASIVES.
Manufacturer Code:K3895
Enterprise Name:DELETED. REFER TO VENDOR CODE KC1D9.
Manufacturer Code:K6835
Enterprise Name:MED-LAB LTD
BU Name:MED-LAB LTD
Street:COPELAND ST
City:DERBY
Zip Code:DE1 2PU
Country:GREAT BRITAIN
Phone Number:44-1332-349094
Fax Number:44-1332-371237
Email:sales@med-lab.co.uk
Internet:www.med-lab.co.uk
Manufacturer Code:LOCAL
Enterprise Name:LOCALLY SUPPLIED
Manufacturer Code:1E1X8
Supply Number:CoMat 05-075
Type:sp01
Supply Short Name:CoMat 05-075 WATERPROOF SILICON CARBIDE
Supply Name:CoMat 05-075 WATERPROOF SILICON CARBIDE
Specification Groups:
Doc NumberType
OMAT: 5/28 (RR REF)WATERPROOF SILICON CARBIDE ABRASIVE PAPER, CAMI GRIT DESIGNATION 800
JCR-181 (JAEC REF)
Suppliers:
ManufacturerRemarks
1E1X8
K1905
K6835
LOCAL
Manufacturer Code:1E1X8
Supply Number:CoMat 05-076
Type:sp01
Supply Short Name:CoMat 05-076 WATERPROOF SILICON CARBIDE
Supply Name:CoMat 05-076 WATERPROOF SILICON CARBIDE
Specification Groups:
Doc NumberType
OMAT: 5/30 (RR REF)WATERPROOF SILICON CARBIDE ABRASIVE PAPER, CAMI GRIT DESIGNATION 500
JCR-183 (JAEC REF)
Suppliers:
ManufacturerRemarks
1E1X8
K6835
LOCAL
Manufacturer Code:1E1X8
Supply Number:CoMat 05-077
Type:sp01
Supply Short Name:CoMat 05-077 WATERPROOF SILICON CARBIDE
Supply Name:CoMat 05-077 WATERPROOF SILICON CARBIDE
Specification Groups:
Doc NumberType
OMAT: 5/32 (RR REF)WATERPROOF SILICON CARBIDE ABRASIVE PAPER, CAMI GRIT DESIGNATION 360
JCR-185 (JAEC REF)
Suppliers:
ManufacturerRemarks
1E1X8
K6835
LOCAL
Manufacturer Code:1E1X8
Supply Number:CoMat 05-079
Type:sp01
Supply Short Name:CoMat 05-079 WATERPROOF SILICON CARBIDE
Supply Name:CoMat 05-079 WATERPROOF SILICON CARBIDE
Specification Groups:
Doc NumberType
OMAT: 5/36 (RR REF)WATERPROOF SILICON CARBIDE ABRASIVE PAPER, CAMI GRIT DESIGNATION 220 (ANSI B74.18)
JCR-189 (JAEC REF)
Suppliers:
ManufacturerRemarks
1E1X8
K6835
LOCAL
Manufacturer Code:1E1X8
Supply Number:CoMat 05-082
Type:sp01
Supply Short Name:CoMat 05-082 WATERPROOF SILICON CARBIDE
Supply Name:CoMat 05-082 WATERPROOF SILICON CARBIDE
Specification Groups:
Doc NumberType
OMAT: 5/39 (RR REF)WATERPROOF SILICON CARBIDE ABRASIVE PAPER, CAMI GRIT DESIGNATION 120 (ANSI B74.18)
JCR-192 (JAEC REF)
Suppliers:
ManufacturerRemarks
1E1X8
K6835
LOCAL
Manufacturer Code:LOCAL
Tool Number:Chemical cleaning equipment
Tool Name:Chemical cleaning equipment
Manufacturer Code:LOCAL
Tool Number:Dimensional inspection equipment
Tool Name:Dimensional inspection equipment
Manufacturer Code:LOCAL
Tool Number:Penetrant crack test equipment
Tool Name:Penetrant Crack Test Equipment
Manufacturer Code:LOCAL
Tool Number:Portable grinding equipment
Tool Name:Portablegrinding equipment
