TASK 72-41-31-300-030 HPC Front Cases - Blend Repair To The Stage 3, 4, 5, And 6 Rotor Path Ring Slot Faces, Repair-030 (VRS6517)

DMC:V2500-A0-72-41-3101-02A-649A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-41-31-300-030 HPC Front Cases - Blend Repair To The Stage 3, 4, 5, And 6 Rotor Path Ring Slot Faces, Repair-030 (VRS6517)

Effectivity

FIG/ITEM

PART NO

ASSEMBLY

01-400

6A3462

B

01-400

6A3675

B

01-400

6A4439

A

01-400

6A5470

C

General

This repair must only be done when the instruction to do so is given in 72-41-31, Inspection/Check-XXX.

The practices and processes referred to in the procedure by the TASK/SUBTASK numbers are in the SPM.

The HP Compressor Front Case is made from titanium alloy.

Price and availability - Refer to International Aero Engines.

Related repairs - none.

NOTE

More equipment and materials necessary to do this repair are in the SPM TASKS given below:
SPM TASK 70-35-03-300-501
SPM TASK 70-11-08-300-503
SPM TASK 70-23-05-230-501
SPM TASK 70-11-26-300-503
SPM TASK 70-09-00-400-501

NOTE

To identify the consumable materials, refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Chemical cleaning equipmentLOCALChemical cleaning equipment
Penetrant Crack Test EquipmentLOCALPenetrant crack test equipment
Standard workshop equipmentLOCALStandard workshop equipment
Workshop inspection equipmentLOCALWorkshop inspection equipment
Vibrating marking pencilLOCALVibrating marking pencil

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 05-020 WATERPROOF SILICON CARBIDELOCALCoMat 05-020
CoMat 05-021 WATERPROOF SILICON CARBIDE44197CoMat 05-021
CoMat 05-106 ABRASIVE STONEK6835CoMat 05-106
CoMat 06-064 FLUORESCENT PENETRANT (WATER WASHABLE MEDIUM SENSITIVITY)LOCALCoMat 06-064

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-41-31-350-108 Remove Damage from HP Compressor Slot Faces, Assembly A, Assembly B and Assembly C

    1. CAUTION

      TITANIUM COMPONENT - YOU MUST USE SILICON CARBIDE TYPE ABRASIVE WHEELS, STONES AND PAPERS TO DRESS, BLEND AND POLISH THIS COMPONENT.

      CAUTION

      TITANIUM COMPONENT - AVOID BUILD UP OF HEAT BY APPLYING ONLY GENTLE PRESSURE AND KEEPING THE TOOL SPEED AS LOW AS POSSIBLE.

      CAUTION

      TITANIUM COMPONENT - YOU MUST MAKE SURE THAT WHEN YOU REMOVE MATERIAL, BLEND AND POLISH, TO MAKE SMOOTH, THAT NO SPARKS ARE PRODUCED.

      CAUTION

      TITANIUM COMPONENT - IF THE MATERIAL SHOWS A CHANGE IN COLOR, TO DARKER THAN A LIGHT STRAW COLOR, THE COMPONENT IS TO BE REJECTED.

      2. Remove highspots, burrs and/or small area(s) of damage as necessary.

      1. Refer to the SPM TASK 70-35-03-300-501.

        Remove no more material than is necessary.

      3. Blend the area(s) of damage and repair.

      1. Refer to the SPM TASK 70-35-03-300-501.

        Remove no more material than is necessary.

        Depth BD must not be more than 0.040 in. (1.02 mm).

        Remove sharp corners.

        Make sure all dimensions are within the limits given.

      4. Polish the area(s) of damage and repair.

      1. Refer to the SPM TASK 70-35-03-300-501.

        Polish the repaired area(s) to remove scratches and to give a surface finish the same as the adjacent material.

    2. SUBTASK 72-41-31-110-131 Do a Swab Etch

      1. Chemically clean the repair area(s).

      1. Refer to the SPM TASK 70-11-08-300-503, SUBTASK 70-11-08-300-001.

        Use chemical cleaning equipment.

      2. Swab etch the repair area(s).

      1. Refer to the SPM TASK 70-11-08-300-503, SUBTASK 70-11-08-300-002.

        Use swab etch equipment.

    3. SUBTASK 72-41-31-230-122 Do a Crack Test

      1. Do a local penetrant crack test of the repaired area(s).

      1. Refer to the SPM TASK 70-23-05-230-501.

        Use penetrant crack test equipment.

        Cracks are not permitted.

    4. SUBTASK 72-41-31-110-130 Chemically Clean

      1. Chemically clean the repaired area(s).

      1. Refer to the SPM task 70-11-26-300-503.

        Use chemical cleaning equipment.

    5. SUBTASK 72-41-31-220-258 Examine the Repair to the HPC Front Case Rotor Path Ring Slot Faces, Assembly A, Assembly B and Assembly C

      2. Visually examine and measure dimensions of the slot faces.

      1. Make sure the dimensions are within the limits.

        The maximum depth, dimension BD, must not be more than 0.040 in. (1.02 mm) after repair.

        Make sure the surface finish is the same as the adjacent material.

    6. SUBTASK 72-41-31-350-109 Identify the Repair

      1. Make a mark VRS6517 adjacent to the part number.

      1. Refer to the SPM TASK 70-09-00-400-501, SUBTASK 70-09-00-400-001.

        Use vibro-engraving equipment.

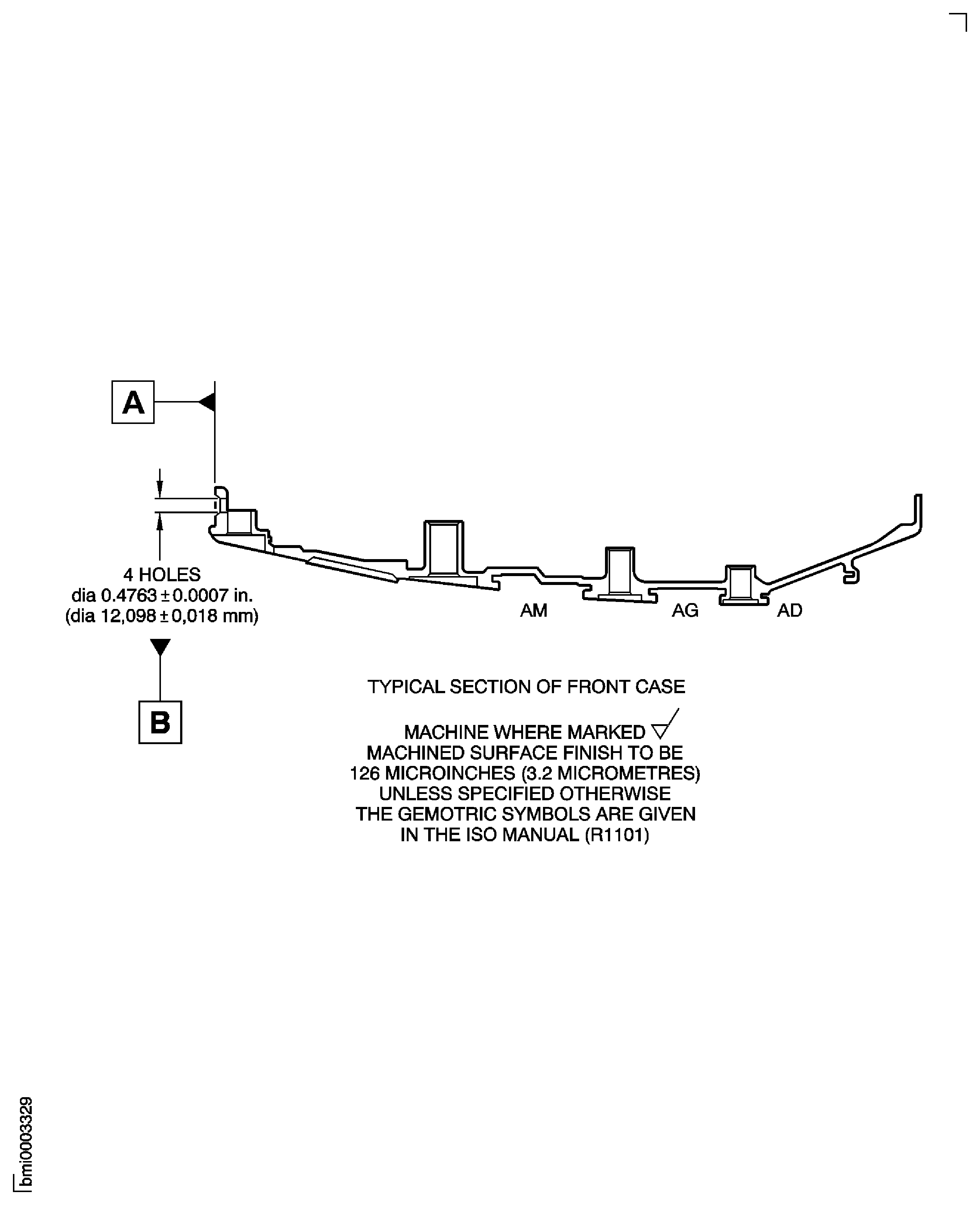

    7. Figure: Repair Details and Dimensions - Assembly A

    Repair Details and Dimensions - Assembly A

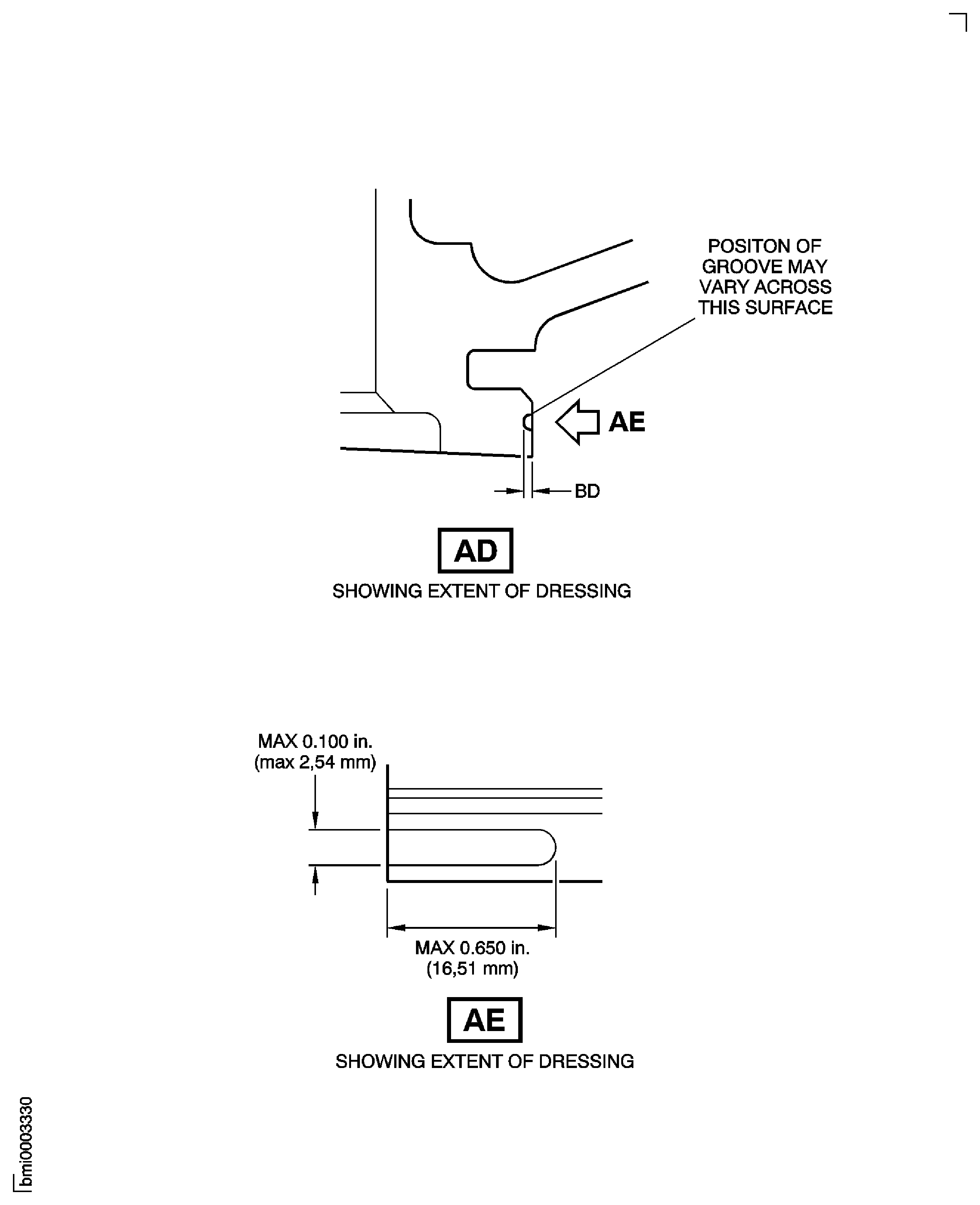

    Figure: Repair Details and Dimensions - Assembly A

    Repair Details and Dimensions - Assembly A

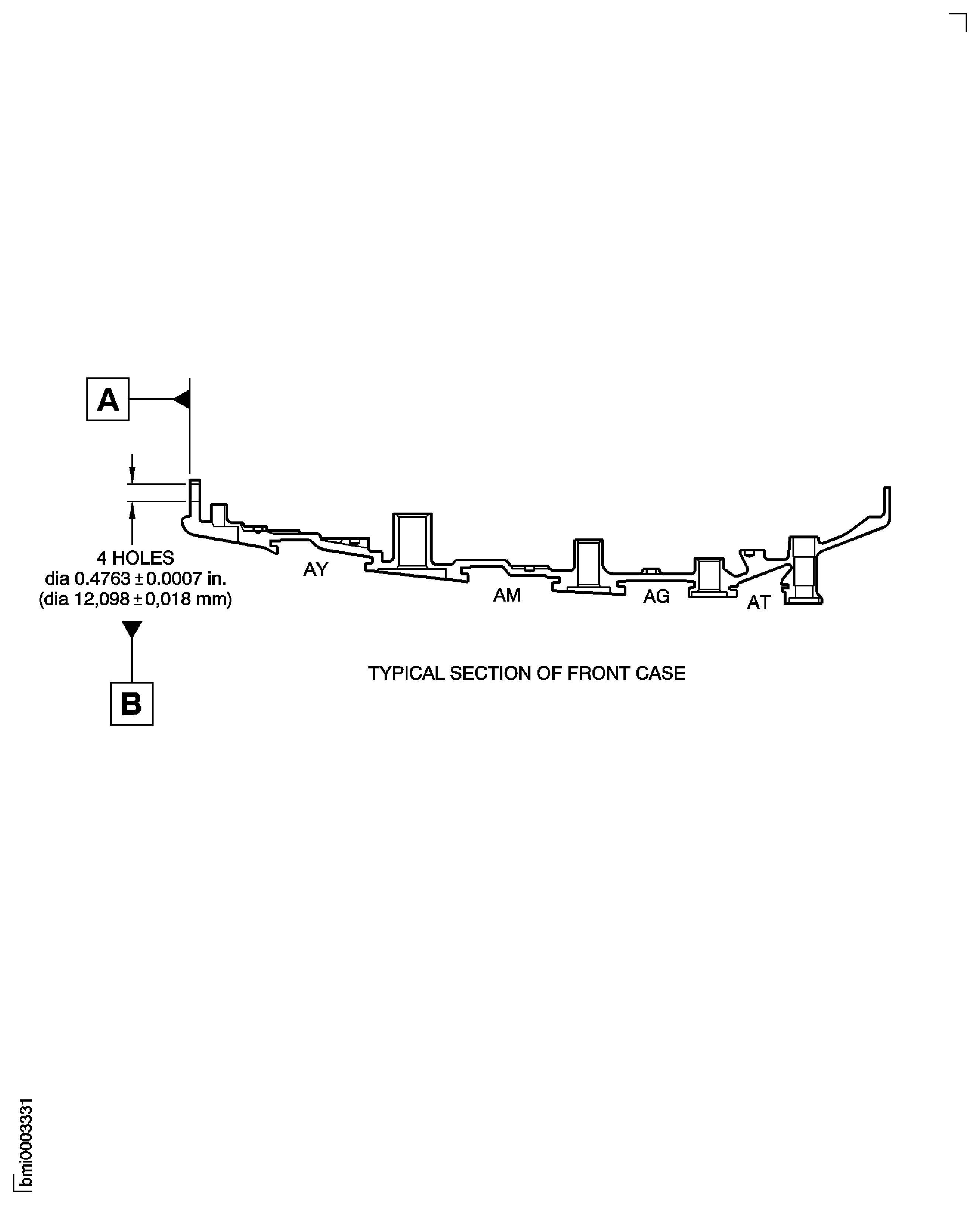

    Figure: Repair Details and Dimensions - Assembly B

    Repair Details and Dimensions - Assembly B

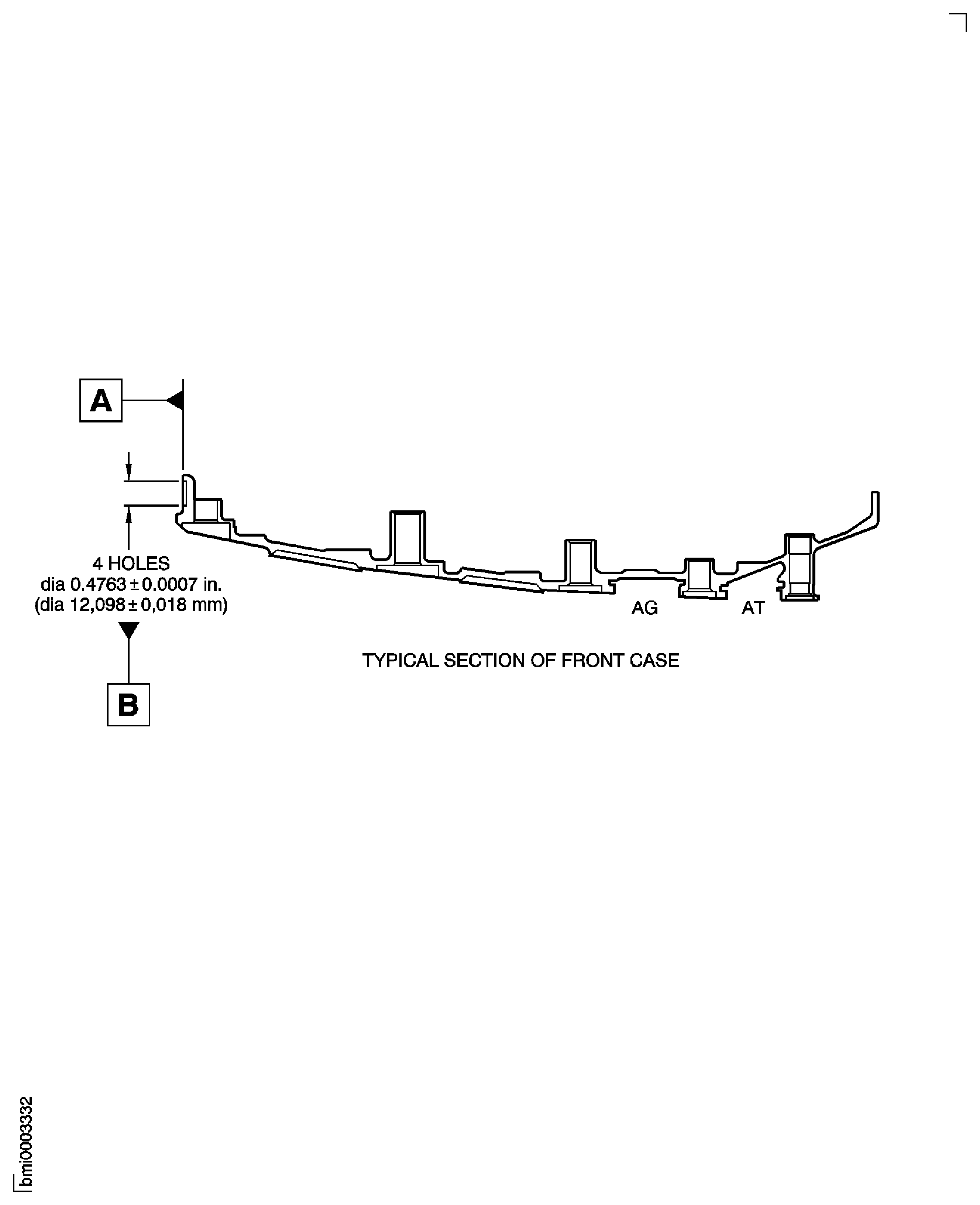

    Figure: Repair Details and Dimensions - Assembly C

    Repair Details and Dimensions - Assembly C

    Figure: Repair Details and Dimensions - Assembly A, Assembly B and Assembly C

    Repair Details and Dimensions - Assembly A, Assembly B and Assembly C

    Figure: Repair Details and Dimensions - Assembly A and Assembly B

    Repair Details and Dimensions - Assembly A and Assembly B

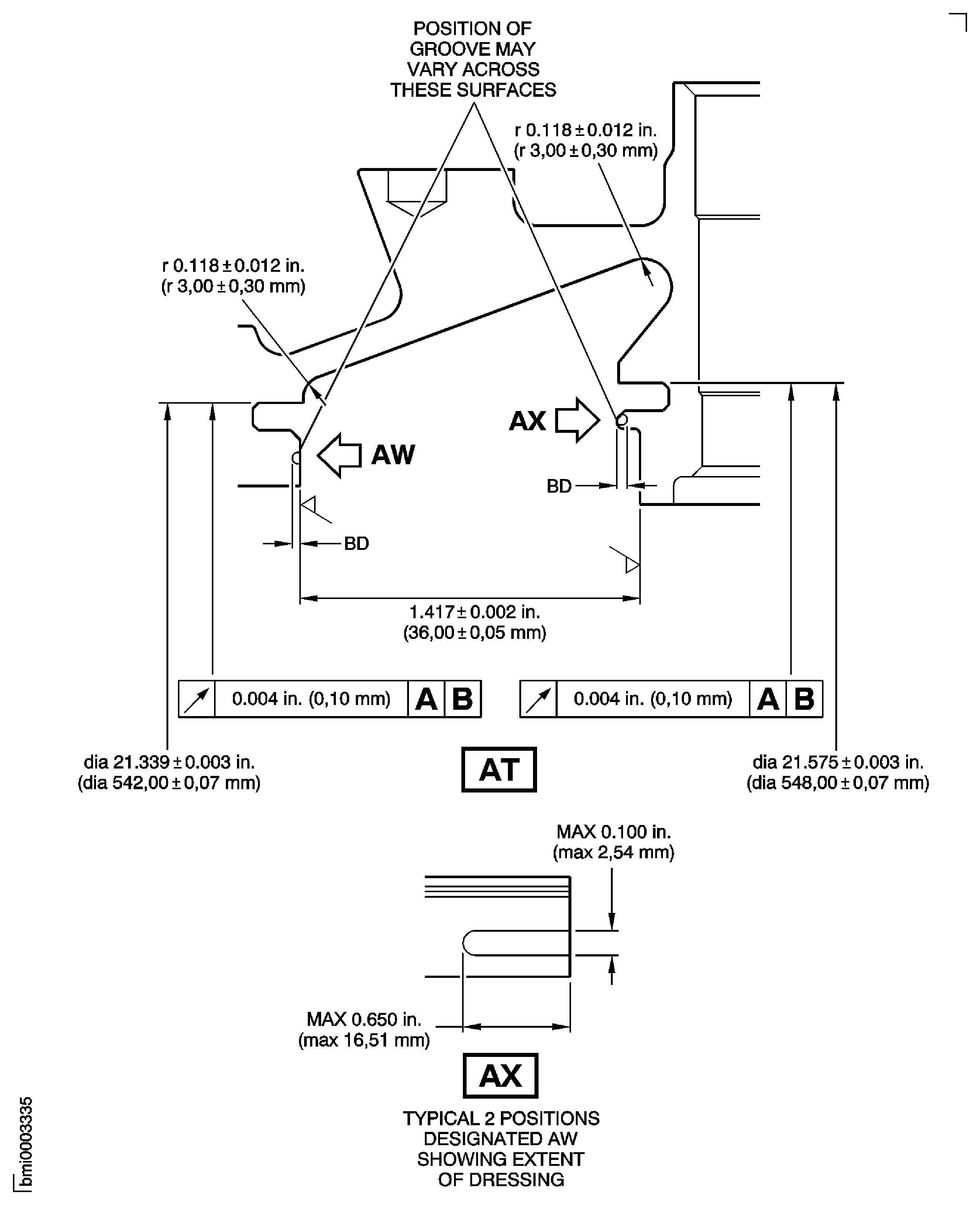

    Figure: Repair Details and Dimensions - Assembly B and Assembly C

    Repair Details and Dimensions - Assembly B and Assembly C

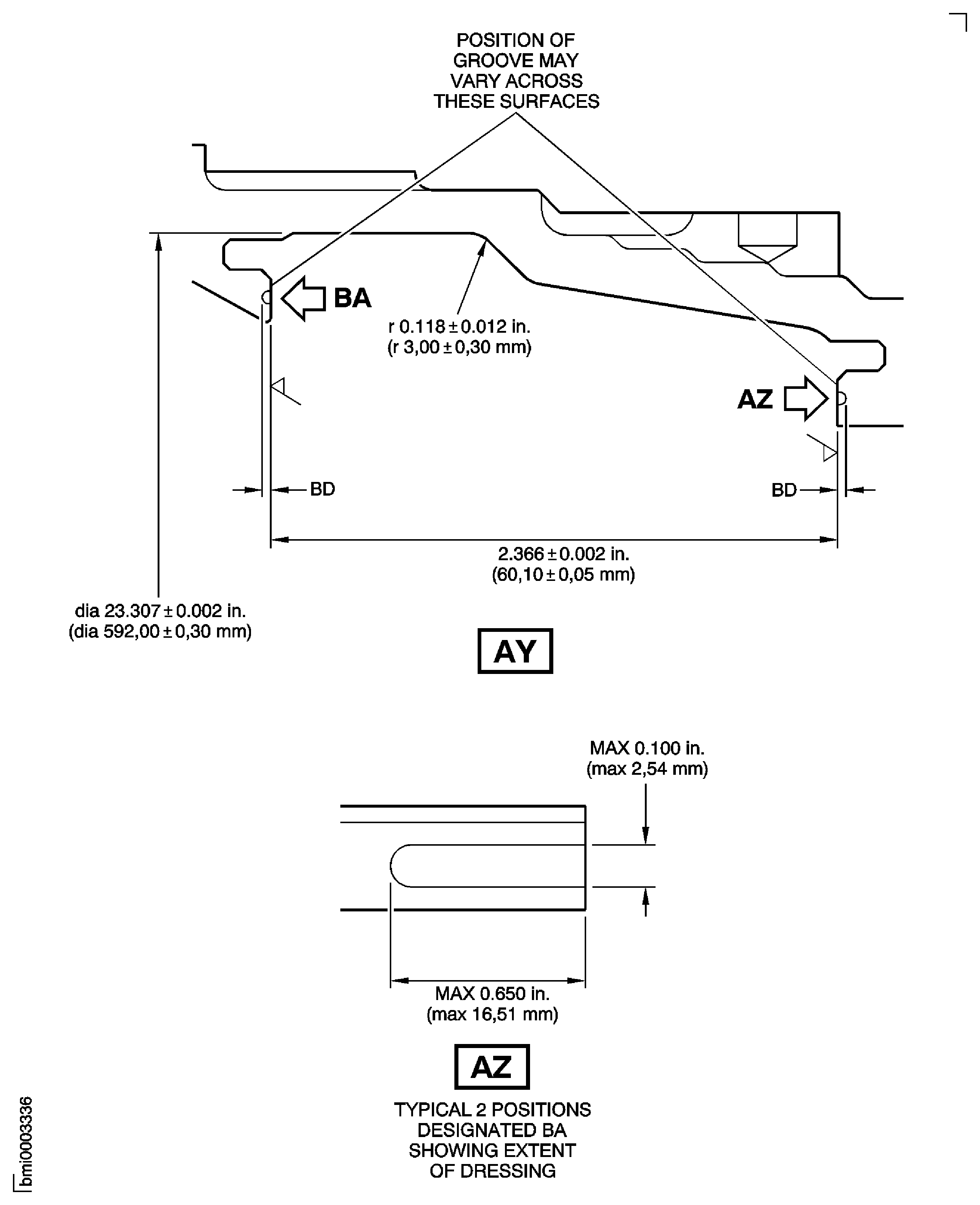

    Figure: Repair Details and Dimensions - Assembly B

    Repair Details and Dimensions - Assembly B

Requirements After Job Completion

Follow-On Conditions

NONE
