TASK 72-41-31-200-012 HPC Blank - Examine, Inspection-012

DMC:V2500-A0-72-41-3120-01A-300A-C|Issue No:001.00|Issue Date:2018-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-41-31-200-012 HPC Blank - Examine, Inspection-012

Effectivity

FIG/ITEM

PART NO.

01-350

6A3457

General

This TASK gives the procedure for the inspection of the support tool blanks.

Fig/item numbers in parentheses in the procedure agree with those used in the EIPC.

The policy that is necessary for inspection is given in SPM TASK 70-20-01-200-501.

All the parts must be cleaned before any part is examined.

All the parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

A ** following repair referenced in this inspection indicates that the repair is not yet published in the current revision of the manual and the part must be rejected. Contact IAE for additional information concerning FAA approved repair date.

The procedure for the parts which must have a crack test is given in Step. Do the crack test before the part is visually examined.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part can be shown to be necessary at a subsequent date.

All the parts must be examined to make sure that all the repairs have been completed satisfactory.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

References

Refer to SPM for data on these items:

Definition of Damage, SPM TASK 70-02-02-350-501,

Record and Control of the Lives of Parts, SPM TASK 70-05-00-220-501,

Inspection of Parts, SPM TASK 70-20-01-200-501.

Some data on these items is contained in this TASK. For more data on these items refer to SPM:

Methods of Testing for Crack Indications,

Chemical Processes,

Surface Protection.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-41-31-230-130 Examine the Support Tool Blanks (01-350) for Cracks

    1. Clean the parts. Refer to TASK 72-41-31-100-000 (CLEANING-000).

      2. Do the test for cracks on the part that is given below.

        PART IDENT

        TASK/SUBTASK

        Support tool blank

        1. Cracked.

        1. Reject.

    2. SUBTASK 72-41-31-220-290 Examine the Support Tool Blanks (01-350) Faces at Locations 1 and 2

    1. Refer to Figure.

      2. Galled or scored.

      1. Repair, VRS3845 TASK 72-41-31-300-032 (REPAIR-013).

    3. SUBTASK 72-41-31-220-291 Examine the Support Tool Blanks (01-350) BoltHoles at Location 3

    1. Refer to Figure.

      2. Burred edges.

      1. Repair, VRS3845 TASK 72-41-31-300-032 (REPAIR-013).

    4. SUBTASK 72-41-31-220-292 Examine the Support Tool Blanks (01-350) All Remaining Surfaces

      1. Nicked, dented and scratched.

        1. Upto 0.002 in. (0.05 mm) in depth.

        1. Accept.

        2. More than in Step.

        1. Repair, VRS3845 TASK 72-41-31-300-032 (REPAIR-013).

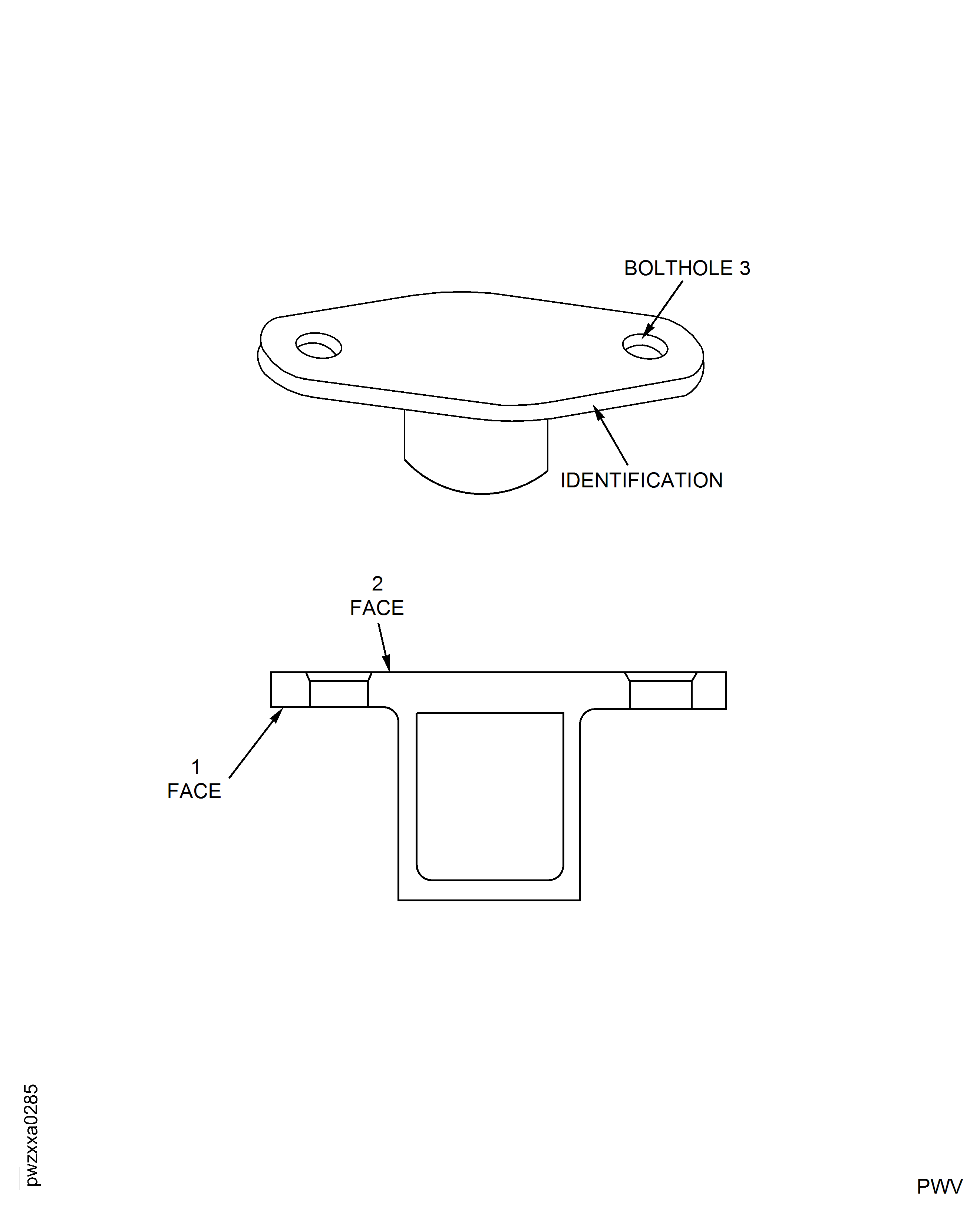

    5. Figure: Support Tool Blanks - Inspection Locations

    Support Tool Blanks - Inspection Locations

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Added new inspection procedure. (17VG237)
