TASK 72-41-34-300-055 HPC Vane Actuating Crankshaft - Repair By Re-Applying Surface Protection, Repair-055 (VRS6391)

DMC:V2500-A0-72-41-3411-01A-609A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-41-34-300-055 HPC Vane Actuating Crankshaft - Repair By Re-Applying Surface Protection, Repair-055 (VRS6391)

Effectivity

FIG/ITEM

PART NO.

ASSEMBLY

01-630

6A3806

A

01-630

6A5890

A

01-630

6A4317

B

Material of component

DESCRIPTION

MATERIAL

Vane actuating shaft

Corrosion resistant steel

General

This Repair must only be done when the instruction to do so is given in 72-41-34 Inspection.

The TASK gives the procedure to repair the vane actuating crank shaft by re-applying surface protection.

TASKs identified by SPM TASK are in the Standard Practices and Processes Manual (SPM).

Price and availability

Refer to International Aero Engines

Related repairs - none

NOTE

Equiment and materials necessary to do this repair are in the SPM TASKs given below:
SPM TASK 70-09-01-400-501
SPM TASK 70-11-03-300-503
SPM TASK 70-11-05-300-503
SPM TASK 70-12-02-120-501
SPM TASK 70-23-02-230-501
SPM TASK 70-38-35-380-001

NOTE

  1. It is possible that some materials in the Consumable Materials chart cannot be used for some or all of the necessary applications. Before you use the materials, make sure the types, quantities and applications of the materials necessary are legally permitted in your location. All persons must obey all applicable federal, state, local and provincial laws and regulations when it is necessary to work with these materials.

  2. To identify the consumable materials, refer to the Overhaul Processes and Consumables Index (PCI).

  3. Other necessary consumable materials are referred to in the SPM TASKs.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Abrasive blast equipmentLOCALAbrasive blast equipment
Chemical cleaning equipmentLOCALChemical cleaning equipment
Ink marking equipmentLOCALInk marking equipment
OvenLOCALOven
Paint spray equipmentLOCALPaint spray equipment
Penetrant Crack Test EquipmentLOCALPenetrant crack test equipment

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-001 ADHESIVE TAPE (MASKING)LOCALCoMat 02-001
CoMat 02-005 ADHESIVE TAPE (MASKING)LOCALCoMat 02-005
CoMat 02-019 TAPE, ADHESIVE PAPER HEAT RESISTING MASKING94960CoMat 02-019
CoMat 05-003 ABRASIVE MEDIUM ALUMINUM OXIDE, 120/220 GRADELOCALCoMat 05-003
CoMat 06-064 FLUORESCENT PENETRANT (WATER WASHABLE MEDIUM SENSITIVITY)LOCALCoMat 06-064
CoMat 06-073 INK, METAL MARKING88303CoMat 06-073
CoMat 07-024 AEROLAC METAL PROTECTIVE VARNISH, CLEARLOCALCoMat 07-024
CoMat 07-075 HIGH-HEAT RESISTING STOVING ENAMELk3504CoMat 07-075

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-41-34-110-074 Chemically Clean

      1. Chemically clean the part.

      1. Refer to the SPM TASK 70-11-03-300-503.

        Use chemical cleaning equipment.

      2. Remove existing enamel.

      1. Refer to the SPM TASK 70-11-05-300-503.

        Use chemical cleaning equipment.

    2. SUBTASK 72-41-34-230-673 Do a Crack Test

      1. Do a penetrant crack test of the part.

      1. Refer to the SPM TASK 70-23-02-230-501.

        Cracks are not permitted.

        Use penetrant crack test euipment.

    3. SUBTASK 72-41-34-110-146 Chemically Clean

      1. Chemically clean the part.

      1. Refer to the SPM TASK 70-11-03-300-503.

        Use chemical cleaning equipment.

    4. SUBTASK 72-41-34-120-053 Abrasive Blast

      CAUTION

      UNMASKED SURFACES MUST NOT BE TOUCHED WITH BARE HANDS. CLEAN POLYTHENE OR COTTON GLOVES MUST BE WORN.

      CAUTION

      IF SURFACES MUST BE TOUCHED OR IF SURFACES ARE DIRTY, DO Step AND Step AGAIN.

      3. Dry abrasive blast the areas to have protection.

    4. Remove masking tape.

      5. Remove all unwanted abrasive medium.

      1. Use clean, dry compressed air blast.

    5. SUBTASK 72-41-34-380-064 Apply Surface Protection

      2. Mask areas not to have protection.

      3. Apply protection.

      1. Refer to the SPM TASK 70-38-35-380-001.

        Use overhaul process equipment.

    4. Remove masking tape.

    6. SUBTASK 72-41-34-220-674 Examine the Surface Protection

      2. Examine the surface protection.

      1. Refer to the SPM TASK 70-38-35-380-001.

    7. SUBTASK 72-41-34-350-116 Identify the Component

      1. Identify the part again.

      1. Refer to the SPM TASK 70-09-01-400-501.

        Make a mark on the part number adjacent to the existing marks, which are found below the surface protection.

        Use ink marking equipment.

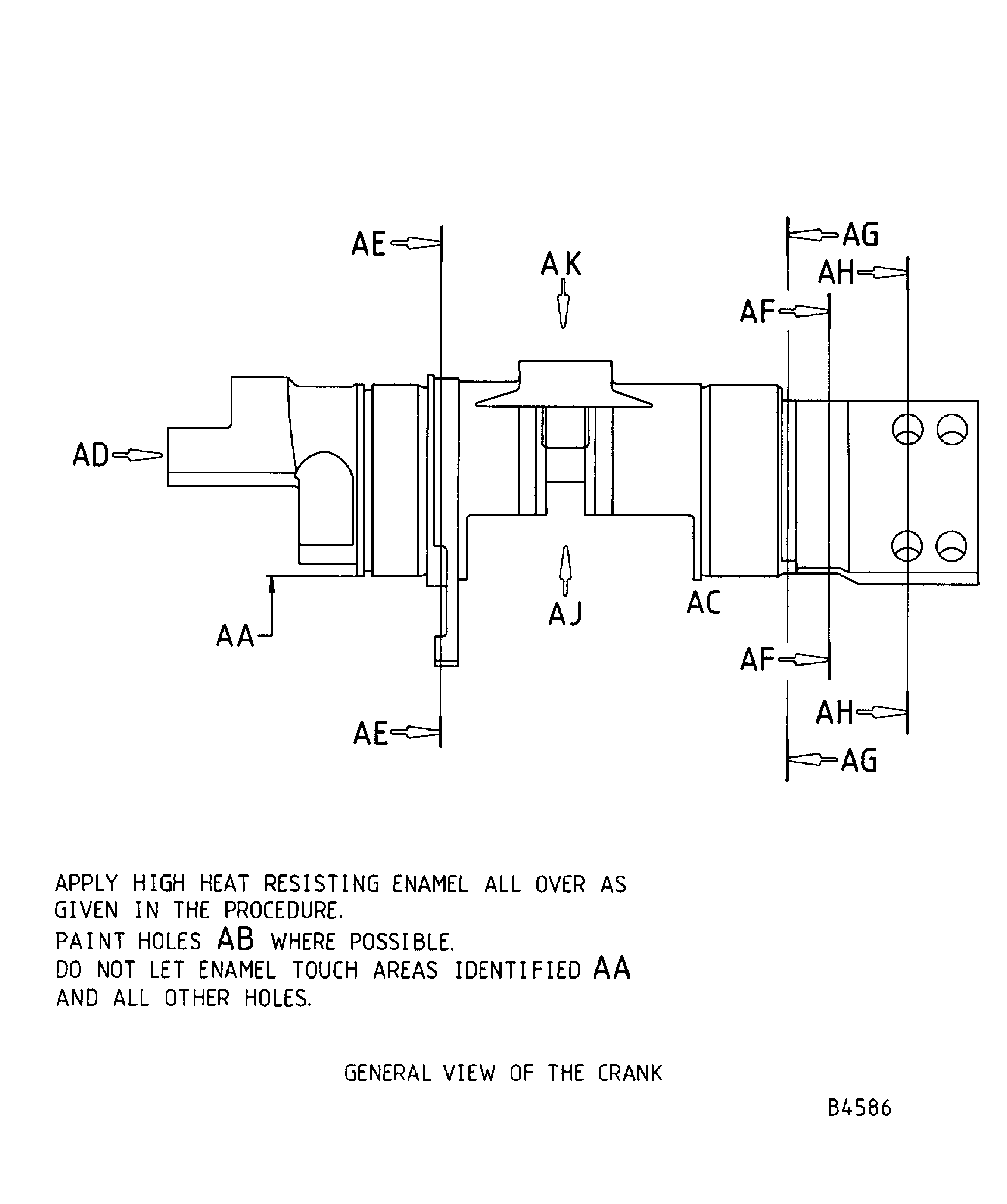

    8. Figure: Repair Details and Dimensions - Asssembly A

    Repair Details and Dimensions - Asssembly A

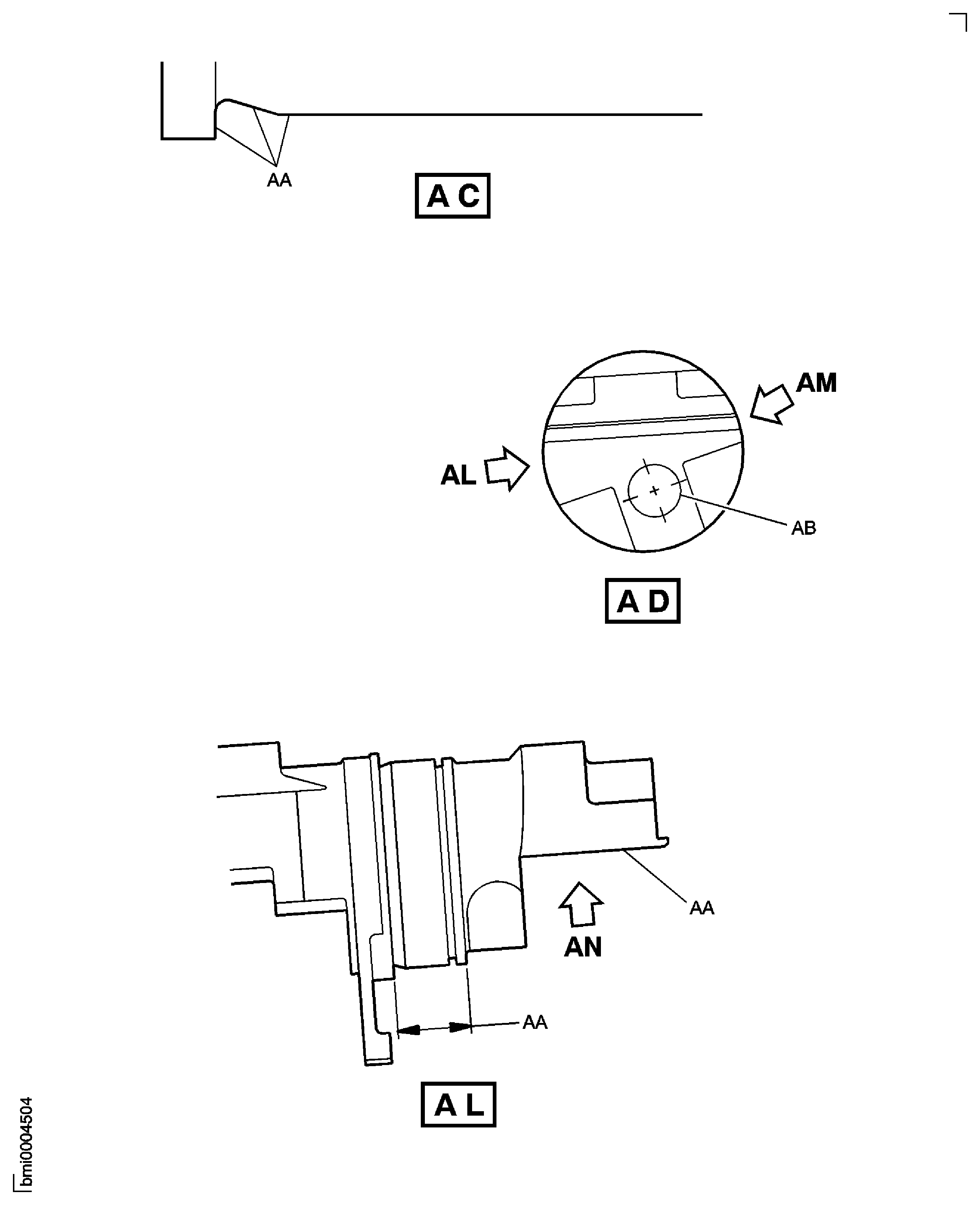

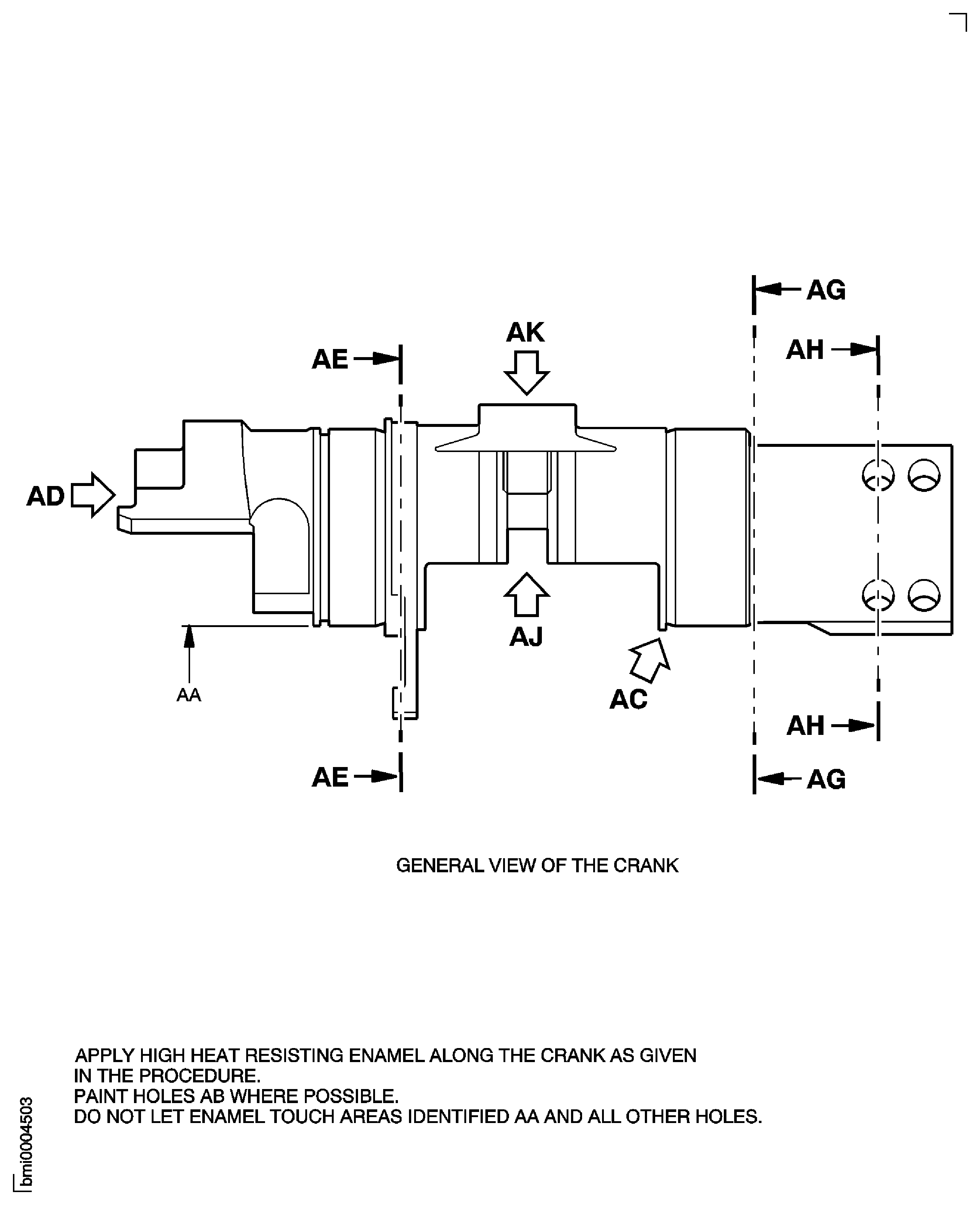

    Figure: Repair Details and Dimensions - Asssembly B

    Repair Details and Dimensions - Asssembly B

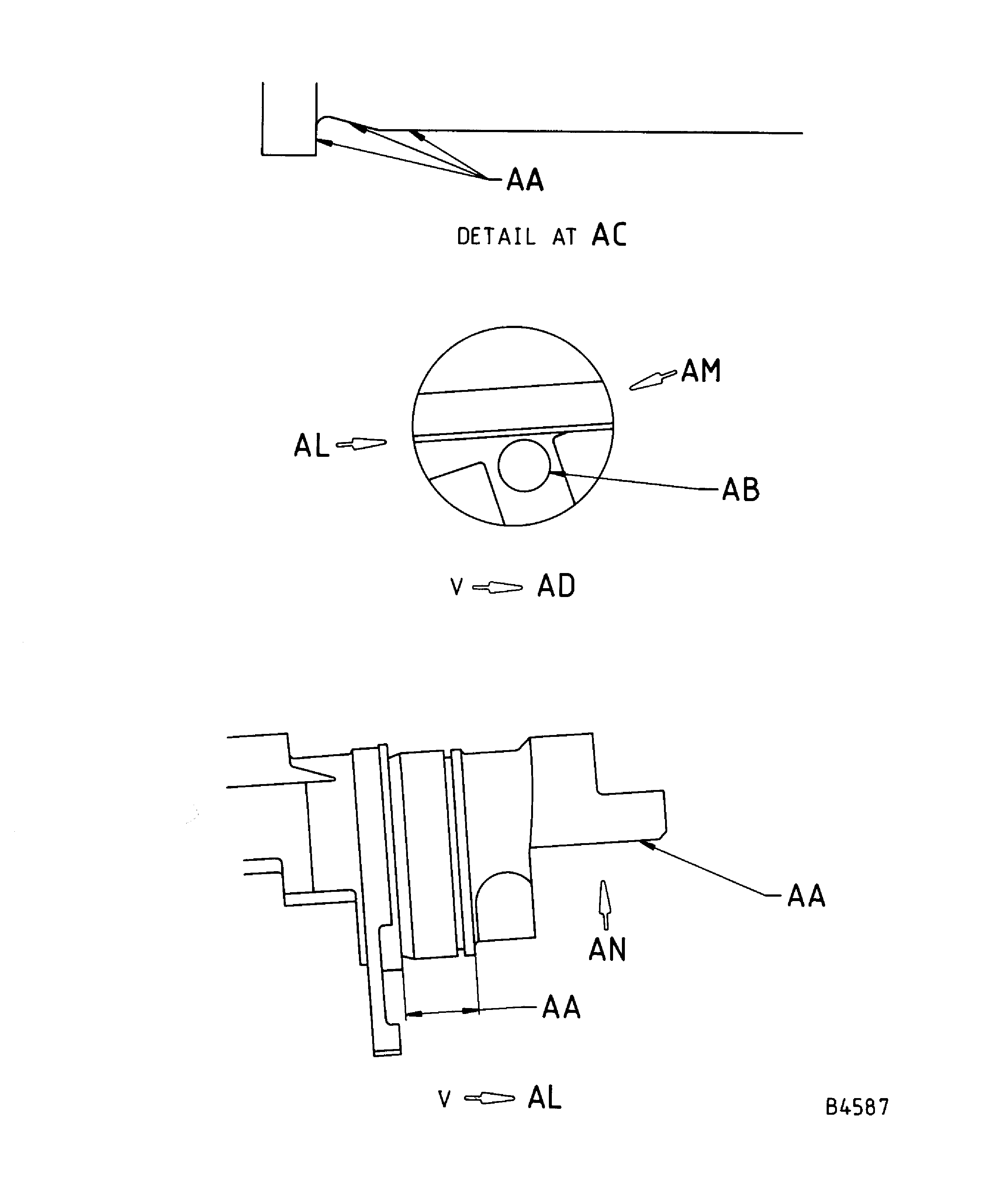

    Figure: Repair Details and Dimensions - Assembly A

    Repair Details and Dimensions - Assembly A

    Figure: Repair Details and Dimensions - Asssembly B

    Repair Details and Dimensions - Asssembly B

    Figure: Repair Details and Dimensions - Assembly A

    Repair Details and Dimensions - Assembly A

    Figure: Repair Details and Dimensions - Asssembly B

    Repair Details and Dimensions - Asssembly B

    Figure: Repair Details and Dimensions - Assembly A and Asssembly B

    Repair Details and Dimensions - Assembly A and Asssembly B

    Figure: Repair Details and Dimensions - Assembly A

    Repair Details and Dimensions - Assembly A

    Figure: Repair Details and Dimensions - Asssembly B

    Repair Details and Dimensions - Asssembly B

    Figure: Repair Details and Dimensions - Assembly A and Asssembly B

    Repair Details and Dimensions - Assembly A and Asssembly B

    Figure: Repair Details and Dimensions - Assembly A

    Repair Details and Dimensions - Assembly A

    Figure: Repair Details and Dimensions - Asssembly B

    Repair Details and Dimensions - Asssembly B

Requirements After Job Completion

Follow-On Conditions

NONE
