TASK 72-41-34-200-016 HPC Stage 3 Vane Ring Centralizing Pad And Housing - Examine, Inspection-016

DMC:V2500-A0-72-41-3443-00A-300A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-41-34-200-016 HPC Stage 3 Vane Ring Centralizing Pad And Housing - Examine, Inspection-016

Effectivity

FIG/ITEM PART NO.

03-680

6A3957

03-680

6A6514

03-680

6A2467

03-730

6A2925

03-730

6A3988

General

This TASK gives the procedure for the inspection of the stage 3 centralizing pads and housing assemblies.

Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary fig/item numbers are used. For the service bulletin alpha variants refer to the IPC.

The policy that is necessary for inspection is given in the SPM TASK 70-20-01-200-501.

All the parts must be cleaned before any part is examined.

All the parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

A ** following repair referenced in this inspection indicates that the repair is not yet published in the current revision of the manual and the part must be rejected. Contact IAE for additional information concerning FAA approved repair date.

The procedure for the parts which must have a crack test is given in Step. Do the crack test before the part is visually examined.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part can be shown to be necessary at a subsequent date.

All the parts must be examined to make sure that all the repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK number are in the SPM.

References

Refer to the SPM for data on these items.

Definition of Damage, SPM TASK 70-02-02-350-501

Record and Control of the Lives of Parts, SPM TASK 70-05-00-220-501

Inspection of Parts, SPM TASK 70-20-01-200-501

Some data on these items is contained in this TASK. For more data on these items refer to the SPM.

Method of Testing for Crack Indications

Chemical Processes

Surface Protection

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-41-34-230-065 Examine the Stage 3 Centralizing Pads and Housing Assemblies for Cracks

    1. Clean the parts. Refer to TASK 72-41-34-100-000 (CLEANING-000).

      2. Do the test for cracks on the part that is given below.

        PART IDENT TASK

        Stage 3 centralizing pads and housing assemblies

        SPM TASK 70-23-02-230-501

        1. Cracked

        1. Reject

    2. SUBTASK 72-41-34-220-125 Examine the Stage 3 Centralizing Pads (03-680) Internal Surfaces at Location 1

    1. Refer to: Figure

      2. Galled.

        1. Up to 0.005 in. (0.13 mm) in depth

        1. Accept

        2. More than in step A. (1)

        1. Repair, VRS6206 TASK 72-41-34-300-038 (REPAIR-038)

      3. Scored.

        1. Up to 0.005 in. (0.13 mm) in depth

        1. Accept

        2. More than in step B. (1)

        1. Repair, VRS6206 TASK 72-41-34-300-038 (REPAIR-038)

    3. SUBTASK 72-41-34-220-126 Examine the Stage 3 Centralizing Pads (03-680) Bolt Holes at Location 2

    1. Refer to: Figure

      2. Elongated

      1. Reject

      3. Burred

      1. Reject

    4. SUBTASK 72-41-34-220-127 Examine the Stage 3 Housing Assemblies (03-730) Screw Thread Inserts at Location 3

    1. Refer to: Figure

      2. Screw thread inserts at location 3.

        1. Broken

        1. Repair, VRS6156 TASK 72-41-34-300-014 (REPAIR-014)

        2. Crossed

        1. Repair, VRS6156 TASK 72-41-34-300-014 (REPAIR-014)

        3. Worn excessively

        1. Repair, VRS6156 TASK 72-41-34-300-014 (REPAIR-014)

        4. Threads that are not there

        1. Repair, VRS6156 TASK 72-41-34-300-014 (REPAIR-014)

    5. SUBTASK 72-41-34-220-128 Examine the Stage 3 Centralizing Pads (03-680) Pads at Locations 4

    1. Refer to: Figure

      2. Loose

      1. Reject

        2. Bearing surface.

          1. Scored.

            1. Up to 0.005 in. (0.13 mm) in depth

            1. Accept

            2. More than in step B (1)(a)

            1. Reject

          2. Nicked.

            1. Up to 0.005 in. (0.13 mm) in depth

            1. Accept

            2. More than in step B (2)(a)

            1. Reject

          3. Chipped.

            1. Up to 0.010 in. (0.25 mm) in depth at the edges and which project not more than 10 percent of the bearing surface

            1. Accept

            2. More than in step (3)(a)

            1. Reject

        3. Wear at dimension A.

          1. If the thickness of the pad is between 0.009 to 0.012 in. (0.23 to 0.30 mm)

          1. Accept

          2. Less than in step C. (1)

          1. Reject

    6. SUBTASK 72-41-34-220-197 Examine the Stage 3 Housing Assemblies (03-730) Pads at Location 5

    1. Refer to: Figure

      2. Loose

      1. Repair, VRS6314, TASK 72-41-43-300-040 (REPAIR-040)

      3. Bearing surface

        1. Scored.

          1. Up to 0.005 in. (0.13 mm) in depth

          1. Accept

          2. More than in step (B) (1)(a)

          1. Repair, VRS6314, TASK 72-41-43-300-040 (REPAIR-040)

        2. Nicked.

          1. Up to 0.005 in. (0.13 mm) in depth

          1. Accept

          2. More than in step B (2)(a)

          1. Repair, VRS6314, TASK 72-41-43-300-040 (REPAIR-040)

        3. Chipped.

          1. Up to 0.005 in. (0.13 mm) in depth

          1. Accept

          2. More than in step B (3)(a)

          1. Repair, VRS6314, TASK 72-41-43-300-040 (REPAIR-040)

    7. SUBTASK 72-41-34-220-198 Examine the Stage 3 Housing Assemblies (03-730) Remaining Surfaces

      1. Galled.

        1. Up to 0.005 in. (0.13 mm) in depth

        1. Accept

        2. More than in step A (1)

        1. Repair, VRS6313 TASK 72-41-34-300-041 (REPAIR-041)

      2. Scored.

        1. Up to 0.005 in. (0.13 mm.) in depth

        1. Accept

        2. More than in step B (1)

        1. Repair, VRS6313 TASK 72-41-34-300-041 (REPAIR-041)

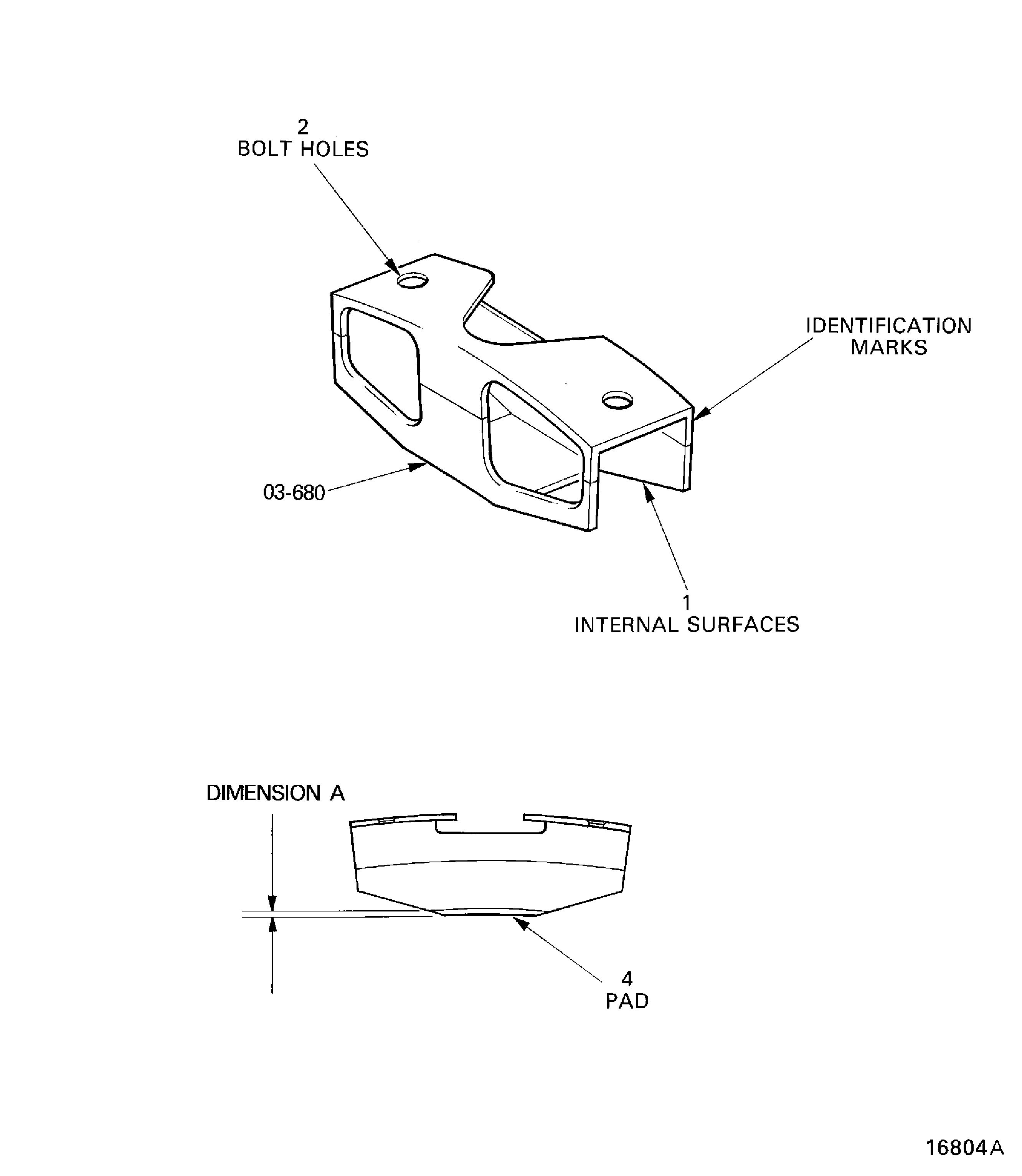

    8. Figure: Stage 3 Centralizing Pads and Housing Assemblies - Inspection Locations

    Stage 3 Centralizing Pads and Housing Assemblies - Inspection Locations

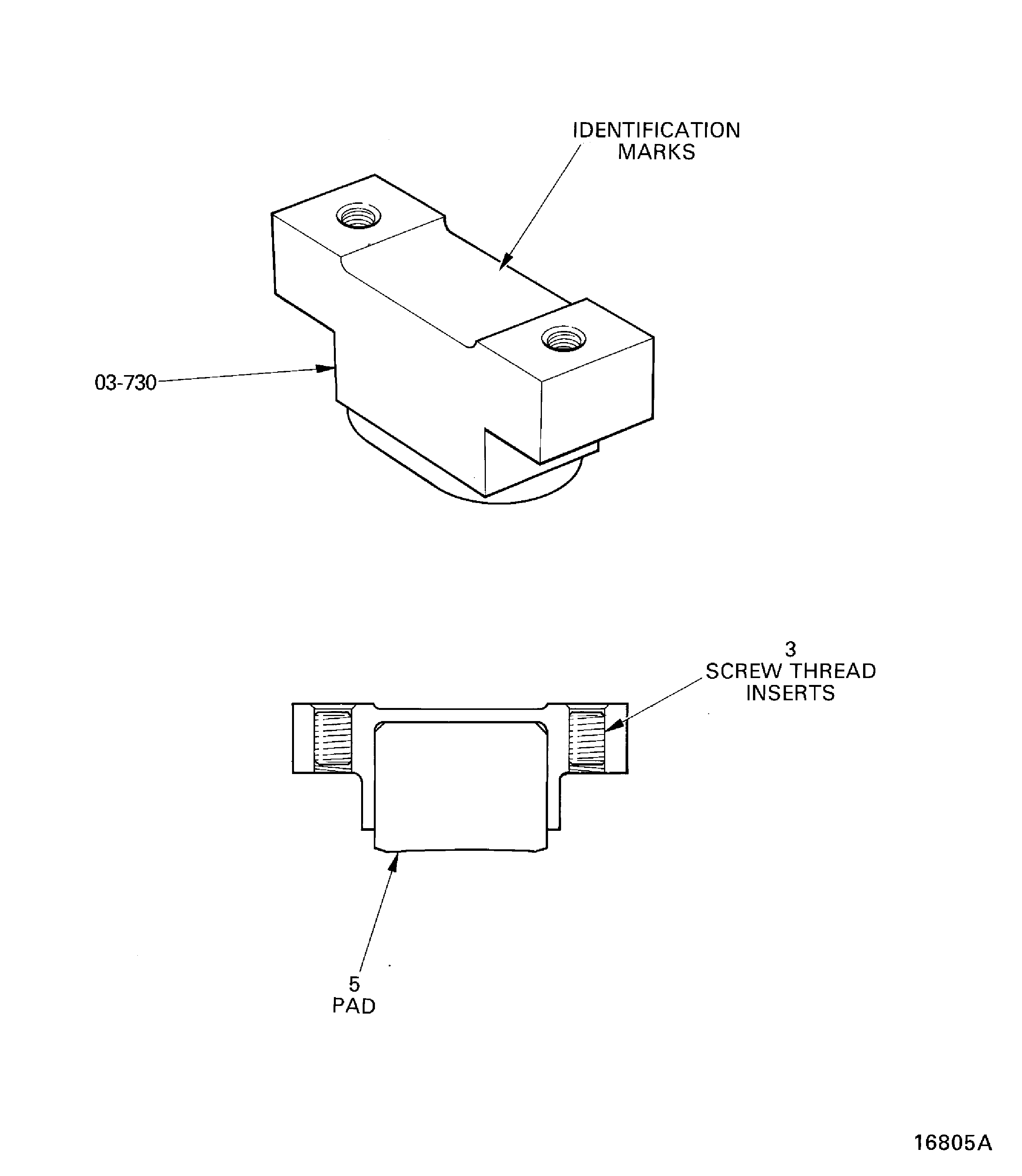

    Figure: Stage 3 Centralizing Pads and Housing Assemblies -
