TASK 72-42-11-300-015 Diffuser Case - Plasma Spray The Front Inside Stator Diameter - Repair-015 (VRS3046)

DMC:V2500-A0-72-42-1100-02A-609A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-42-11-300-015 Diffuser Case - Plasma Spray The Front Inside Stator Diameter - Repair-015 (VRS3046)

Effectivity

FIG/ITEM PART NO.

01-010

2A0051

01-010

2A2081-01

01-010

2A2581-01

01-010

2A2883-01

01-010

2A2889-01

01-010

2A2896-01

01-010

2A2885-01

01-010

2A2891-01

01-010

2A2897-01

01-010

2A3132

Material of component

DESCRIPTION SYMBOL MATERIAL

Diffuser case assembly

-

Nickel Alloy

General

Price and availability - refer to IAE

The practices and processes referred to in this procedure by TASK numbers are in the SPM.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Machining equipmentLOCALMachining equipment
Plasma spray equipmentLOCALPlasma spray equipment

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 03-080 METAL SPRAYING POWDER,Co BASE ALLOYIE426CoMat 03-080
CoMat 03-096 PLASMA SPRAY POWDERLOCALCoMat 03-096

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-42-11-320-061 Machine the Front Inside Stator Diameter Before Coating

    1. Refer to Figure.

      2. Machine diameter F and 1.388 to 1.392 in. (35.256 to 35.356 mm) dimension to the dimension given in the figure. Keep the chamfer and modified radius.

      1. Remove only the minimum quantity of material to get the dimension given in the figure. The thickness of the parent material must be a minimum of 0.080 in. (2.032 mm) before coating.

    2. SUBTASK 72-42-11-350-070 Mask All the Areas that are not to be Plasma Spray Coated

    1. Refer to Figure.

      2. Mask all the areas that are not to be plasma spray coated.

      1. Do the procedure given in the SPM TASK 70-34-03-340-501. No coating is permitted on the face of the flange.

    3. SUBTASK 72-42-11-380-055 Grit Blast the Front Inside Stator Diameter

    1. Refer to Figure.

      2. Grit blast the front inside stator diameter.

      1. Do the procedure given in the SPM TASK 70-34-03-340-501.

    4. SUBTASK 72-42-11-340-055 Apply Plasma Spray Coating to the Front Inside Stator Diameter

    1. Refer to Figure and Figure.

      2. Apply sufficient plasma spray coating to the front inside stator diameter to get the necessary dimensions.

    5. SUBTASK 72-42-11-350-071 Remove the Mask

    1. Refer to Figure.

    2. Remove the mask.

    6. SUBTASK 72-42-11-320-062 Machine the Front Inside Stator Diameter

    1. Refer to Figure.

      2. Machine the plasma spray coating to the dimensions given in the figure.

      1. Keep the 0.088 to 0.098 in. (2.24 to 2.49 mm) clearance to this dimension and only machine this dimension if necessary. This machine surface can be not complete. Do not machine the struts.

        Keep the 0.080 to 0.110 in. (2.03 to 2.79 mm) clearance to this dimension and only machine this dimension if necessary. This machine surface can be not complete.

    7. SUBTASK 72-42-11-220-074 Examine the Front Inside Stator Diameter

    1. Refer to Figure.

    2. Examine the front inside stator diameter to the dimensions given in the figure.

    8. SUBTASK 72-42-11-350-072 Mark the Part

    1. Refer to Figure.

      2. Mark the repair number VRS3046 on the diffuser case adjacent to the part number.

      1. Mark the part by the procedures given in the SPM TASK 70-09-00-400-501.

        Use the vibration peen method.

        NOTE

        If the VRS repair number is marked on the part, do not mark the repair number again.

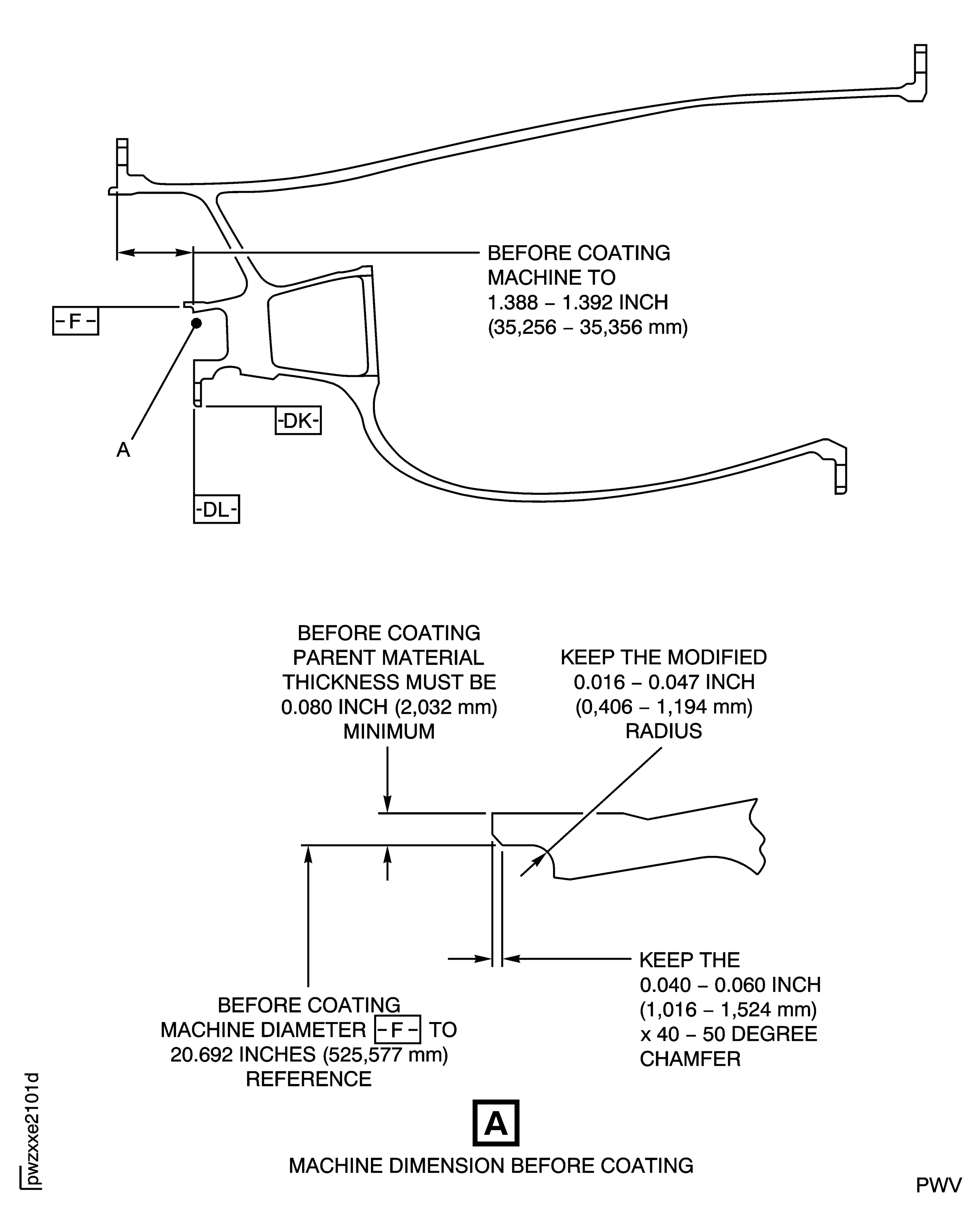

    9. Figure: Repair Details and Dimensions (Before Coating)

    Sheet 1

    Legend
    Repair Details and Dimensions (Before Coating)

    Sheet 1

    Close

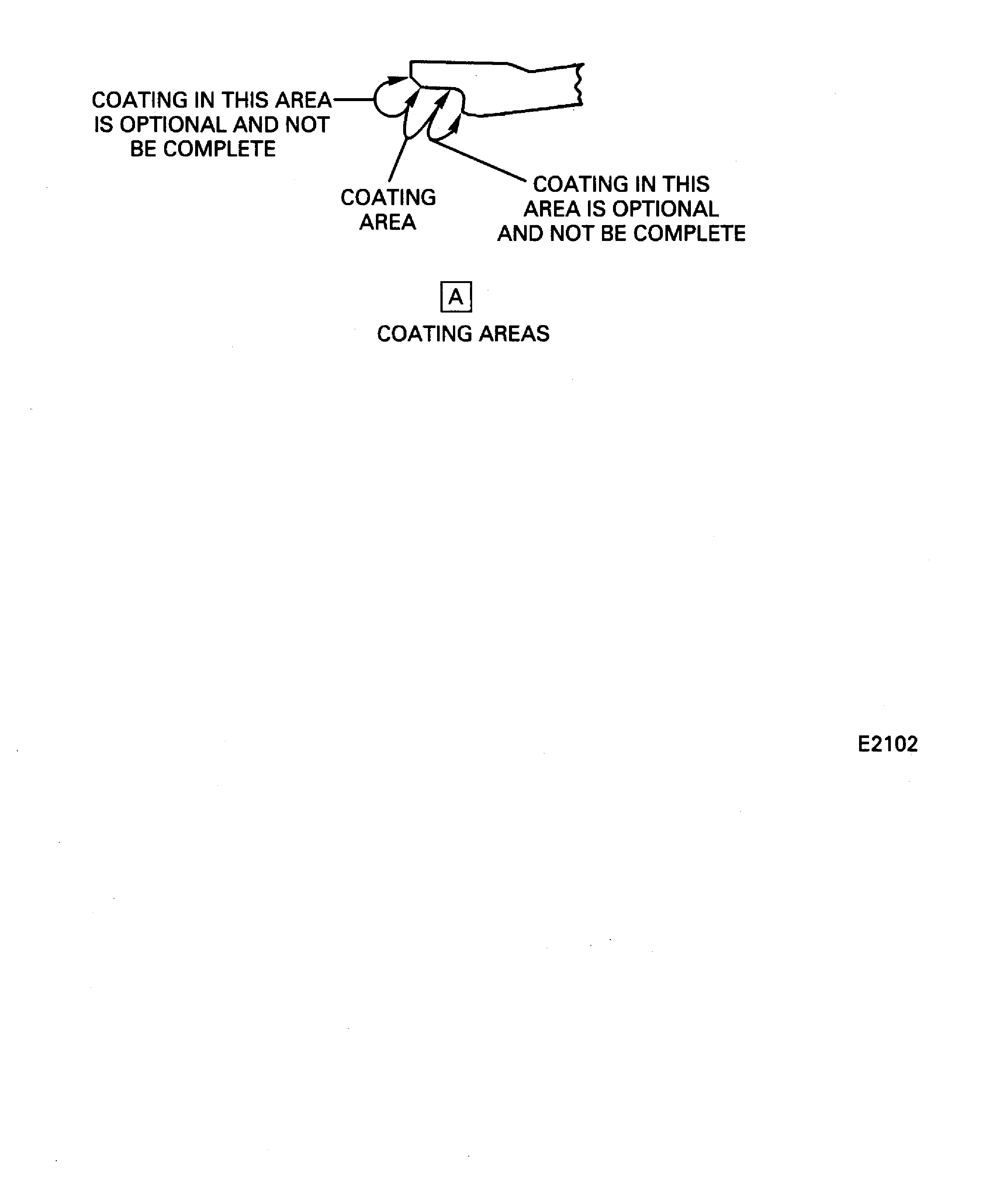

    Figure: Repair Details and Dimension (Before Coating)

    Sheet 2

    Legend
    Repair Details and Dimension (Before Coating)

    Sheet 2

    Close

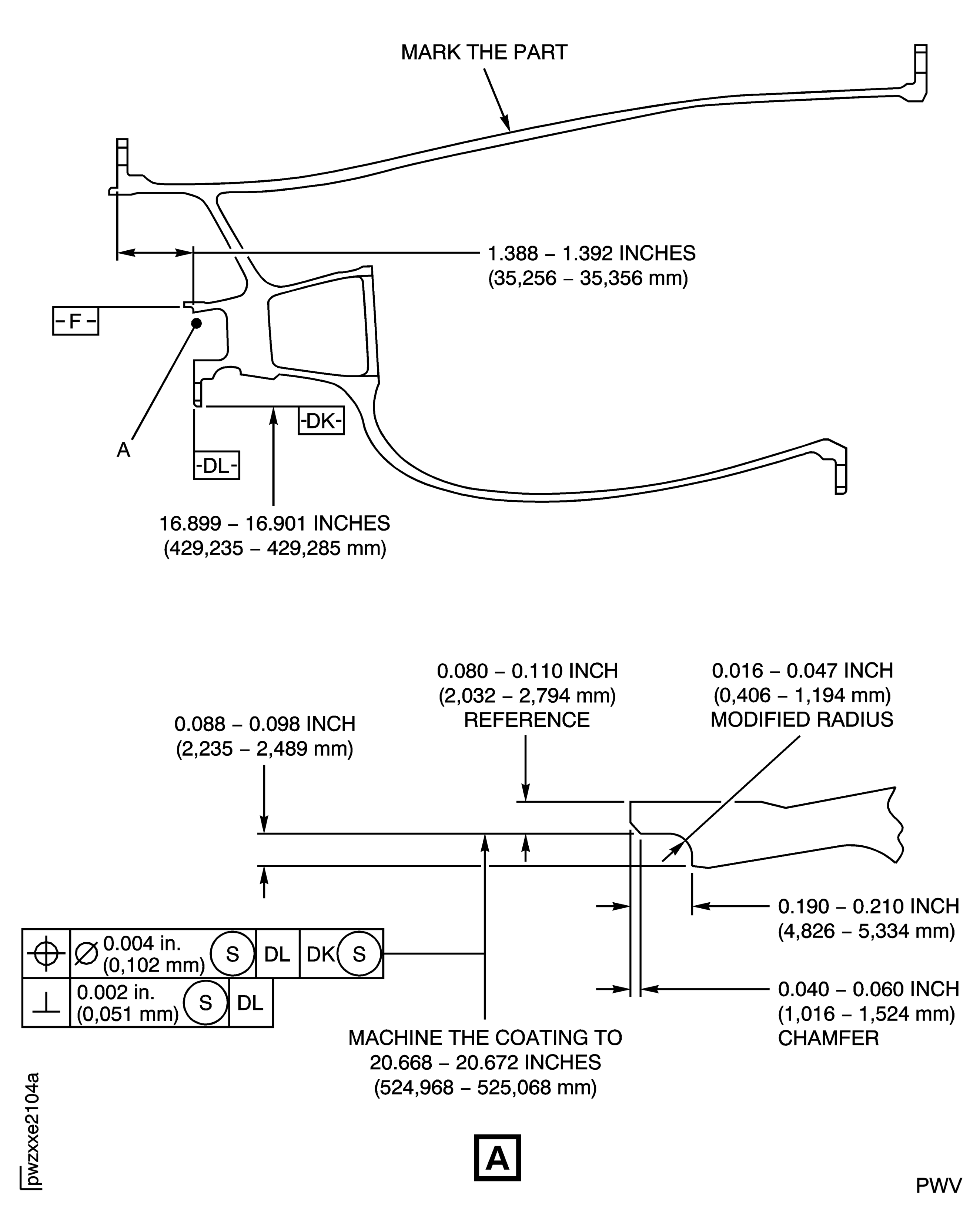

    Figure: Repair Details and Dimensions (After Coating)
