TASK 72-42-11-300-017 Diffuser Case - Plasma Spray The Rear Inside Diameter - Repair-017 (VRS3052)
Effectivity
FIG/ITEM PART NO. | |
|---|---|
01-010 | 2A0051 |
01-010 | 2A2081-01 |
01-010 | 2A2581-01 |
01-010 | 2A2883-01 |
01-010 | 2A2589-01 |
01-010 | 2A2896-01 |
01-010 | 2A2885-01 |
01-010 | 2A2891-01 |
01-010 | 2A2897-01 |
01-010 | 2A3132 |
General
Price and availability - refer to IAE
The practices and processes referred to in this procedure by TASK numbers are in the SPM.
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Standard inspection equipment | LOCAL | Standard inspection equipment | ||
| Machining equipment | LOCAL | Machining equipment | ||
| Plasma spray equipment | LOCAL | Plasma spray equipment |
Consumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 03-080 METAL SPRAYING POWDER,Co BASE ALLOY | IE426 | CoMat 03-080 | ||
| CoMat 03-096 PLASMA SPRAY POWDER | LOCAL | CoMat 03-096 |
Spares
NONESafety Requirements
NONEProcedure
Refer to: Figure
SUBTASK 72-42-11-320-059 Machine the Rear Inside Diameter Before Coating
Refer to Figure.
Do the procedure given in the SPM TASK 70-34-03-340-501.
No coating is permitted on the face of the flange.
Mask all the areas that are not to be plasma spray coated.
SUBTASK 72-42-11-350-067 Mask All the Areas that are not to be Plasma Sprayed
Refer to Figure.
Do the procedure given in the SPM TASK 70-34-03-340-501.
Grit blast the rear inside diameter.
SUBTASK 72-42-11-380-054 Grit Blast the Rear Inside Diameter
Refer to Figure.
SUBTASK 72-42-11-340-054 Apply Plasma Spray Coating to the Rear Inside Diameter
Refer to: Figure
SUBTASK 72-42-11-350-068 Remove the Mask and the Overspray Coating
Refer to: Figure
All dimensions apply when surfaces DF and DE are flat in 0.005 in. (0.127 mm) and diameters DH and DF maintain a clearance envelope of 25.210 in. (640.334 mm) and 28.226 in. (716.94 mm) in a free or held condition. Held contact is permitted only on surfaces DJ, DX, DE, DY and Diameters DH and DF. In a free condition, surfaces DJ and DE are flat in 0.010 in. (0.254 mm) and diameters DH and DF are between 25.173 and 25.239 in. (639.42 and 641.07 mm) and 28.197 and 28.263 in. (716.20 and 717.88 mm).
Machine the plasma spray coating to the dimensions given in the figure.
SUBTASK 72-42-11-320-060 Machine the Rear Inside Diameter
Refer to: Figure
SUBTASK 72-42-11-220-073 Examine the Rear Inside Diameter
Refer to: Figure
Mark the part by the procedures given in the SPM TASK 70-09-00-400-501.
Use the vibration peen method.
NOTE
If the VRS repair number is marked on the part, do not mark the repair number again.
Mark the repair number VRS3052 on the diffuser case adjacent to the part number.
SUBTASK 72-42-11-350-069 Mark the Part

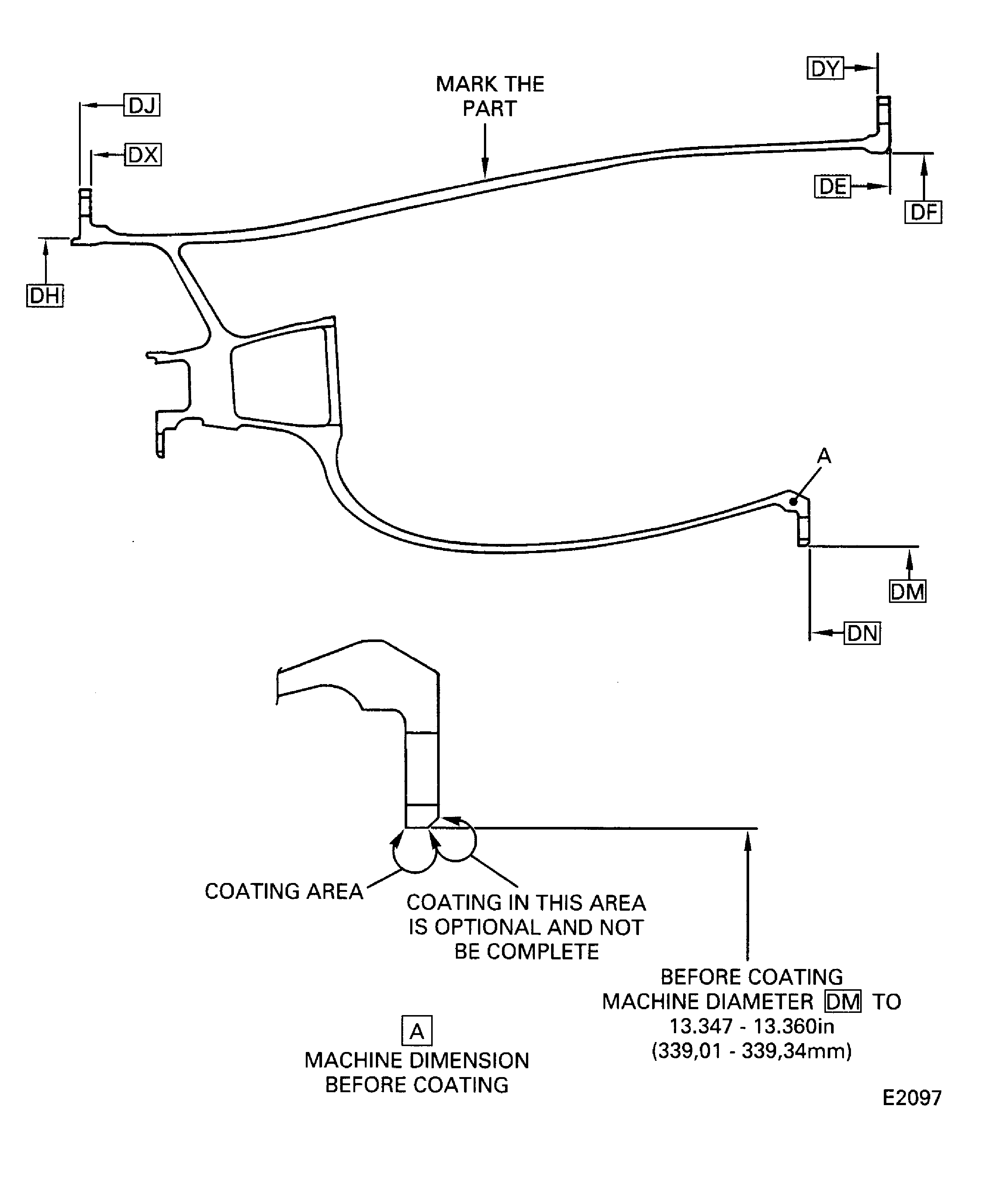

Figure: Diffuser case rear inside diameter repair areas
Sheet 1

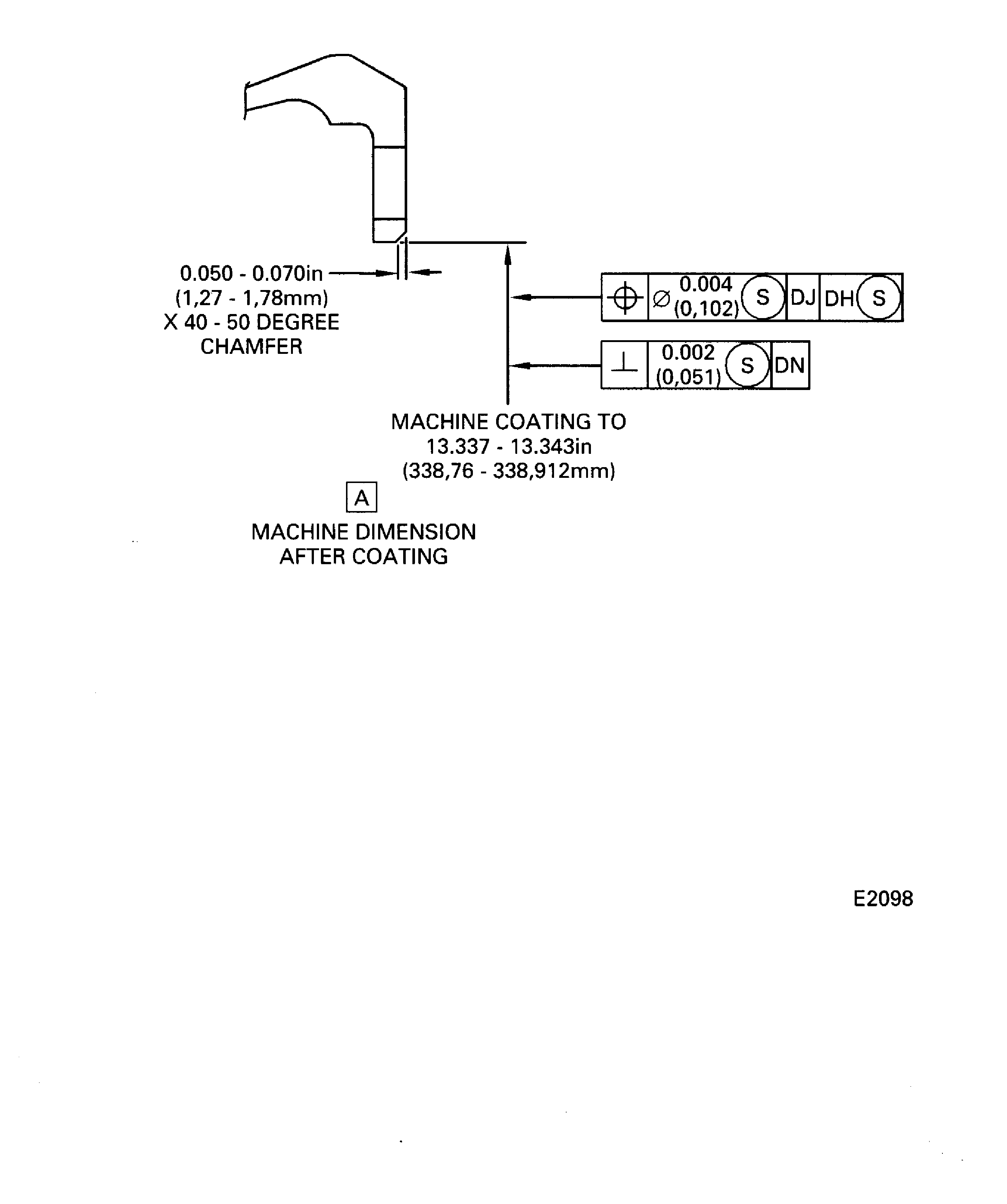

Figure: Diffuser case rear inside diameter repair areas
Sheet 2
