TASK 72-42-20-200-108 No. 4 Bearing Scavenge Oil Tube Lock - Examine, Inspection-008

DMC:V2500-A0-72-42-2024-00A-310A-C|Issue No:004.00|Issue Date:2021-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-42-20-200-108 No. 4 Bearing Scavenge Oil Tube Lock - Examine, Inspection-008

Effectivity

FIG/ITEM

PART NO.

02-240

2A0345

02-220

2A3817

02-220

2A0346

General

This TASK gives the procedure for the inspection of the No. 4 bearing scavenge tube lock. For the other parts of the No. 4 bearing compartment tubes, refer to Inspection-000 TASK 72-42-20-200-100.

Fig/item numbers in parentheses in the procedure agree with those used in the IPC.

The policy that is necessary for inspection is given in the SPM TASK 70-20-00-200-501.

All the parts must be cleaned before any part is examined. Refer to the SPM TASK 70-10-00-100-501.

All parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

The procedure for those parts which must have a crack test is given in Step Do the test before the part is visually inspected.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All parts must be examined to make sure that all the repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

References

Refer to the SPM for data on these items:

Definitions of Damage, SPM TASK 70-02-02-350-501.

Inspection of Parts, SPM TASK 70-20-01-200-501.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-42-20-230-070 Examine the No. 4 Bearing Scavenge Tube Lock (02-240, 02-220) for Cracks, Nicks and Scratches on the Locking Lip

    1. Refer to Figure and Figure.

      2. Examine the lock at location 1 for cracks, nicks and scratches.

        1. Cracks

        1. Reject

        2. Nicks and scratches

          1. Up to 0.010 in. (0.254 mm) in depth with no high metal.

          1. Accept

          2. Other than Step.

          1. Reject

    2. SUBTASK 72-42-20-220-095 Examine the No. 4 Bearing Scavenge Tube Lock (02-240, 02-220) for Wear on the Locking Grooves

    1. Refer to Figure and Figure.

      2. Examine the lock at location 2 for wear on the locking groove.

        1. If the dimension is between 0.116 and 0.119 in. (2.946 and 3.023 mm).

        1. Accept

        2. Other than Step.

        1. Reject

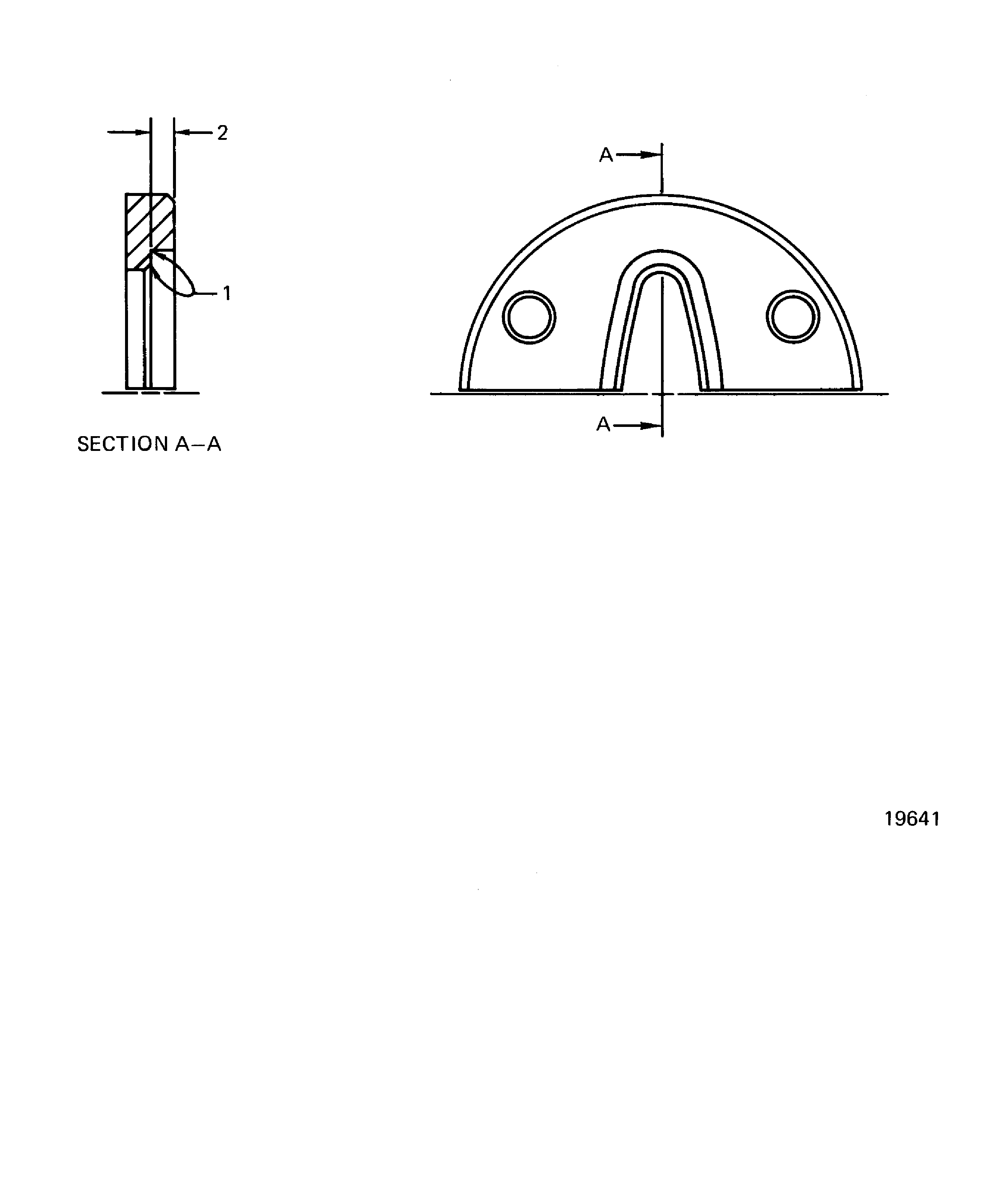

    3. Figure: No. 4 Bearing Scavenge Tube Lock (02-240) Inspection Locations

    No. 4 Bearing Scavenge Tube Lock (02-240) Inspection Locations

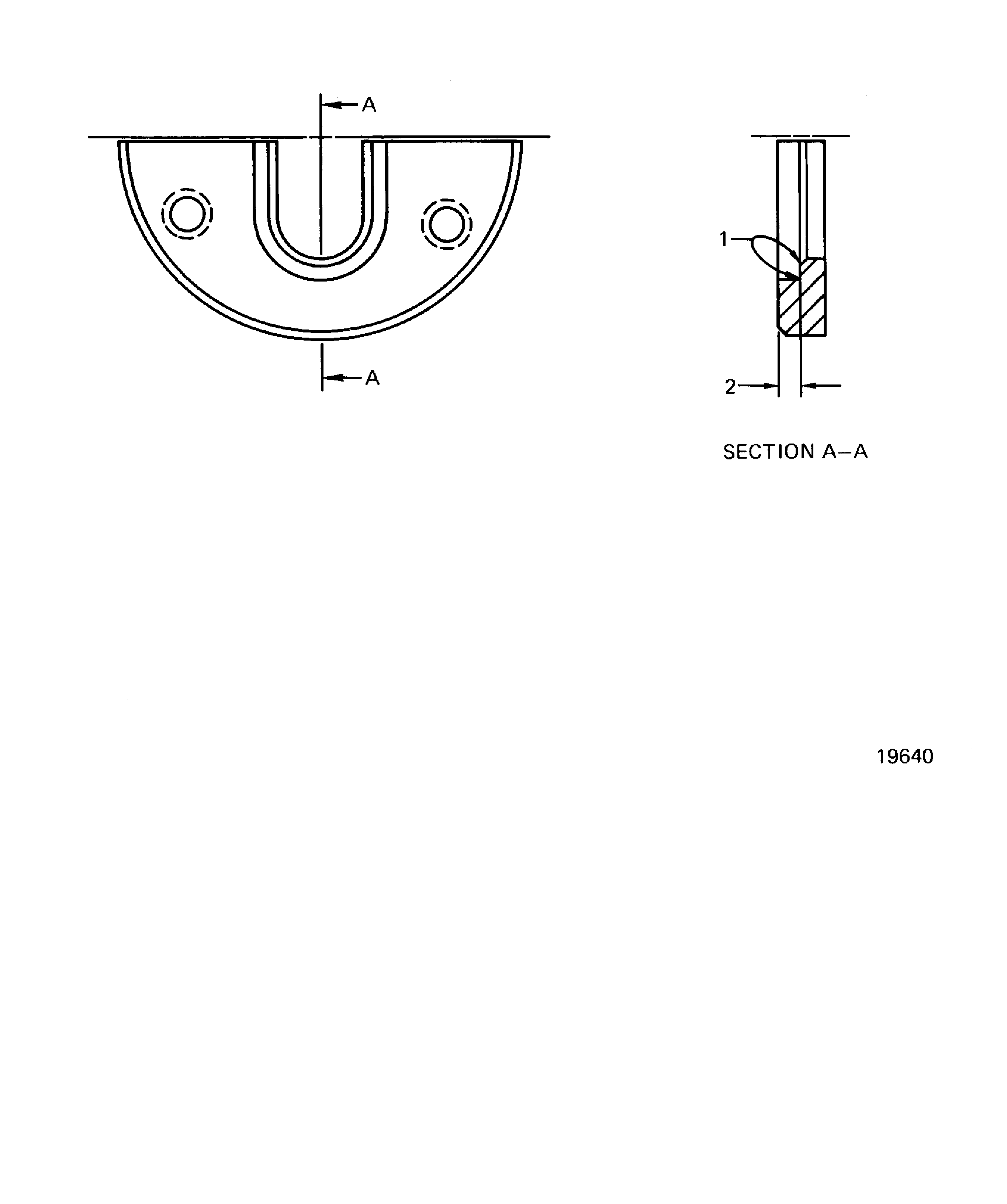

    Figure: No. 4 Bearing Scavenge Tube Lock (02-220) Inspection Locations

    No. 4 Bearing Scavenge Tube Lock (02-220) Inspection Locations

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Revised the procedural step. (20VC488)
