TASK 72-42-20-200-114 No. 4 Bearing Compartment Cooling Air 2-Hole Sealing Sleeve - Examine, Inspection-014

DMC:V2500-A0-72-42-2052-00A-310A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-42-20-200-114 No. 4 Bearing Compartment Cooling Air 2-Hole Sealing Sleeve - Examine, Inspection-014

Effectivity

FIG/ITEM

PART NO.

05-250

2A1033

General

This TASK gives the procedure for the inspection of the 2-hole sealing sleeve. For the other part of the No. 4 bearing compartment tubes, refer to Inspection-000TASK 72-42-20-200-100.

Fig/item numbers in parentheses in the procedure agree with those used in the IPC.

The policy that is necessary for inspection is given in the SPM TASK 70-20-00-200-501.

All the parts must be cleaned before any part is examined. Refer to the SPM TASK 70-10-00-100-501.

All parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

The procedure for those parts which must have a crack test is given in Step. Do the test before the part is visually examined.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All parts must be examined to make sure that all the repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

References

Refer to the SPM for data on these items.

Definitions of Damage, SPM TASK 70-02-02-350-501.

Inspection of Parts, SPM TASK 70-20-01-200-501.

Some data on these items are contained in this TASK. For more data on these items refer to the SPM:

Method of Testing for Crack Indications.

Chemical Processes

Surface Protection

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-42-20-230-057-001 Examine the 2- Hole Sealing Sleeve (05-250) for Cracks

    1. Clean the Part. Refer to the Cleaning - 000 TASK 72-42-20-100-100.

      2. Do the test for cracks on the part that is given below. Use the applicable penetrant procedures. Carefully examine the heat shields.

        1. Two-hole sealing sleeve (Dip or Spray), Refer to SPM TASK 70-23-01-230-501.

          1. Cracked

          1. Reject

    2. SUBTASK 72-42-20-230-057-002 Examine the 2 -Hole Sealing Sleeve (05-250) for Cracks

    1. Clean the Part. Refer to the Cleaning - 000 TASK 72-42-20-100-100.

      2. Do the test for cracks on the part that is given below. Use the applicable penetrant procedures. Carefully examine the heat shields.

        1. Two-hole sealing sleeve (Dip or Spray), Refer to SPM TASK 70-23-02-230-501

          1. Cracked

          1. Reject

    3. SUBTASK 72-42-20-220-063 Examine the 2-Hole Sealing Sleeve (05-250) for Wear on the Inside Diameters

    1. Refer to Figure.

      2. Examine the sleeve at location 1 for wear on the inside diameter.

        1. Wear

          1. If the diameter is between 0.700 and 0.703 in. (17.78 and 17.86 mm). There must be no distortion or wear grooves.

          1. Accept

          2. If the inside diameter at the two wear areas in the figure have a maximum depth of 0.015 in. (0.381 mm) for approximately 180 degrees (refer to location 2) and the inside diameter between the wear areas (refer to location 3) must be a minimum width of 0.060 in. (1.524 mm) for 360 degrees.

          1. Accept

          3. Other than Stepand Step.

          1. Reject

      3. Examine the sleeve at location 2086 for wear on the inside diameter.

        1. Wear

          1. If the diameter is between 0.562 and 0.566 in. (14.27 and 14.38 mm). There must be no distortion or wear grooves

          1. Accept

        2. Write down the dimension of the diameter.

          3. Other than Step.

          1. Reject

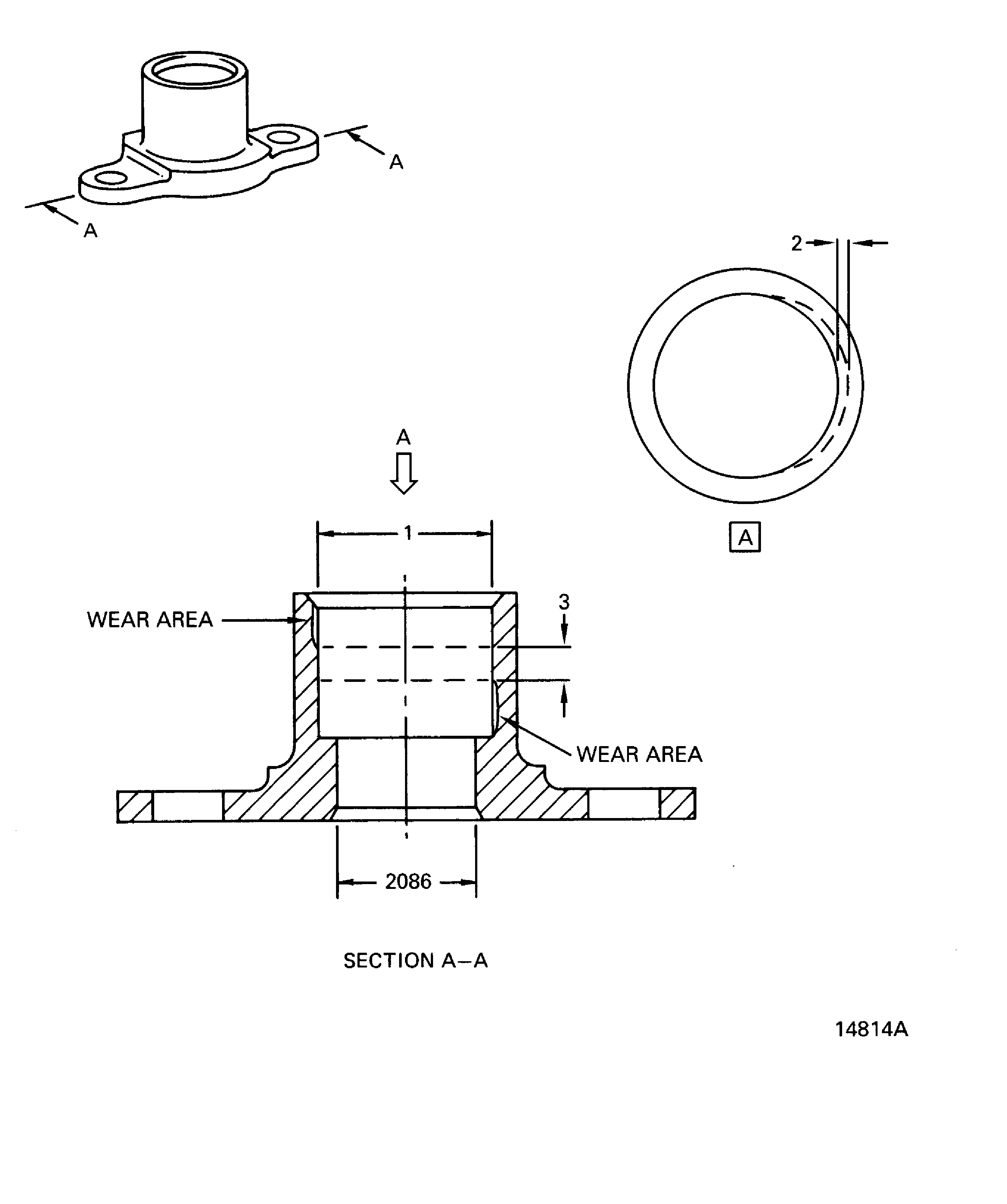

    4. Figure:

Requirements After Job Completion

Follow-On Conditions

NONE
