TASK 72-42-33-300-002 No. 4 Bearing Front Seal Support - Repair The Oversize Seal Ring Groove, Repair-002 (VRS3067)
Material of component
IAE | ||
|---|---|---|
DESCRIPTION SYMBOL MATERIAL | ||
No. 4 bearing seal support assembly | - | Titanium alloy |
General
The practices and processes referred to in the procedure by the TASK number are in the SPM.
Price and availability - not applicable
Preliminary Requirements
Pre-Conditions
| Action/Condition | Data Module/Technical Publication |
|---|---|
| Make sure that all the cleaning and inspection procedures are done before this repair. |
Support Equipment
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Machining equipment | LOCAL | Machining equipment | ||
| Nickel Plate Equipment | LOCAL | Nickel Plate Equipment |
Consumables, Materials and Expendables
NONESpares
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Seal ring | LOCAL | 2A0074P5 | AR | |
| Seal ring | LOCAL | 2A0074P10 | AR | |
| Seal ring | LOCAL | 2A0074P15 | AR | |
| Seal ring | LOCAL | 2A0074P20 | AR |
Safety Requirements
NONEProcedure
Refer to Figure.
Refer to Figure requirements.

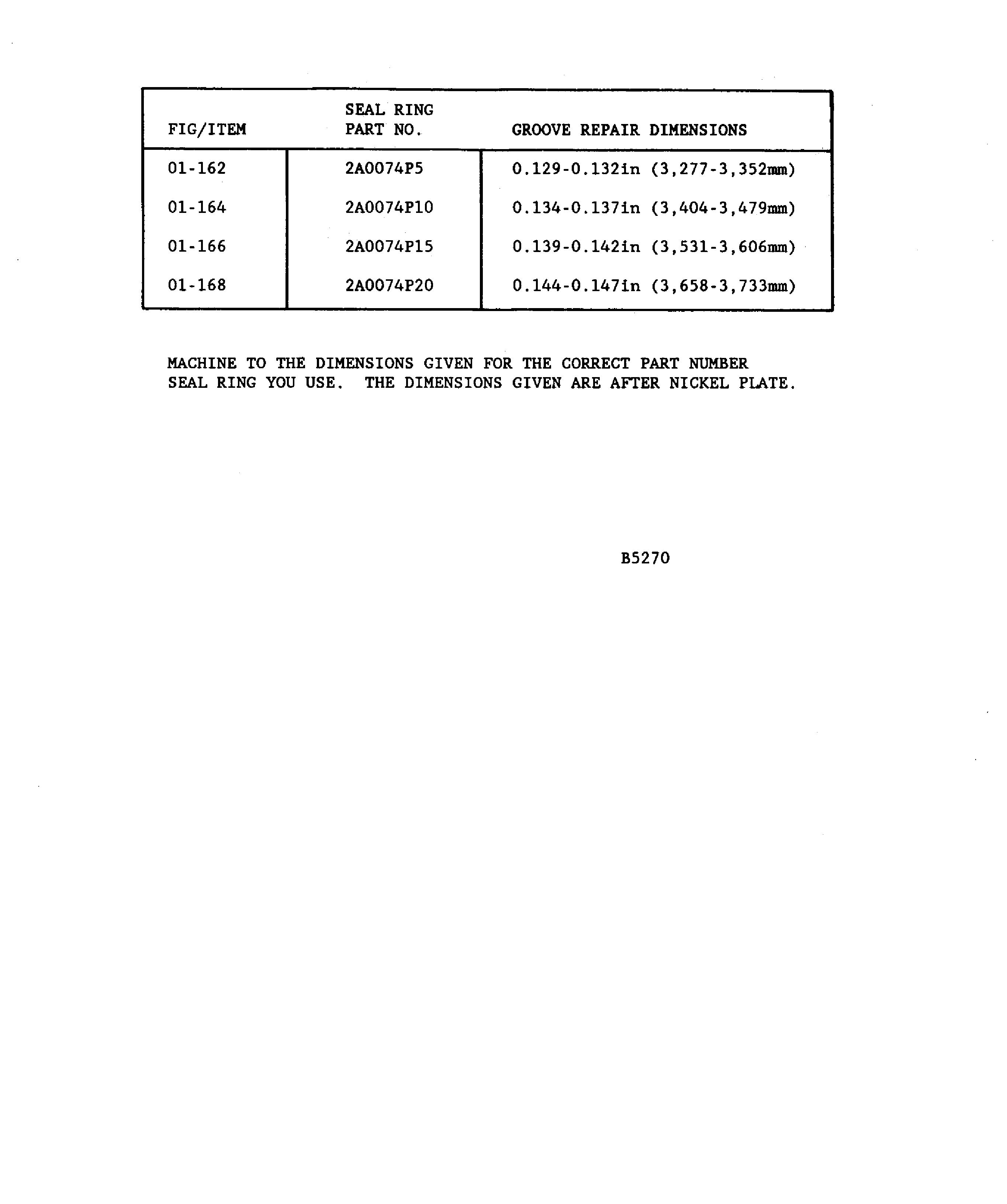

Refer to the table given in the figure for the seal ring groove machining dimensions. Remove the minimum quantity of base material.
Machine the groove sufficiently to permit a plating thickness of 0.0005 to 0.0015 in. (0.013 to 0.038 mm).
Make sure you use the dimensions given for the correct part number seal ring you use.
Machine Surface Y and Surface Z by the requirements given in the figure.
SUBTASK 72-42-33-320-051 Machine the Seal Ring Groove
Refer to Figure.
SUBTASK 72-42-33-330-052 Nickel Plate the Seal Ring Groove
Refer to Figure requirements.
Examine the repair.
SUBTASK 72-42-33-220-080 Examine the Repair
Refer to Figure requirements.
Make a permanent mark by the procedure given in the SPM TASK 70-09-00-400-501.
Use the vibration peen method.
Mark the seal ring oversize number adjacent to the part number. Example of the oversize number is P5, P10, P15 or P20.
SUBTASK 72-42-33-350-059 Identify the Repair

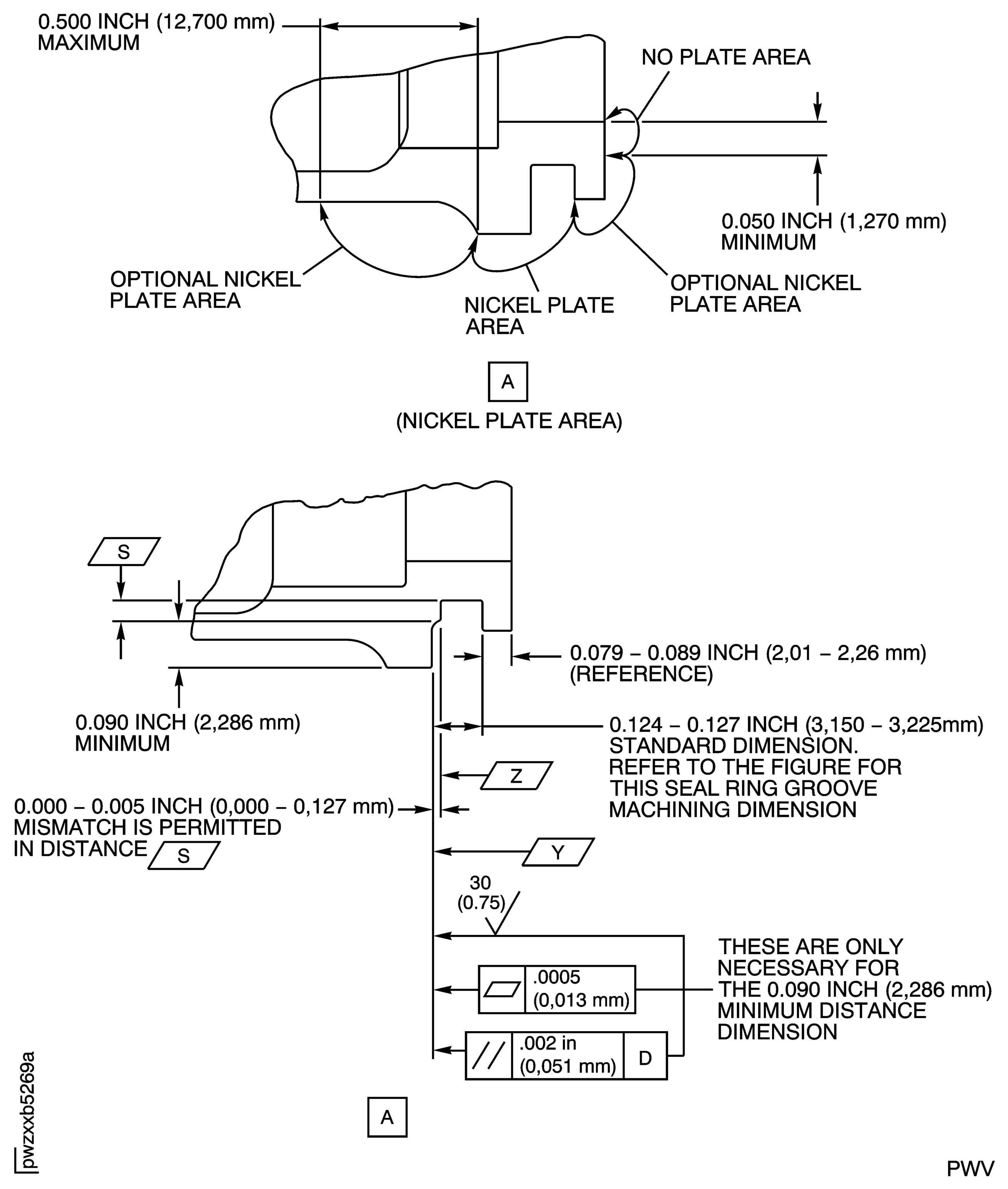

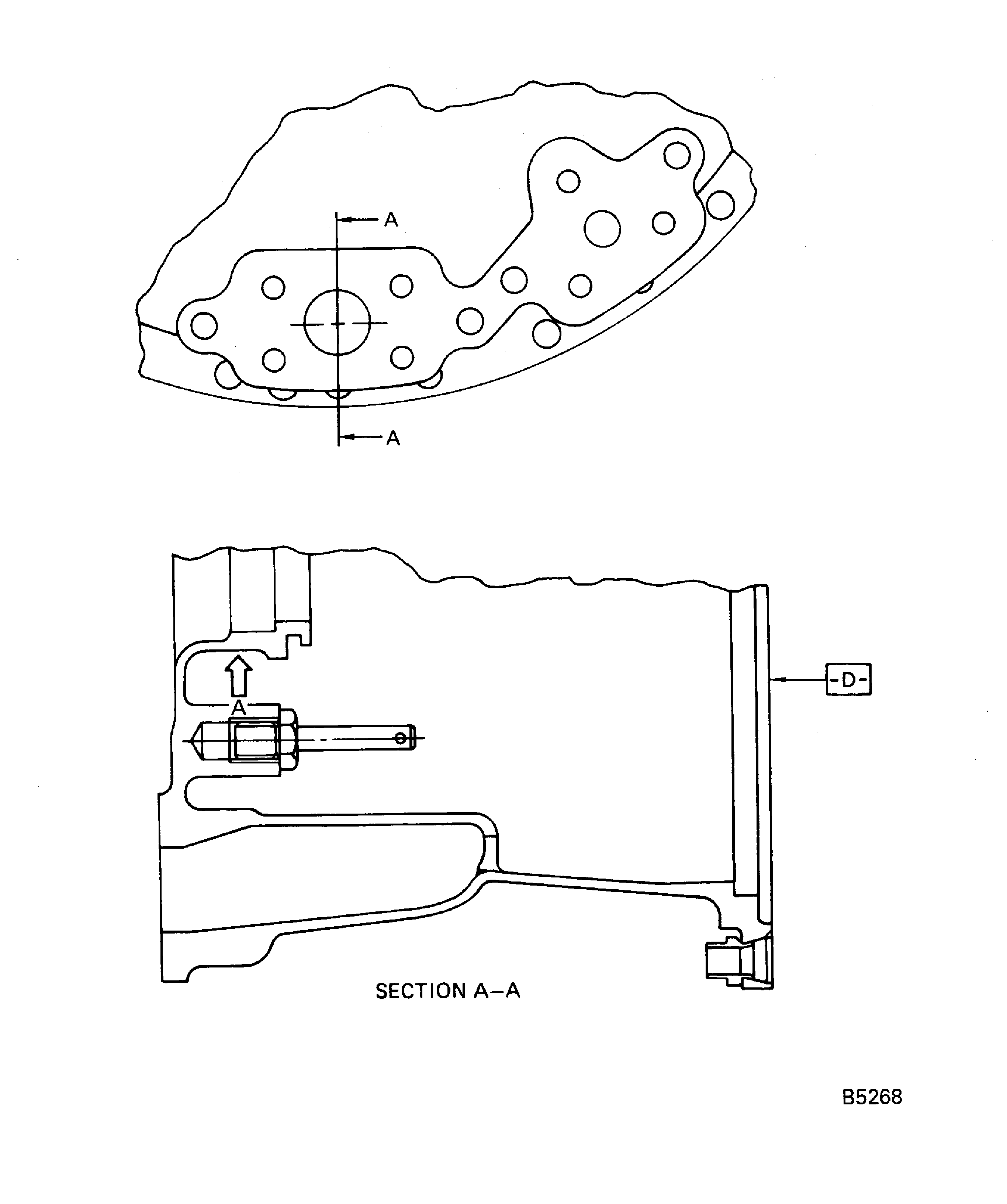

Figure: Repair Details and Dimensions
Sheet 1
Figure: Repair Details and Dimensions
Sheet 2
Figure: Repair Details and Dimensions
Sheet 3
