TASK 72-42-61-300-008 Outer Combustion Chamber Assembly - Replace The Liner (Bulkhead) Segments, Repair-008 (VRS3096)

DMC:V2500-A0-72-42-6100-01A-920A-C|Issue No:002.00|Issue Date:2015-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-42-61-300-008 Outer Combustion Chamber Assembly - Replace The Liner (Bulkhead) Segments, Repair-008 (VRS3096)

Effectivity

FIG/ITEM PART NO.

01-501

2A0550-01

01-501

2A1383

01-501

2A1385

01-501

2A1399

01-501

2A1618

01-501

2A1620

01-501

2A1666

01-501

2A2013

01-501

2A2032

01-501

2A2723-01

01-501

2A2837-01

01-501

2A3345-01

01-501

2A3345-001

01-501

2A3345-002

01-501

2A3345-003

01-501

2A3345-004

01-501

2A3347-001

01-501

2A3347-002

01-501

2A3347-003

01-501

2A3347-004

01-501

2A3347-005

01-501

2A3347-01

01-501

2A3439-001

01-501

2A3439-002

01-501

2A3439-003

01-501

2A3439-004

01-501

2A3439-005

01-501

2A3439-006

01-501

2A3439-007

01-501

2A3439-008

01-501

2A3439-01

01-501

2A3441-01

01-501

2A3441-001

01-501

2A3441-002

01-501

2A3441-003

01-501

2A3441-004

01-501

2A3441-005

01-501

2A3441-006

01-501

2A3441-007

01-501

2A3441-008

01-501

2A3440-01

01-501

2A3440-001

01-501

2A3440-002

01-501

2A3440-003

01-501

2A3440-004

01-501

2A3440-005

01-501

2A3440-006

01-501

2A3440-007

01-501

2A3442-01

01-501

2A3442-001

01-501

2A3442-002

01-501

2A3442-003

01-501

2A3442-004

01-501

2A3442-005

01-501

2A3442-006

01-501

2A3442-007

01-501

2A3442-008

01-501

2A4284-01

01-501

2A4309-01

01-501

2A4312-01

01-501

2A4314-01

01-501

2A4314-001

Material of component

PART IDENT

SYMBOL

MATERIAL

Liner (bulkhead) segments

Corrosion and heat resistant alloy

General

Price and availability

Refer to IAE

The practices and processes referred to in the procedure by the TASK number are in the SPM.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Torque wrenchLOCALWrench, torque
IAE 3P17046 Torque Adapter0AM53IAE 3P170461

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 10-077 APPROVED ENGINE OILSLOCALCoMat 10-077

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
NUT, OPTION - .190 DIA0AM534W0001
Liner2A012920

(bulkhead)

Liner2A245220

(bulkhead)

Liner2A332420

(bulkhead)

Liner2A429920

(bulkhead)

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-42-61-350-075 Remove the Damaged Liner (Bulkhead) Segment

      NOTE

      It is not necessary to remove the access cover if the fuel nozzle guide retainers are not being replaced.

    1. Refer to Figure.

      2. Remove the fuel nozzle guide.

      1. Refer to Repair, VRS3095 TASK 72-42-61-300-007 (REPAIR-007).

      3. Remove the nuts, washers and bushing.

      1. Use IAE 3P17046 Torque Adapter 1 off to remove the nuts.

    4. Remove the damaged segment.

    2. SUBTASK 72-42-61-220-130 Examine the Shell for Damage

      1. Examine the shell for cracks, burns and wear.

      1. Use a white light and 3X magnification.

        If there are any cracks or burns, or if the thickness of the shell is less than 0.030 in. (0.762 mm) refer to Repair, VRS3091 TASK 72-42-61-300-003 (REPAIR-003).

    3. SUBTASK 72-42-61-350-076 Install the Replacement Liner (Bulkhead) Segment

    1. Refer to Figure and Figure.

    2. Install the replacement segment.

    3. Install the washers and the bushing.

      4. This procedure is optional. You can increase the Bushing ID to 0.194 in. (4.93 mm) diameter maximum, if necessary to prevent interference.

      1. Visually examine bushing ID hole in white light and 20X magnification. No cracks are permitted.

      5. CAUTION

        DO NOT USE COMAT 10-049 MOLYBDENUM DISULFIDE TO LUBRICATE THE NUT THREADS. MOLYBDENUM DISULFIDE CAN CAUSE CORROSION.

        Install new nuts.

      1. Use CoMat 10-077 APPROVED ENGINE OILS on segment threaded studs.

      2. Install the nuts with IAE 3P17046 Torque Adapter.

      3. Tighten nuts down on the stud between 40 to 50 lbfin (4.519 to 5.649 Nm) of torque and make sure that the washer is not free to move. Back the nut off one-half turn, then use IAE 3P17046 Torque Adapter to torque the nut to 25 to 35 lbfin (2.824 to 3.954 Nm).

      6. Install the fuel nozzle guide.

      1. Refer to Repair, VRS3095 TASK 72-42-61-300-007 (REPAIR-007).

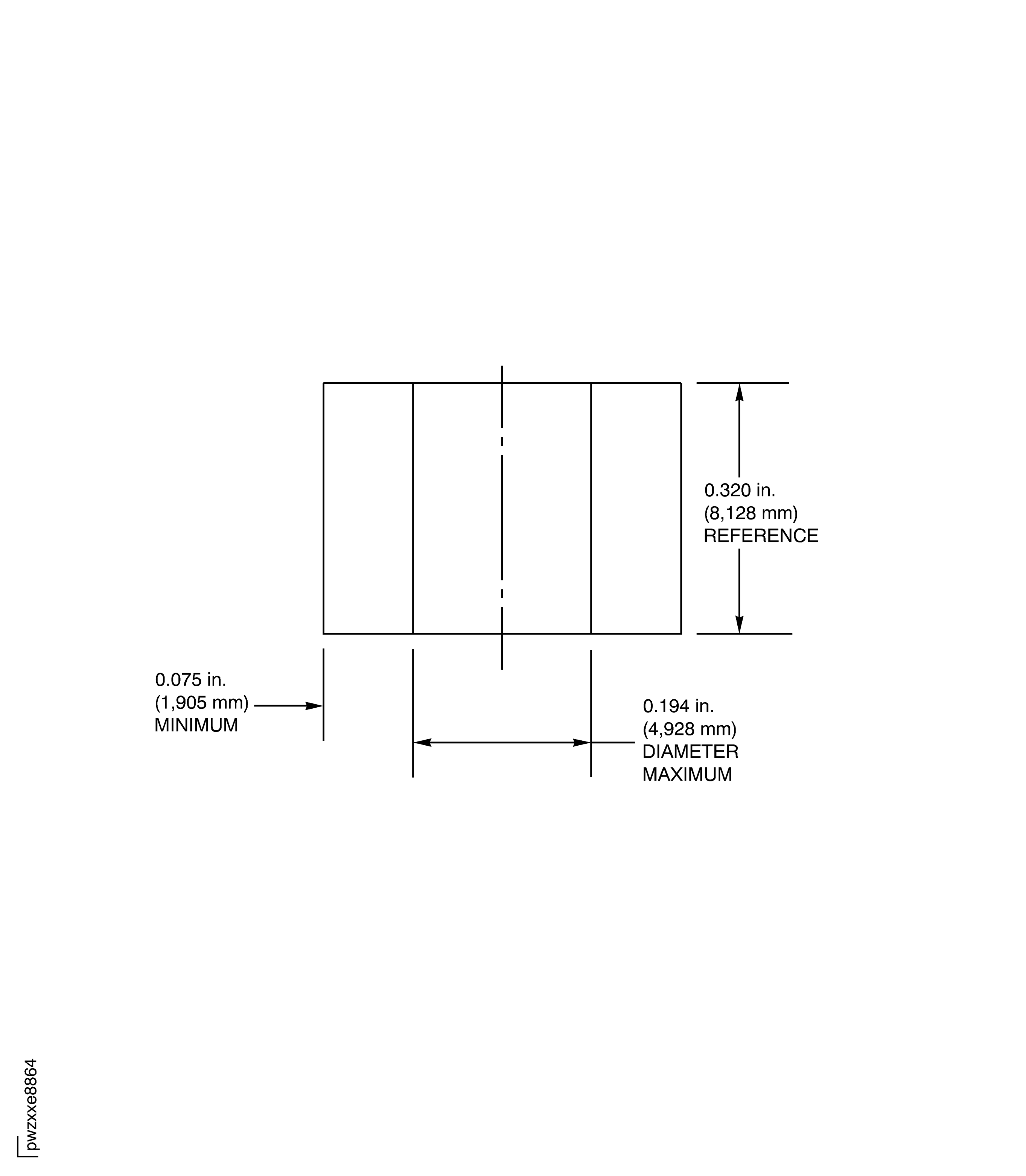

    4. Figure: Repair Details and Dimensions

    Repair Details and Dimensions

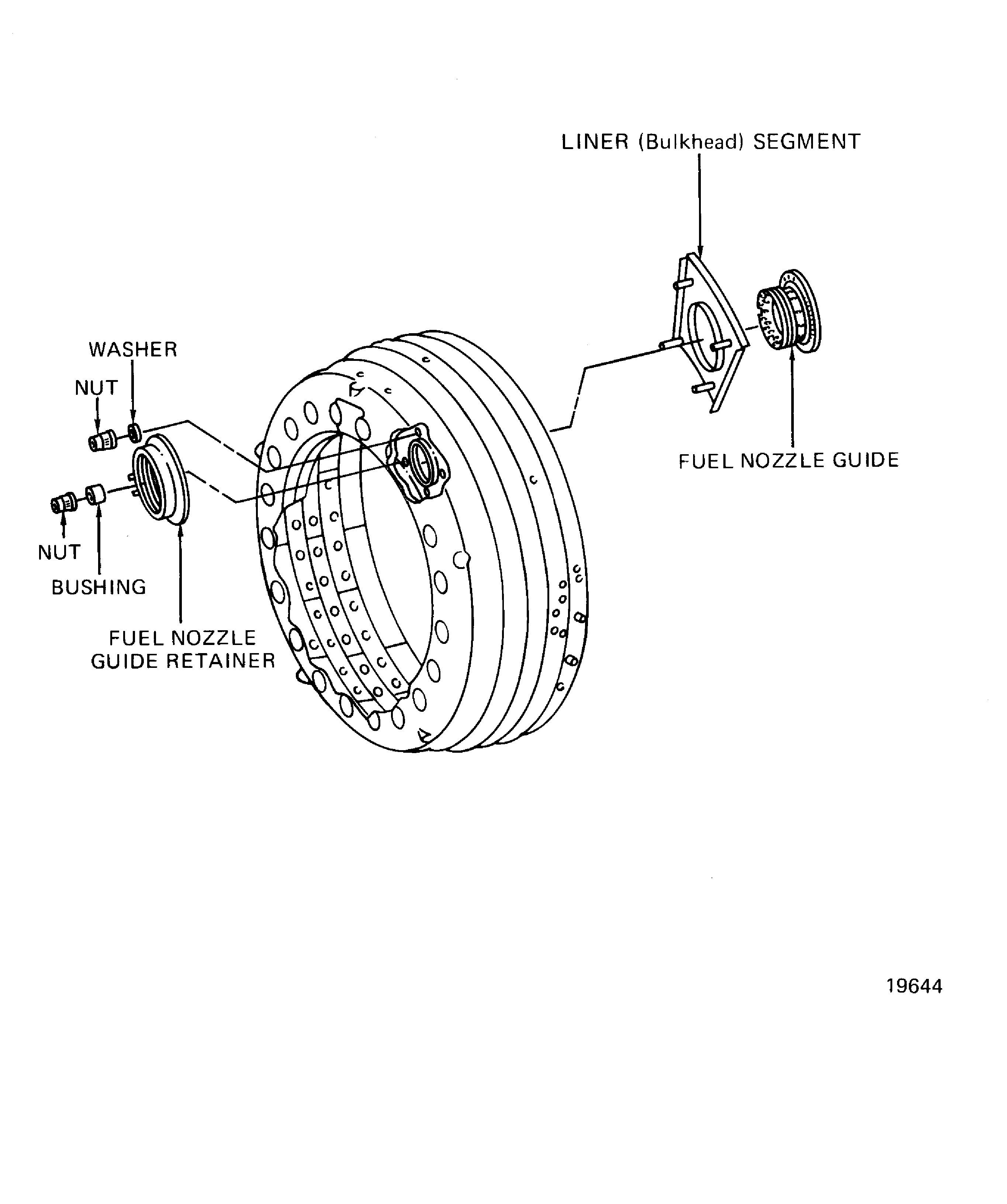

    Figure: Repair Details and Dimensions

    Repair Details and Dimensions
