Pre SBE 72-0147
Common Information
TASK 72-44-10-840-002 HPT Stage 1 Support Assembly - Rework To Provide A New Support Assembly, Rework-002 - SBE 72-0147
General
The practices and processes referred to in the procedure by the TASK number are in the SPM.
Refer to the indicated Service Bulletin for specific application requirements.
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
NONEConsumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 03-077 METAL SPRAYING POWDERNI-CR ALLOY | IE426 | CoMat 03-077 |
Spares
NONESafety Requirements
NONEProcedure
Refer to Figure.
Set up and machine the support assembly to remove the middle support rail and prepare the front face of the rear flange for coat.
SUBTASK 72-44-10-320-059 Machine the Stage 1 HPT Support Assembly
Keep to the dimensions given in Figure.
Refer to the SPM TASK 70-34-03-340-501.
Coat the front face of the rear flange. Use CoMat 03-077 METAL SPRAYING POWDERNI-CR ALLOY.
SUBTASK 72-44-10-340-056 Plasma Coat the Stage 1 HPT Support Assembly
NEW NUMBER - 2A2703.
Refer to Figure and the SPM TASK 70-09-00-400-501.
NUMBER BEFORE - 2A1664.
Mark the new part number adjacent to the existing part number. Use the vibration peen method.
SUBTASK 72-44-10-350-060 Identify the Stage 1 HPT Support Assembly with the New Part Number

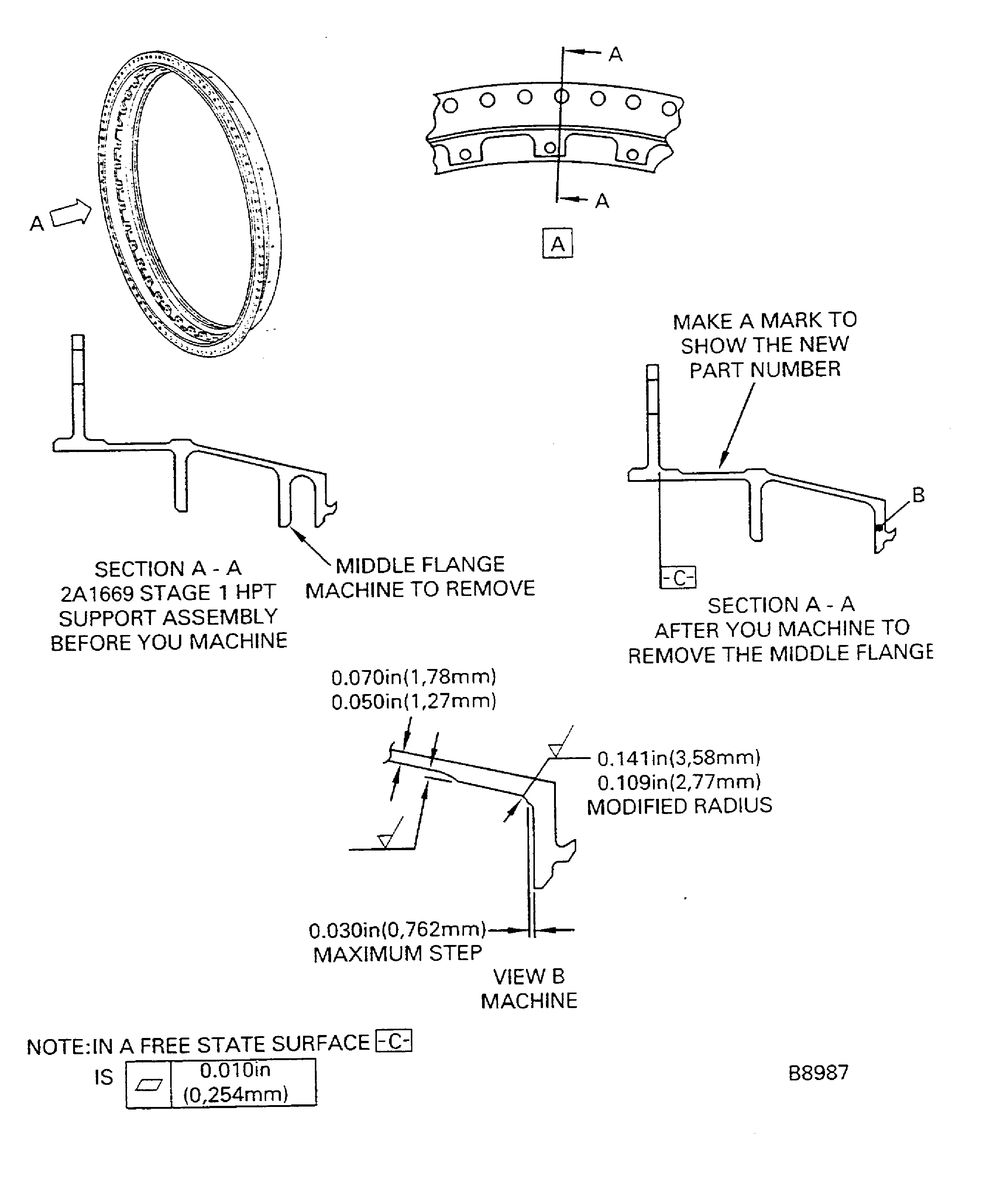

Figure: Rework of the stage 1 HPT support assembly
Rework of the stage 1 HPT support assembly

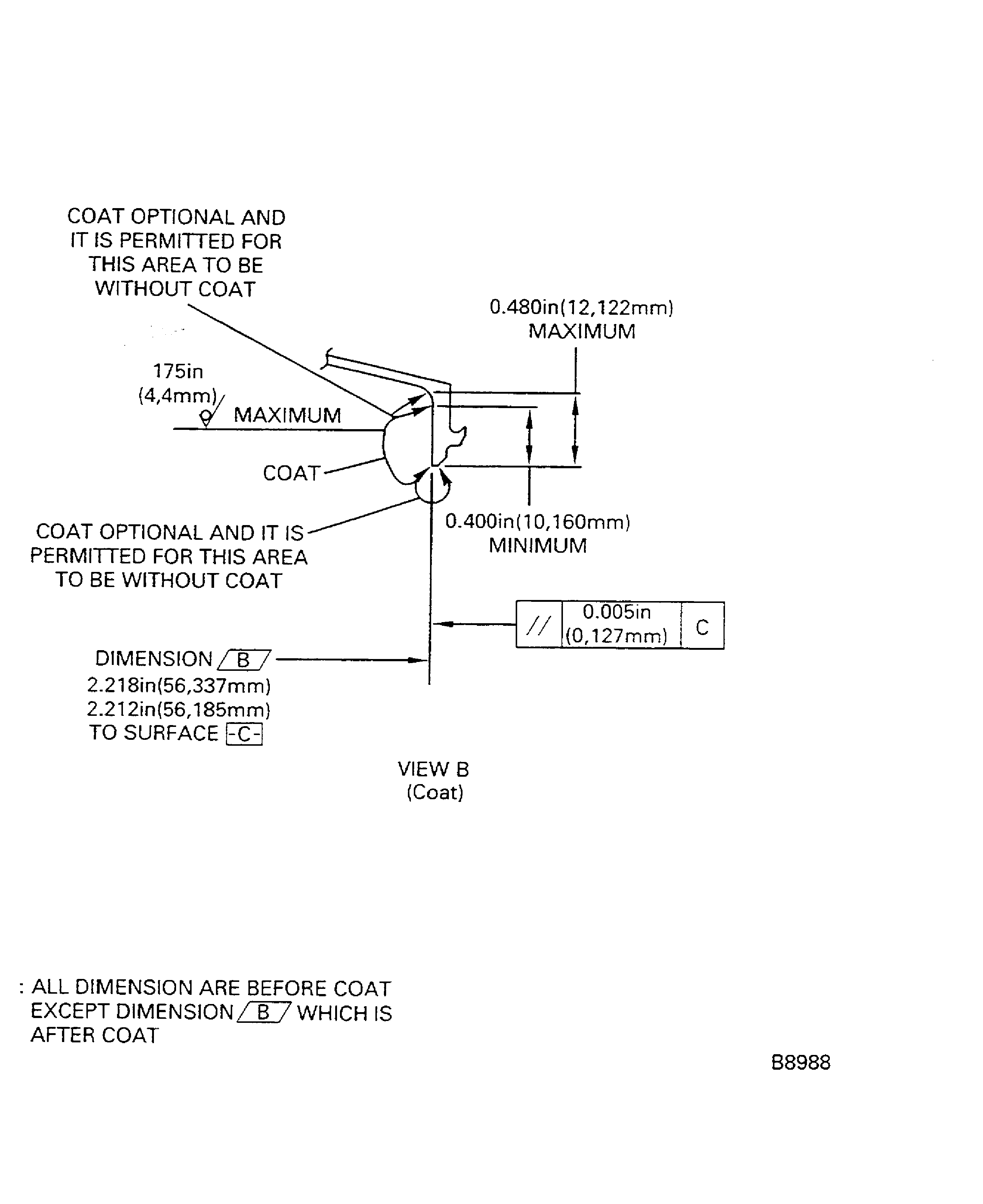

Figure: Rework of the stage 1 HPT support assembly
Rework of the stage 1 HPT support assembly
