TASK 72-44-30-300-003Inner Combustion Chamber Liner - Replace The Gang Nut Channel, Repair-003 (VRS3264)

DMC:V2500-A0-72-44-3001-02A-920A-C|Issue No:003.00|Issue Date:2019-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-44-30-300-003Inner Combustion Chamber Liner - Replace The Gang Nut Channel, Repair-003 (VRS3264)

Effectivity

FIG/ITEM

PART NO.

01-401

2A0549-01

01-401

2A1374

01-401

2A1398

01-401

2A1617

01-401

2A2034

01-401

2A2034-001

01-401

2A2722-01

01-401

2A2838-01

01-401

2A3344-01

01-401

2A3344-001

01-401

2A3344-002

01-401

2A3344-003

01-401

2A3344-004

01-401

2A3344-005

01-401

2A3344-006

01-401

2A3344-007

01-401

2A3351-01

01-401

2A3351-003

01-401

2A3351-004

01-401

2A4283-01

01-401

2A4311-01

01-401

2A4313-01

01-401

2A4315-01

01-401

2A4315-001

01-420

2A2718-01

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

Gang nut channel

-

-

General

Price and availability - refer to IAE

The practices and processes referred to in the procedure by the TASK number are in SPM.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Drilling equipmentLOCAL

And drills

Consumables, Materials and Expendables

NONE

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
RIVET - BLIND, COUNTERSUNK, 0.094-0.157 X 0.26577445ST1209-03
NUT - GANG CHANNEL, SELF LOCKING, COMBUSTION CHAMBER, ASSEMBLY OF0AM532A1009-01
Gang nut channel774452A3516-01

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-44-30-350-051 Remove the Damaged Gang Nut Channel from the Combustion Chamber Inner Liner

      1. Drill out the rivets which attach the gang nut channel to the combustion chamber flange.

    2. Remove the gang nut channel.

    2. SUBTASK 72-44-30-350-052 Install a New Gang Nut Channel

      1. Transfer drill the rivet holes through the combustion chamber flange.

      1. Refer to Figure.

      2. Install new rivets.

      1. Refer to SPM TASK 70-39-03-390-501.

    3. SUBTASK 72-44-30-350-053 Identify the Repair

      1. Make a mark VRS3264 adjacent to the part number.

      1. Make a permanent mark by SPM TASK 70-09-00-400-501.

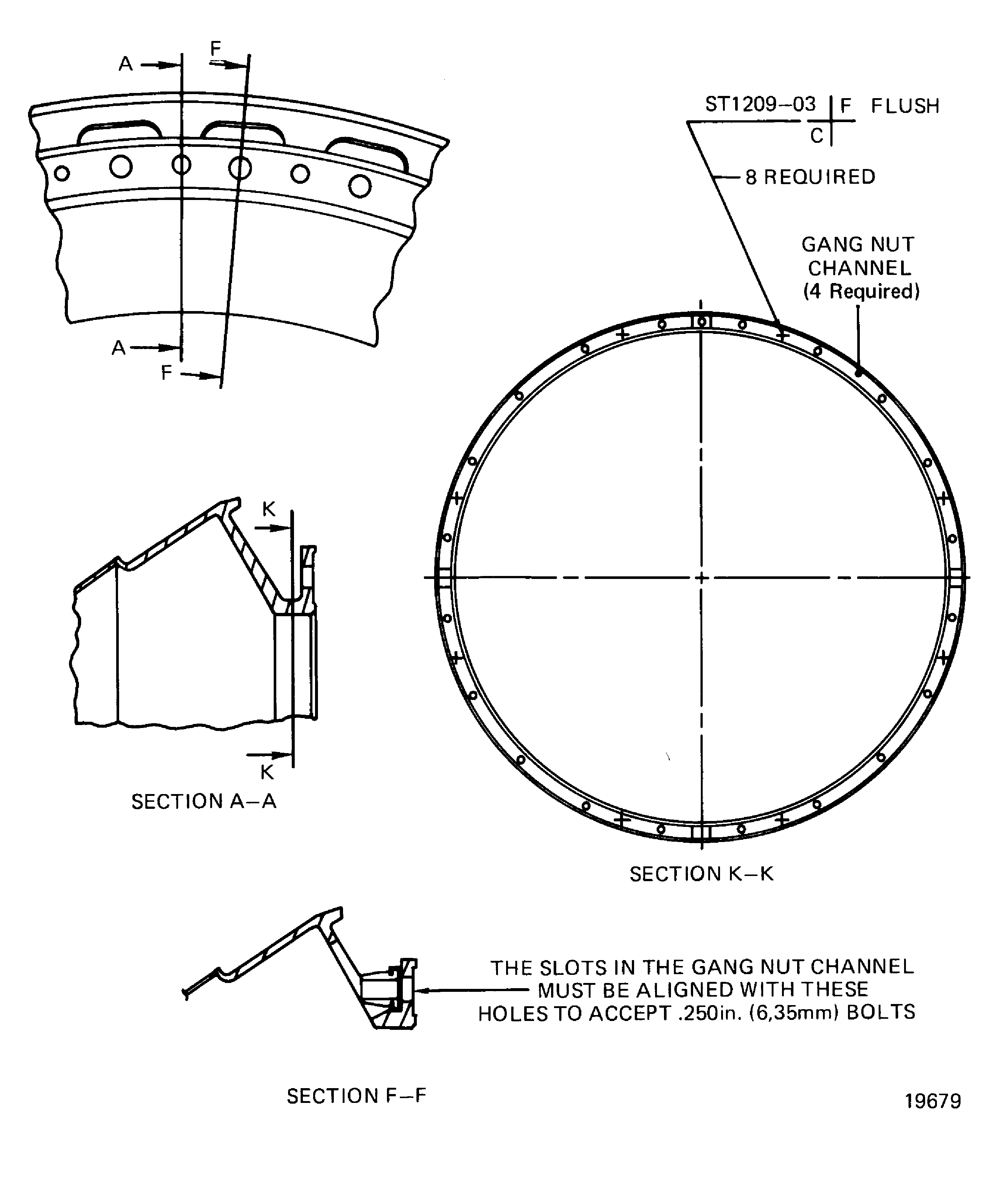

    4. Figure: Repair Details and Dimensions

    Repair Details and Dimensions

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Added spare part. (19VC205)

Change Type:

Revised effectivity table to add PN 2A2718-01. (19VC111)
