TASK 72-44-40-200-001-A00 HPT Stage 1 Outer Seal - Examine, Inspection-001

DMC:V2500-A0-72-44-4001-00A-310A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-44-40-200-001-A00 HPT Stage 1 Outer Seal - Examine, Inspection-001

Effectivity

FIG/ITEM

PART NO.

01-010

2A0330-01

This TASK gives the procedure for the inspection of the stage 1 HPT outer seal assembly. For the other parts of the stage 1 HPT outer seal assembly, refer to TASK 72-44-40-200-000.

Fig/item numbers in parentheses in the procedure agree with those used in the IPC.

The policy that is necessary for inspection is given in SPM TASK .

All parts must be cleaned before any part is examined. Refer to SPM TASK .

All parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

The procedure for those parts which must have a crack test is given in SUBTASK 72-44-40-230-051. Do the test before the part is visually examined.

A ** following repair referenced in this inspection indicates that the repair is not yet published in the current revision of the manual and the part must be rejected. Contact IAE for additional information concerning FAA approved repair date.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All parts must be examined to make sure that all the repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

References

Refer to the SPM for data on these items.

Definitions of Damage, SPM TASK

Inspection of Parts, SPM TASK

Some data on these items is contained in this TASK. For more data on these items refer to the SPM.

Method of Testing for Crack Indications

Chemical Processes

Surface Protection

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-44-40-230-051-001 Examine the Stage 1 HPT Outer Seal Assembly (01-010) for Cracks

    1. Clean the part. Refer to TASK 72-44-40-100-001 (CLEANING-000).

      2. Do the test for cracks on the part that is given below. Use the applicable penetrant inspection procedure.

        PART IDENT

        SPM TASK

        Stage 1 HPT outer seal assembly

        (Spray only)

        1. Cracked

        1. Reject

    2. SUBTASK 72-44-40-230-051-002 Examine the Stage 1 HPT Outer Seal Assembly (01-010) for Cracks

    1. Clean the part. Refer to TASK 72-44-40-100-001 (CLEANING-000).

      2. Do the test for cracks on the part that is given below. Use the applicable penetrant inspection procedure.

        PART IDENT

        SPM TASK

        Stage 1 HPT outer seal assembly

        (Spray only)

        1. Cracked

        1. Reject

    3. SUBTASK 72-44-40-220-051 Examine the Stage 1 HPT Outer Seal Assembly Tabs (01-010) for Bending, Damage, Wear and Thinning (78 places)

    1. Refer to Figure.

      2. Examine the stage 1 HPT outer seal assembly tabs, location 1, for bending, damage, wear and thinning (78 places).

        1. Bends

        1. Reject

        2. Damaged or broken out pieces

        1. Reject

        3. Wear or thinning

          1. Up to 0.005 in. (0.127 mm) is permitted when there are no cracks or other damage

          1. Accept

          2. Other than Step

          1. Repair, VRS3523 TASK 72-44-40-300-004 (REPAIR-004)

    4. SUBTASK 72-44-40-220-060 Examine the Stage 1 HPT Outer Seal Assembly (01-010) for the Gap Between the Clamp Faces

    1. Refer to Figure.

      2. Examine the stage 1 HPT outer seal assembly at location 2 for the gap between the clamp faces. Hold the clamp faces together with finger pressure only.

        1. The gap is not more than 0.040 in. (1.016 mm) at the widest location

        1. Accept

        2. Other than Step

        1. Reject

    5. SUBTASK 72-44-40-220-052 Examine the Stage 1 HPT Outer Seal Assembly (01-010) for Wear, Chipped and Spalling Plasma Spray Coating on the Inner Diameter

    1. Refer to Figure.

      2. Examine the stage 1 HPT outer seal assembly, location 3, for wear, chipped and spalling plasma spray coating on the inner diameter.

        1. Wear

          1. Up to 25 percent of the coated surface, provided it does not go in to the base metal

          1. Accept

          2. Other than Step

          1. Repair, VRS3176 TASK 72-44-40-300-001(REPAIR-001)

        2. Chipped and spalling

          1. Up to 25 percent of the coated surface, provided there is no other damage to the base metal

          1. Accept

          2. Other than Step

          1. Repair, VRS3176 TASK 72-44-40-300-001(REPAIR-001)

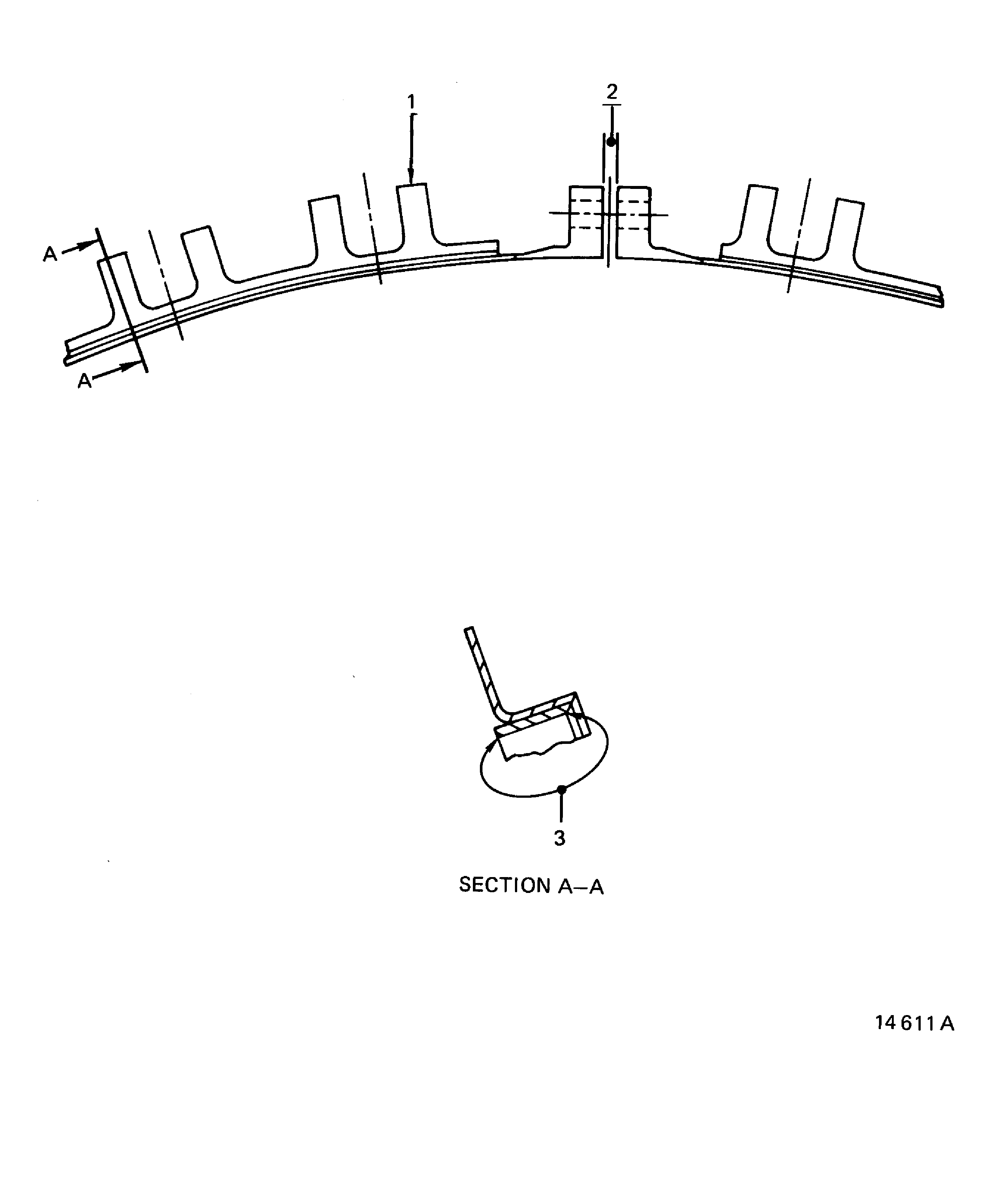

    6. Figure: Stage 1 HPT outer seal assembly inspection locations

    Stage 1 HPT outer seal assembly inspection locations

Requirements After Job Completion

Follow-On Conditions

NONE
