TASK 72-44-50-300-006 HPT Stage 1 Cooling (TOBI) Duct - Deflector Support Diameter Plasma Spray Repair, Repair-006 (VRS3178)

DMC:V2500-A0-72-44-5001-02A-609A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-44-50-300-006 HPT Stage 1 Cooling (TOBI) Duct - Deflector Support Diameter Plasma Spray Repair, Repair-006 (VRS3178)

Effectivity

FIG/ITEM

PART NO.

01-010

2A0008-01

01-010

2A1997-01

01-010

2A1997-001

01-010

2A1997-002

01-010

2A1997-003

01-010

2A2141-01

01-010

2A3180-01

01-010

2A3329-01

01-010

2A3487-01

01-010

2A3487-001

01-010

2A3491-01

01-010

2A3914-01

01-010

2A3914-001

01-010

2A4086

Material of component

PART IDENT

SYMBOL

MATERIAL

Stage 1 HPT cooling (TOBI)

duct assembly

-

Nickel alloy

General

Price and availability - refer to IAE

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Portablegrinding equipmentLOCALPortable grinding equipment
Machining equipmentLOCALMachining equipment
Plasma spray equipmentLOCALPlasma spray equipment
Workshop inspection equipmentLOCALWorkshop inspection equipment

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-047 TAPE, HEAT REFLECTIVE52152CoMat 02-047
CoMat 03-089 METAL SPRAYING POWDER Ni/Al (95/5)00741CoMat 03-089
CoMat 03-090 METAL SPRAYING POWDER Ni/Al (95/5)0AM53CoMat 03-090

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-44-50-330-056 Remove the Coating by Stripping

    1. NOTE

      The stripping procedure is only for TOBI ducts that were repaired per VRS3178 before. If this procedure was done before, VRS3178 will be next to the part number. If the repair was not done before, remove the coating by machining. Refer to Step.

      Refer to Figure and Figure.

      2. Strip to remove the coating from the deflector support diameter.

      1. Apply a mask to the areas not to be coated.

      3. Strip the coating by the procedure given in the SPM TASK 70-33-78-300-503.

    2. SUBTASK 72-44-50-320-059 Remove the Coating by Machining

    1. Refer to Figure and Figure

      2. NOTE

        If the measured dimension in a free condition is not satisfactory, a held condition is permitted. All dimensions apply when Surface N is flat by 0.002 in. (0.051 mm) and Diameter L maintains a clearance envelope of 13.040 in. (331.216 mm) diameter in a free or held condition. In a free condition, Surface N must be flat by 0.005 in. (0.127 mm) and Diameter L must be 13.008 in. to 13.059 in. (330.40 to 331.70 mm). Hold the duct only on Surfaces N, M and W, and Diameter L.

        Machine to remove the coating from the deflector support diameter.

      1. Apply a mask to the areas not to be coated.

      3. Machine the diameter to 17.335 in. to 17.352 in. (440.31 to 440.74 mm).

      4. Remove the minimum amount of material possible to keep in the limits given in the figure. When you remove the coating by machine, the surface will be shiny when the coating is removed.

    3. SUBTASK 72-44-50-340-055 Plasma Spray the Deflector Support Diameter

    1. Refer to Figure and Figure.

      2. Plasma spray the deflector support diameter.

      1. Refer to the SPM TASK 70-34-03-340-501.

      2. No overspray is permitted.

      3. The thickness of the plasma spray must be 0.010 in. to 0.020 in. (0.25 to 0.51 mm).

    4. SUBTASK 72-44-50-320-060 Machine the Deflector Support Diameter after Plasma Spray

    1. Refer to Figure and Figure.

      2. NOTE

        If the measured dimension in a free condition is not satisfactory, a held condition is permitted. All dimensions apply when Surface N is flat by 0.002 in. (0.051 mm) and Diameter L maintains a clearance envelope of 13.040 in. (331.216 mm) diameter in a free or held condition. In a free condition, Surface N must be flat by 0.005 in. (0.127 mm) and Diameter L must be 13.008 in. to 13.059 in. (330.40 to 331.70 mm). Hold the duct only on Surfaces N, M and W, and Diameter L.

        Machine the deflector support diameter after plasma spray.

      1. Machine the dimension to 17.360 in. to 17.370 in. (440.94 to 441.20 mm). The minimum thickness of the plasma coat must be 0.003 in. (0.076 mm) after machining.

      2. Break the edges 0.003 in. to 0.015 in. (0.076 to 0.381 mm).

    5. SUBTASK 72-44-50-220-106 Examine the Repair

    1. Refer to Figure and Figure.

    2. Do a dimensional and visual inspection on the plasma spray area.

    6. SUBTASK 72-44-50-350-066 Identify the Repair

      1. NOTE

        If VRS3178 is marked on the duct, it is not necessary to do this procedure.

        Mark VRS3178 adjacent to the part number.

        1. Make a permanent mark by the procedure given in the SPM TASK 70-09-00-400-501.

        1. Use the vibration peen method.

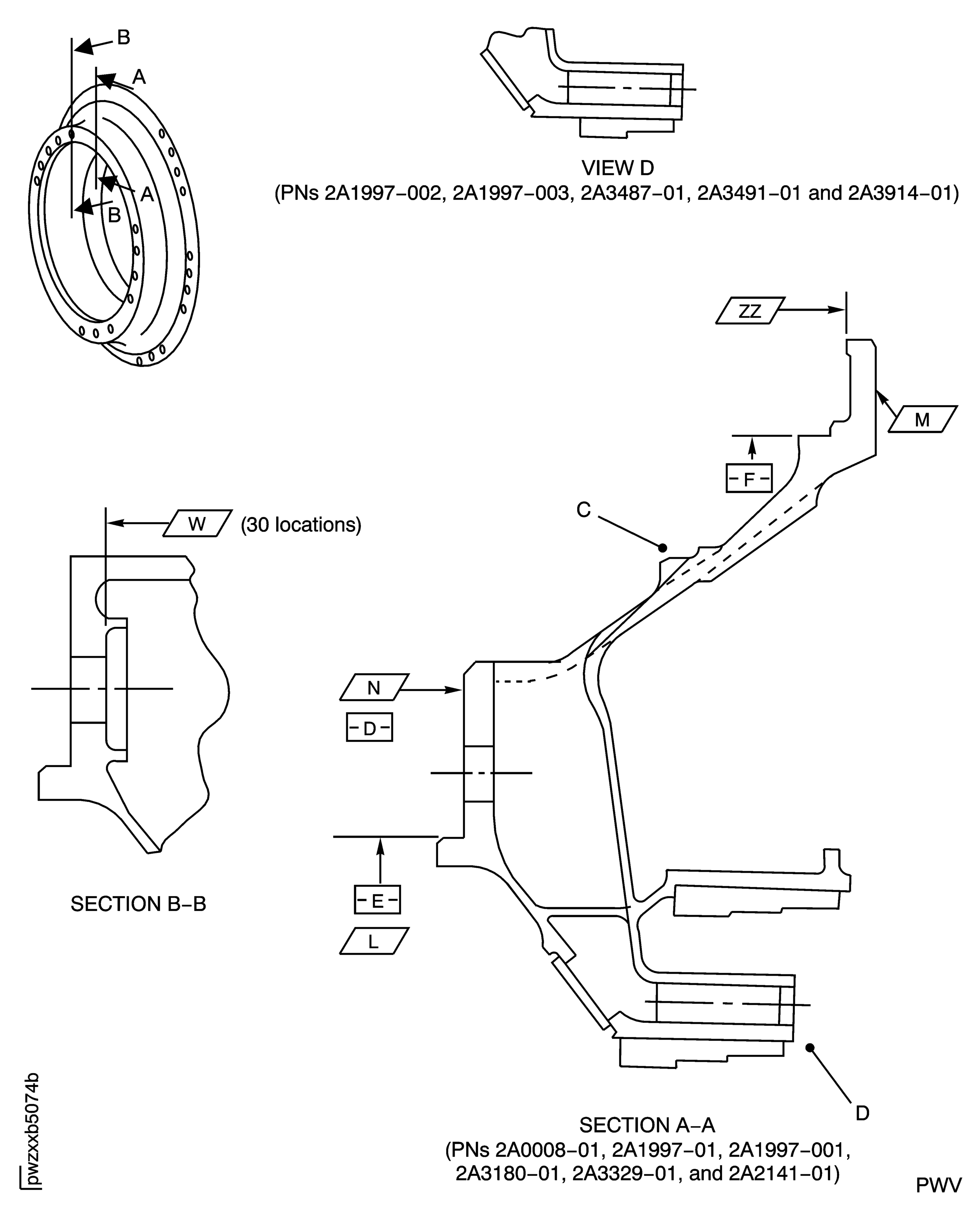

    7. Figure: Repair Details and Dimensions

    Sheet 1

    Legend
    Repair Details and Dimensions

    Sheet 1

    Close

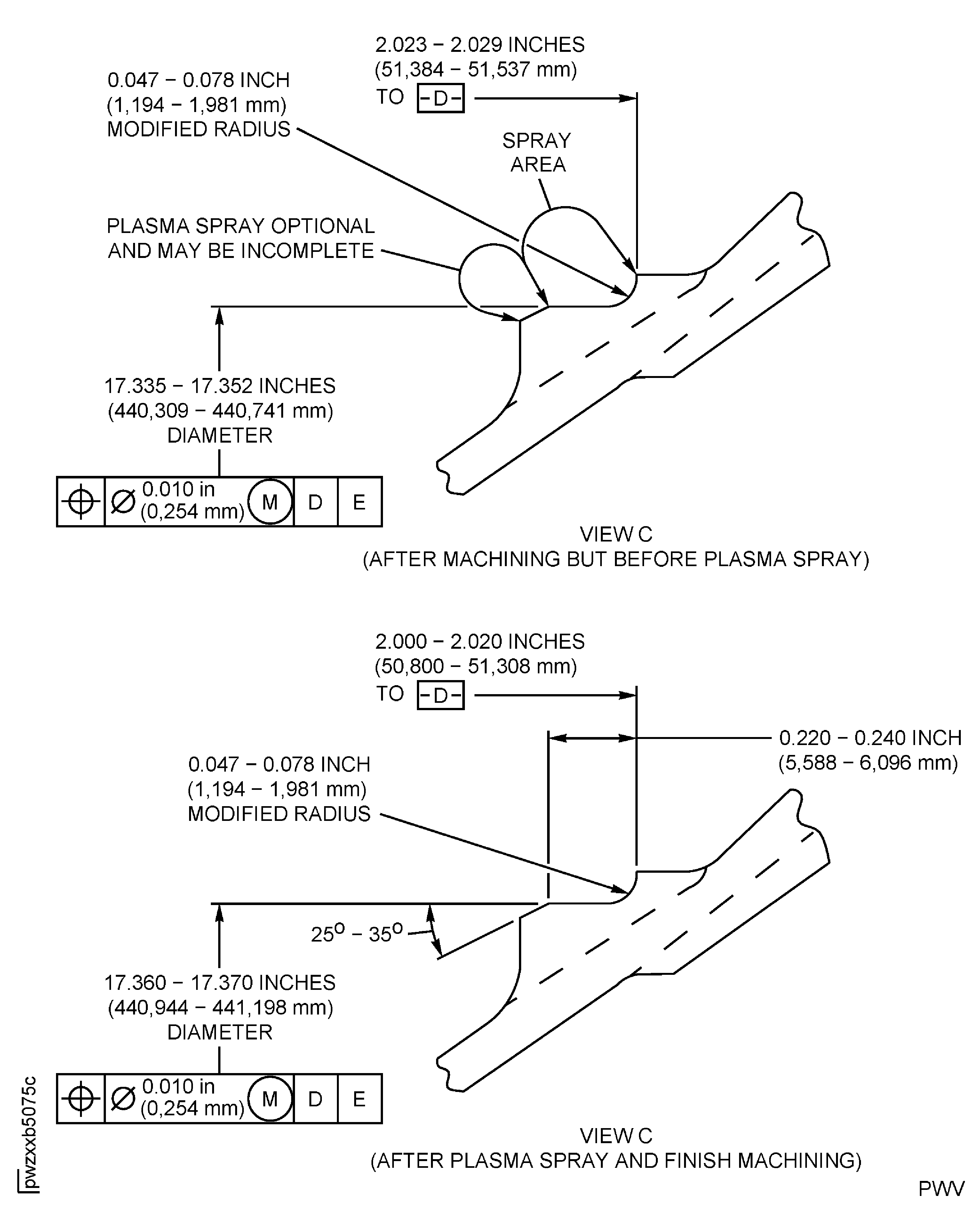

    Figure: Repair Details and Dimensions

    Sheet 2

    Legend
    Repair Details and Dimensions

    Sheet 2

    Close

Requirements After Job Completion

Follow-On Conditions

NONE
