TASK 72-44-50-300-015 HPT Stage 1 Cooling (TOBI) Duct - Repair The Distorted Flange, Repair-015 (VRS3618)

DMC:V2500-A0-72-44-5001-05A-609A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-44-50-300-015 HPT Stage 1 Cooling (TOBI) Duct - Repair The Distorted Flange, Repair-015 (VRS3618)

Effectivity

FIG/ITEM

PART NO.

01-010

2A0008-01

01-010

2A1997-01

01-010

2A1997-001

01-010

2A1997-002

01-010

2A1997-003

01-010

2A2141-01

01-010

2A3180-01

01-010

2A3329-01

01-010

2A3487-01

01-010

2A3487-001

01-010

2A3491-01

01-010

2A3914-01

01-010

2A3914-001

01-010

2A4086

Material of component

PART IDENT

SYMBOL

MATERIAL

Stage 1 HPT cooling duct

Nickel Alloy

General

Price and availability - refer to IAE

The practices and processes referred to in this procedure by TASK numbers are in the SPM

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Portablegrinding equipmentLOCALPortable grinding equipment
Machining equipmentLOCALMachining equipment
Plasma spray equipmentLOCALPlasma spray equipment
Workshop inspection equipmentLOCALWorkshop inspection equipment

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-047 TAPE, HEAT REFLECTIVE52152CoMat 02-047
CoMat 03-089 METAL SPRAYING POWDER Ni/Al (95/5)00741CoMat 03-089
CoMat 03-090 METAL SPRAYING POWDER Ni/Al (95/5)0AM53CoMat 03-090
CoMat 07-094 WIRE, DUAL ELECTRIC ARCCOATINGS0AM53CoMat 07-094

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-44-50-340-001 Plasma Spray the OD Flange Axial Dimension of the Stage 1 HPT Cooling Duct

      1. NOTE

        You can use CoMat 03-089 METAL SPRAYING POWDER Ni/Al (95/5) or CoMat 03-090 METAL SPRAYING POWDER Ni/Al (95/5) for a plasma thickness of 0.025 in (0.635 mm) or less. Use CoMat 07-094 WIRE, DUAL ELECTRIC ARCCOATINGS for plasma thicknesses that are more than 0.025 in (0.635 mm). You can also use CoMat 07-094 WIRE, DUAL ELECTRIC ARCCOATINGS for plasma thicknesses that are less than 0.025 in (0.635 mm).

        Plasma spray the axial dimension.

      1. Refer to Figure and the SPM TASK 70-34-03-340-501.

      2. No overspray is permitted.

      3. The thickness of the plasma spray must be sufficient to permit finish machining, but must not be more than 0.030 in (0.762 mm) thickness.

    2. SUBTASK 72-44-50-320-073 Machine the OD Flange of the Stage 1 HPT Cooling Duct After Plasma Spray

      1. NOTE

        If the measured dimension in a free condition is not satisfactory, a held condition is permitted. All dimensions apply when Surface N is flat by 0.002 in (0.051 mm) and Diameter L maintains a clearance envelope of 13.040 in (331.216 mm) diameter in a free or held condition. In a free condition, Surface N must be flat by 0.005 in (0.127 mm) and Diameter L must be 13.008 to 13.059 in (330.40 to 331.70 mm). Hold the duct only on Surfaces N, M, and W and Diameter L.

        Machine the flange after plasma spray.

      1. Machine the flange to the dimensions given in Figure.

      2. Break the edges to 0.003-0.015 in (0.076-0.381 mm).

    3. SUBTASK 72-44-50-220-099 Examine the Repair Area of the Stage 1 HPT Cooling Duct

      1. Do a dimensional and visual inspection of the repaired area of the cooling duct.

    4. SUBTASK 72-44-50-350-074 Identify the Repair

      1. Make a mark VRS3618 adjacent to the part number.

      1. Make a permanent mark by the procedure given in the SPM TASK 70-09-00-400-501. Use the vibration peen method.

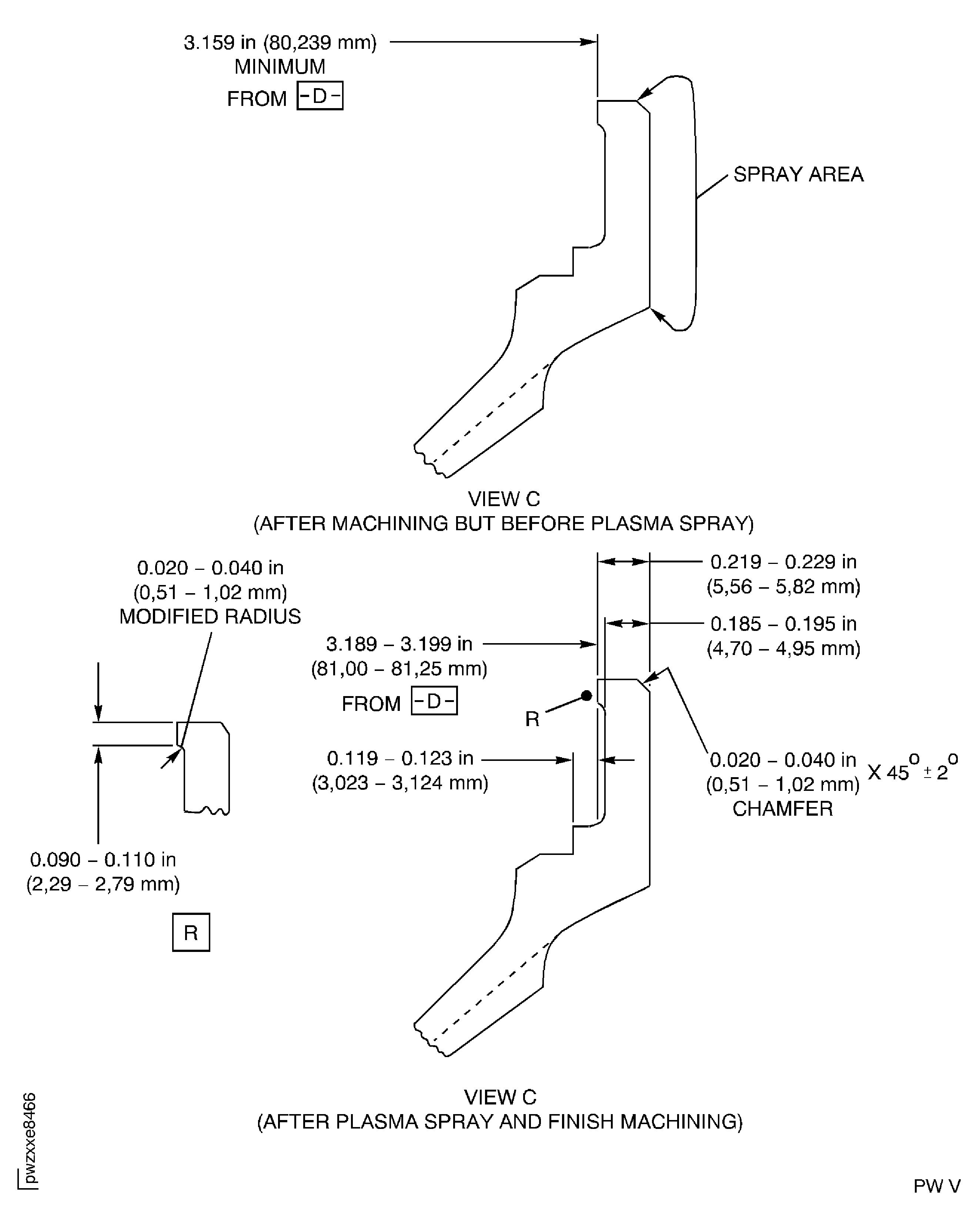

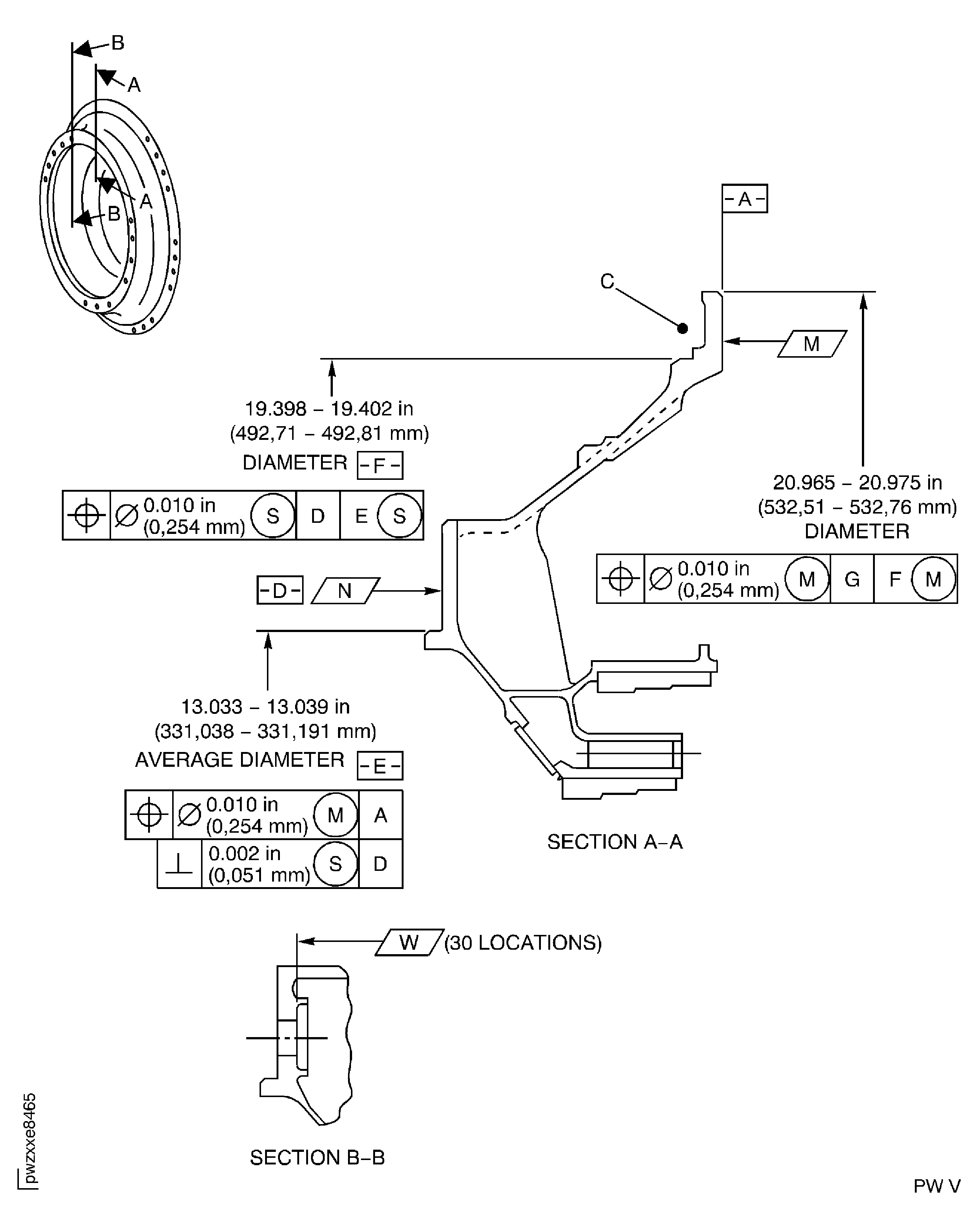

    5. Figure: Repair Details and Dimensions

    Sheet 1

    Legend
    Repair Details and Dimensions

    Sheet 1

    Close

    Figure: Repair Details and Dimensions

    Sheet 2

    Legend
    Repair Details and Dimensions

    Sheet 2

    Close

    Figure: Repair Details and Dimensions

    Sheet 3

    Legend
    Repair Details and Dimensions

    Sheet 3

    Close

Requirements After Job Completion

Follow-On Conditions

NONE
