TASK 72-44-60-200-002 HPT Stage 1 Duct Segment - Examine, Inspection-002

DMC:V2500-A0-72-44-6001-00A-310A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-44-60-200-002 HPT Stage 1 Duct Segment - Examine, Inspection-002

Effectivity

FIG/ITEM

PART NO.

01-010

2A0087

01-010

2A1198

01-010

2A2363

01-010

2A2364

01-010

2A3181

01-010

2A3568

01-010

2A3569

General

This TASK gives the procedure for the inspection of the stage 1 HPT duct segment. For the other parts of the stage 1 HPT duct segment, refer to TASK 72-44-60-200-000 (INSPECTION-000).

Fig/item numbers in parentheses in the procedure agree with those used in the IPC.

The policy that is necessary for inspection is given in TASK 70-20-00-200-501.

All parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All parts must be examined to make sure that all the repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

References

Refer to for data on these items.

Definitions of Damage, SPM TASK 70-02-02-350-501

Inspection of Parts, SPM TASK 70-20-01-200-501

Some data on these items is contained in this TASK. For more data on these items refer to the SPM.

Method of Testing for Crack Indications

Chemical Processes

Surface Protection

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-44-60-230-052-001 Examine the Stage 1 HPT Duct Segment (01-010) for Cracks

    1. Clean the part. Refer to TASK 72-44-60-100-000 (CLEANING-000).

      2. Do the test for cracks on the part that is given below.

        PART IDENT

        TASK/SUBTASK

        Stage 1 HPT duct segment

        (Dip or Spray)

        1. Cracked

        1. Reject

    2. SUBTASK 72-44-60-230-052-002 Examine the Stage 1 HPT Duct Segment (01-010) for Cracks

    1. Clean the part. Refer to TASK 72-44-60-100-000 (CLEANING-000).

      2. Do the test for cracks on the part that is given below.

        PART IDENT

        TASK/SUBTASK

        Stage 1 HPT duct segment

        (Dip or Spray)

        1. Cracked

        1. Reject

    3. SUBTASK 72-44-60-220-052 Examine the Stage 1 HPT Duct Segment (01-010) for Blocked Holes

    1. Refer to Figure.

      2. Examine the band segment assembly at location 1, for blocked holes (2 places).

        1. Blocked holes

        1. Reject

    4. SUBTASK 72-44-60-220-053 Examine the Stage 1 HPT Duct Segment (01-010) Knife-Edge Seal for Wear, Nicks and Dents

    1. Refer to Figure.

      2. Examine the duct segment knife-edge seal at location 2, for wear, nicks and dents.

        1. Wear.

          1. Up to 0.005 in. (0.127 mm) if there are no rolled edges, location 3

          1. Accept

          2. Other than Step

          1. Reject

        2. Nicks

        1. Reject

        3. Dents

        1. Reject

    5. SUBTASK 72-44-60-220-054 Examine the Stage 1 HPT Duct Segment (01-010) for Wear Nicks and High Metal on the Bolt Hole Chamfer

    1. Refer to Figure.

      2. Examine the duct segment at location 4 for wear nicks and high metal on the bolt hole chamfer.

        1. Wear, nicks and high metal

        1. Repair, VRS3512 TASK 72-44-60-300-002 (REPAIR-002).

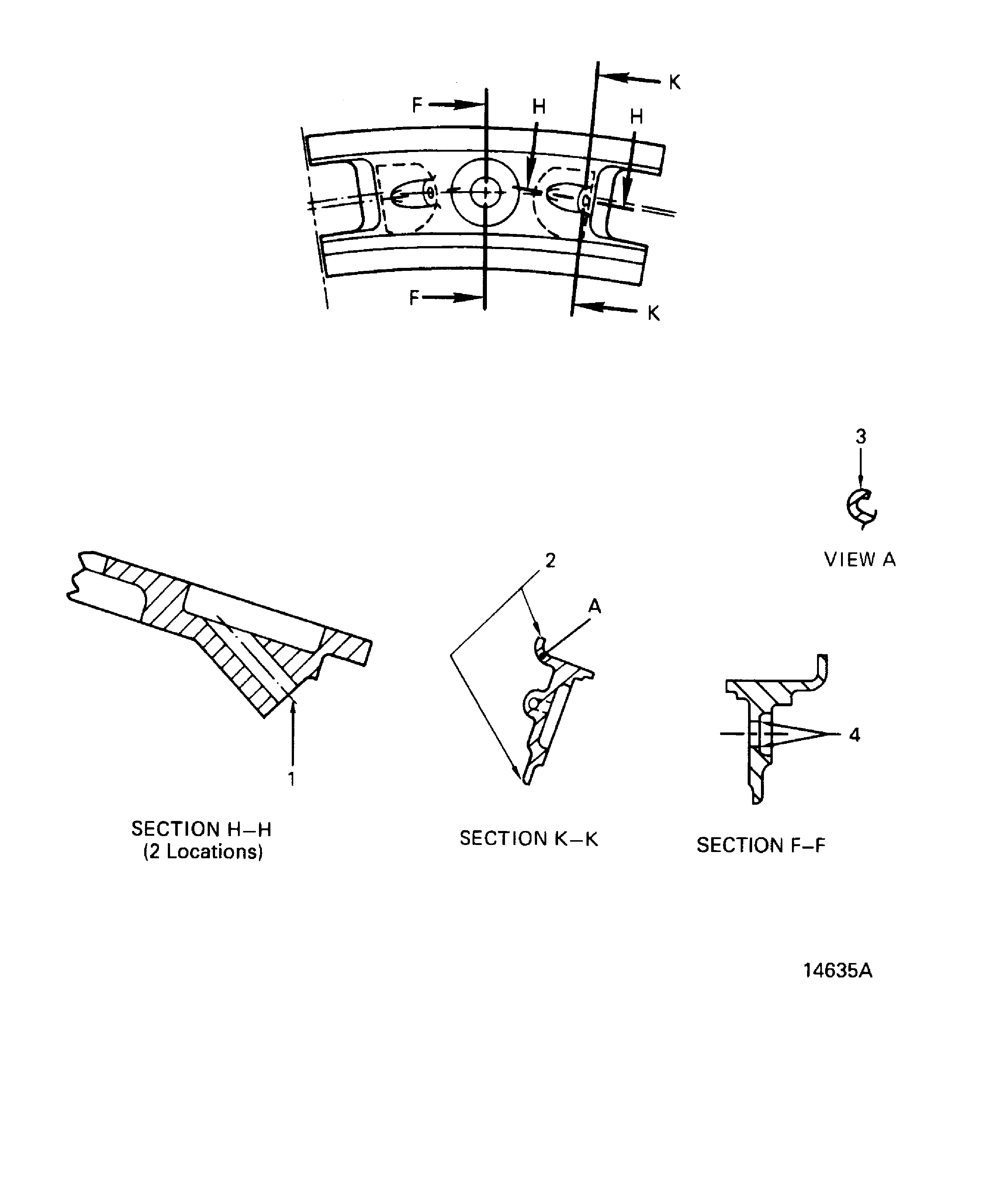

    6. Figure: Stage 1 HPT Duct Segment Inspection Locations

    Stage 1 HPT Duct Segment Inspection Locations
