TASK 72-45-11-300-020 HPT Stage 1 Hub - Replace The Metering Plug, Repair-020 (VRS3730) - SBE 72-0430

DMC:V2500-A0-72-45-1100-01A-920A-C|Issue No:003.00|Issue Date:2018-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-45-11-300-020 HPT Stage 1 Hub - Replace The Metering Plug, Repair-020 (VRS3730) - SBE 72-0430

Effectivity

FIG/ITEM

PART NO.

01-011

2A1801

01-011

2A1901

Material of component

IAE

DESCRIPTION

SYMBOL

MATERIAL

Stage 1 turbine hub

-

Nickel alloy

General

The practices and procedures referred to in the procedure by the TASK number are in the SPM.

Price and availability - not applicable.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
IAE 1P16494 Installation fixture0AM53IAE 1P16494
IAE 1P17763 Metering plug drift0AM53IAE 1P17763

Consumables, Materials and Expendables

NONE

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Stage 1 HPT hub metering plug2A3833AR

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-45-11-350-066 Remove All the Stage 1 HPT Hub Metering Plugs

    1. Refer to Figure.

      2. Remove and discard all of the stage 1 HPT metering plugs HPT Stage 1 Hub (72-45-11, 01-040).

      1. If the metering plugs are missing, damaged, and/or have missing or cracked tangs, inspect the No. 4 bearing rear carbon seal. Refer to TASK 72-43-20-200-002. Report all findings to IAE Technical Services.

    2. SUBTASK 72-45-11-220-106 Examine the Stage 1 Turbine Hub Metering Plug Hole

    1. Refer to Figure.

      2. Examine the hub metering plug holes for galling.

      1. Surface damage up to 0.001 in. (0.025 mm) is permitted without repair.

    3. SUBTASK 72-45-11-350-067 Install the Stage 1 HPT Hub Metering Plug

      CAUTION

      DO NOT USE THE OLD METERING PLUGS AGAIN. MAKE SURE YOU INSTALL ONLY NEW METERING PLUGS.

      CAUTION

      FAILURE TO CORRECTLY INSTALL STAGE 1 HPT METERING PLUGS CAN RESULT IN DAMAGE TO THE ENGINE.

    1. Refer to Figure, Figure and Figure.

      2. Install the new Stage 1 metering plugs into inner side of Stage 1 turbine hub holes.

      1. Install 11 or 12 metering plugs as instructed during your check of reference number 1516 fit.

      2. Use IAE 1P16494 Installation fixture as shown in Figure or IAE 1P17763 Metering plug drift as shown in Figure to seat the metering plugs in the holes of the hub.

      3. Make sure the metering plug tangs touch the outer side of the hub hole.

    4. SUBTASK 72-45-11-220-107 Examine the Repair

    1. Refer to Figure.

      2. Inspect the installed metering plugs.

      1. Make sure the metering plug tangs touch the outer side of the hub hole.

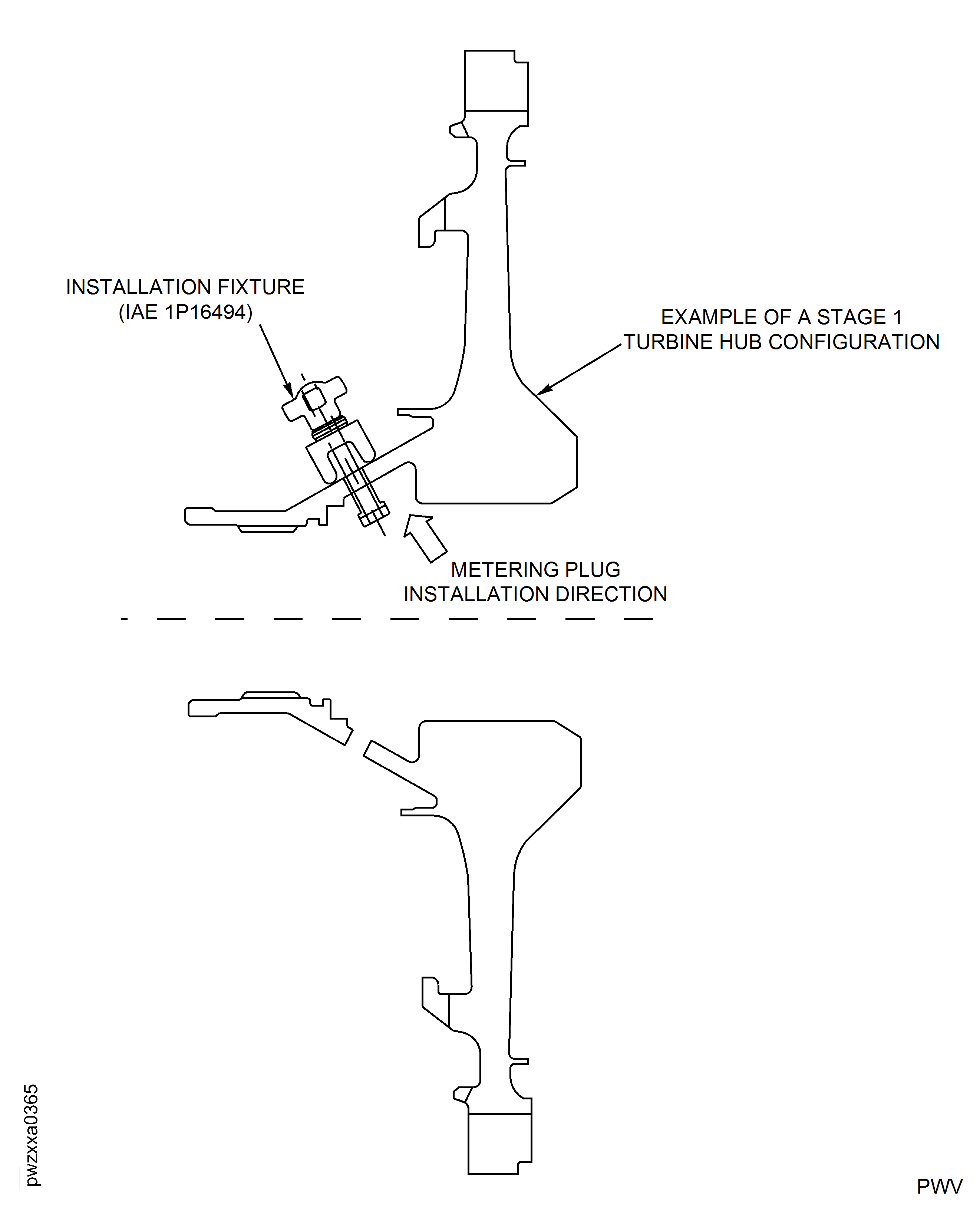

    5. Figure: Metering Plug Installation with Fixture IAE 1P16494

    Metering Plug Installation with Fixture IAE 1P16494

    Figure: Metering Plug Installation with Drift IAE 1P17763

    Metering Plug Installation with Drift IAE 1P17763

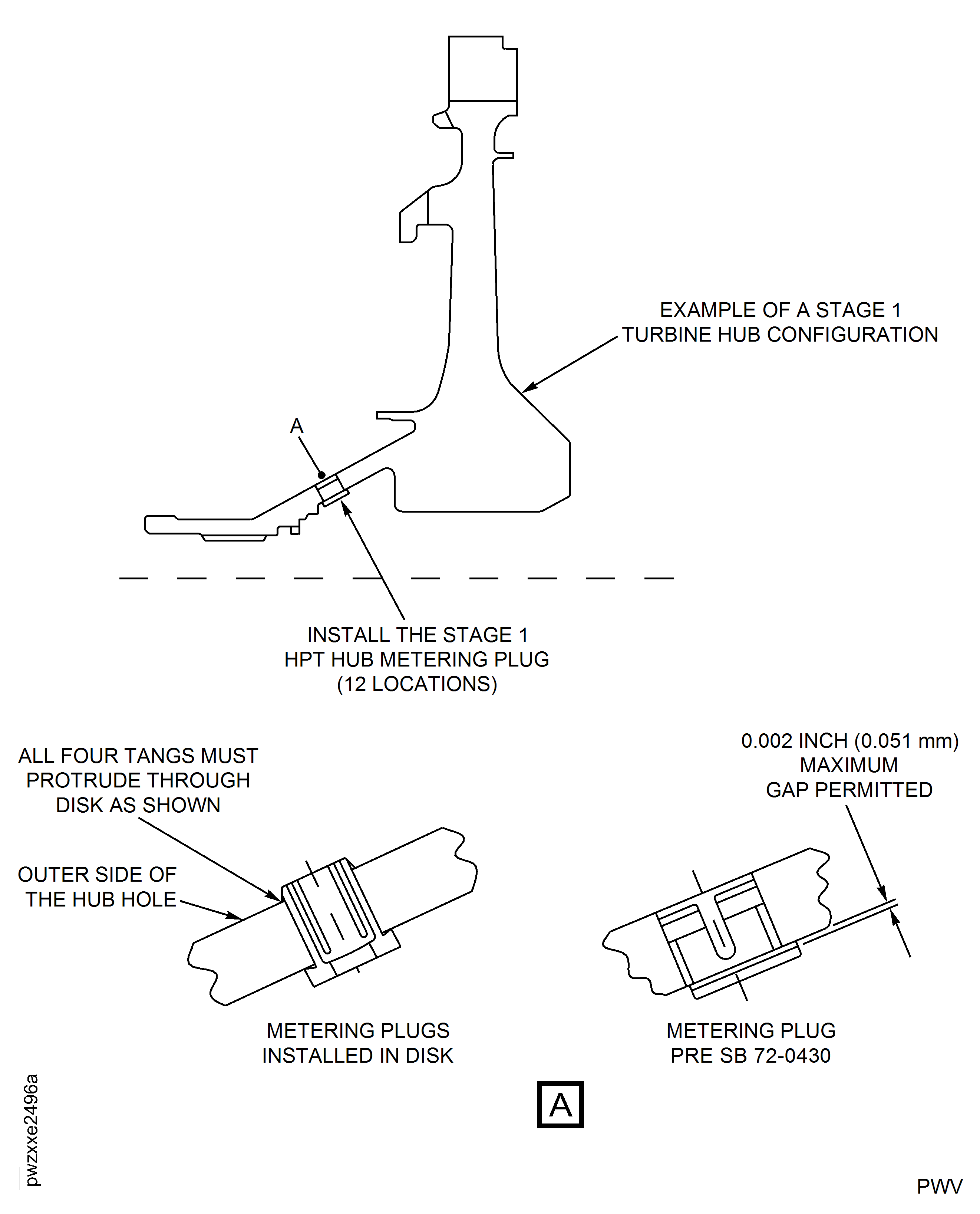

    Figure: Repair Details and Dimensions

    Repair Details and Dimensions

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Revised the procedure to update installation instructions for metering plugs. (18VC205)
