TASK 72-43-20-200-002 No. 4 Bearing Face Seal - Examine, Inspection-002

DMC:V2500-A0-72-43-2002-00A-310A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-43-20-200-002 No. 4 Bearing Face Seal - Examine, Inspection-002

Effectivity

FIG/ITEM PART NO.

01-180

2A2918

01-180

2A2053

01-180

2A3517

01-208

2A2011

01-208

2A3499

General

This TASK gives the procedure for the inspection of the No. 4 bearing face seal.

Fig/item numbers in parentheses in the procedure agree with those used in the IPC.

The policy that is necessary for inspection is given in the SPM TASK 70-20-01-200-501.

All the parts must be cleaned before any part is examined. Refer to the SPM TASK 70-10-00-100-501.

All parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All parts must be examined to make sure that all the repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

Repairs VRS3675 and VRS3676 are only appliacble to part numbers 2A3499 and 2A3517. All other part numbers must be rejected if either of these repairs are necessary.

References

Refer to the SPM for data on these items.

Definitions of Damage, SPM TASK 70-02-02-350-501

Inspection of Parts, SPM TASK 70-20-01-200-501

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-43-20-220-066 Examine the No. 4 Bearing Face Seal (01-180) or (01-208) for Worn, Chipped or Loose Plate on the Sides of the Horizontal Anti-Rotation Slots

    1. Refer to Figure.

      2. Examine the seal at location 1 for worn, chipped or loose plate on the sides of the anti-rotation slots.

        1. If chipped areas on the edge of the plated faces extend not more than 0.469 in. (1.19 mm) from either edge. The number of chipped areas is not important if at least 75 percent of each edge show no chipping.

        1. Accept.

        2. Plate that is worn to the base metal, chipped beyond (1) or loose

        1. Repair, VRS3675 TASK 72-43-20-300-016 (REPAIR-016).

        3. Wear that goes into base metal that is not larger than 0.016 in. (0.41 mm) in depth and 0.115 in. (2.92 mm) in lentgh. Wear on one slot face only, with no indications as given in the SPM TASK 70-23-01-230-501.

        1. Remove raised edges. Refer to the SPM TASK 70-35-21-350-501

        4. Wear that goes into base metal other than (3)

        1. Repair, VRS3675 TASK 72-43-20-300-016 (REPAIR-016)

    2. SUBTASK 72-43-20-220-105 Examine the No. 4 Bearing Face Seal for Wear on the Sides of the Vertical Slots

    1. Refer to Figure.

      2. Examine the seal at location 9 for wear on the sides.

        1. Maximum depth of wear must not be more than 0.030 in. (0.76 mm) after blend. Blend or wear is not permitted in fillet.

        1. Blend to remove the raised material and sharp edges. Refer to the SPM TASK 70-35-21-350-501.

    3. SUBTASK 72-43-20-220-067 Examine the No. 4 Bearing Face Seal (01-180) or (01-208) for Damage on the Carbon Seal Detail

    1. Refer to Figure.

      2. Examine the seal at all locations for cracks in the carbon seal detail. Refer to the SPM TASK 70-21-04-100-501.

        1. Cracks

        1. Repair, VRS3676 TASK 72-43-20-300-017 (REPAIR-017).

      3. Examine the seal for defects on the carbon seal detail.

        1. Defects.

          1. The limits in the SPM TASK 70-21-04-100-501 are met.

          1. Accept.

          2. Other than (a)

          1. Repair, VRS3676 TASK 72-43-20-300-017 (REPAIR-017) or Repair, VRS3083 TASK 72-42-33-300-011 (REPAIR-011).

    4. SUBTASK 72-43-20-220-068 Examine the No. 4 Bearing Face Seal (01-180) or (01-208) Spring Guides for Looseness or Wear on the Outside Diameter

    1. Refer to: Figure

      2. Examine the seal spring guide at location 6 for looseness or wear on the outside diameter (12 locations).

        1. Looseness or wear

        1. Repair, VRS3084 TASK 72-43-20-300-009 (REPAIR-009).

    5. SUBTASK 72-43-20-220-069 Examine the No. 4 Bearing Face Seal (01-180) or (01-208) for Damage on the Hardface of the Seal Detail Inside Diameter

    1. Refer to Figure.

      2. Examine the seal housing detail inside diameter at location 7 for defects.

        1. The limits in the SPM TASK 70-21-04-100-501 are met.

        1. Accept.

        2. Other than (1)

        1. Repair, VRS3676 TASK 72-43-20-300-017 (REPAIR-017).

      3. Examine the seal detail at locations 7 and 8 for erosion damage.

        1. Erosion

        1. Repair, VRS3676 TASK 72-43-20-300-017 (REPAIR-017) then examine the HPT metering plugs of the Stage 1 Disk at location 18. Refer to TASK 72-00-45-220-002-B00.

    6. SUBTASK 72-43-20-220-070 Examine the No. 4 Bearing Face Seal (01-180) or (01-208) for Wear on the Hardface

    1. Refer to: Figure

      2. Examine the seal at location 1 for wear on the hardface.

        1. Wear

        1. Repair, VRS3676 TASK 72-43-20-300-017 (REPAIR-017)

    7. SUBTASK 72-43-20-220-071 Examine the No. 4 Bearing Face Seal (01-180) or (01-208) for the Height of the Carbon Seal Lip

    1. Refer to: Figure

      2. Examine the seal at location 2 for the height of the carbon seal lip (Reference No. 2051).

        1. Height.

          1. If the dimension is between 0.115in. and 0.135in. (2.92 mm and 3.43 mm).

          1. Accept.

          2. Other than (a)

          1. Repair, VRS3676 TASK 72-43-20-300-017 (REPAIR-017).

    8. SUBTASK 72-43-20-220-072 Examine the No. 4 Bearing Face Seal (01-180) or (01-208) for the Surface Finish of the Carbon Seal Face

    1. Refer to: Figure.

      2. Examine the seal at location 3 for the surface finish of the carbon seal face.

        1. If the surface finish is other than the finish given in the figure.

        1. Repair, VRS3083 TASK 72-43-20-300-007 (REPAIR-007).

    9. SUBTASK 72-43-20-220-073 Examine the No. 4 Bearing Face Seal (01-180) or (01-208) for the Diameter, Roundness and Perpendicularity of the Hardface on the Housing Detail Inside Diameter

    1. Refer to: Figure.

      2. Examine the seal at location 4 for the inside diameter of the housing detail hardface area (Reference No. 2059).

        1. Inside diameter.

          1. If the diameter is between 6.562in. and 6.564in. (166.67 mm and 166.73 mm).

          1. Accept.

          2. Other than (a)

          1. Repair, VRS3676 TASK 72-43-20-300-017 (REPAIR-017).

      3. Examine the seal at location 4 for the roundness and the perpendicularity of the housing detail inside diameter.

        1. Roundness and perpendicularity.

          1. If the inside diameter is round by 0.004in. (0.1016 mm) and perpendicular to Surface C by 0.001in. (0.025 mm).

          1. Accept.

          2. Other than (a)

          1. Repair, VRS3676 TASK 72-43-20-300-017 (REPAIR-017).

    10. SUBTASK 72-43-20-220-074 Examine the No. 4 Bearing Face Seal (01-180) or (01-208) for the Flatness of the Carbon Seal Face

      CAUTION

      DO THIS INSPECTION AFTER YOU HAVE DONE ALL THE OTHER INSPECTIONS IN THIS TASK. YOU CAN CAUSE DAMAGE TO THE SEAL FACE IF YOU TOUCH THE SEAL TOO FREQUENTLY.

    1. Refer to: Figure.

      2. Use an optical flat measuring tool to examine the seal at location 3 for the flatness of the carbon seal face.

        1. If the seal face is not the flatness given in the figure.

        1. Repair, VRS3083 TASK 72-43-20-300-007 (REPAIR-007).

    11. SUBTASK 72-43-20-220-096 Examine the No. 4 Bearing Face Seal (01-180, 01-208) for Loose or Damaged Rivets

      1. Examine the SPM TASK 70-39-03-390-501, if VRS3675 (REPAIR 016) has been applied. It is permissible for the rivet head to be minus 0.010 in. (0.25 mm) to plus 0.005 in. (0.13 mm) above the part surface after riveting.

        1. If no anomalies present.

        1. Accept.

        2. If there are non-conformances.

        1. Reject, Repair, VRS3675 (TASK 72-43-20-300-016, REPAIR-016).

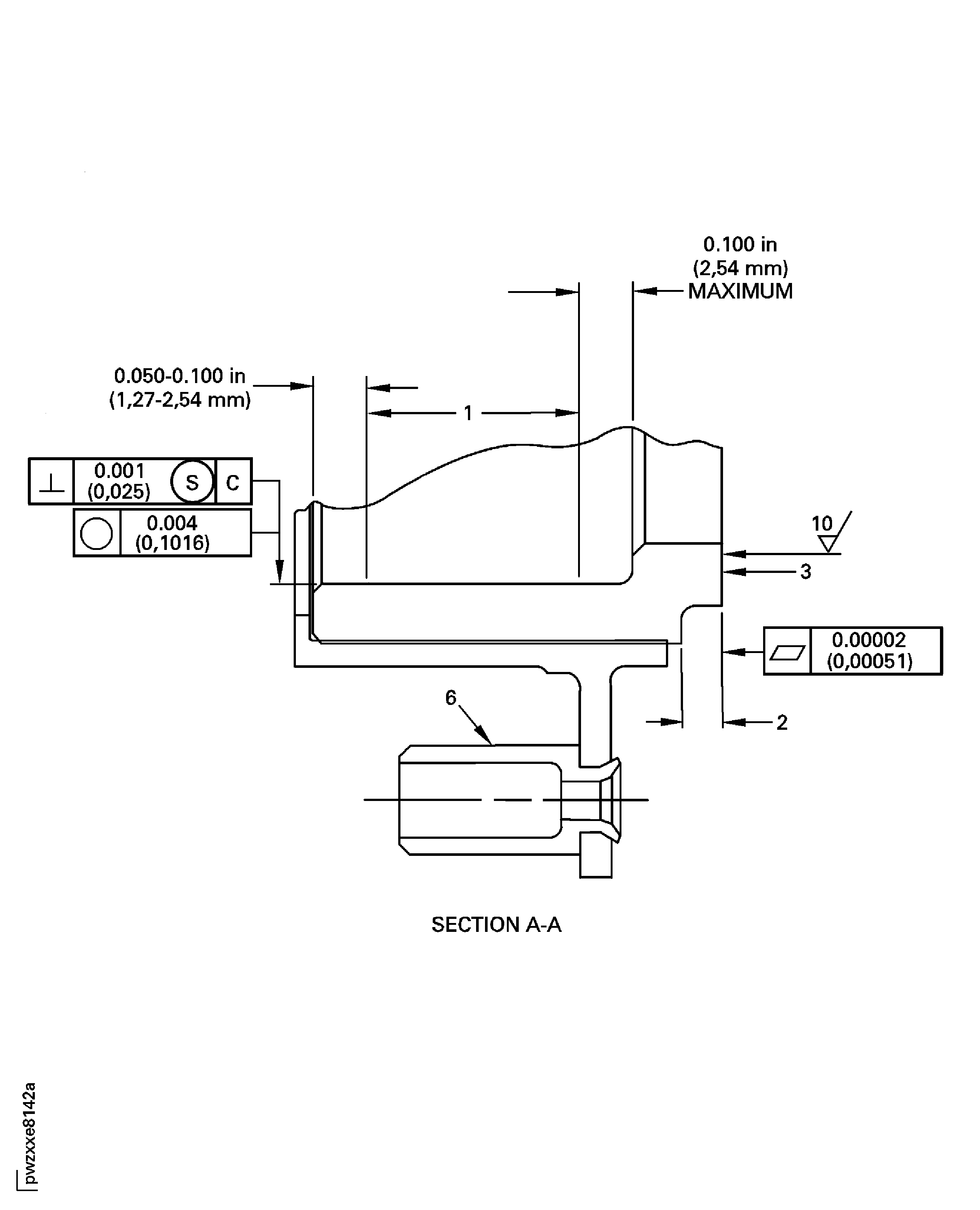

    12. Figure: No. 4 Bearing Face Seal Inspection Locations

    No. 4 Bearing Face Seal Inspection Locations

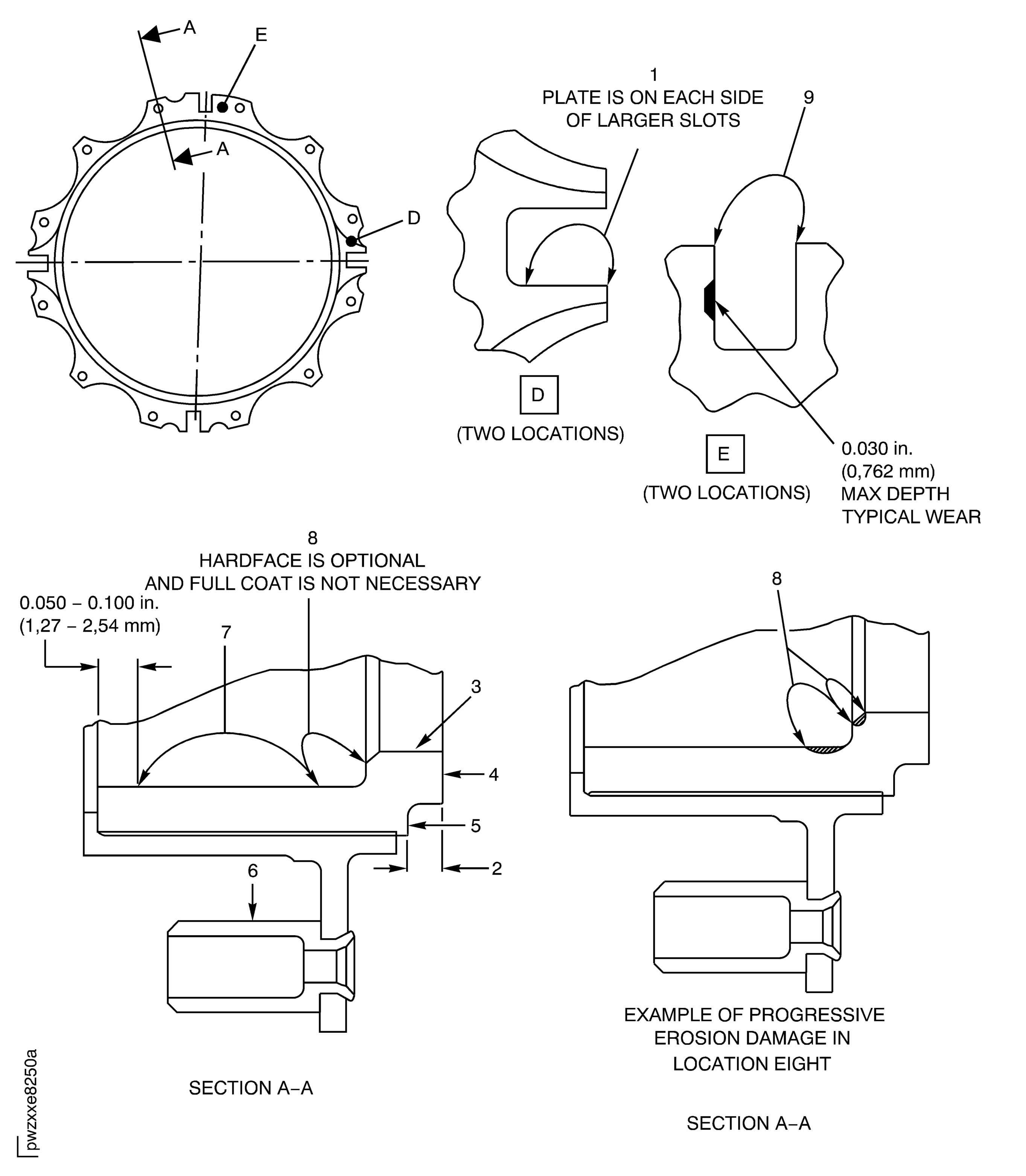

    Figure: No. 4 Bearing Face Seal Inspection Locations

    No. 4 Bearing Face Seal Inspection Locations

Requirements After Job Completion

Follow-On Conditions

NONE
