DMC:V2500-A0-72-45-2601-00A-609A-C|Issue No:001|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-45-26-300-001 HPT Stage 2 Duct Support - Repair The Coating, Repair-001 (VRS3247)

Effectivity

FIG/ITEM	PART NO.
01-020	2A0189
01-020	2A1653
01-020	2A2270
01-020	2A3407
01-020	2A3408

Material of component

PART IDENT	SYMBOL	MATERIAL
Stage 1 HPT duct support assembly		Nickel alloy

General

The practices and processes referred to in the procedure by TASK number are in the SPM.

Price and availability - none

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

Name	Manufacturer	Part Number / Identification
Abrasive blast equipment	LOCAL	Abrasive blast equipment
Flame spray equipment	LOCAL	Flame spray equipment
Workshop inspection equipment	LOCAL	Workshop inspection equipment

Consumables, Materials and Expendables

Name	Manufacturer	Part Number / Identification
CoMat 02-047 TAPE, HEAT REFLECTIVE	52152	CoMat 02-047
CoMat 02-048 TAPE, HEAT REFLECTIVE	0AM53	CoMat 02-048
CoMat 02-049 TAPE, HEAT REFLECTIVE	0AM53	CoMat 02-049
CoMat 02-051 HIGH TEMPERATURE GLASS CLOTH TAPE	0AM53	CoMat 02-051
CoMat 02-052 HIGH TEMPERATURE GLASS CLOTH TAPE	0AM53	CoMat 02-052
CoMat 02-053 HIGH TEMPERATURE GLASS CLOTH TAPE	0AM53	CoMat 02-053
CoMat 03-097 FLAME SPRAY POWDER	IAE15	CoMat 03-097
CoMat 05-035 ALUMINUM OXIDE ABRASIVE	62596	CoMat 05-035
CoMat 05-036 DELETED	0AM53	CoMat 05-036
CoMat 05-037 DELETED	0AM53	CoMat 05-037

Spares

NONE

Safety Requirements

NONE

Procedure

1. 1. Mask the areas not to be coated.
    Refer to Figure.
    Use CoMat 02-047 TAPE, HEAT REFLECTIVE, CoMat 02-048 TAPE, HEAT REFLECTIVE, CoMat 02-049 TAPE, HEAT REFLECTIVE, CoMat 02-051 HIGH TEMPERATURE GLASS CLOTH TAPE, CoMat 02-052 HIGH TEMPERATURE GLASS CLOTH TAPE, or CoMat 02-053 HIGH TEMPERATURE GLASS CLOTH TAPE.
    Grit blast to remove the coating by the procedure given in the SPM TASK 70-12-09-120-501.
    Use CoMat 05-035 ALUMINUM OXIDE ABRASIVE, CoMat 05-036 DELETED, or CoMat 05-037 DELETED.
1. 1. Mask the areas not to be coated.
    Refer to Figure.
    Use CoMat 02-047 TAPE, HEAT REFLECTIVE, CoMat 02-048 TAPE, HEAT REFLECTIVE, CoMat 02-049 TAPE, HEAT REFLECTIVE, CoMat 02-051 HIGH TEMPERATURE GLASS CLOTH TAPE, CoMat 02-052 HIGH TEMPERATURE GLASS CLOTH TAPE, CoMat 02-053 HIGH TEMPERATURE GLASS CLOTH TAPE.
    Strip the coating by the procedure given in the SPM TASK 70-33-63-300-503.
1. 1. Refer to Figure.
1. 1. Refer to Figure.
    Make sure the masking tape is still applied in all the areas not to be coated.
    Apply the flame spray coat to a thickness for the final dimension given in the figure.
    No overspray is permitted in the slot.
    Do the procedure given in the SPM TASK 70-34-10-340-501. Use CoMat 03-097 FLAME SPRAY POWDER.
2. Remove the masking tape.
1. 1. Refer to Figure.
1. 1. Make a permanent mark by the procedures given in the SPM TASK 70-09-00-400-501. Use the vibration peen method.
2. NOTE
  If VRS3247 is marked on the part, it is not necessary to mark the part.

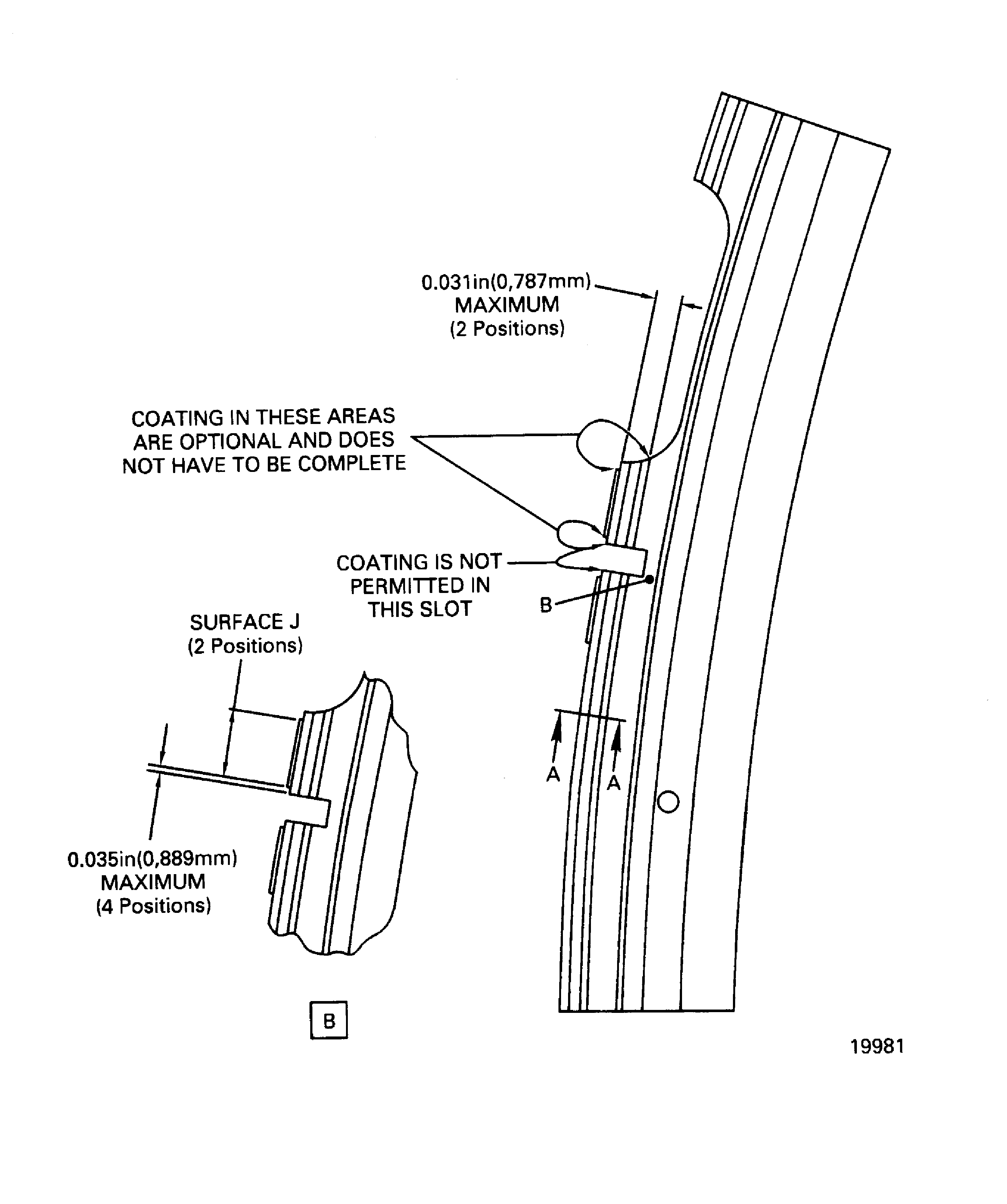

Sheet 1

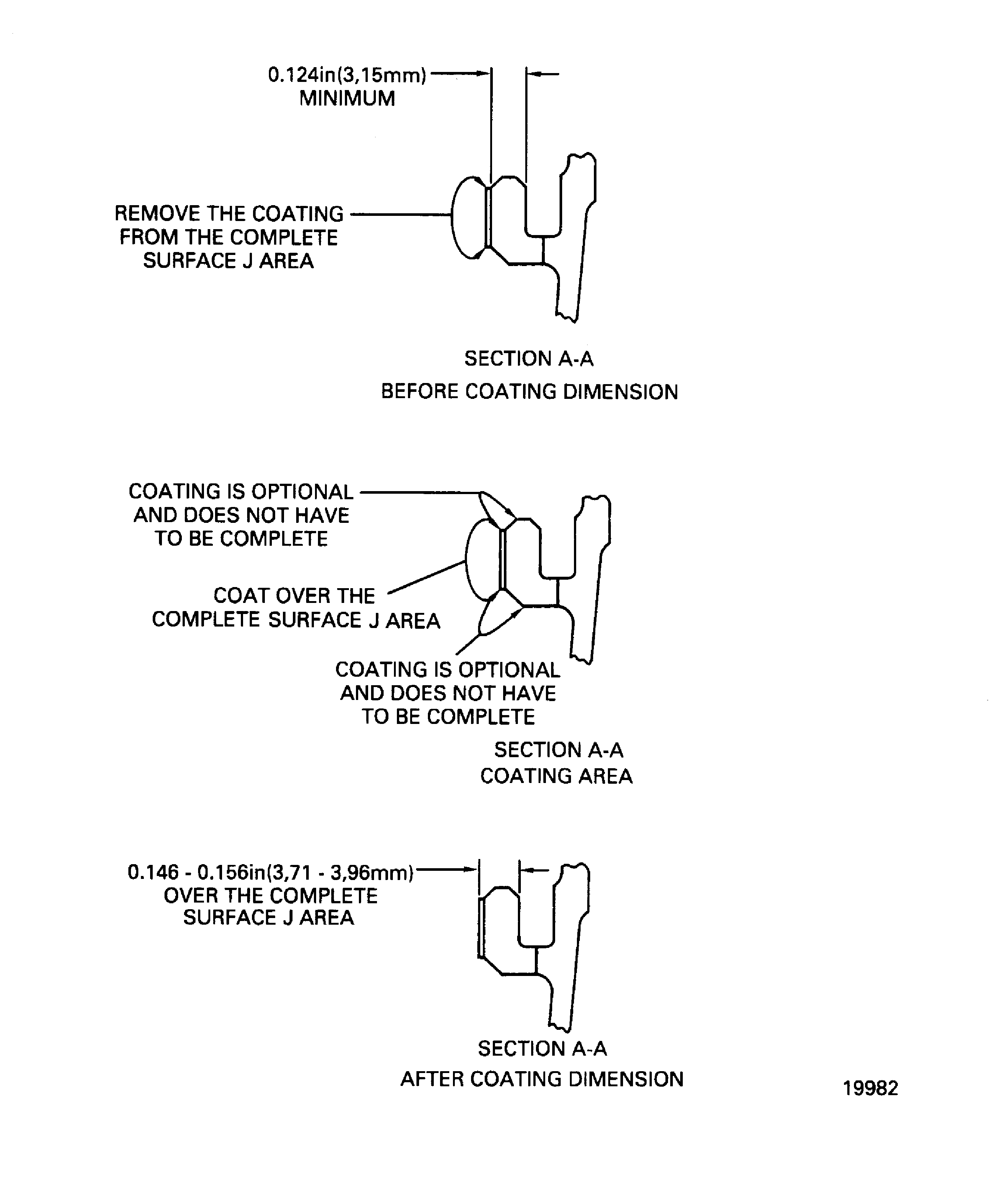

Sheet 2

Requirements After Job Completion

Follow-On Conditions

NONE
