TASK 72-45-27-300-006 HPT Stage 2 Support - Plasma Spray Repair The Rear Outer Diameter, Repair-006 (VRS3229)

DMC:V2500-A0-72-45-2701-01A-609A-C|Issue No:002.00|Issue Date:2021-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-45-27-300-006 HPT Stage 2 Support - Plasma Spray Repair The Rear Outer Diameter, Repair-006 (VRS3229)

Effectivity

FIG/ITEM

PART NO.

01-010

2A1360

01-010

2A1713

Material of component

DESCRIPTION

SYMBOL

MATERIAL

Stage 2 HPT support assembly

Nickel alloy

General

The practices and processes referred to in the procedure by TASK number are in the SPM.

Price and availability - none

NOTE

The stage 2 support assembly P/N 2A0303 should be modified per Service Bulletin 72-0002/Rework 001 and reidentified as P/N 2A1360.

NOTE

Equivalent material or equipment can be used.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Abrasive Blast EquipmentLOCALAbrasive Blast Equipment
Grinding equipmentLOCALGrinding equipment
Machining equipmentLOCALMachining equipment
Plasma spray equipmentLOCALPlasma spray equipment
Workshop inspection equipmentLOCALWorkshop inspection equipment

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 03-080 METAL SPRAYING POWDER,Co BASE ALLOYIE426CoMat 03-080
CoMat 03-089 METAL SPRAYING POWDER Ni/Al (95/5)33870CoMat 03-089
CoMat 03-090 METAL SPRAYING POWDER Ni/Al (95/5)X111XCoMat 03-090

Spares

NONE

Safety Requirements

CAUTION

IF IT IS NECESSARY TO APPLY PLASMA SPRAY BY REPAIR-005 (VRS3227) AND REPAIR-006 (VRS3229) BECAUSE THE FRONT AND REAR OUTER DIAMETERS ARE WORN OUT AT THE SAME TIME, APPLY THE PLASMA SPRAY ON THE FRONT OUTER DIAMETER (REPAIR-005) FIRST AND THEN APPLY THE PLASMA SPRAY ON THE REAR OUTER DIAMETER (REPAIR-006) NEXT.

Procedure

    1. SUBTASK 72-45-27-320-053 Machine the Rear Outer Diameter before Plasma Spray

      NOTE

      All dimensions apply when Surface E is flat by 0.002 in. (0.051 mm) and Diameter B maintains a clearance envelope of 28.592 in. (726.925 mm) in a free or held condition. In a held condition, hold the air seal only on Surfaces E and F and Diameter B. In a free condition Surface E is flat by 0.010 in. (0.254 mm) and Diameter B is 28.550 to 28.626 in. (725.17 to 727.10 mm) in diameter.

    1. Refer to Figure thru Figure or Figure thru Figure.

      2. Do a machine or grind operation to remove the damage or wear and all the coating from the rear outer diameter face.

      1. Remove the minimum quantity of parent material necessary to do the repair.

      3. Clean the part.

      1. Refer to the SPM TASK 70-11-03-300-503.

      4. If you removed the damage and coating by grind operation, do a fluorescent penetrant inspection of the part.

      5. Do a dimensional inspection of the repair area.

      1. Refer to Figure or Figure. Make sure you removed all the coating.

        NOTE

        The offset of the rear outer diameter is relative to all other diameters in Figure and Figure.

    2. SUBTASK 72-45-27-340-052 Plasma Spray the Rear Outer Diameter

      1. Plasma spray the rear outer diameter.

      1. Refer to Figure and Figure or Figure and Figure.

        Apply the plasma spray to a sufficient thickness which will permit the final machining of the dimensions given in the Figure.

        No overspray is permitted on the flange face but is permitted in other areas given in the Figure.

        Do the procedure given in the SPM TASK 70-34-00-340-501.

    3. SUBTASK 72-45-27-320-054 Finish Machine the Rear Outer Diameter after Plasma Spray

      NOTE

      All dimensions apply when Surface E is flat by 0.002 in. (0.051 mm) and Diameter B maintains a clearance envelope of 28.592 in. (726.925 mm) in a free or held condition. In a held condition, hold the air seal only on Surfaces E and F and Diameter B. In a free condition Surface E is flat by 0.010 in. (0.254 mm) and Diameter B is 28.550 to 28.626 in. (725.17 to 727.10 mm) in diameter.

      1. Set-up and finish machine the rear outer diameter.

      1. Refer to Figure thru Figure or Figure thru Figure limits.

      2. The finished plasma spray thickness must be between 0.003 and 0.015 in. (0.08 and 0.38 mm) for Figure.

        The finished plasma spray thickness must be between 0.003 and 0.023 in. (0.08 and 0.058 mm) for Figure.

        NOTE

        The offset of the rear outer diameter is relative to all other diameters in Figure and Figure.

    4. SUBTASK 72-45-27-220-062 Examine the Repair

      1. Do a dimensional and visual inspection.

      1. Refer to Figure thru Figure or Figure thru Figure limits.

    5. SUBTASK 72-45-27-350-053 Identify the Repair

      1. Make a mark VRS3229 adjacent to the part number.

      1. Refer to Figure or Figure.

        Make a permanent mark by the procedure given in the SPM TASK 70-09-00-400-501.

        Use the vibration peen method.

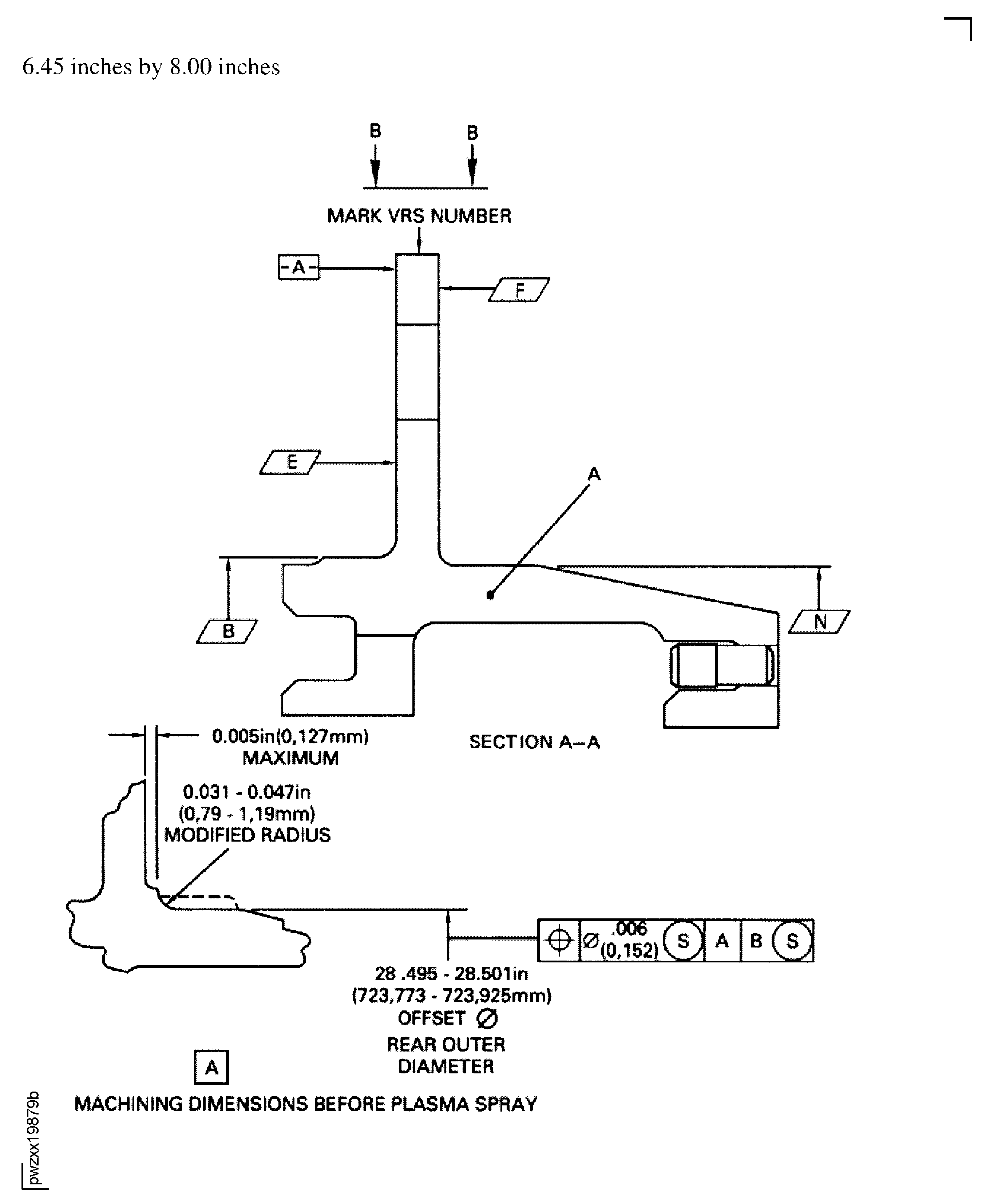

    6. Figure: Repair Details And Dimensions (For PN 2A1360 With Plasma Spray On The Rear Diameter That Was Incorporated By SBE72-0002)

    Repair Details And Dimensions (For PN 2A1360 With Plasma Spray On The Rear Diameter That Was Incorporated By SBE72-0002)

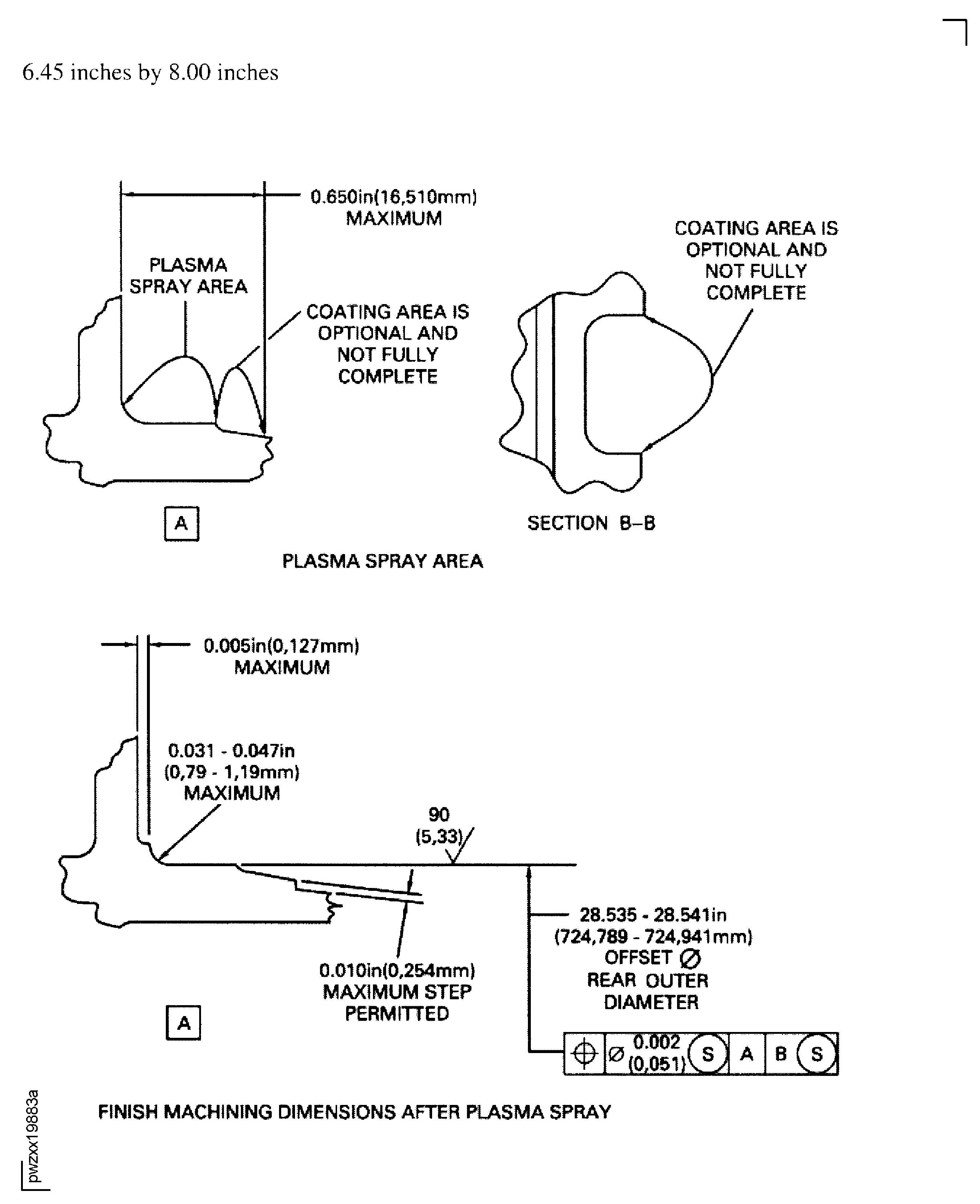

    Figure: Repair Details And Dimensions (For PN 2A1360 With Plasma Spray On The Rear Diameter That Was Incorporated By SBE72-0002)

    Repair Details And Dimensions (For PN 2A1360 With Plasma Spray On The Rear Diameter That Was Incorporated By SBE72-0002)

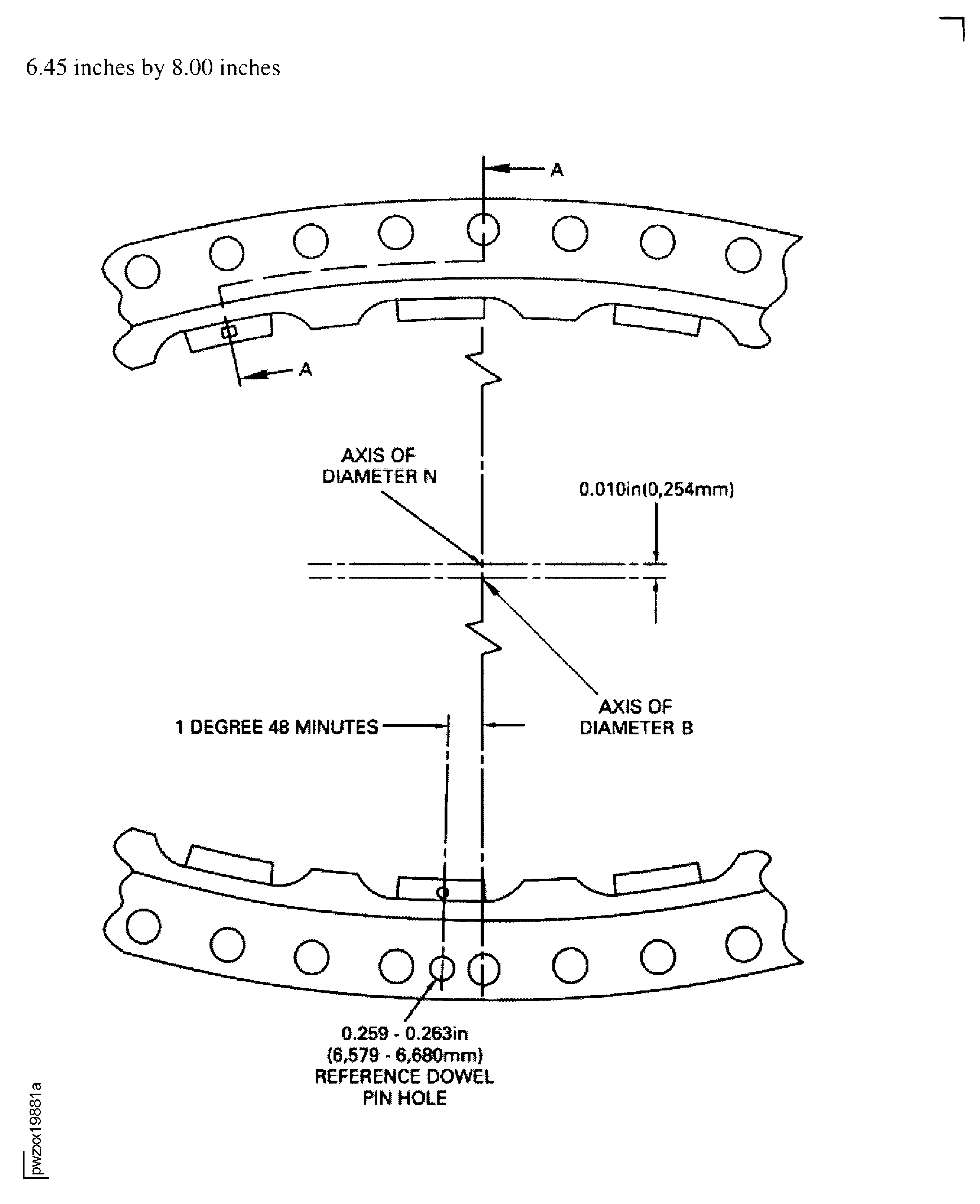

    Figure: Repair Details And Dimensions (For PN 2A1360 With Plasma Spray On The Rear Diameter That Was Incorporated By SBE72-0002)

    Repair Details And Dimensions (For PN 2A1360 With Plasma Spray On The Rear Diameter That Was Incorporated By SBE72-0002)

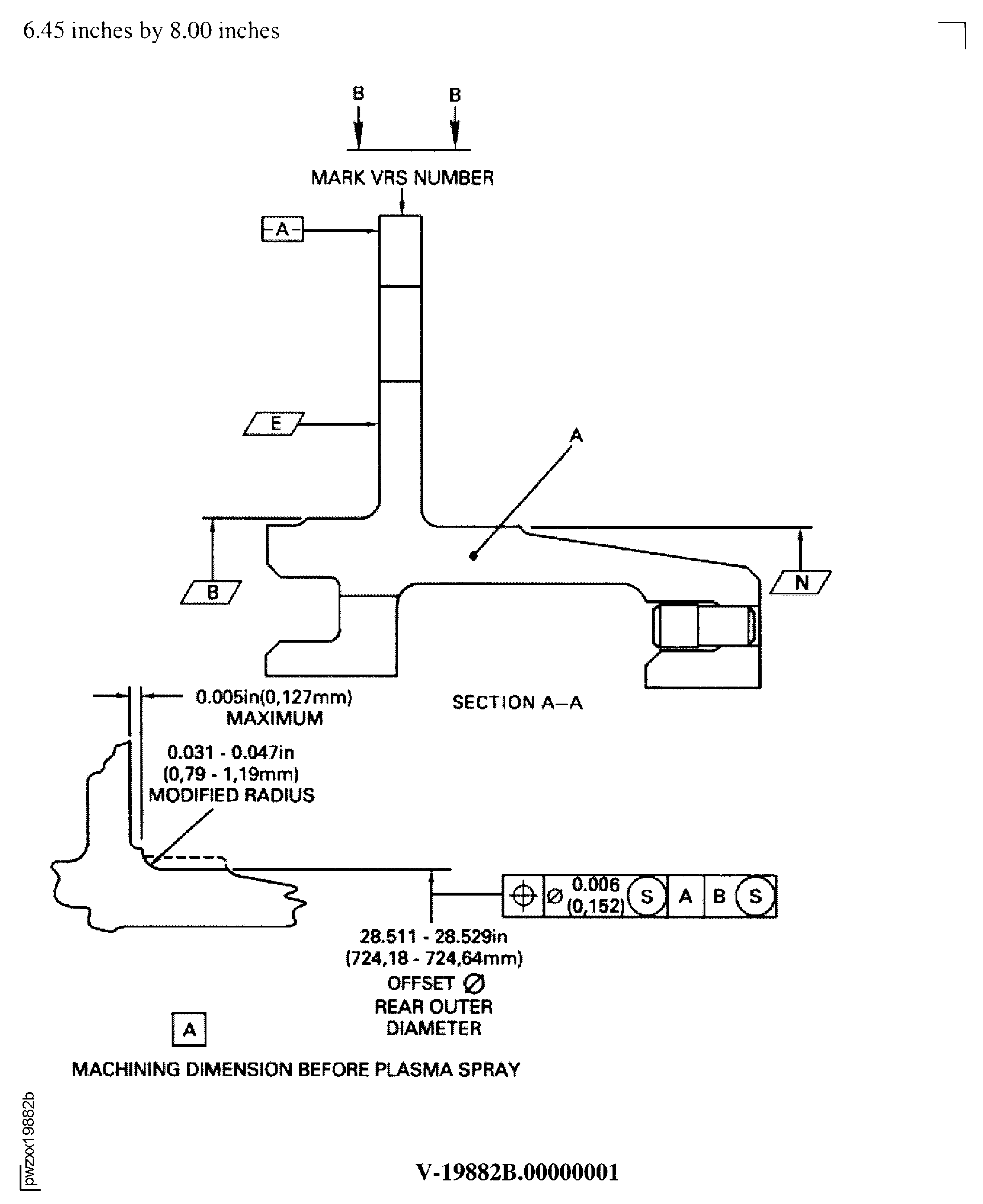

    Figure: Repair Details And Diameters (For PN 2A1360 And PN 2A1713 With No Plasma Spray On The Rear Diameter)

    Repair Details And Diameters (For PN 2A1360 And PN 2A1713 With No Plasma Spray On The Rear Diameter)

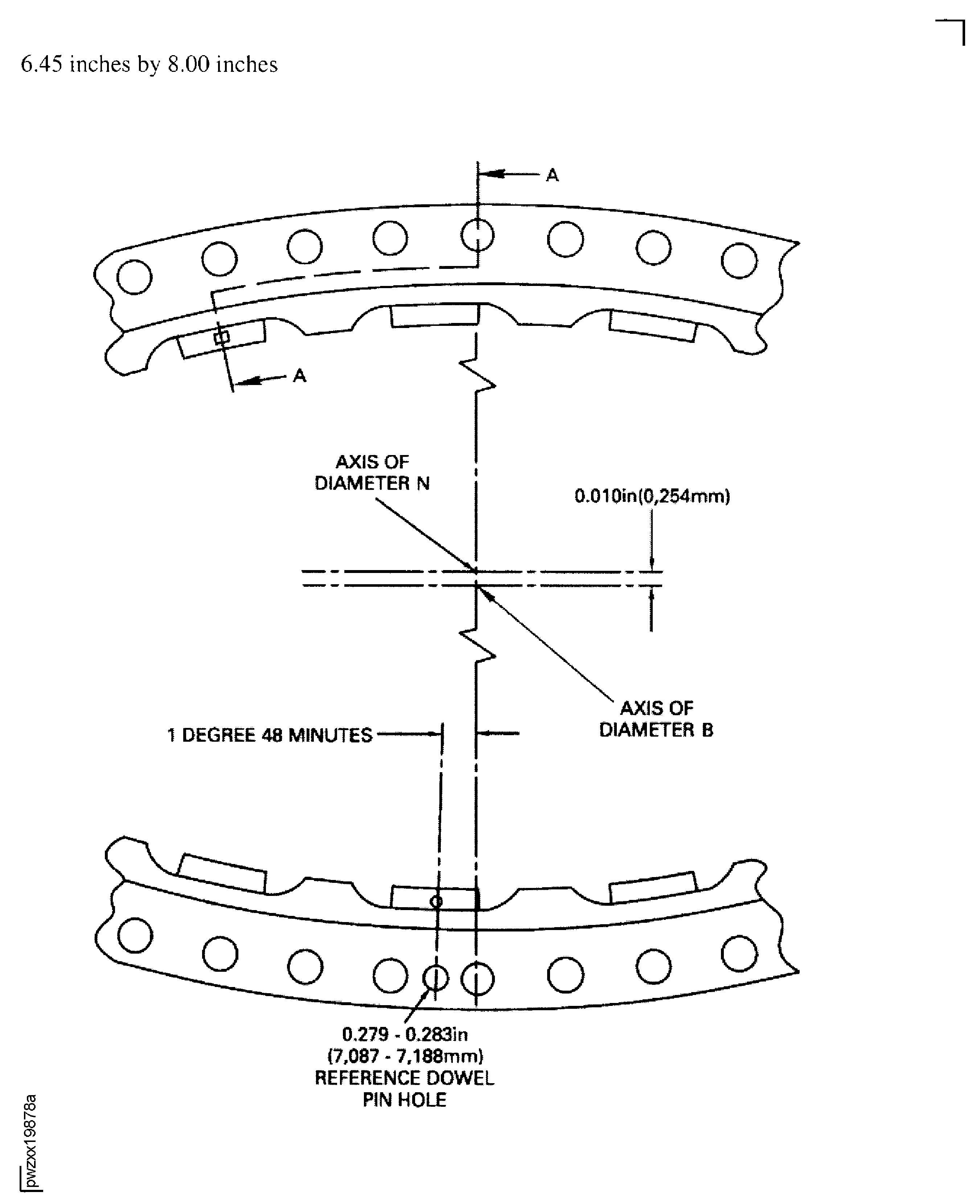

    Figure: Repair Details And Dimensions (For PN 2A1360 And 2A1713 With No Plasma Spray On The Rear Diameter)

    Repair Details And Dimensions (For PN 2A1360 And 2A1713 With No Plasma Spray On The Rear Diameter)

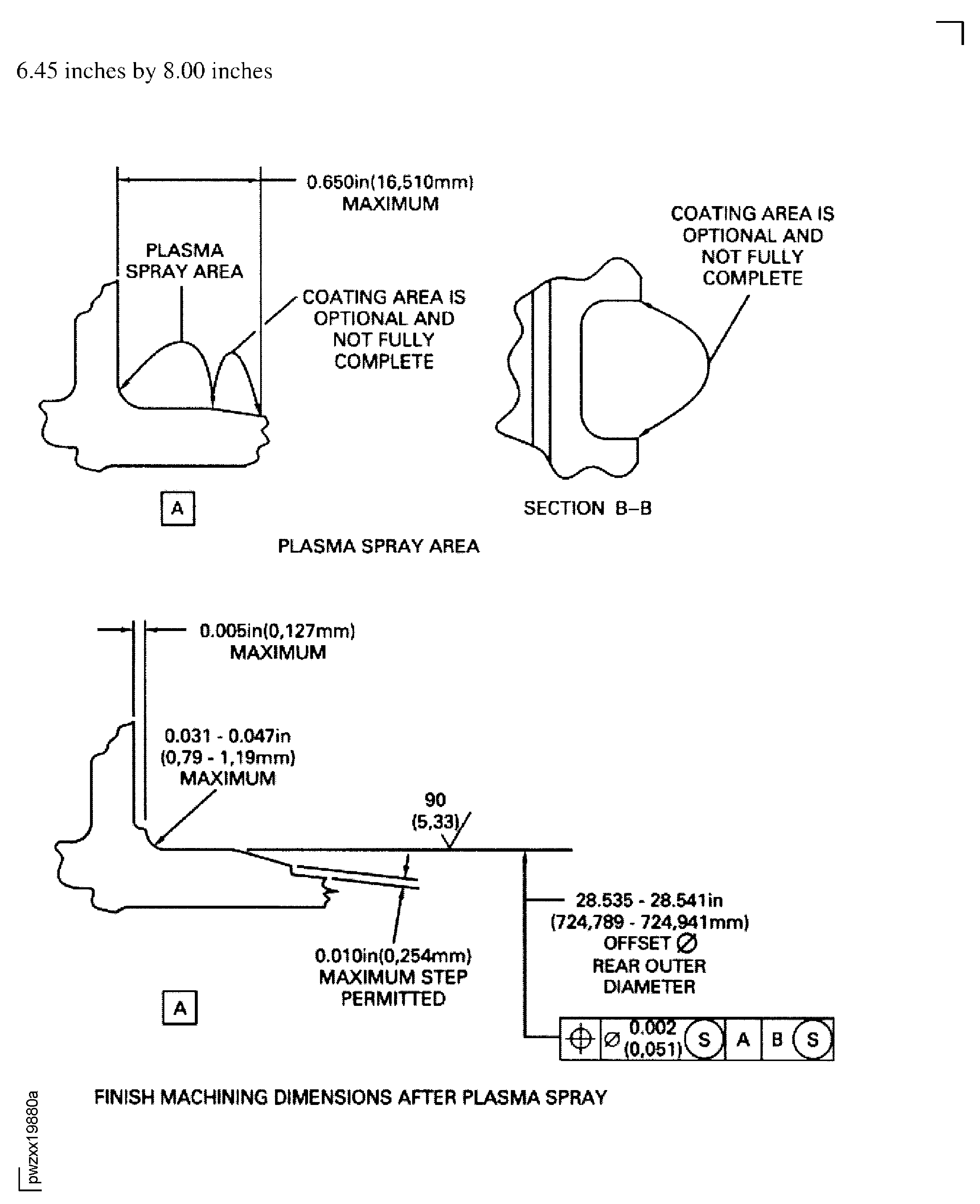

    Figure: Repair Details And Dimensions (For PN 2A1360 And 2A1713 With No Plasma Spray On The Rear Diameter)

    Repair Details And Dimensions (For PN 2A1360 And 2A1713 With No Plasma Spray On The Rear Diameter)

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Revised the procedural steps. (21VC047)

Change Type:

Revised figure titles to current standard by removing empty legend. (Editorial)
