TASK 72-50-00-200-003 EGT Wiring Harness Bracket Assembly (Water Shield) - Examine, Inspection-003 (POST SBE 77-0015)
General
This TASK gives the procedure for the inspection of the EGT Wiring Harness bracket assembly (POST SBE 77-0015).
Fig/item numbers in parentheses in the procedure agree with those used in the IPC.
The policy that is necessary for inspection is given in SPM TASK 70-20-01-200-501.
All the parts must be cleaned before any part is examined. Refer to SPM TASK 70-10-00-100-501.
All parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.
Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.
Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.
All parts must be examined to make sure that all the repairs have been completed satisfactorily.
The practices and processes referred to in the procedure by the TASK numbers are in SPM.
References
Refer to SPM for data on these items.
Definition of Damage TASK 70-02-02-350-501.
Inspection of Parts, TASK 70-20-01-200-501.
Some data on these items is contained in this TASK. For more data on these items refer to SPM.
Method of Testing for Crack Indications.
Chemical Processes.
Surface Protection.
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
NONEConsumables, Materials and Expendables
NONESpares
NONESafety Requirements
NONEProcedure
Refer to Figure.
SUBTASK 72-50-00-220-062 Examine the EGT Wiring Harness Bracket Assembly (01-640) for Bends, Cracks and Damage

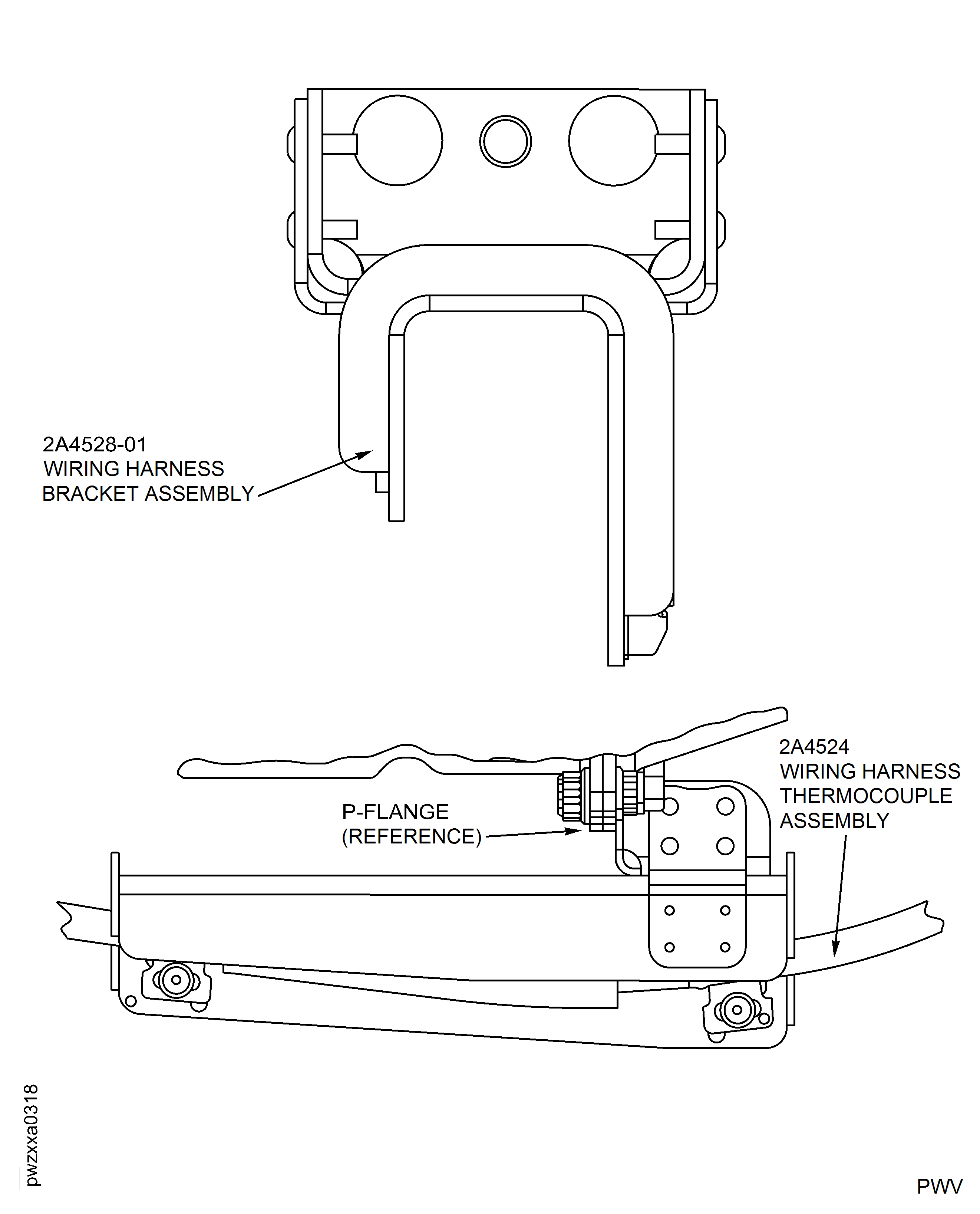

Figure: EGT Wiring Harness Bracket Assembly (Water Shield) Inspection Location
EGT Wiring Harness Bracket Assembly (Water Shield) Inspection Location
