TASK 72-50-10-030-006 LPT Case And Rotor Assembly - Disassemble The LPT Stage 5 Rotor Assembly From The LPT, Disassembly-006

DMC:V2500-A0-72-50-1000-06A-530A-B|Issue No:002.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-50-10-030-006 LPT Case And Rotor Assembly - Disassemble The LPT Stage 5 Rotor Assembly From The LPT, Disassembly-006

General

Refer to TASK 72-50-10-030-001 (DISASSEMBLY-001) before you do this TASK.

Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants refer to the IPC.

Apply the approved penetrating oil before the removal of threaded parts and parts. Let the parts soak before removal. For the approved oils and procedures, refer to the SPM TASK 70-64-00-640-501.

Discard all rotor bolts and nuts removed in this procedure

Refer to TASK 72-50-00-990-501 (DESCRIPTION AND OPERATION) for a sectional view of the LP turbine module.

NOTE

Special tools are identified in the procedure by the tool primary number.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Rack palletLOCALRack pallet
IAE 1F10026 Hydraulic hand pump0AM53IAE 1F100261
IAE 1M14030 Assembly trolley0AM53IAE 1M140301
IAE 1M14055 Special wrench0AM53IAE 1M140551
IAE 1M14059 Lifting fixture0AM53IAE 1M140591
IAE 1M14063 Guide fixture0AM53IAE 1M140631
IAE 1M14064 Support bolt0AM53IAE 1M140643
IAE 1M14065 Hydraulic basic fixture0AM53IAE 1M140651
IAE 1M14081 Clamping ring0AM53IAE 1M140811
IAE 1M14156 Lifting fixture0AM53IAE 1M141561
IAE 1M14010 Assembly/Disassembly fixture0AM53IAE 1M14010

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-50-10-030-088 Install the Hydraulic Basic Fixture to the Groove for the Stage 5 Disk

    1. Turn the IAE 1M14065 Hydraulic basic fixture 1 off to loosen it from the IAE 1M14064 Support bolt 3 off.

    2. Move the hydraulic basic fixture downwards to the groove for the stage 5 disk on the support bolts.

    3. Turn the hydraulic basic fixture to attach the fixture at the support bolts.

    2. SUBTASK 72-50-10-030-089 Remove the Nuts of the Stage 5 Disk

    1. CAUTION

      HOLD THE BOLTS IN THEIR POSITION WHEN YOU LOOSEN AND REMOVE THE NUTS FROM THE BOLTS. DO NOT TURN THE BOLTS OR MAKE TO-AND-FRO MOVEMENTS. THE DISK/INNER AIR SEAL FLANGES AND THE BOLTS CAN BE DAMAGED BY SCORES.

    2. WARNING

      DURING DISASSEMBLY DO NOT BREATHE DUST OF THE LOOSENED BOLTS. PREVENT SKIN AND EYE CONTACT WITH RELEASED DUST. THE DUST CONTAINS NICKEL PARTICLES WHICH CAN POSE A HEALTH HAZARD. BEFORE DISASSEMBLY LUBRICATE ACCESSIBLE BOLTS AND BOLT HEADS, NUTS AND EXPOSED THREADS WITH AN APPROVED, SUITABLE PENETRANT OIL. WEAR A FACE MASK AND GOGGLES. DO NOT REMOVE DUST DEPOSITS WITH COMPRESSED AIR. REMOVE ANY SURFACE DUST PARTICLES WITH A DISPOSABLE DAMP RAG OR SIMILAR. AFTER END OF THIS PROCEDURE CLEAN YOUR HANDS AND EXPOSED SKIN WHERE POSSIBLE.

      Loosen all 36 nuts and bolts which secure the stage 5 disk front flange to the stage 4 disk rear flange.

    3. Remove all 36 nuts with the IAE 1M14055 Special wrench 1 off.

    4. Remove the bolts.

    5. Discard the removed bolts and nuts.

    3. SUBTASK 72-50-10-030-090 Install the Lifting Fixture on to the Stage 5 Disk

    1. Refer to: Figure

    2. Use hoist equipment to install the IAE 1M14059 Lifting fixture 1 off. Make sure that the clamps of the lifting fixture are locked in the inner position. Install the three teflon bolts in to the holes which are marked with the stage number of the disk to be removed.

    3. Hoist the lifting fixture above the LP turbine case and rotor.

    4. Lower the lifting fixture carefully on to the stage 5 disk, engage the front end of the guide tube through the IAE 1M14063 Guide fixture.

    5. Loosen the hand knobs.

    6. Move the clamps on the lifting fixture to the outer direction in the identified position. Attach the clamps with the hand knobs. Tighten the hand knobs.

    4. SUBTASK 72-50-10-030-091 Remove the Stage 5 Disk

    1. Refer to: Figure

    2. Operate the hydraulic basic fixture with the IAE 1F10026 Hydraulic hand pump 1 off to push off the stage 5 disk.

    3. Use hoist equipment and lift the stage 5 disk and the stage 5 air seal with the lifting fixture from the LP turbine case and rotor.

    4. Lower the stage 5 disk on the IAE 1M14030 Assembly trolley 1 off.

    5. Loosen the hand knobs of the lifting fixture. Move the clamps in to the inner position. Remove the lifting fixture from the stage 5 disk. Remove the hoist equipment.

    5. SUBTASK 72-50-10-030-092 Attach the Clamping Ring to the Stage 5 Disk

    1. Refer to: Figure

    2. Install the two halves of the IAE 1M14081 Clamping ring 1 off to the stage 5 disk.

    3. Connect the two halves with the single acting ball lock pin.

    4. Attach the clamping ring with the hand knob. Tighten the hand knob.

    6. SUBTASK 72-50-10-030-093 Turn the Stage 5 Disk

    1. Use hoist equipment to install the IAE 1M14156 Lifting fixture 1 off to the clamping ring.

    2. Lift and turn the stage 5 disk. Install the disk again on the assembly trolley, the rotating air seal in top position.

    3. CAUTION

      HOLD THE BOLTS IN THEIR POSITION WHEN YOU INSTALL THE NUTS ON TO THE BOLTS. DO NOT TURN THE BOLTS OR MAKE TO-AND-FRO MOVEMENTS. THE DISK/INNER AIR SEAL FLANGES CAN BE DAMAGED BY SCORES.

      Install the six work bolts and nuts to safety the air seal on the disk. Tighten the nuts.

    4. Put the stage 5 disk on a rack pallet.

    5. Remove the hoist equipment and the lifting fixture.

    6. Loosen the hand knob and disconnect the single acting ball lock pin. Remove the two halves of the clamping ring from the stage 5 disk.

    7. SUBTASK 72-50-10-030-197 Move the Lifting Ring

    1. Move the lifting ring of the IAE 1M14010 Assembly/Disassembly fixture from the 'zero position' into the 'lifting position' with the lever.

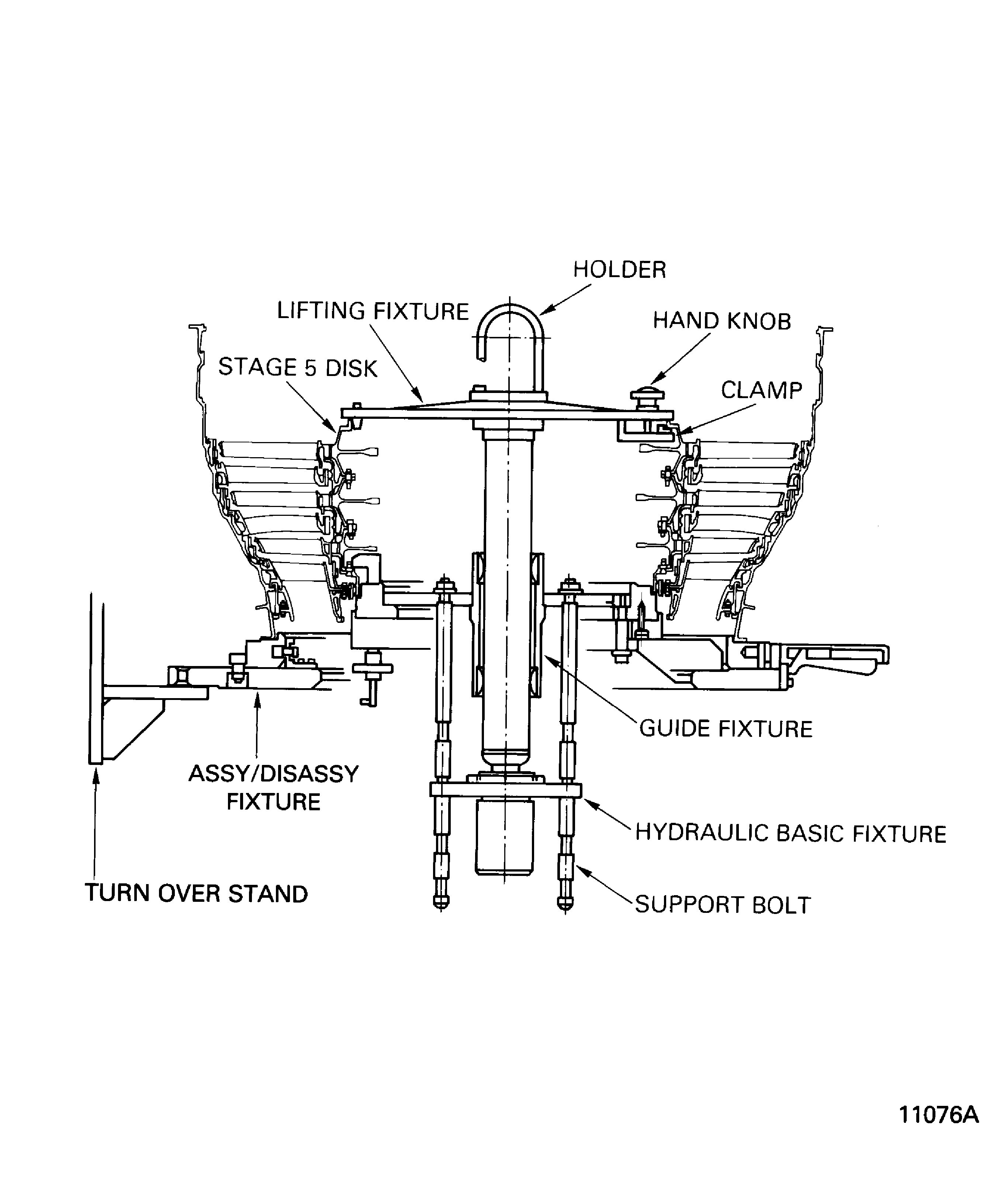

    8. Figure: Remove the Stage 5 Disk

    Remove the Stage 5 Disk

    Figure: Turn the Stage 5 Disk with the Clamping Ring

    Turn the Stage 5 Disk with the Clamping Ring

Requirements After Job Completion

Follow-On Conditions

NONE
