TASK 72-50-21-300-033 LPT Case - Replace The Active Clearance Control Mounting Boss, Repair-033 (VRS4403)

DMC:V2500-A0-72-50-2101-06A-920A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-50-21-300-033 LPT Case - Replace The Active Clearance Control Mounting Boss, Repair-033 (VRS4403)

Effectivity

FIG/ITEM

PART NO.

01-010

3A0807

01-010

3A0990

01-010

3A0991

01-010

3A1908

01-010

3A2183

01-010

3A2265

01-010

3A2447

01-010

3A2533

Material of component

PART IDENT

SYMBOL

MATERIAL

LP turbine case

MTS1101

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK number are in the SPM

NOTE

  1. For equipment and materials necessary to do this repair refer to SPM TASKS below:

    70-23-05-230-501

    70-11-03-300-503

    70-39-03-390-501

  2. Equivalent materials or equipment may be used.

NOTE

The ACC mounting boss must not be removed from the LP turbine case if only individual rivets are defective and must be replaced.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Mounting boss, ACC3A04788
Rivet, Solid, Univ. HdAN12333732

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-50-21-350-086 Remove the Damaged or Worn Rivets

      1. Remove the rivets.

      1. Refer to Fig. 72-50-21-990-001.

        Drill or grind off heads.

        Do not damage LP turbine case druing this procedure.

        Do not damage the ACC mounting boss if an individual rivet is to be replaced.

        Hit through remaining parts of rivet shafts.

        Use minimum force to prevent damage of the LP turbine case.

    2. SUBTASK 72-50-21-350-087 Remove the ACC Mounting Boss

      1. Remove the ACC boss.

      1. Refer to Fig. 72-50-21-990-001.

        When all four rivets are removed, the ACC mounting boss is separate from the case.

    3. SUBTASK 72-50-21-230-093 Examine the Local Surfaces for Cracks

      1. Do the test for cracks.

      1. Refer to the SPM TASK 70-23-05-230-501.

        Use medium sensitivity level.

        No cracks are permitted.

    4. SUBTASK 72-50-21-110-094 Clean the LP Turbine Case

      1. Clean the LP turbine case.

      1. Refer to the SPM TASK 70-11-03-300-503.

    5. SUBTASK 72-50-21-220-146 Examine the Rivet Holes for Wear

      1. Dimensionally examine.

      1. Refer to Fig. 72-50-21-990-001for maximum dimensions.

    6. SUBTASK 72-50-21-390-051 Assemble the Replacement Parts

      1. Assemble the ACC mounting with rivets.

      1. Make sure that the mounting boss is aligned correctly before installation.

        Attach the mounting boss with the rivets to the LP turbine case.

        Refer to the SPM TASK 70-39-03-390-501.

    7. SUBTASK 72-50-21-350-088 Insert the Insert (01-050) in the ACC Mounting Boss

      1. Install the screw thread insert if removed.

      1. Refer to VRS4049, TASK 72-50-21-300-026 (REPAIR-026) and Figure.

    8. SUBTASK 72-50-21-220-147 Do the Post Repair Inspection

      1. Visually examine the quality after machine riveting. Make sure that the parts are correctly attached.

      1. For acceptance standards refer to the SPM TASK 70-39-03-390-501.

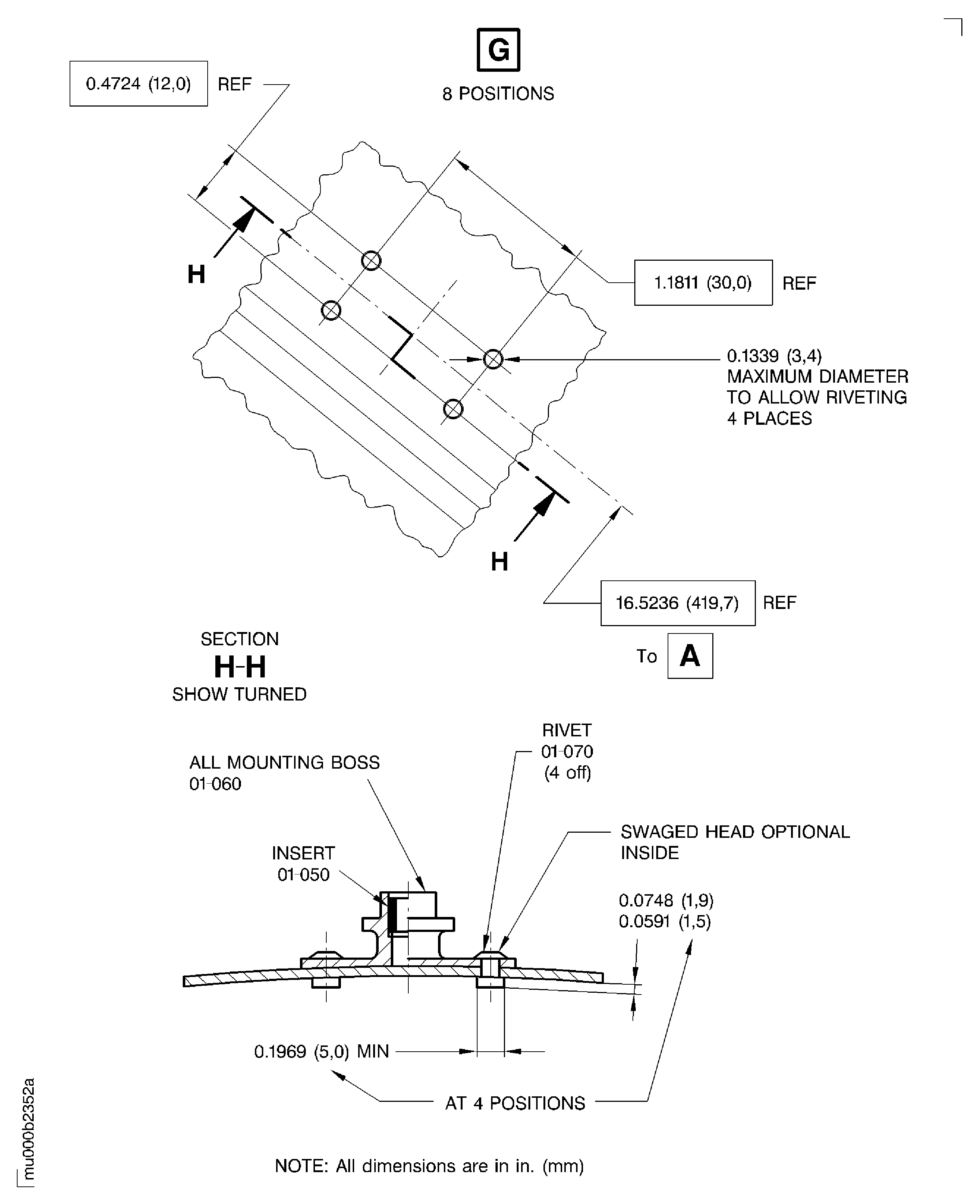

    9. Figure: Replacement of rivets and ACC mounting boss on the LP turbine case

    Replacement of rivets and ACC mounting boss on the LP turbine case

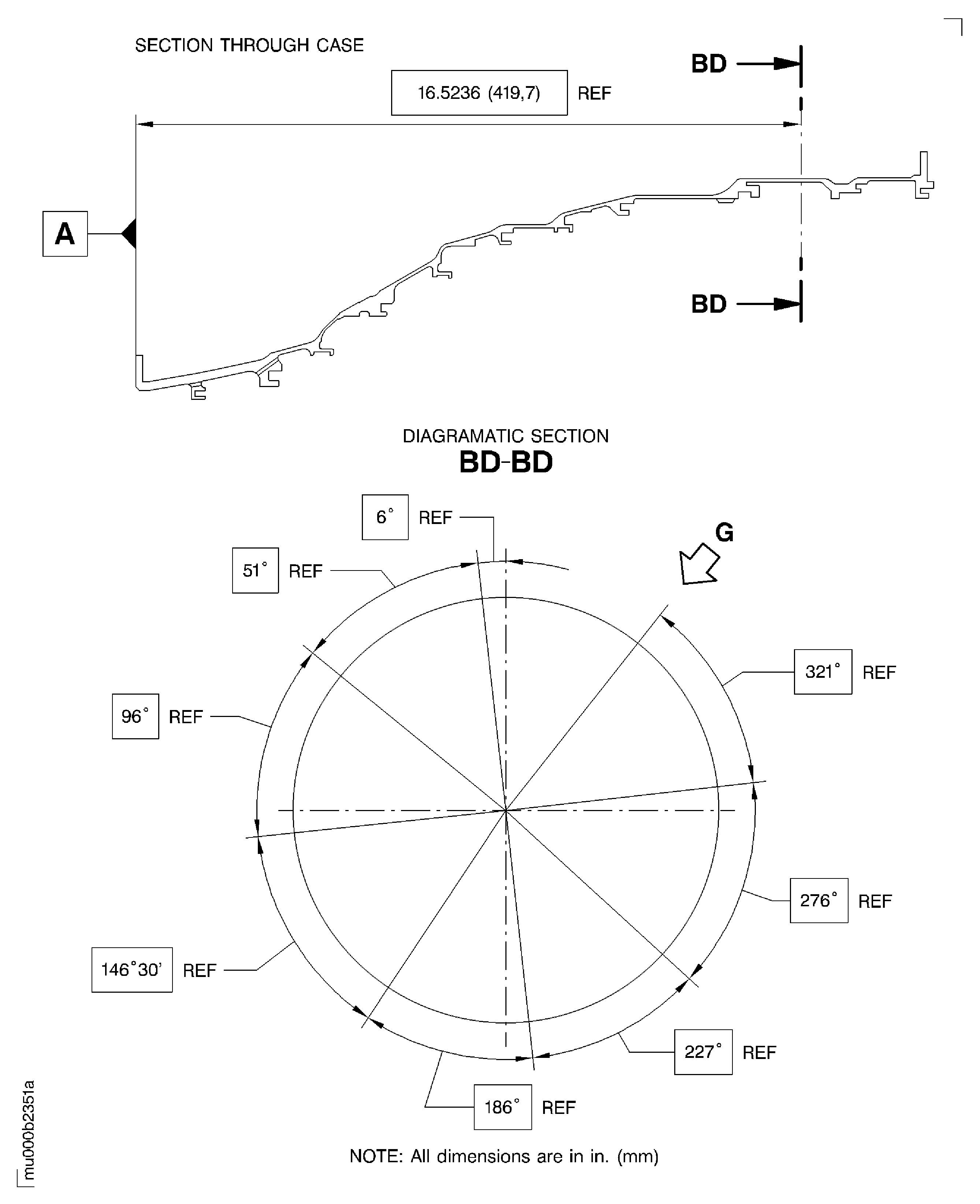

    Figure: Replacement of rivets and ACC mounting boss on the LP turbine case

    Replacement of rivets and ACC mounting boss on the LP turbine case

Requirements After Job Completion

Follow-On Conditions

NONE
