TASK 72-50-22-300-090 LPT Stage 3 Vane - Weld Repair The Inner Buttress Location Slot, Repair-090 (VRS4273)

DMC:V2500-A0-72-50-2203-02A-627A-C|Issue No:002.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-50-22-300-090 LPT Stage 3 Vane - Weld Repair The Inner Buttress Location Slot, Repair-090 (VRS4273)

Effectivity

FIG/ITEM

PART NO.

01-750

3A2073

01-750

3A2243

01-780

3A2077

01-780

3A2245

Material of component

PART IDENT

SYMBOL

MATERIAL

Stage 3 turbine vane

MTS1323B/M-247 LC DS

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK number are in the SPM.

NOTE

For more equipment and materials necesary to do this repair, refer to the SPM TASK 70-09-00-400-501, SPM TASK 70-23-05-230-501, SPM TASK 70-31-13-310-501 and SPM TASK 70-37-10-370-501.

NOTE

To identify the consumable materials, refer to the PCI.

NOTE

Special tools are identified in the procedure by the tool primary number.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Milling machineLOCALMilling machine
Hand held grinderLOCALHand held grinder
IAE 3M14274 Milling fixture0AM53IAE 3M142741

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 03-185 WELDING FILLER WIRELOCALCoMat 03-185

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-50-22-380-085 Prepare the Surfaces for Weld Procedure

      1. Remove wear resistant coating.

      1. If there is wear resistant coating, remove 0.040 to 0.051 in (1.0 to 1.3 mm) on both sides from area A1 to be welded.

        Refer to Figure.

      2. Remove aluminum diffusion coating.

      1. If there is aluminum diffusion coating, remove it in the slot to be welded.

        Refer to Figure.

    2. SUBTASK 72-50-22-110-195 Clean the Worn Slot-Surfaces

      1. Clean the areas to be welded.

      1. Use silicon carbide rag or similar material.

    3. SUBTASK 72-50-22-310-097 Weld Repair the Vane

      1. Tungsten inert gas weld up the worn slot surfaces.

      1. Refer to the SPM TASK 70-31-13-310-501 and to Figure.

        Build up sufficient material to do last machining.

    4. SUBTASK 72-50-22-370-068 Heat Treat after Weld Repair

      1. Heat treat the vane.

      1. Refer to the SPM TASK 70-37-10-370-501.

    5. SUBTASK 72-50-22-230-161 Examine the Welded Areas

      1. Do the test for cracks.

      1. Refer to the SPM TASK 70-23-05-230-501.

        Use medium sensitivity level.

        Fine surface cracks are permitted as follows:

        Any number of linear/non linear discontinuities are permitted in the weld material and heat affected zone, as long as they do not extend to an edge.

        The maximum length of linear discontinuities is 0.100 in. (2.54 mm).

        The maximum length of non linear discontinuities is 0.020 in. (0.50 mm).

    6. SUBTASK 72-50-22-322-055 Machine the Welded Areas

      1. Machine the repaired areas.

      1. Refer to Figure.

        Use milling machine.

    7. SUBTASK 72-50-22-350-096 Dress the Welded Areas

      CAUTION

      DO NOT OVERHEAT THE AREAS THAT ARE DRESSED.

      1. Dress the welds.

      1. Welded areas must be equal to the original contours and must be flush with the adjacent surfaces.

        Use hand held grinder.

        NOTE

        Replacement of aluminum diffusion and wear resistant coating in the area of weld is not necessary.

    8. SUBTASK 72-50-22-220-345 Do the Post Repair Inspection

      1. Dimensionally examine the reworked areas.

      1. Refer to Figure.

        Use vernier caliper.

    9. SUBTASK 72-50-22-380-086 Make a Mark to Identify the Repair

      1. Vibropeen VRS4273 adjacent to the part number.

      1. Refer to the SPM TASK 70-09-00-400-501.

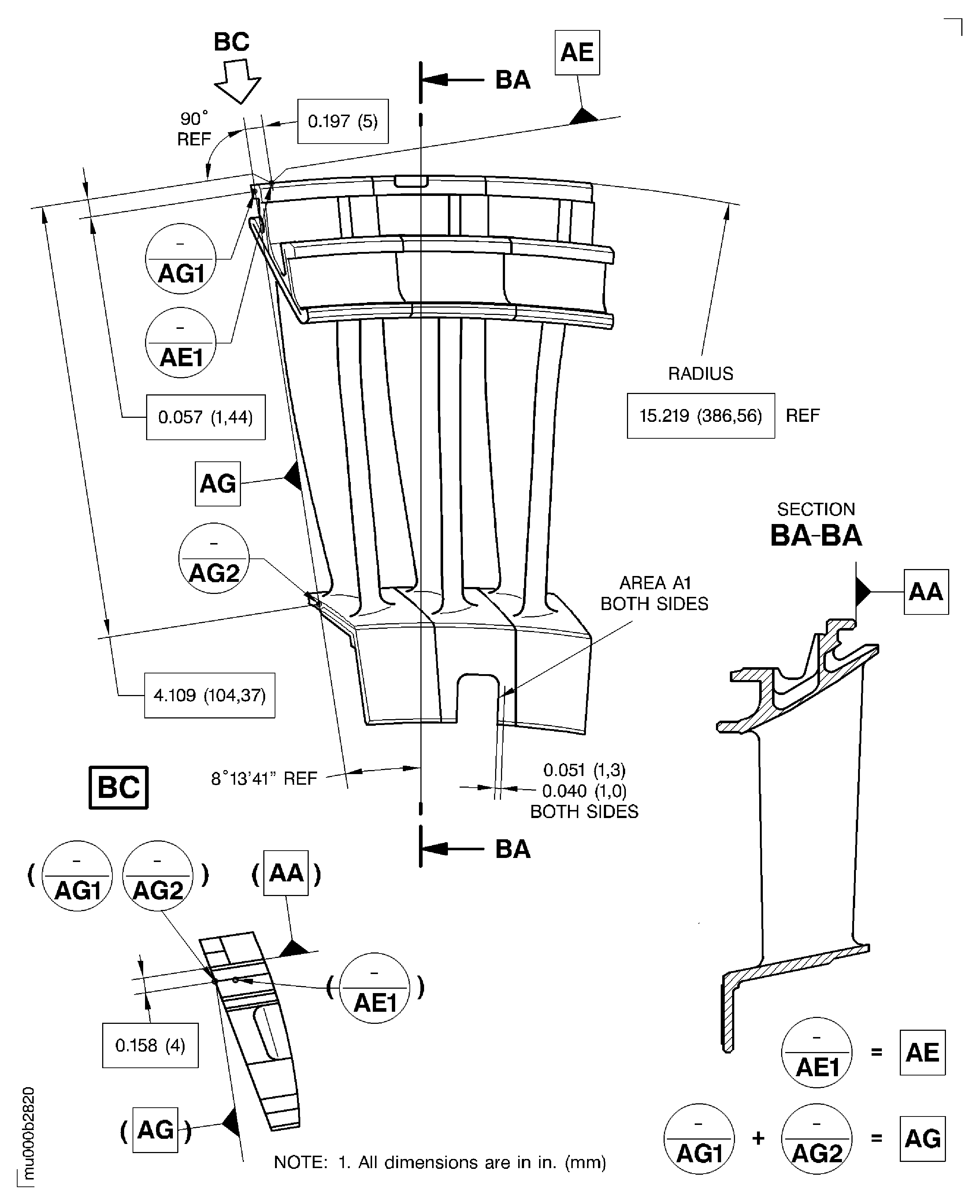

    10. Figure: Weld up repair the inner buttress location slot of the stage 3 turbine vane

    Sheet 1

    Legend
    Weld up repair the inner buttress location slot of the stage 3 turbine vane

    Sheet 1

    Close

    Figure: Weld up repair the inner buttress location slot of the stage 3 turbine vane

    Sheet 2

    Legend
    Weld up repair the inner buttress location slot of the stage 3 turbine vane

    Sheet 2

    Close

    Figure: Heat treat cycles after weld up repair the inner buttess slot areas of the stage 3 turbine vane

    Heat treat cycles after weld up repair the inner buttess slot areas of the stage 3 turbine vane
