TASK 72-50-22-300-089 LPT Stage 3 Vane - Replace The Locating Key, Repair-089 (VRS4377)

DMC:V2500-A0-72-50-2203-03A-920A-C|Issue No:003.00|Issue Date:2016-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-50-22-300-089 LPT Stage 3 Vane - Replace The Locating Key, Repair-089 (VRS4377)

Effectivity

FIG/ITEM

PART NO.

01-750

3A2412

01-750

3A2926

01-780

3A2415

01-780

3A2929

Material of component

PART IDENT

IAE

SYMBOL

MATERIAL

Stage 3 Turbine vane locating key

MTS 1323B/M-247, LC DS

Hastelloy X

General

Price and availability - none

The practices and processes referred to in the procedure by TASK number are in the SPM.

NOTE

For more equipment and materials necessary to do this repair, refer to the SPM TASK 70-11-03-300-503, SPM TASK 70-23-04-230-501, SPM TASK 70-23-05-230-501, SPM TASK 70-23-08-230-501, SPM TASK 70-31-09-310-501, SPM TASK 70-32-03-320-501 and SPM TASK 70-33-06-300-503.
Equivalent equipment may be used.

NOTE

To identify the consumable materials, refer to the PCI.

NOTE

Special tools are identified in the procedure by the tool primary number.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Dial caliperLOCALDial caliper
Radius gage setLOCALRadius gage set
Vernier caliperLOCALVernier caliper
IAE 3M14273 Clamping fixture0AM53IAE 3M142731
IAE 3M14537 Fixture, Grinding0AM53IAE 3M145371

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 03-148 BRAZING FILLER POWDERLOCALCoMat 03-148
CoMat 03-227 WHITE STOP OFFD3309CoMat 03-227

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Locating key3A00021
Locating key3A00021

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-50-22-326-062 Remove the Worn Locating key

      1. Machine off the worn locating key.

      2. Electrical discharge machine according to the SPM TASK 70-32-03-320-501 is permitted.

        Refer to Figure and Figure.

        Do not remove parent material.

        To get the slot dimensions traces of braze may stay.

    2. SUBTASK 72-50-22-110-178 Clean the Turbine Vane

      1. Clean the Vane.

      1. Refer to the SPM TASK 70-11-03-300-503.

    3. SUBTASK 72-50-22-220-331 Examine the Turbine Vane

      1. Dimensionally examine the machined area.

      1. For dimensions refer to Figure.

        Use radius gage set and dial caliper.

    4. SUBTASK 72-50-22-230-143 Examine the Turbine Vane for Cracks

      1. Do the test for cracks.

      1. Refer to the SPM TASK 70-23-05-230-501.

        Use high intensive level.

        No cracks permitted.

    5. SUBTASK 72-50-22-110-179 Clean the Turbine Vane

      1. Clean the vane.

      1. Refer to the SPM TASK 70-11-03-300-503.

    6. SUBTASK 72-50-22-330-062 Nickel Plate Machined Surfaces

      1. Nickel plate the connecting surfaces if necessary.

      1. Nickel plate is permitted to make the following braze cycle easier.

        Refer to the SPM TASK 70-33-06-300-503.

        Make sure that the coating thickness is 0.0001 to 0.0003in. (0.003 to 0.008 mm).

    7. SUBTASK 72-50-22-310-093 Braze in the New Locating Key

      1. Braze the locating key in position.

      1. Clamp the key to prevent movement.

        Spot welding of locating key to facilitate brazing is permitted.

        For braze cycles refer to Figure and to the SPM TASK 70-31-09-310-501.

    8. SUBTASK 72-50-22-110-180 Clean the Turbine Vane

      1. Clean the vane.

      1. Refer to the SPM TASK 70-11-03-300-503.

    9. SUBTASK 72-50-22-370-064 Do the Precipitation Heat Treat

      1. Precipitation heat treat the stage 3 turbine vane.

      1. Refer to the SPM TASK 70-37-27-370-501, except tempering range to be 1625 to 1675 deg F (885 to 913 deg C).

    10. SUBTASK 72-50-22-220-332 Do the Post Repair Inspection

      1. Examine the reworked areas for completeness of braze.

      1. Refer to the SPM TASK 70-31-09-310-501.

        Remove too much braze material.

      2. Dimensionally examine the new locating key.

      1. For finished dimensions refer to Figure and Figure.

    11. SUBTASK 72-50-22-230-144-001 Do the Post Repair Inspection for Cracks

      1. Do the test for cracks.

      1. Refer to the SPM TASK 70-23-04-230-501.

        No cracks permitted.

    12. SUBTASK 72-50-22-230-144-002 Do the Post Repair Inspection for Cracks

      1. Do the test for cracks.

      1. Refer to the SPM TASK 70-23-08-230-501.

        No cracks permitted.

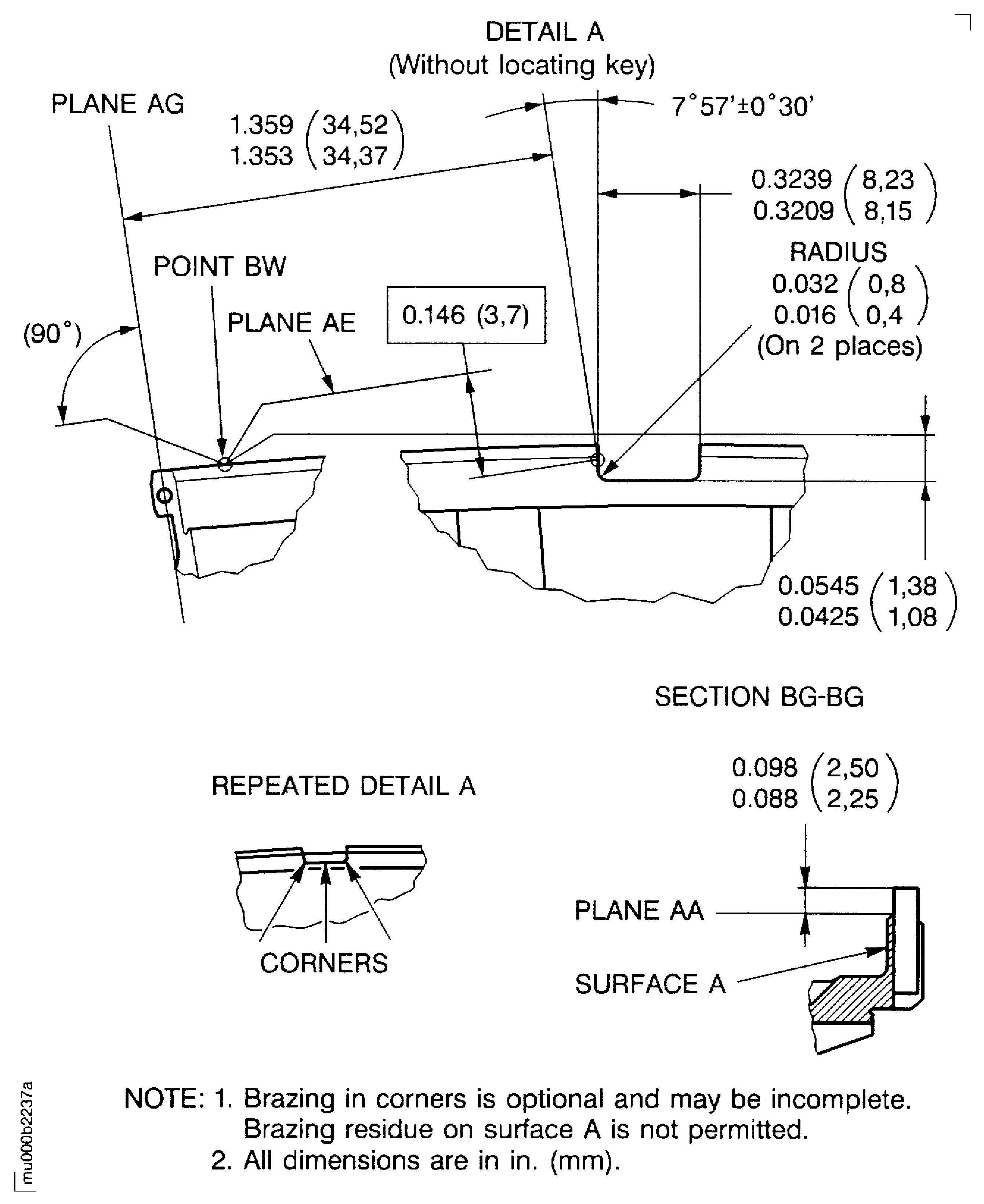

    13. Figure: Replace the locting key of the stage 3 turbine vane

    Replace the locting key of the stage 3 turbine vane

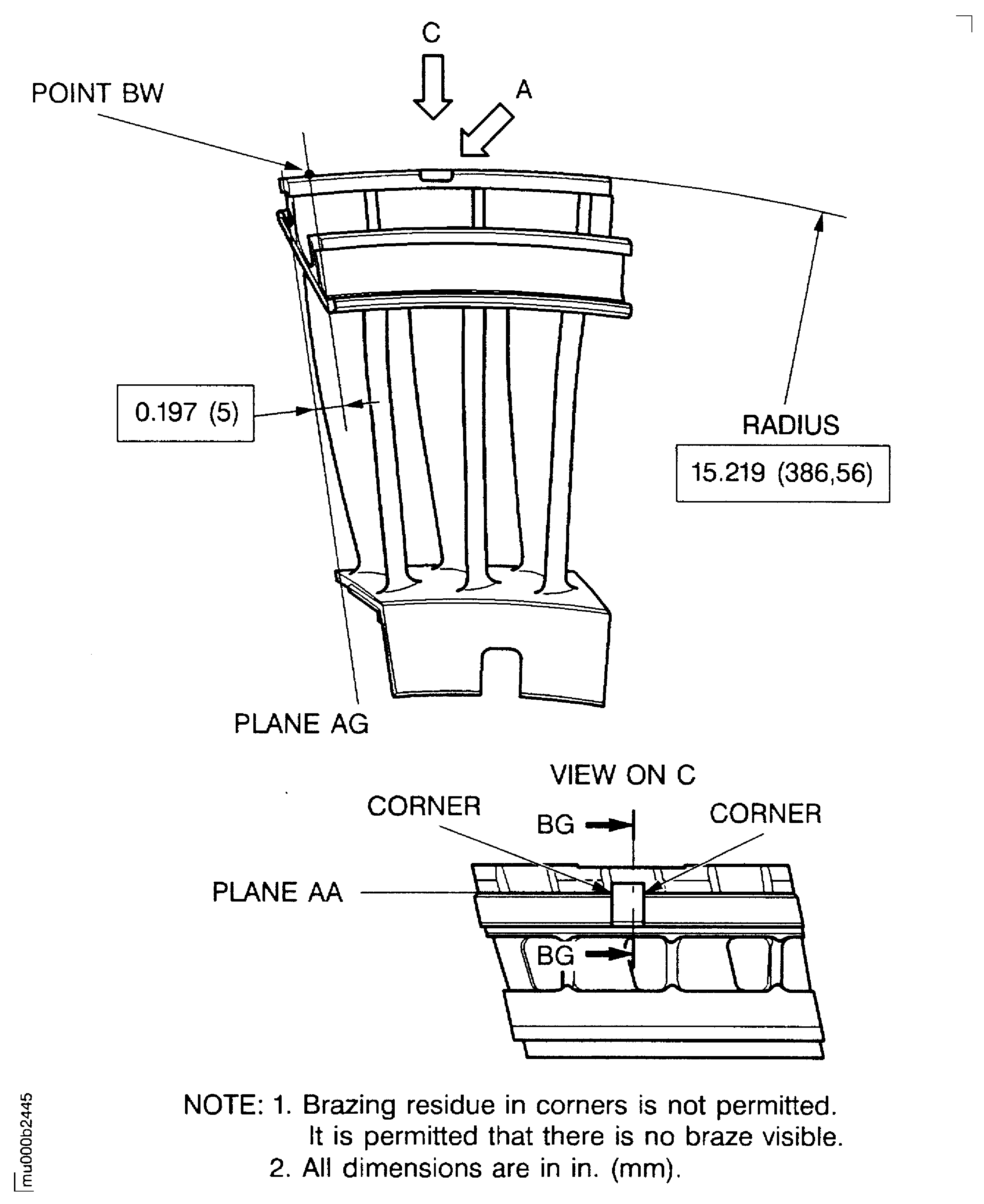

    Figure: Replace the locting key of the stage 3 turbine vane

    Replace the locting key of the stage 3 turbine vane

    Figure: Braze cycles to braze in the locting key

    Braze cycles to braze in the locting key
