TASK 72-50-22-300-016 LPT Stage 5 Vane - Plasma Spray The Outer Buttress Platform Front Lips, Repair-016 (VRS4054)

DMC:V2500-A0-72-50-2205-00A-609A-C|Issue No:002.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-50-22-300-016 LPT Stage 5 Vane - Plasma Spray The Outer Buttress Platform Front Lips, Repair-016 (VRS4054)

Effectivity

FIG/ITEM

PART NO.

01-350

3A0025

Material of component

PART IDENT

IAE

SYMBOL

MATERIAL

Stage 5 turbine vane

Inconel 713C

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

NOTE

For more equipment and materials necessary to do this repair, refer to the SPM TASK 70-23-05-230-501, SPM TASK 70-11-03-300-503, SPM TASK 70-34-03-340-501 and SPM TASK 70-09-00-400-501.

NOTE

To identify the consumable materials refer to the PCI.

NOTE

Special tools are identified in the procedure by the tool primary number.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Vertical turning latheLOCALVertical turning lathe
Grit blast equipmentLOCALGrit blast equipment
TurntableLOCALTurntable
Horizontal and vertical transverse unitLOCALHorizontal and vertical transverse unit
Plasma spray equipmentLOCALPlasma spray equipment
Radius gage setLOCALRadius gage set
Dial caliperLOCALDial caliper
Micrometer0AM53Micrometer
Roughness microtesterLOCALRoughness microtester
Vibrating marking pencilLOCALVibrating marking pencil
IAE 3M14367 Turning fixture0AM53IAE 3M143671

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-047 TAPE, HEAT REFLECTIVE52152CoMat 02-047
CoMat 02-050 HIGH TEMPERATURE GLASS CLOTH TAPE76381CoMat 02-050
CoMat 03-080 METAL SPRAYING POWDER,Co BASE ALLOYIE426CoMat 03-080
CoMat 05-046 ALUMINUM OXIDE GRIT62596CoMat 05-046
CoMat 05-047 DELETED0AM53CoMat 05-047

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-50-22-320-055 Machine the Outer Buttress Platform Front Lips

      NOTE

      If the outer buttress platform front lips were plasma spray repaired before, remove the old coating fully.

      1. Machine the radial dimension D1.

      1. Refer to Figure.

        Use IAE 3M14367 Turning fixture 1 off and vertical turning lathe.

        Remove the old coating and damage fully.

        Keep the material removal to the minimum to allow for subsequent repairs.

    2. SUBTASK 72-50-22-220-256 Examine the Machined Surfaces

      1. Dimensionally examine.

      1. Refer to Figure.

        Write down the radial dimension D1.

        Use radius gage set and dial caliper.

    3. SUBTASK 72-50-22-230-116 Examine the Machined Surfaces for Cracks

      1. Do the test for cracks.

      1. Refer to the SPM TASK 70-23-05-230-501.

        No cracks are permitted.

    4. SUBTASK 72-50-22-110-130 Clean the Vane

      1. Clean the vane.

      1. Refer to the SPM TASK 70-11-03-300-503.

    5. SUBTASK 72-50-22-340-057 Prepare the Surfaces for the Plasma Spray Procedure

      1. Mask area A3.

      1. Make sure that the surfaces have full protection.

        Refer to Figure.

      2. Grit blast the area A1.

      1. Use grit blast equipment.

        The surface texture must be 120 to 200 microinch (3.0 to 5.0 micrometer ra).

        Blasting in area A2 is permitted.

        Refer to Figure and to the SPM TASK 70-34-03-340-501.

      3. Change the masking if necessary.

      1. Replace the damaged masking.

        Do not touch or bring unwanted material on the blasted surface.

    6. SUBTASK 72-50-22-340-058 Plasma Spray the Prepared Surfaces

      1. Plasma spray the area A1.

      1. Use control unit, horizontal and vertical transferse unit. Use turntable, turntable control assembly and transverse unit control assembly.

        Use plasma spray equipment.

        Overspray in area A2 is permitted, refer to Figure.

        Make sure that there is sufficient material sprayed on to do last machining.

        Refer to the SPM TASK 70-34-03-340-501.

    7. SUBTASK 72-50-22-340-059 Remove the Protection from the Masked areas

      1. Remove all masking.

      1. No masking is permitted.

    8. SUBTASK 72-50-22-110-131 Clean the Vane

      1. Clean the vane.

      1. Refer to the SPM TASK 70-11-03-300-503.

    9. SUBTASK 72-50-22-320-056 Finish Grind the Coated Surfaces

      1. Finish grind the coated areas and chamfer.

      1. Use IAE 3M14367 Turning fixture 1 off and vertical turning lathe.

        Refer to Figure and the SPM TASK 70-34-03-340-501.

        The finish of the coated areas must be as smooth and continuous as the initial area.

        Steps are not permitted.

    10. SUBTASK 72-50-22-110-132 Clean the Vane

      1. Clean the vane.

      1. Refer to the SPM TASK 70-11-03-300-503.

    11. SUBTASK 72-50-22-220-257 Do the Post Repair Inspection

      1. Dimensionally examine the finished areas.

      1. Refer to Figure.

        Use dial caliper, external micrometer and roughness micro-tester.

      2. Visually examine the coating.

      1. Refer to the SPM TASK 70-34-03-340-501.

    12. SUBTASK 72-50-22-380-068 Make a Mark to Identify the Repair

      1. Vibro-peen VRS4054 and applicable beehive symbol adjacent to the part number.

      1. Refer to the SPM TASK 70-09-00-400-501.

        Use a vibrating marking pencil.

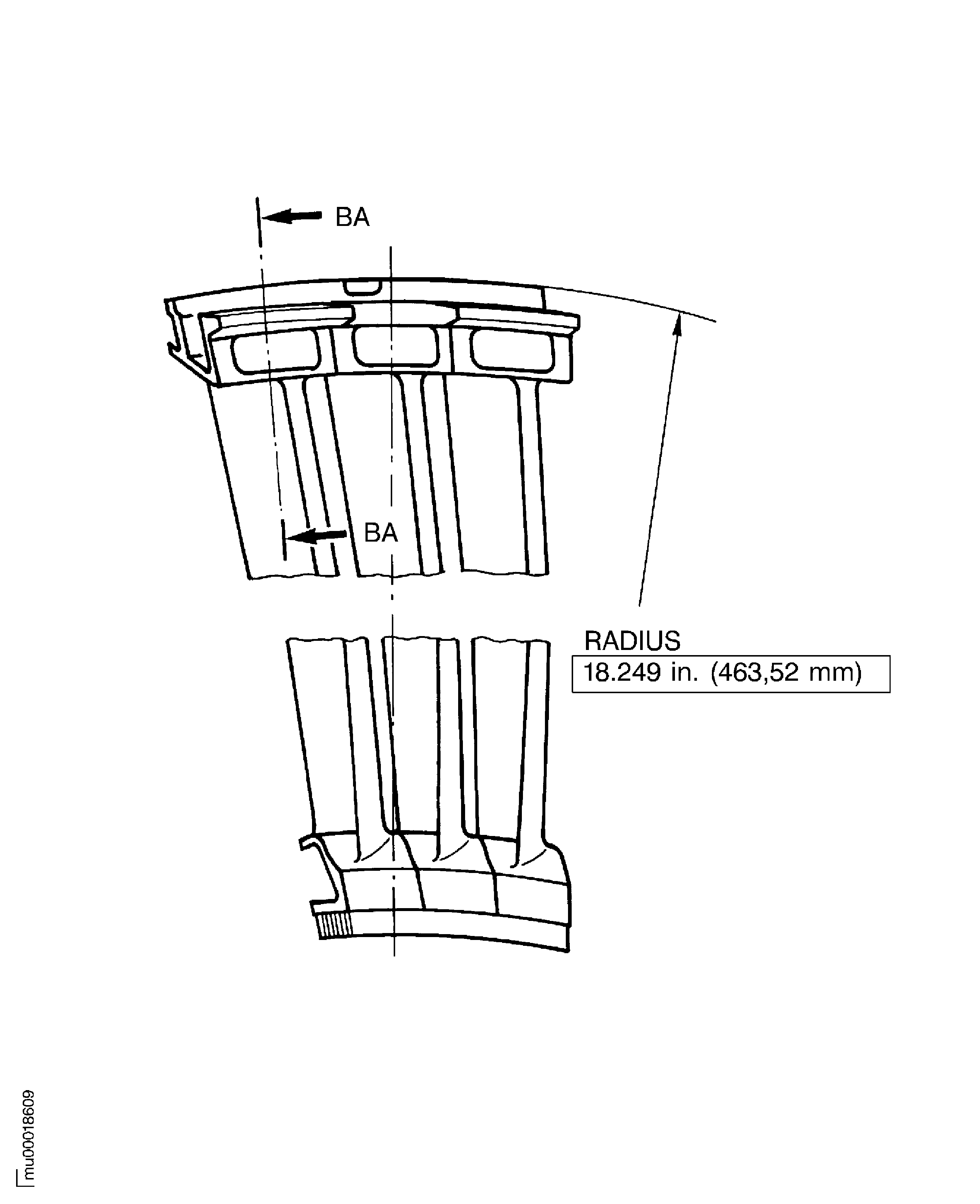

    13. Figure: Dimensions and areas of the outer buttress platform front lips before plasma spraying

    Sheet 1

    Legend
    Dimensions and areas of the outer buttress platform front lips before plasma spraying

    Sheet 1

    Close

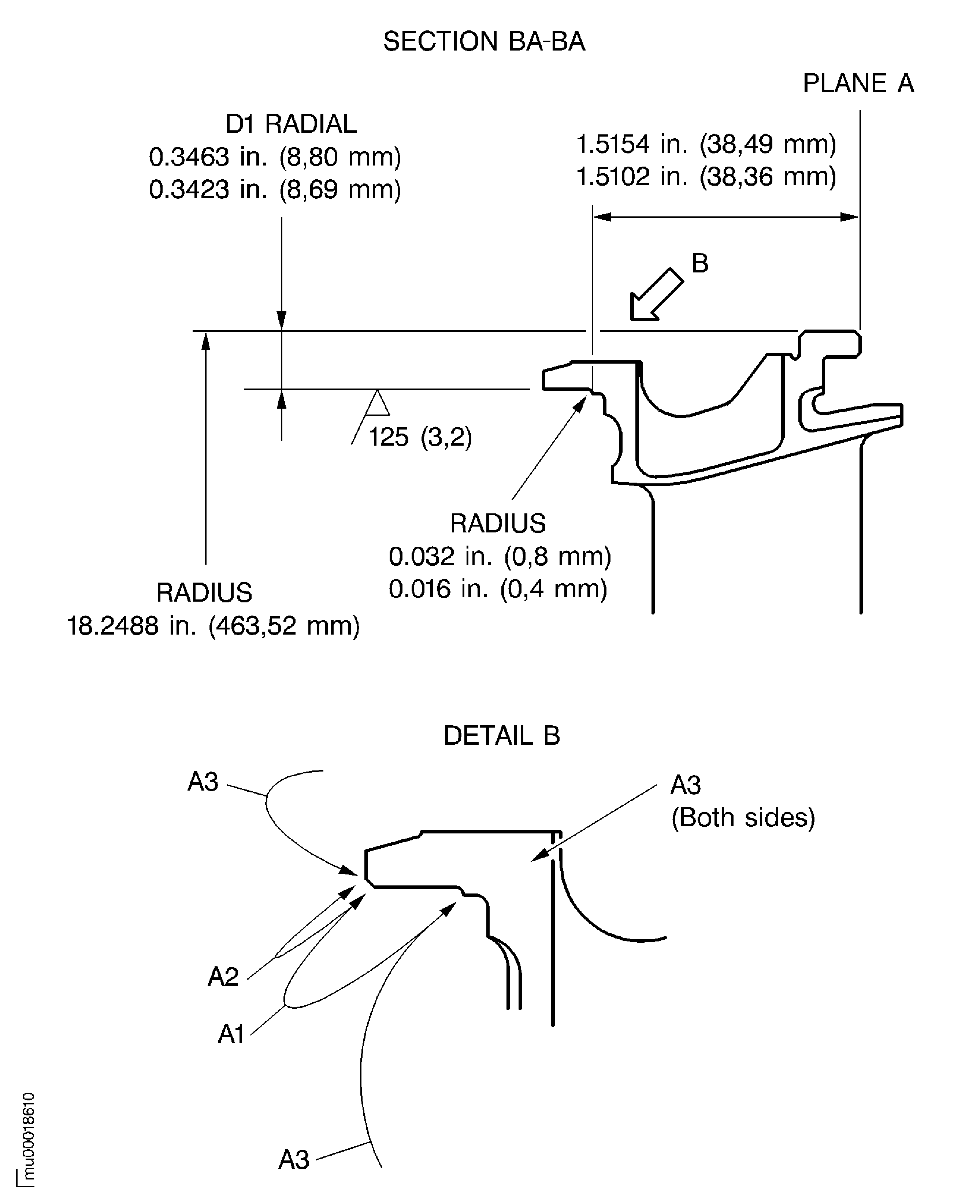

    Figure: Dimensions and areas of the outer buttress platform front lips before plasma spraying

    Sheet 2

    Legend
    Dimensions and areas of the outer buttress platform front lips before plasma spraying

    Sheet 2

    Close

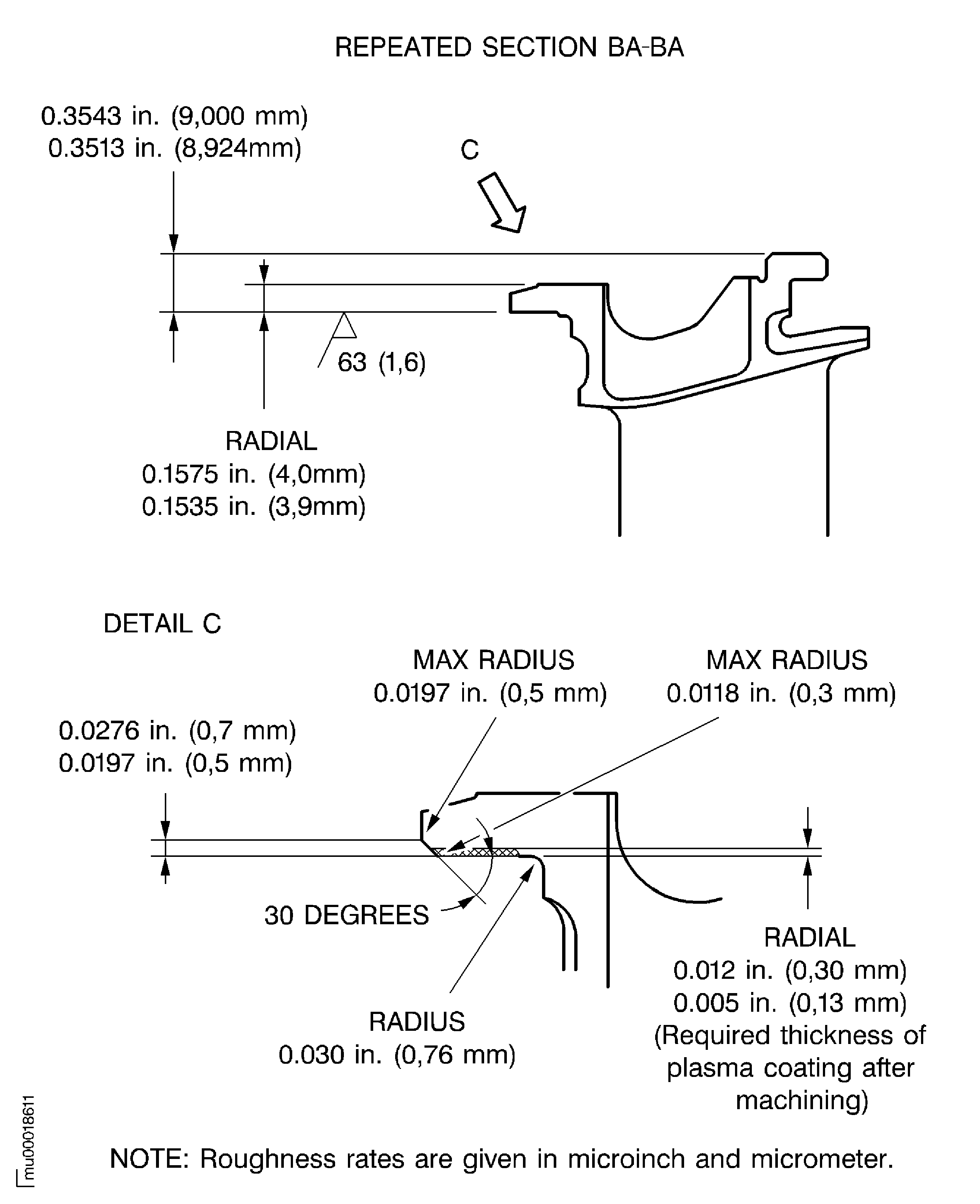

    Figure: Dimensions of the outer buttress platform front lip after plasma spraying

    Dimensions of the outer buttress platform front lip after plasma spraying

Requirements After Job Completion

Follow-On Conditions

NONE
