TASK 72-50-22-300-012 LPT Stage 6 Vane - Plasma Spray The Outer Buttress Platform Rear Diameter, Repair-012 (VRS4046)

DMC:V2500-A0-72-50-2206-01A-609A-C|Issue No:003.00|Issue Date:2019-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-50-22-300-012 LPT Stage 6 Vane - Plasma Spray The Outer Buttress Platform Rear Diameter, Repair-012 (VRS4046)

Effectivity

FIG/ITEM

PART NO.

01-175

3A0026

01-175

3A1780

01-175

3A2057

Material of component

PART IDENT

IAE SYMBOL

MATERIAL

Stage 6 turbine vane

MTS1084A/INCO713C

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK number are in the SPM.

Before start of repair, remove locating key as per VRS4047 TASK 72-50-22-300-013 (REPAIR-013). After completion of repair, locating key to be replaced per VRS4047.

NOTE

For more equipment and materials necessary to do this repair, refer to the SPM TASK 70-09-00-400-501, SPM TASK 70-11-03-300-503, SPM TASK 70-23-05-230-501 and SPM TASK 70-34-03-340-501.

NOTE

To identify the consumable materials, refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Vertical turning latheLOCALVertical turning lathe
Grit blast equipmentLOCALGrit blast equipment
TurntableLOCALTurntable
Horizontal and vertical transverse unitLOCALHorizontal and vertical transverse unit
Plasma spray equipmentLOCALPlasma spray equipment
Radius gage setLOCALRadius gage set
Dial caliperLOCALDial caliper
Micrometer0AM53Micrometer
Roughness microtesterLOCALRoughness microtester
Vibrating marking pencilLOCALVibrating marking pencil
IAE 3M14368 TBD0AM53IAE 3M143681

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-047 TAPE, HEAT REFLECTIVE52152CoMat 02-047
CoMat 02-050 HIGH TEMPERATURE GLASS CLOTH TAPE76381CoMat 02-050
CoMat 03-080 METAL SPRAYING POWDER,Co BASE ALLOYIE426CoMat 03-080
CoMat 05-046 ALUMINUM OXIDE GRIT62596CoMat 05-046

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-50-22-320-013 Machine the Rear Diameter

      NOTE

      Remove the old coating fully, if the rear diameter was plasma sprayed before.

      1. Machine the dimension D1.

      1. Refer to Figure.

        Hold dimension D1 to a maximum value. All old coating must be fully removed.

    2. SUBTASK 72-50-22-220-337 Examine the Machined Area

      1. Dimensionally examine.

      1. Refer to Figure for dimensions.

    3. SUBTASK 72-50-22-230-153 Examine the Machined Areas for Cracks

      1. Do the test for cracks.

      1. Refer to the SPM TASK 70-23-05-230-501.

        Use high sensitivity level.

        No cracks are permitted.

    4. SUBTASK 72-50-22-110-186 Clean the Stage 6 Turbine Vane

      1. Clean the vane.

      1. Refer to the SPM TASK 70-11-03-300-503.

    5. SUBTASK 72-50-22-340-020 Prepare the Surfaces for the Plasma Spray Procedure

      1. Mask the areas A3.

      1. Make sure that the surfaces have full protection.

      2. Grit blast the area A1.

      1. Use CoMat 05-046 ALUMINUM OXIDE GRIT. The surface texture must be 120 to 200 microinch RMS (3.0 to 5.0 micrometer Ra). Blasting in area A2 is permitted.

        Refer to Figure.

        Refer to the SPM TASK 70-34-03-340-501.

      3. Replace the masking if necessary.

      1. Replace the damaged masking. Do not touch or bring unwanted material on the blasted area.

    6. SUBTASK 71-50-22-340-001 Plasma Spray the Prepared Surfaces

      1. Plasma spray the area A1.

      1. Use IAE 3M14368 TBD 1 off.

        Use control unit, Horizontal and vertical transverse unit. Use Turntable, turntable control assembly and transverse unit control assembly.

        Use CoMat 03-080 METAL SPRAYING POWDER,Co BASE ALLOY. Overspray in area A2 is permitted, refer to Figure.

        Make sure that there is sufficient material sprayed on to do last machining.

        Refer to the SPM TASK 70-34-03-340-501.

    7. SUBTASK 72-50-22-340-021 Remove the Protection from the Masked Areas

      1. Remove all masking.

      1. No masking is permitted.

    8. SUBTASK 72-50-22-320-014 Machine the Coated Area

      1. Machine the coated area and chamfers.

      1. Refer to Figure and the SPM TASK 70-34-03-340-501.

        The finish of the coated areas must be as smooth and continuous as the initial area. Steps are not permitted.

    9. SUBTASK 72-50-22-110-187 Clean the Stage 6 Turbine Vane

      1. Clean the vane.

      1. Refer to the SPM TASK 70-11-03-300-503.

    10. SUBTASK 72-50-22-220-338 Do the Post Repair Inspection

      1. Examine the machined areas dimensionally.

      1. Refer to Figure.

      2. Examine the coating.

      1. Refer to the SPM TASK 70-34-03-340-501.

    11. SUBTASK 72-50-22-380-079 Make a Mark to Identify the Repair

      1. Vibropeen VRS4046 and applicable beehive symbol adjacent to the part number.

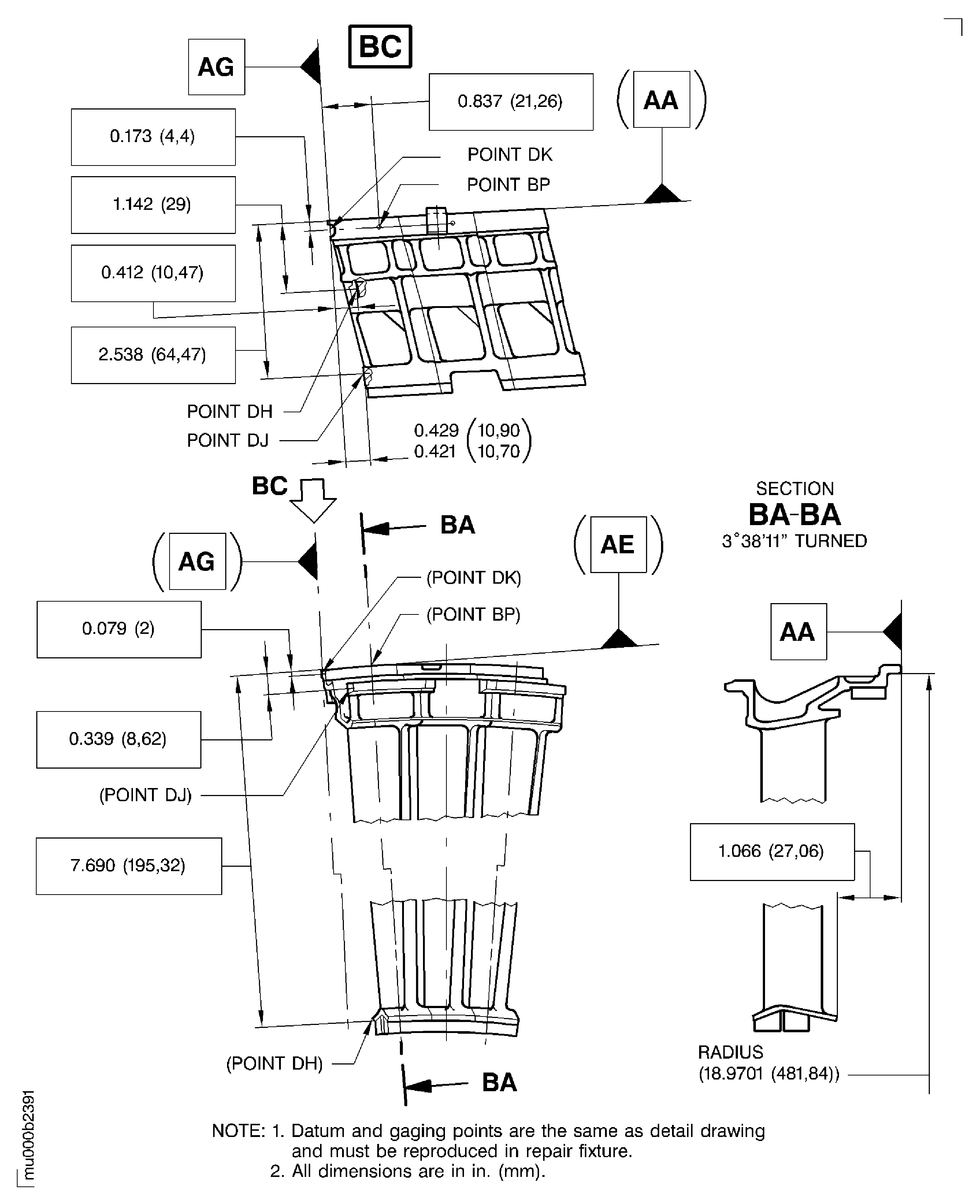

    12. Figure: Dimensions of the stage 6 turbine vane

    Dimensions of the stage 6 turbine vane

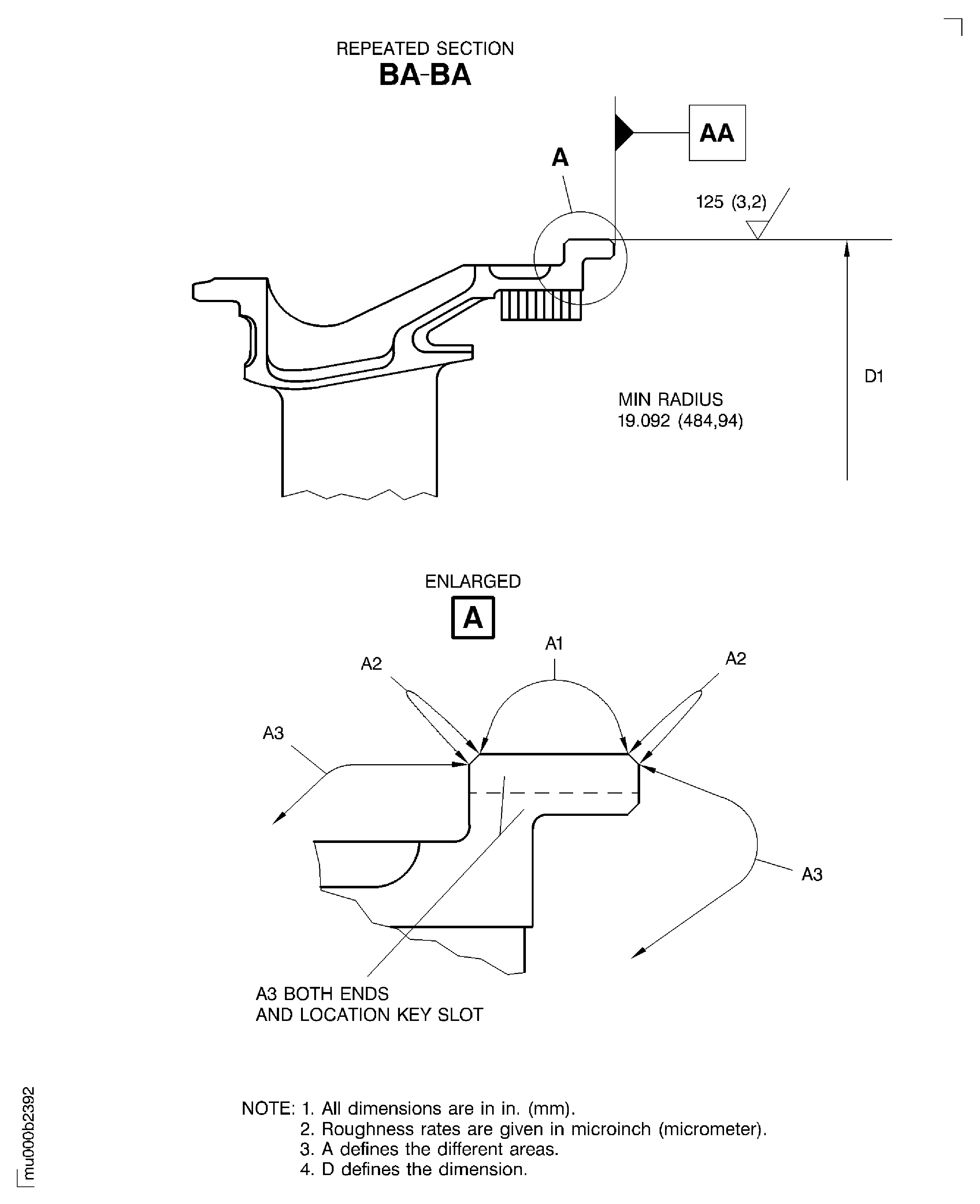

    Figure: Dimensions and areas of the stage 6 turbine vane outer buttress platform rear diameter before plasma spray

    Dimensions and areas of the stage 6 turbine vane outer buttress platform rear diameter before plasma spray

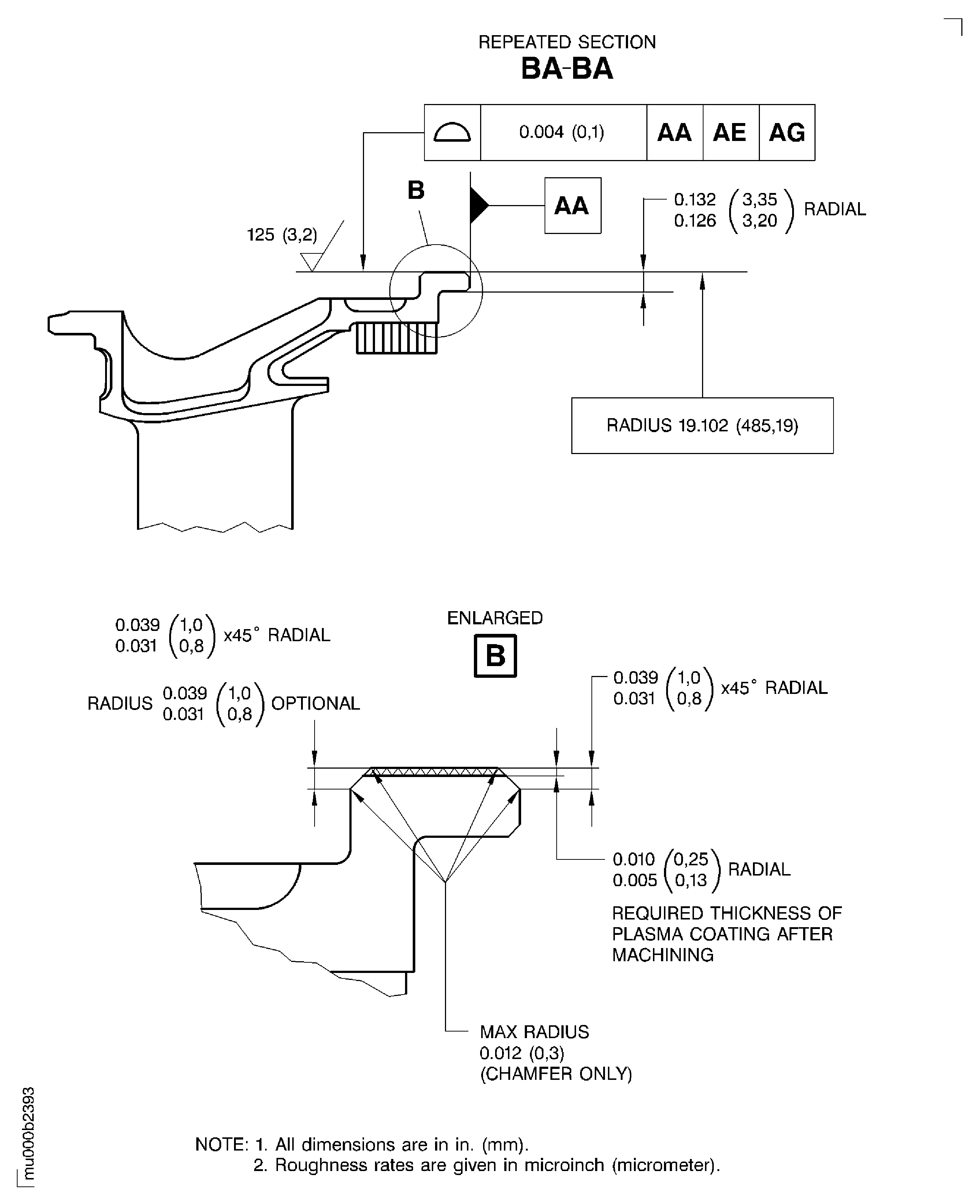

    Figure: Dimensions of the stage 6 turbine vane outer buttress platform rear diameter after plasma spray

    Dimensions of the stage 6 turbine vane outer buttress platform rear diameter after plasma spray

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Revised Support Equipment. Revised Consumables. (Editorial)
