TASK 72-50-22-300-087 LPT Stage 7 Vane - Replace The Honeycomb Seal Segments On The Outer Buttress, Repair-087 (VRS4424)

DMC:V2500-A0-72-50-2207-10A-920A-C|Issue No:003.00|Issue Date:2015-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-50-22-300-087 LPT Stage 7 Vane - Replace The Honeycomb Seal Segments On The Outer Buttress, Repair-087 (VRS4424)

Effectivity

FIG/ITEM

PART NO.

01-010

3A2307

Material of component

PART IDENT

SYMBOL

MATERIAL

Stage 7 turbine vane Honeycomb seal segment

MTS1084A/INCO713

Hastelloy X

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

NOTE

For more equipment and materials necessary to do this repair refer to the SPM TASK 70-11-03-300-503, SPM TASK 70-12-08-300-503, SPM TASK 70-09-00-400-501, SPM TASK 70-23-08-230-501 and SPM TASK 70-31-07-310-501.
Equivalent equipment may be used.

NOTE

To identify the consumable materials, refer to the PCI.

NOTE

Special tools are identified in the procedure by the tool primary number.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Fluid tankLOCALFluid tank
Illuminated comparator magnifierLOCALIlluminated comparator magnifier
Grinding machineLOCALGrinding machine
Spot welding machineLOCALSpot welding machine
Vertical turning latheLOCALVertical turning lathe
Vernier caliperLOCALVernier caliper
IAE 3M14441 Grinding/turning fixture0AM53IAE 3M144411
IAE 3M14220 Cross slide table0AM53IAE 3M142201
IAE 3M14221 Electrode guide0AM53IAE 3M142211
IAE 3M14222 Electrode holder0AM53IAE 3M142221
IAE 3M14223 Universal joint electrode0AM53IAE 3M142231
IAE 3M14224 Spot welding fixture0AM53IAE 3M142241

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 01-183 WETTING AGENT FOR ACIDCLEANER1XY28CoMat 01-183
CoMat 02-142 WETTING AGENT08340CoMat 02-142
CoMat 02-143 DELETED0AM53CoMat 02-143
CoMat 02-144 BONDING AGENTC7208CoMat 02-144
CoMat 03-151 HIGH TEMP. BRAZING FILLERPOWDERLOCALCoMat 03-151
CoMat 03-227 WHITE STOP OFFD3309CoMat 03-227
CoMat 03-249 BRAZING FILLER MATERIAL,Ni-BASELOCALCoMat 03-249
CoMat 10-061 STODDARD SOLVENTLOCALCoMat 10-061
CoMat 03-148 BRAZING FILLER POWDERLOCALCoMat 03-148

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Honeycomb seal segment3A15721

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-50-22-325-076 Machine the Damaged Honeycomb Seal Segment

      1. Machine off the worn honeycomb seal segment.

      1. Use vertical turning lathe and the IAE 3M14441 Grinding/turning fixture 1 off. Remove the damaged honeycomb seal segment fully. Keep the material removal to the minimum to allow subsequent repairs. The minimum acceptable dimension for repair is 0.307 in (7.80 mm). To get this dimension it is permitted to let stay a braze thickness of 0.005 in (0.13 mm).

        Refer to Figure and Figure.

    2. SUBTASK 72-50-22-110-167 Clean the Stage 7 Turbine Vane

      1. Clean the turbine vane.

      1. Refer to the SPM TASK 70-11-03-300-503.

    3. SUBTASK 72-50-22-230-139 Examine the Stage 7 Turbine Vane for Cracks

      1. Do the test for cracks.

      1. Refer to the SPM TASK 70-23-08-230-501.

        No cracks are permitted.

    4. SUBTASK 72-50-22-120-064 Wet Abrasive Blast the Stage 7 Turbine Vane

      1. Wet abrasive blast the machined area.

      1. Refer to the SPM TASK 70-12-08-300-503.

    5. SUBTASK 72-50-22-310-088 Prepare the Honeycomb Seal Segment for Brazing

      1. Cut the new honeycomb seal segment to length.

      1. The new honeycomb seal segment is supplied longer than necessary.

    6. SUBTASK 72-50-22-110-168 Clean the Stage 7 turbine Vane and the New Honeycomb Seal Segment

      1. Clean the turbine vane and seal segment.

      1. Refer to the SPM TASK 70-11-03-300-503. Use clean gloves when you touch the clean parts.

    7. SUBTASK 72-50-22-310-089 Braze in the New Honeycomb Seal Segment

      NOTE

      If CoMat 03-249 BRAZING FILLER MATERIAL,Ni-BASE is used perform steps G. to I. if CoMat 03-148 BRAZING FILLER POWDER is used perform steps J. to M.

      1. Install the cross slide table on to the spot welding machine.

      1. Use the IAE 3M14220 Cross slide table 1 off and spot welding machine.

      2. Install the electrode holder on to the spot welding machine.

      3. Install the universal joint electrode on to the electrode holder.

      1. Use the IAE 3M14223 Universal joint electrode 1 off. Make sure that the electrode insert with the mark "OUTER" (part of the universal joint electrode ) is installed.

      4. Install the electrode guide on to the cross slide table.

      5. Install the spot welding fixture on to the electrode guide.

      6. Attach the stage 7 turbine vane on to the spot welding fixture.

      1. Make sure that the stage 7 turbine vane is installed correctly against the stop plates (parts of the spot welding fixture).

      7. Prepare the new honeycomb seal segment.

      1. Use CoMat 03-249 BRAZING FILLER MATERIAL,Ni-BASE. Apply brazing filler tape to the turbine vane mating side of the honeycomb seal segment. Use a roller or equivalent, roll the tape in to the honeycomb cells and remove the backing.

      8. Position the honeycomb seal segment on to the stage 7 turbine vane.

      1. Align the honeycomb seal segment, refer to Figure and Figure.

      9. Resistance weld the honeycomb seal segment.

      1. Use a short time and low weld amperage to safety the honeycomb seal without damage. Start to weld in the middle and continue to the outer sides.

      10. Position the honeycomb seal segment on to the stage 7 turbine vane.

      1. Align the honeycomb seal segment, refer to Figure and Figure.

      11. Resistance weld the honeycomb seal segment.

      1. Use a short time and low weld amperage to safety the honeycomb seal without damage. Start to weld in the middle and continue to the outer sides.

      12. Apply brazing filler powder to the honeycomb seal segment.

      1. Use CoMat 03-148 BRAZING FILLER POWDER. Make sure that the powder is applied equally around the honeycomb seal segment.

      13. Safety the tape to the cells.

      14. Apply white stop off around the edges of the stage 7 turbine vane.

      15. Braze.

      1. Refer to the SPM TASK 70-31-07-310-501 and process 2.

        Brazing time 30 minutes maximum.

        Heating and cooling rates are optional.

    8. SUBTASK 72-50-22-110-169 Clean the Stage 7 Turbine Vane

      1. Clean the turbine vane.

      1. Refer to the SPM TASK 70-11-03-300-503.

    9. SUBTASK 72-50-22-210-064 Examine the Brazed Honeycomb Seal

      1. Prepare fluid tank.

      1. Use 200:1 mixture of water and CoMat 02-142 WETTING AGENT.

        or.

        or.

        2500:1 mixture of water and CoMat 01-183 WETTING AGENT FOR ACIDCLEANER.

      2. Fill the honeycomb cells with the fluid.

      1. Put the assembly of the stage 7 turbine vane for 30 seconds in to the fluid. Hit the assembly lightly while it is in the fluid to remove caught air bubbles from the honeycomb cells.

      3. Remove the assembly of the state 7 turbine vane from the fluid tank.

      1. Turn the stage 7 turbine vane and wait 3 to 5 minutes for the fluid to drain.

      4. Examine the honeycomb cells for lack of the fluid.

      1. Empty honeycomb cells show not completed braze bond.

      5. Acceptance limits.

      1. Refer to the SPM TASK 70-31-07-310-501 except for the following:

        No unbrazed honeycomb cells around the edges of the honeycomb segment are permitted.

        The minimum space between the unbonded areas of more than 0.063 sqin (40.65 sqmm) should be 1.00 in (25.4 mm).

        Use the vernier caliper and illuminated comparator magnifier.

        No braze filled cells are permitted.

        The honeycomb wall thickness must not be increased by more than 0.001 in (0.03 mm) in the area above the braze fillet.

    10. SUBTASK 72-50-22-325-077 Do the Post Repair

      1. Finish machine the honeycomb seal segment.

      1. Grind to the dimensions. Refer to Figure and Figure.

        Use the IAE 3M14441 Grinding/turning fixture 1 off and grinding machine.

      2. De-burr the honeycomb seal segment.

      1. Refer to the SPM TASK 70-12-08-300-503 or use wire brush.

    11. SUBTASK 72-50-22-110-170 Clean the Honeycomb Seal Segment

      1. Clean the seal segment.

      1. Refer to the SPM TASK 70-11-03-300-503.

    12. SUBTASK 72-50-22-220-327 Do the Post Repair Inspection

      1. Dimensionally examine the stage 7 turbine vane.

      1. Refer to Figure and Figure.

      2. Visually examine for damage.

      1. Use illuminate comparator magnifier.

    13. SUBTASK 72-50-22-350-091 Make a Mark to Identify the Repair

      1. Electrolytically etch or vibro-peen VRS4424 adjacent to the part number.

      1. Refer to the SPM TASK 70-09-00-400-501.

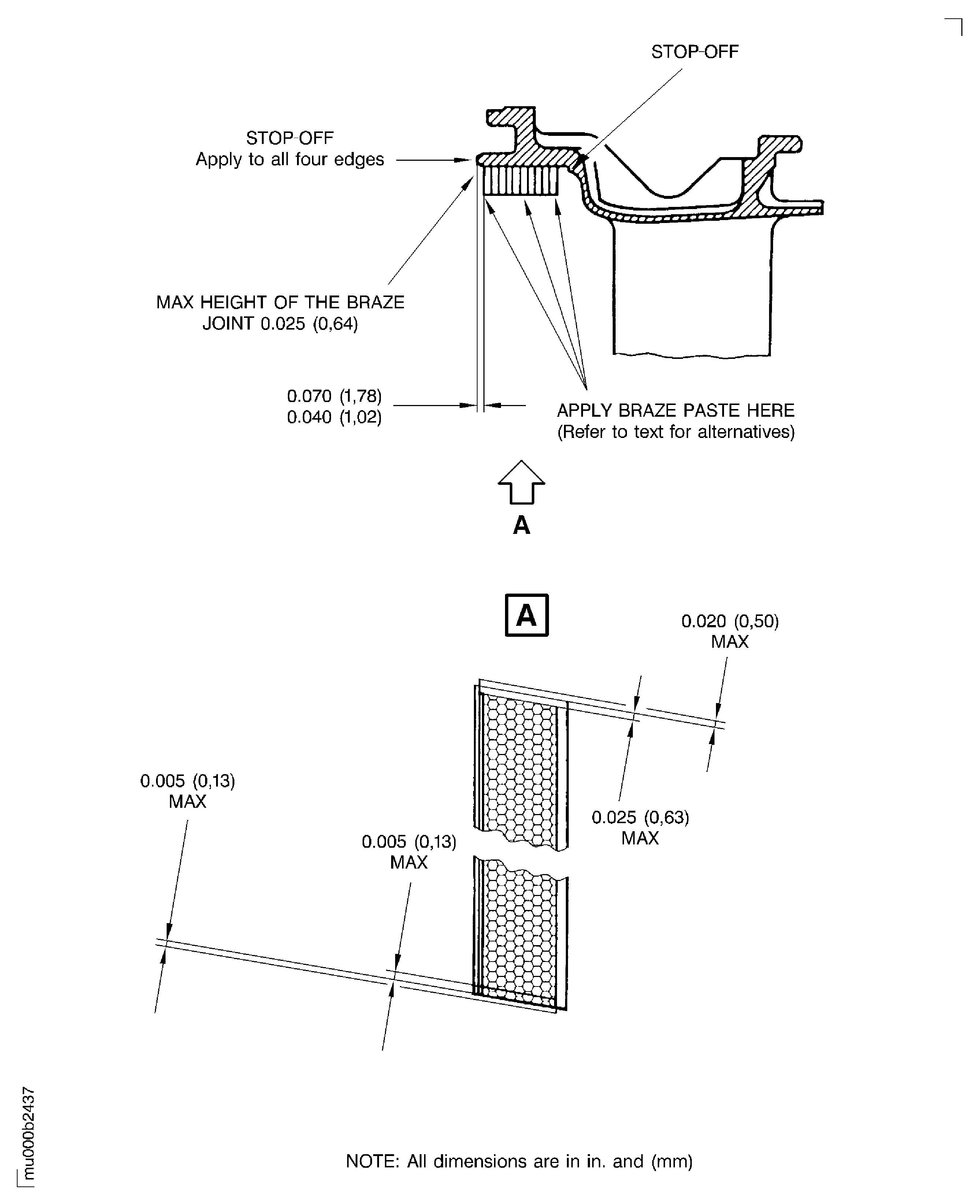

    14. Figure: Replace the honeycomb seal segment on the outer buttress of the stage 7 turbine vane

    Sheet 1

    Legend
    Replace the honeycomb seal segment on the outer buttress of the stage 7 turbine vane

    Sheet 1

    Close

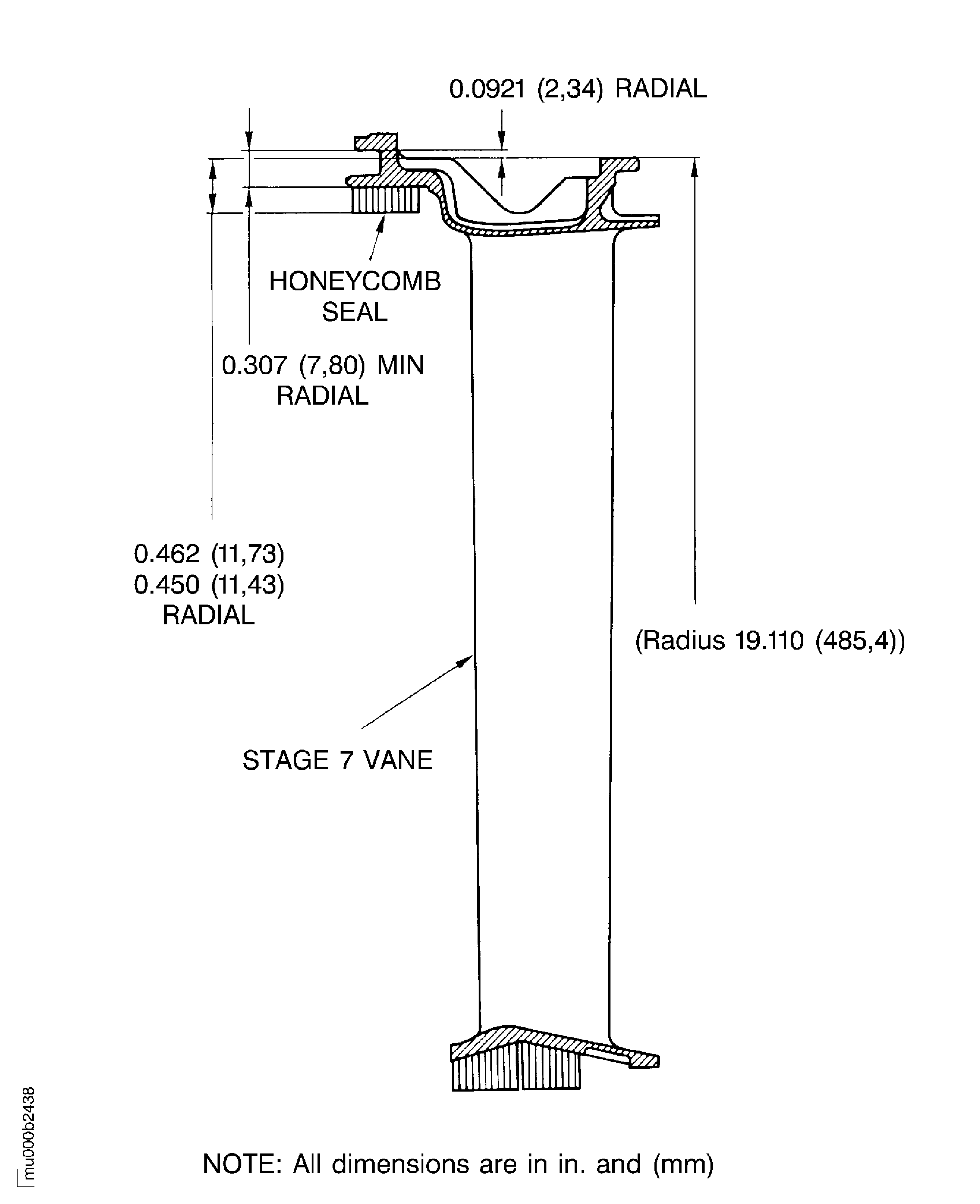

    Figure: Replace the honeycomb seal segment on the outer buttress of the stage 7 turbine vane

    Sheet 2

    Legend
    Replace the honeycomb seal segment on the outer buttress of the stage 7 turbine vane

    Sheet 2

    Close

Requirements After Job Completion

Follow-On Conditions

NONE
