TASK 72-50-23-300-012 LPT Stage 5 Outer Shroud Seal Segment - Plasma Spray The Front Location Groove, Repair-012 (VRS4086)

DMC:V2500-A0-72-50-2305-00A-609A-C|Issue No:003.00|Issue Date:2017-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-50-23-300-012 LPT Stage 5 Outer Shroud Seal Segment - Plasma Spray The Front Location Groove, Repair-012 (VRS4086)

Effectivity

FIG/ITEM

PART NO.

01-150

3A0727

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

Stage 5 turbine shroud seal

-

Hastelloy X

segment

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK number are in the SPM.

NOTE

For more equipment and materials necessary to do this repair, refer to the SPM TASK 70-23-05-230-501, SPM TASK 70-11-03-300-503, SPM TASK 70-09-00-400-501 and SPM TASK 70-34-03-340-501.
Equivalent equipment may be used.

NOTE

To identify the consumable materials refer to the PCI.

NOTE

Special tools are identified in the procedure by the tool primary number.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Dial caliperLOCALDial caliper
External micrometerLOCALExternal micrometer
Radius gage setLOCALRadius gage set
Roughness microtesterLOCALRoughness microtester
TurntableLOCALTurntable
Vertical turning latheLOCALVertical turning lathe
IAE 3M14247 Turning fixture0AM53IAE 3M142471
IAE 3M14267 Masking fixture0AM53IAE 3M142671
IAE 3M14268 Masking fixture0AM53IAE 3M142681
IAE 3M14278 Masking fixture0AM53IAE 3M142781
IAE 3M14279 Masking fixture0AM53IAE 3M142791
IAE 3M14287 Base plate0AM53IAE 3M142871
IAE 3M14288 Adapter0AM53IAE 3M142881
IAE 3M14337 Silicone rubber cover0AM53IAE 3M143371

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-047 TAPE, HEAT REFLECTIVE52152CoMat 02-047
CoMat 02-050 HIGH TEMPERATURE GLASS CLOTH TAPE76381CoMat 02-050
CoMat 03-089 METAL SPRAYING POWDER Ni/Al (95/5)00741CoMat 03-089
CoMat 03-090 METAL SPRAYING POWDER Ni/Al (95/5)0AM53CoMat 03-090
CoMat 05-046 ALUMINUM OXIDE GRIT62596CoMat 05-046

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-50-23-325-051 Machine the Radial Dimension D1

      NOTE

      If the shroud seal segment was plasma spray repaired before remove the old coating fully.

      1. Machine the radial dimension D1.

      1. Use IAE 3M14247 Turning fixture 1 off and vertical turning lathe.

        Refer to Figure.

        Fully remove damage and old coating.

        Keep material removal to the minimum to allow subsequent repairs.

    2. SUBTASK 72-50-23-220-080 Examine the Machined Surface

      1. Dimensionally examine.

      1. Refer to Figure.

        Write down the radial dimension D1.

        Use radius gage set and dial caliper.

    3. SUBTASK 72-50-23-230-065 Examine the Machined Surface for Cracks

      1. Do the test for cracks.

      1. Refer to the SPM TASK 70-23-05-230-501.

        No cracks are permitted.

    4. SUBTASK 72-50-23-110-056 Clean the Seal Segment

      1. Vapor degrease.

      1. Refer to the SPM TASK 70-11-01-300-503.

    5. SUBTASK 72-50-23-340-051 Prepare the Surfaces for the Plasma Spray Procedure

      1. Mask the areas A3.

      1. Install the shroud seal segment on to the base plate.

        Refer to Figure.

        Make sure that the surfaces have full protection.

      2. Grit blast the area A1.

      1. The surface texture must be 120 to 200 microinch RMS (3.0 to 5.0 micrometer ra).

        Blasting in area A2 is permitted.

        Refer to Fig Figure.

        Refer to the SPM TASK 70-34-03-340-501.

        Use roughness microtester.

      3. Replace the masking if necessary.

      1. Remove masking fixtures.

        Make sure that the silicone rubber cover is installed correctly. Replace damaged heat reflective tape or high temperature tape if used. Do not touch of bring unwanted material on the blasted areas.

    6. SUBTASK 72-50-23-340-052 Plasma Spray the Prepared Surface

      1. Plasma spray the area A1.

      1. Install IAE 3M14279 Masking fixture 1 off and IAE 3M14268 Masking fixture 1 off with the shroud seal segment on to turntable.

        Overspray in area A2 is permitted.

        Refer to Figure.

        Make sure that there is sufficient material sprayed on to do last machining.

        Refer to the SPM TASK 70-34-03-340-501.

    7. SUBTASK 72-50-23-340-053 Remove the Protection from the Masked Surfaces

      1. Remove all masking.

      1. Remove masking fixtures, silicone rubber cover or heat reflective and high temperature tape.

        No masking is permitted.

    8. SUBTASK 72-50-23-110-057 Clean the Shroud Seal Segment

      1. Vapor degrease.

      1. Refer to the SPM TASK 70-11-01-300-503.

    9. SUBTASK 72-50-23-320-052 Machine the Radial Dimension D2

      1. Machine the coated area and chamfer.

      1. Overspray in area A2 to be removed complete.

        For dimensions refer to Figure.

        Refer to the SPM TASK 70-34-03-340-501.

        Use vertical turning lathe.

    10. SUBTASK 72-50-23-110-058 Clean the Shroud Seal Segment

      1. Vapor degrease.

      1. Refer to the SPM TASK 70-11-01-300-503.

    11. SUBTASK 72-50-23-220-081 Do the Post Repair Inspection

      1. Dimensionally examine the machined area.

      1. To calculate the coating thickness subtract the radial dimension D2 from the radial dimension D1.

        Refer to Figure.

        Use dial caliper, external mircometer and roughness microtester.

      2. Visually examine the coating.

      1. Refer to the SPM TASK 70-34-03-340-501.

    12. SUBTASK 72-50-23-350-054 Make a Mark to Identify the Repair

      1. Vibropeen VRS4086 and applicable beehive symbol adjacent to the part number.

      1. Refer to the SPM TASK 70-09-00-400-501.

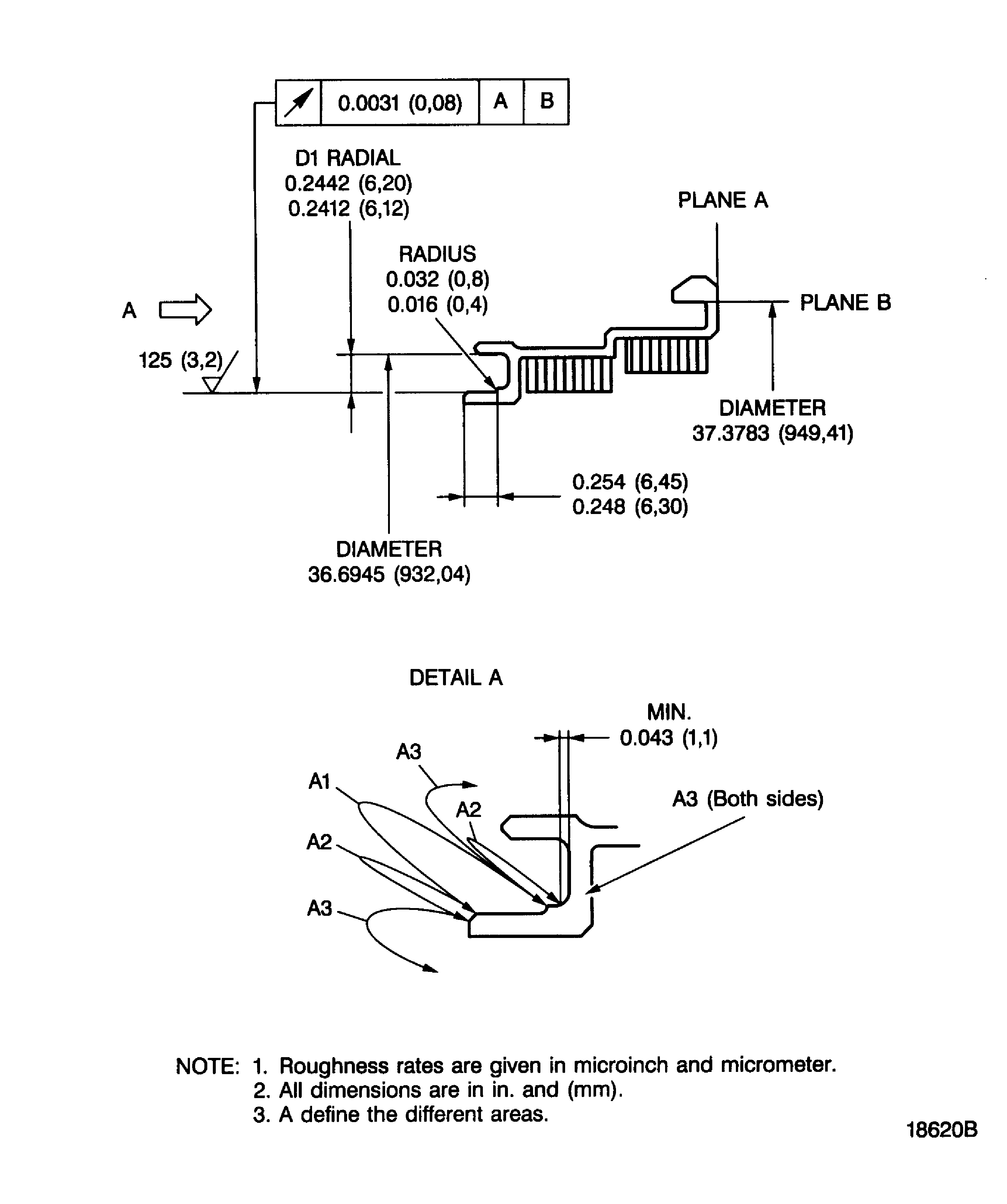

    13. Figure: Dimensions and areas before plasma spraying

    Dimensions and areas before plasma spraying

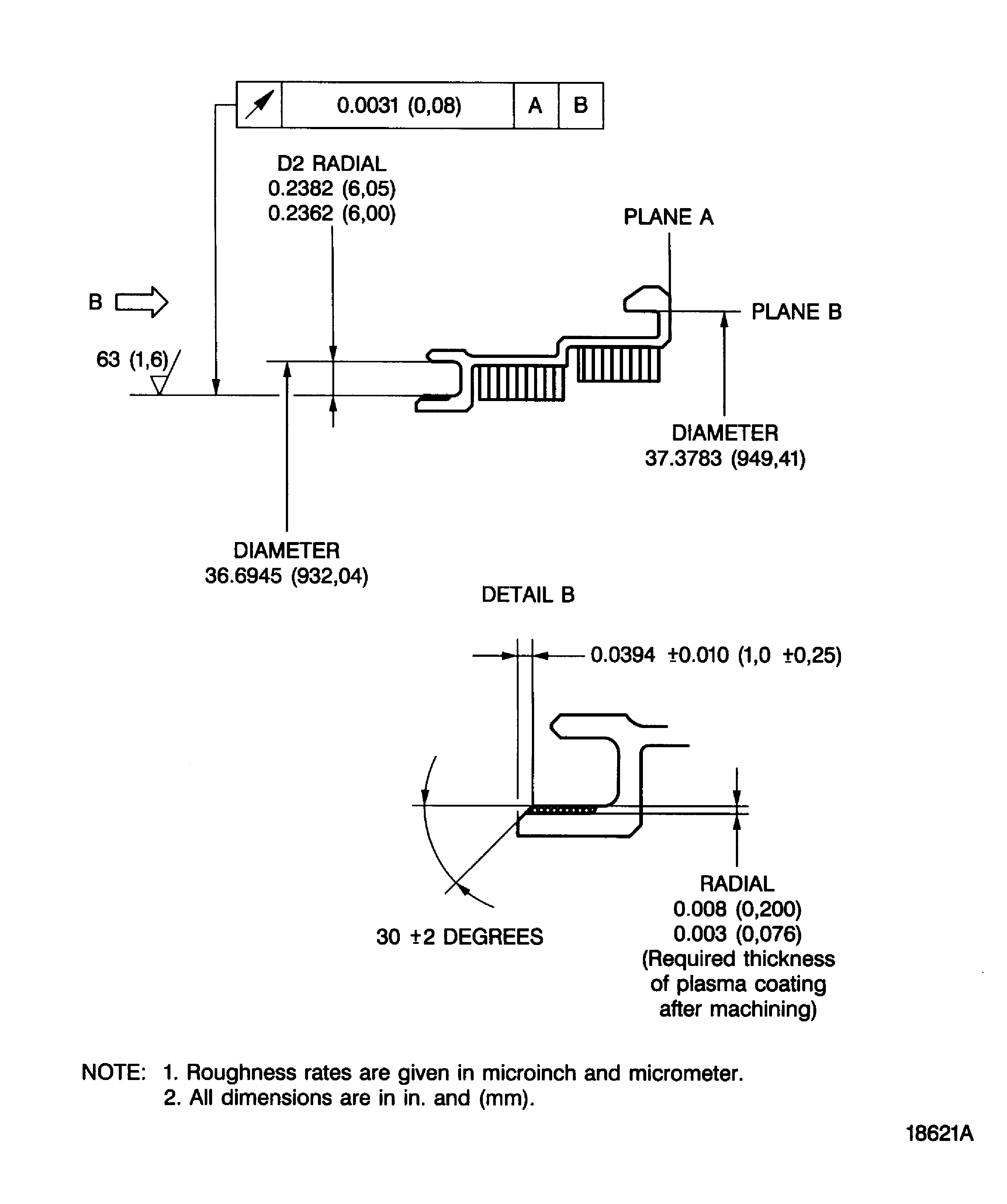

    Figure: Dimensions after plasma spraying

    Dimensions after plasma spraying
