TASK 72-50-24-300-043 LPT Inner Diffuser Duct Segment - Replace The Honeycomb Seal Segment, Repair-043 (VRS4409)

DMC:V2500-A0-72-50-2401-02A-920A-C|Issue No:002.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-50-24-300-043 LPT Inner Diffuser Duct Segment - Replace The Honeycomb Seal Segment, Repair-043 (VRS4409)

Effectivity

FIG/ITEM

PART NO.

01-010

3A0108

01-010

3A2493

Material of component

PART IDENT

SYMBOL

MATERIAL

Inner duct segment

Honeycomb seal segment

Inconel 713

Hastelloy X

General

Price and availability - none

The practices and processes referred to in this procedure by the TASK number are in the SPM.

NOTE

For more equipment and materials necessary to do this repair refer to the SPM TASK 70-11-03-300-503, SPM TASK 70-09-00-400-501, SPM TASK 70-23-02-230-501 and SPM TASK 70-31-07-310-501.
Equivalent equipment may be used.

NOTE

To identify the consumable materials, refer to the PCI.

NOTE

Special tools are identified in the procedure by the primary tool number.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Belt grinderLOCALBelt grinder
Grinding machineLOCALGrinding machine
Spot welding machineLOCALSpot welding machine
Turning latheLOCALTurning lathe
IAE 3M14210 Grinding/turning fixture0AM53IAE 3M142101
IAE 3M14211 Spot welding fixture0AM53IAE 3M142111
IAE 3M14220 Cross slide table0AM53IAE 3M142201
IAE 3M14221 Electrode guide0AM53IAE 3M142211
IAE 3M14222 Electrode holder0AM53IAE 3M142221
IAE 3M14223 Universal joint electrode0AM53IAE 3M142231

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
Bonding agentComat 02-144
CoMat 03-148 BRAZING FILLER POWDERLOCALCoMat 03-148
CoMat 03-151 HIGH TEMP. BRAZING FILLERPOWDERLOCALCoMat 03-151
CoMat 03-227 WHITE STOP OFFD3309CoMat 03-227
CoMat 03-234 BRAZING FILLER TAPELOCALCoMat 03-234
CoMat 03-249 BRAZING FILLER MATERIAL,Ni-BASELOCALCoMat 03-249
CoMat 02-144 BONDING AGENTC7208CoMat 02-144

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Honeycomb seal segment3A15851

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-50-24-325-085 Remove the Damaged Honeycomb Seal Segment

    1. Refer to Figure.

      2. Machine off the worn honeycomb seal segment.

      1. Use IAE 3M14210 Grinding/turning fixture 1 off and turning lathe or grinding machine.

        Keep material removal to the minimum.

        Remove the damaged honeycomb seal segment fully. Remaining braze thickness not more than 0.005 in. (0.13 mm) is permitted.

    2. SUBTASK 72-50-24-110-143 Clean the Inner Duct Segment

      1. Aqueous cleaning.

      1. Refer to the SPM TASK 70-11-03-300-503.

    3. SUBTASK 72-50-24-230-101 Examine the Inner Duct Segment for Cracks

      1. Do the test for cracks.

      1. Refer to the SPM TASK 70-23-02-230-501.

        No cracks permitted.

    4. SUBTASK 72-50-24-310-063 Prepare the Honeycomb Seal Segment for Brazing

      1. Cut the new honeycomb seal segment to length.

      1. Replacement honeycomb is supplied longer than necessary.

        Use belt grinder.

    5. SUBTASK 72-50-24-110-144 Clean the Inner Duct Segment and the New Honeycomb Seal Segment

      1. Aqueous cleaning.

      1. Refer to the SPM TASK 70-11-03-300-503.

        Use clean gloves when you touch the clean parts.

    6. SUBTASK 72-50-24-310-064 Braze in the New Honeycomb Seal Segment

      2. Install the cross slide table on to the spot welding machine.

      1. Use the IAE 3M14220 Cross slide table 1 off and spot welding machine.

      3. Install the electrode holder on to the spot welding machine.

      4. Install the electrode swivel on to the electrode holder.

      1. Make sure that the electrode insert with the mark "inner" (part of the electrode swivel) is installed.

      5. Install the electrode guide on to the cross slide table.

      6. Install the spot welding fixture on to the electrode guide.

      7. Attach the inner duct segment on to the spot welding fixture.

      1. Make sure that the inner duct segment is installed correctly against the stop plates (part of the spot welding fixture).

      8. Prepare the new honeycomb seal segment.

      1. Apply brazing filler tape to the inner duct segment mating side of the honeycomb seal segment.

        Use a roller or equivalent, roll the tape in to the honeycomb cells and remove the backing.

      9. Position the honeycomb seal segment on to the inner duct segment.

      1. Align the honeycomb seal segment.

      10. Resistance weld the honeycomb seal segment.

      1. Use a short time and low weld amperage to safety the honeycomb seal without damage.

        Start to weld in the middle and continue to the outer sides.

      11. Apply brazing filler powder to the honeycomb seal segment.

      1. Make sure that the brazing filler powder is applied equally around the honeycomb seal segment.

      12. Safety the brazing filler powder to the cells.

      13. Apply white stop off around the edges of the inner duct segment.

    7. SUBTASK 72-50-24-110-145 Clean the Inner Duct Segment

      1. Aqueous cleaning.

      1. Refer to the SPM TASK 70-11-03-300-503.

    8. SUBTASK 72-50-24-210-056 Examine the Brazed Honeycomb Seal Segments

      1. Do the gravity leak test.

      1. Refer to the SPM TASK 70-31-07-310-501.

      2. Acceptance Limits.

      1. Refer to the SPM TASK 70-31-07-310-501, except the following limits:

        No unbrazed honeycomb cells around the edges of the honeycomb segments are permitted.

        The minimum space between the unbonded areas of more than 0.063 sqin (40.65 sqmm) should be 1.000 in. (25.40 mm).

        The honeycomb wall thickness must not be increased by more than 0.001 in. (0.03 mm) in the area above the braze fillet.

    9. SUBTASK 72-50-24-325-086 Machine the Honeycomb Seal Segment

    1. Refer to Figure.

      2. Grind the honeycomb seal segment.

      1. Use IAE 3M14210 Grinding/turning fixture 1 off and grinding machine.

      3. Deburr the honeycomb seal segment.

      1. Refer to the SPM TASK 70-31-07-310-503.

    10. SUBTASK 72-50-24-110-146 Clean the Inner Segment

      1. Aqueous cleaning.

      1. Refer to the SPM TASK 70-11-03-300-503.

    11. SUBTASK 72-50-24-220-183 Do the Post Repair Inspection

    1. Refer to Figure.

    2. Examine dimensionally.

      3. Examine visually.

      1. Refer to the SPM TASK 70-31-07-310-501.

    12. SUBTASK 72-50-24-350-085 Make a Mark to Identify the Repair

      1. Electrolytically etch or vibropeen VRS4409 adjacent to the part number.

      1. Refer to the SPM TASK 70-09-00-400-501.

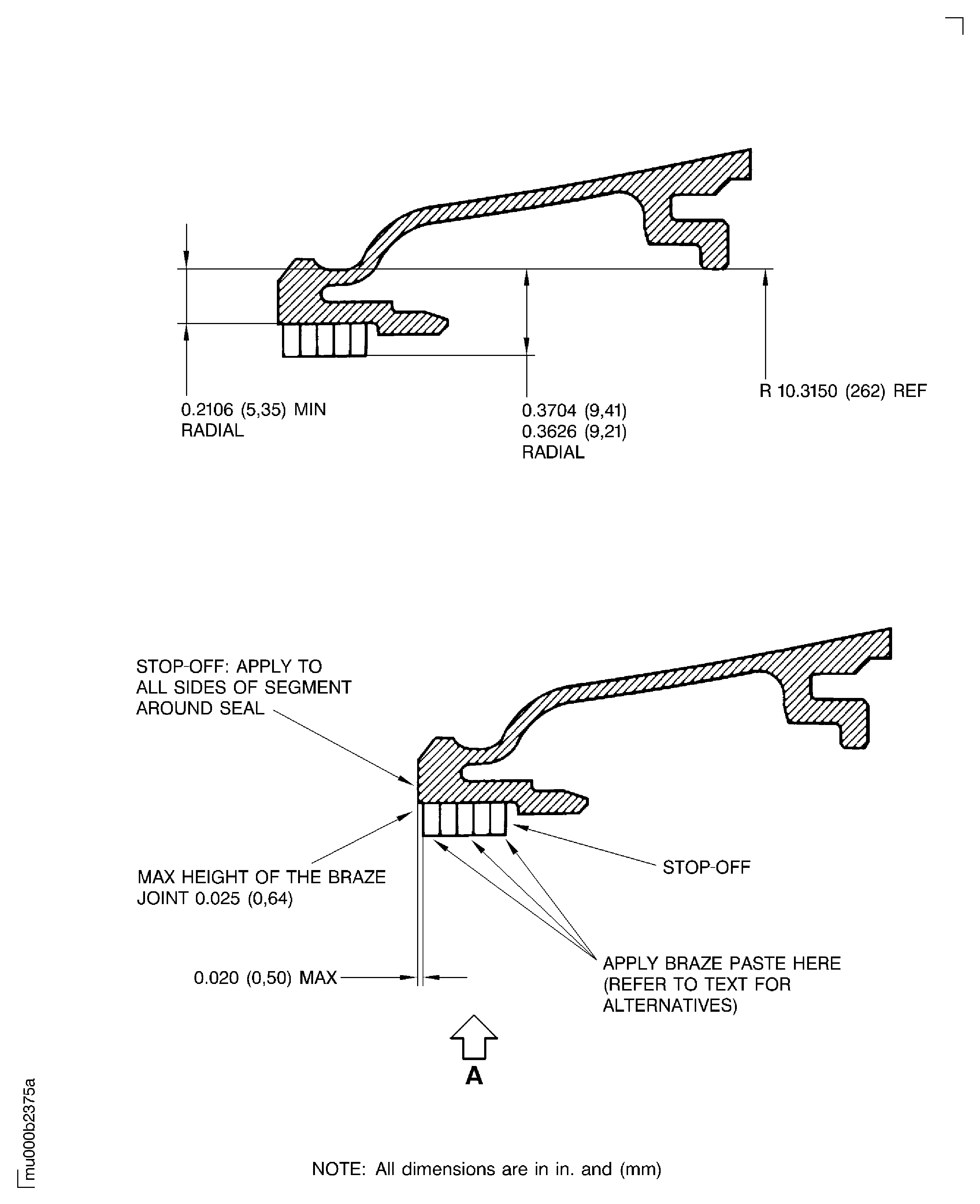

    13. Figure: Repair Details and Dimensions
