TASK 72-50-24-300-046 LPT Inner Diffuser Duct Segment - Plasma Spray The Rear Locating Diameter, Repair-046 (VRS4412)

DMC:V2500-A0-72-50-2401-05A-609A-C|Issue No:002.00|Issue Date:2015-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-50-24-300-046 LPT Inner Diffuser Duct Segment - Plasma Spray The Rear Locating Diameter, Repair-046 (VRS4412)

Effectivity

FIG/ITEM

PART NO.

01-010

3A0108

01-010

3A2493

Material of component

PART IDENT

SYMBOL

MATERIAL

Inner duct segment A/O

MTS1189A (INCO 713C)

General

Price and availability - none

The practices and processes referred to in this procedure by the TASK number are in the SPM.

NOTE

For more equipment and materials necessary to do this repair refer to the SPM TASK 70-11-03-300-503, SPM TASK 70-23-05-230-501, SPM TASK 70-34-03-340-501 and SPM TASK 70-09-00-400-501.
Equivalent equipment may be used.

NOTE

To identify the consumable materials, refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-047 TAPE, HEAT REFLECTIVE52152CoMat 02-047
CoMat 02-050 HIGH TEMPERATURE GLASS CLOTH TAPE76381CoMat 02-050
CoMat 03-089 METAL SPRAYING POWDER Ni/Al (95/5)00741CoMat 03-089
CoMat 03-090 METAL SPRAYING POWDER Ni/Al (95/5)0AM53CoMat 03-090
CoMat 05-046 ALUMINUM OXIDE GRIT62596CoMat 05-046

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-50-24-325-087 Machine the Rear Locating Diameter

      NOTE

      Remove the old coating fully, if the rear locating diameter was plasma sprayed before.

      1. Machine the dimension D1 and chamfer.

      1. Refer to Figure for dimensions.

        Hold the dimension D1 to a minimum value.

        Remove the old coating fully.

    2. SUBTASK 72-50-24-220-186 Examine the Machined Areas

      1. Examine dimensionally.

      1. Refer to Figure.

    3. SUBTASK 72-50-24-230-106 Examine the Machined Areas for Cracks

      1. Do the test for cracks.

      1. Refer to the SPM TASK 70-23-05-230-501, high sensitivity.

        No cracks permitted.

    4. SUBTASK 72-50-24-110-150 Clean the Inner Duct Segment

      1. Clean the duct segment.

      1. Refer to the SPM TASK 70-11-03-300-503.

    5. SUBTASK 72-50-24-340-096 Prepare Surfaces for Plasma Spray Procedure

      1. Mask the areas A3.

      1. Make sure that the surfaces have full protection.

        Refer to Figure.

      2. Grit blast the areas A1 and A2.

      1. Surface texture must be 120 to 200 microinch RMS (3.0 to 5.0 micrometer Ra).

        Blasting in area A2 is permitted.

        Refer to Figure.

    6. SUBTASK 72-50-24-340-097 Plasma Spray the Prepared Surfaces

      1. Plasma spray the area A1.

      1. Overspray area A2 is permitted, refer to Figure.

        Make sure that there is sufficient material sprayed on to do last machining.

        Refer to the SPM TASK 70-34-03-340-501.

    7. SUBTASK 72-50-24-340-098 Remove the Protection from the Masked Areas

      1. Remove the masking.

      1. Remove all tape.

    8. SUBTASK 72-50-24-325-088 Machine the Coated Areas

      1. Grind the coated area.

      1. Refer to Figure and the SPM TASK 70-34-03-340-501.

    9. SUBTASK 72-50-24-110-151 Clean the Support Diffusor, Inner

      1. Clean the Inner Duct Segment.

      1. Refer to the SPM TASK 70-11-03-300-503.

    10. SUBTASK 72-50-24-220-187 Do the Post Repair Inspection

      1. Examine the machined areas dimensionally.

      1. Refer to Figure.

      2. Examine coating visually.

      1. Refer to the SPM TASK 70-34-03-340-501.

    11. SUBTASK 72-50-24-350-088 Make a Mark to Identify the Repair

      1. Vibropeen VRS4412 and applicable beehive symbol adjacent to the part.

      1. Refer to the SPM TASK 70-09-00-400-501.

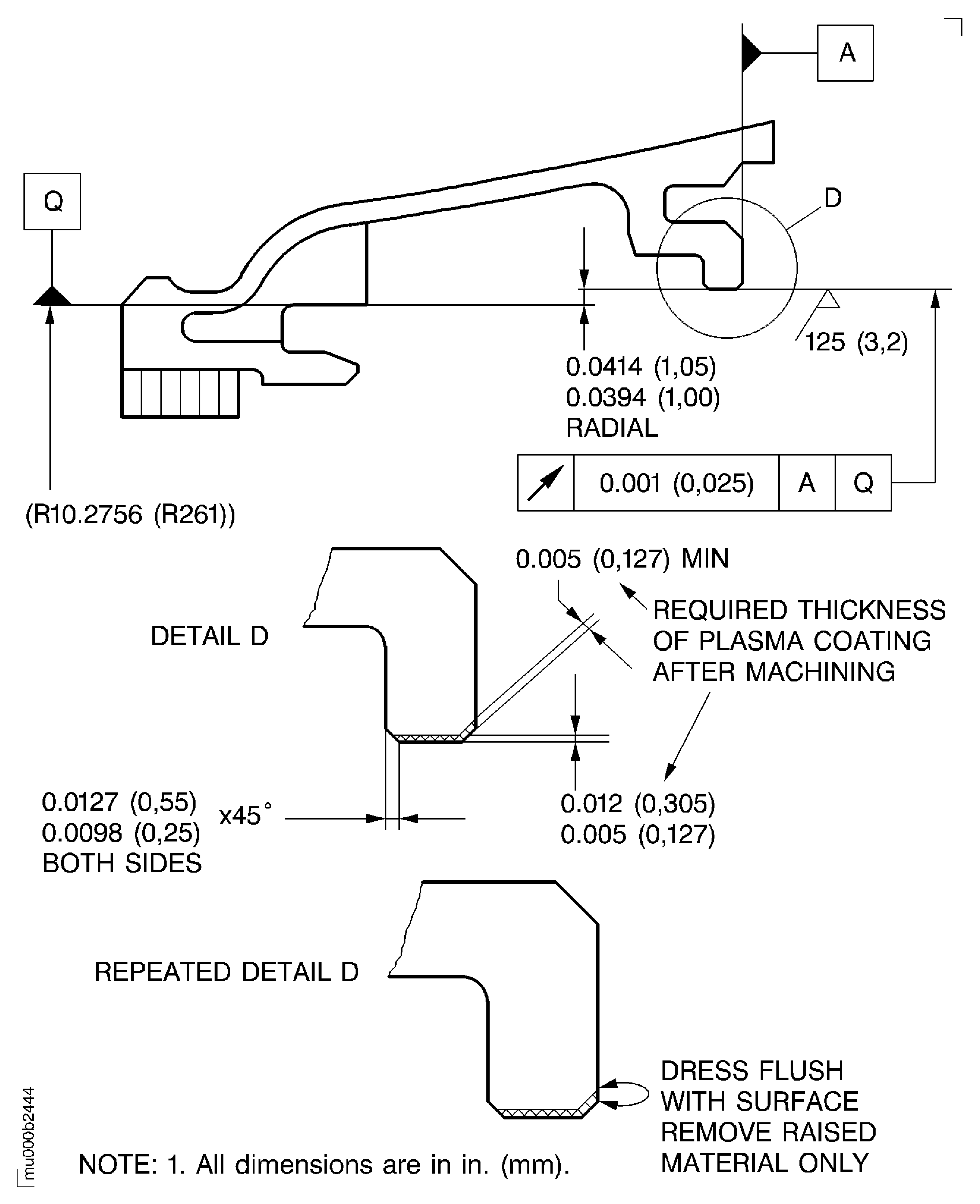

    12. Figure: Plasma spray the rear locating diameter of the inner duct segment

    Plasma spray the rear locating diameter of the inner duct segment

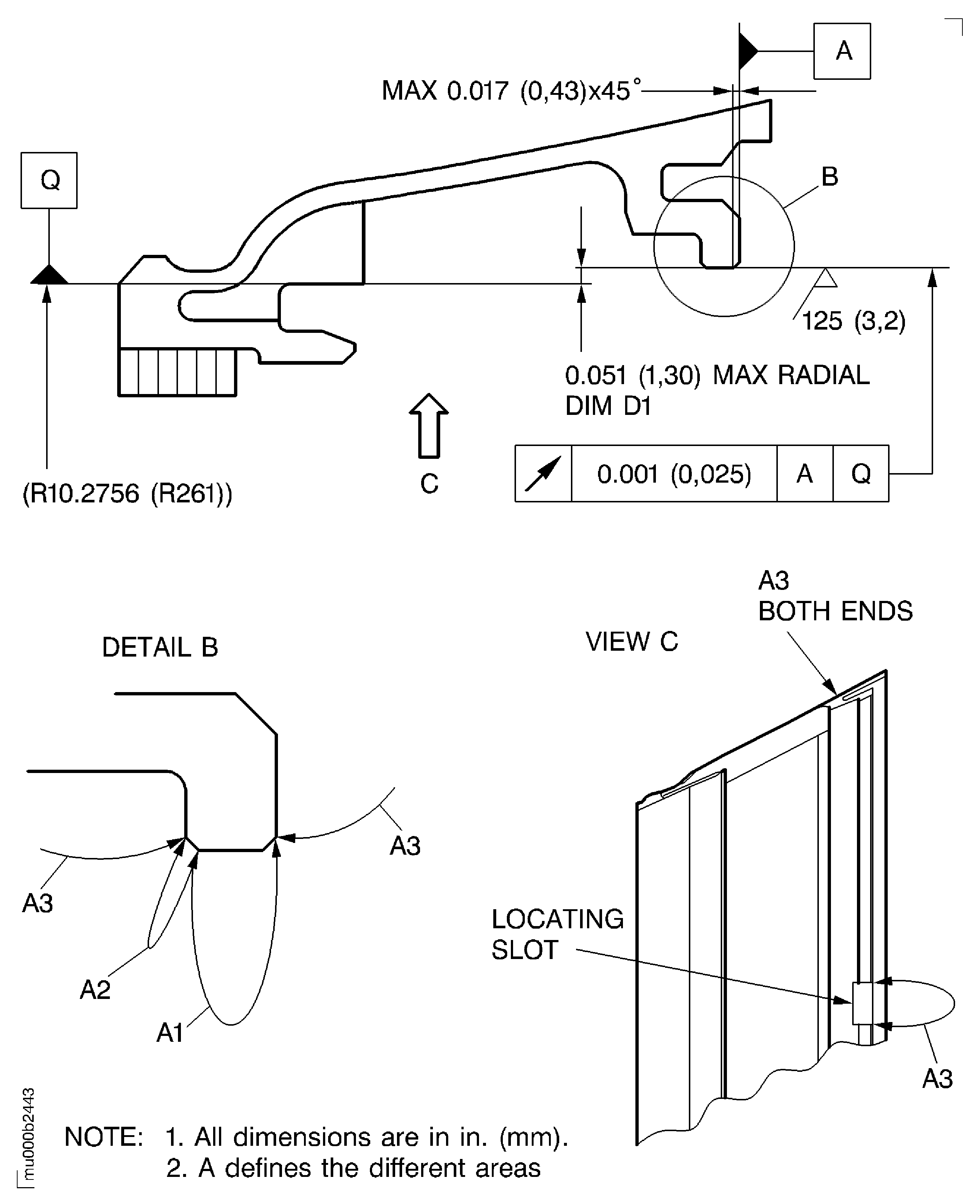

    Figure: Plasma spray the rear locating diameter of the inner duct segment

    Plasma spray the rear locating diameter of the inner duct segment

Requirements After Job Completion

Follow-On Conditions

NONE
