TASK 72-50-24-300-022 LPT Inner Diffuser Duct Support Ring - Plasma Spray The Support Ring, Repair-022 (VRS4128)

DMC:V2500-A0-72-50-2403-00A-600A-C|Issue No:002.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-50-24-300-022 LPT Inner Diffuser Duct Support Ring - Plasma Spray The Support Ring, Repair-022 (VRS4128)

Effectivity

FIG/ITEM

PART NO.

01-170

3A0113

01-170

3A1560

Material of component

PART IDENT

SYMBOL

MATERIAL

Support ring assembly

C 263

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK number are in the SPM.

NOTE

For more equipment and materials necessary to do this repair, refer to the SPM TASK 70-09-00-400-501, SPM TASK 70-11-01-300-503, SPM TASK 70-23-05-230-501 and SPM TASK 70-34-03-340-501.
Equivalent equipment may be used.

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Vertical turning latheLOCALVertical turning lathe
Plasma spray equipmentLOCALPlasma spray equipment

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-047 TAPE, HEAT REFLECTIVE52152CoMat 02-047
CoMat 02-050 HIGH TEMPERATURE GLASS CLOTH TAPE76381CoMat 02-050
CoMat 03-089 METAL SPRAYING POWDER Ni/Al (95/5)00741CoMat 03-089
CoMat 03-090 METAL SPRAYING POWDER Ni/Al (95/5)0AM53CoMat 03-090
CoMat 05-046 ALUMINUM OXIDE GRIT62596CoMat 05-046

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-50-24-325-055 Machine Worn Radial Dimension D1

      1. NOTE

        If the hook locating diameter was plasma spray repaired before, remove old coating fully.

        Machine the radial diameter D1.

      1. Use vertical turning lathe.

        Refer to Figure.

        Fully remove damage and old coating.

        Keep material removal to the minimum to allow subsequent repairs.

    2. SUBTASK 72-50-24-220-096 Examine Machined Dimensions

      1. Dimensionally examine diameter D1.

      1. Refer to Figure for dimensions.

    3. SUBTASK 72-50-24-230-062 Examine the Support Ring for Cracks

      1. Do the test for cracks.

      1. Refer to the SPM TASK 70-23-05-230-501.

        Cracks which are caused by machining process are not permitted.

    4. SUBTASK 72-50-24-110-063 Clean the Support Ring Assembly

      1. Vapor degrease.

      1. Refer to the SPM TASK 70-11-01-300-503.

    5. SUBTASK 72-50-24-340-051 Prepare Surfaces for the Plasma Spray Procedure

      1. Mask the areas A3.

      1. Make sure that the surfaces have full protection.

        Refer to Figure.

      2. Grit blast the area A1.

      1. Surface texture must be 120 to 200 microinch RMS (3.0 to 5.0 micrometer Ra).

        Blasting in area A2 is permitted.

        Refer to Figure.

      3. Replace the masking if necessary.

      1. Replace the damaged masking.

        Do not touch or bring unwanted material on the blasted area.

    6. SUBTASK 72-50-24-340-052 Plasma Spray the Prepared Surfaces

      1. Plasma spray the area A1.

      1. Overspray in area A2 is permitted, refer to Figure.

        Make sure that there is sufficient material sprayed on to do last machining.

        Refer to the SPM TASK 70-34-03-340-501.

        Use plasma spray equipment.

    7. SUBTASK 72-50-24-340-053 Remove the Protection from the Masked Surfaces

      1. Remove all masking.

      1. Refer to the SPM TASK 70-11-01-300-503.

        No masking is permitted.

    8. SUBTASK 72-50-24-110-064 Clean the Support Ring Assembly

      1. Vapor degrease.

      1. Refer to the SPM TASK 70-11-01-300-503.

    9. SUBTASK 72-50-24-325-056 Machine the Coated Areas

      1. Machine coated areas and chamfer.

      1. Refer to dimensions shown in Figure and the SPM TASK 70-34-03-340-501.

        Use vertical turning lathe.

    10. SUBTASK 72-50-24-110-065 Clean the Support Ring Assembly

      1. Vapor degrease.

      1. Refer to the SPM TASK 70-11-01-300-503.

    11. SUBTASK 72-50-24-220-097 Examine the Machined Areas

      1. Dimensionally examine.

      1. Refer to Figure.

      2. Examine coating.

      1. Refer to the SPM TASK 70-34-03-340-501.

    12. SUBTASK 72-50-24-350-060 Make a Mark to Identify the Repair

      1. Vibropeen VRS4128 and applicable beehive symbol adjacent to the part number.

      1. Refer to the SPM TASK 70-09-00-400-501.

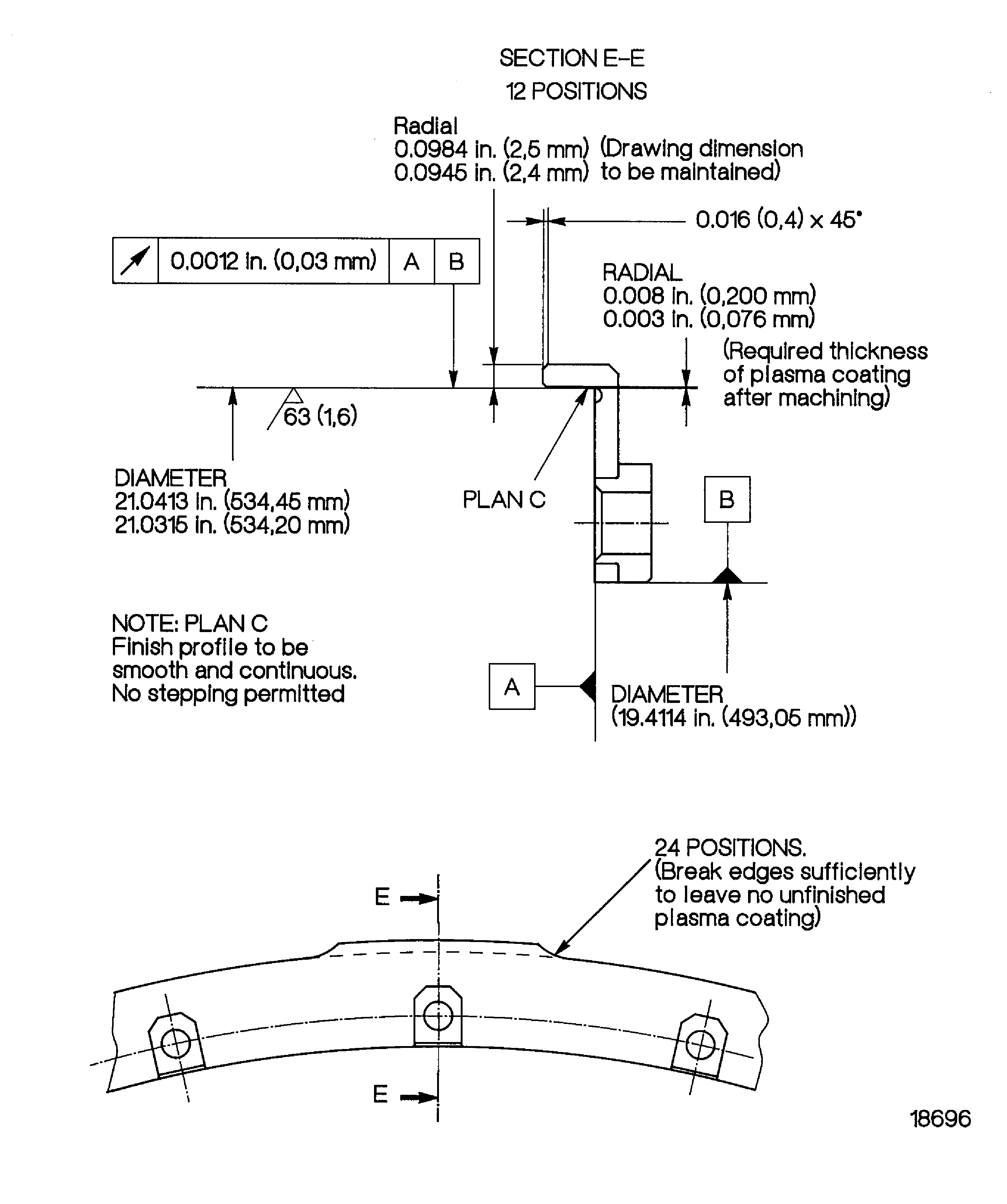

    13. Figure: Plasma spray hook locating diameter, support ring assembly

    Plasma spray hook locating diameter, support ring assembly

    Figure: Plasma spray hook locating diameter, support ring assembly

    Plasma spray hook locating diameter, support ring assembly

Requirements After Job Completion

Follow-On Conditions

NONE
