TASK 72-50-25-300-006 LPT Outer Diffuser Support - Replace The Locating Key, Repair-006 (VRS4143)

DMC:V2500-A0-72-50-2502-02A-920A-C|Issue No:002.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-50-25-300-006 LPT Outer Diffuser Support - Replace The Locating Key, Repair-006 (VRS4143)

Effectivity

FIG/ITEM

PART NO.

01-010

3A0084

Material of component

PART IDENT

SYMBOL

MATERIAL

Locating key

Hastelloy X

Outer diffuser support

assembly

C263

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK number are in the SPM.

NOTE

To identify the consumable materials refer to the PCI.

NOTE

Special tools are identified in the procedure by the tool primary number.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Tungsten inert gas system (TIG)LOCALTungsten inert gas system (TIG)
Depth gage micrometerLOCALDepth gage micrometer
Dial caliperLOCALDial caliper
Electrochemical drilling machineLOCALElectrochemical drilling machine
Illuminated magnifier (portable)LOCALIlluminated magnifier (portable)
Radius gage setLOCALRadius gage set
Crack detection kit (fluorescent)LOCALCrack detection kit (fluorescent)
Vernier caliperLOCALVernier caliper
Unltraviolet lampLOCALUltraviolet lamp
IAE 3M14226 Clamping fixture0AM53IAE 3M142261

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 03-184 WELDING FILLER WIRE, NICKELLOCALCoMat 03-184

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Locating Key3A0087

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-50-25-320-051 Remove the Worn Locating Key

      1. Machine off the worn locating key.

      1. Electrochemical drill according to the SPM TASK 70-32-03-320-501 .

        Refer to Figure.

        Optional grinding is permitted.

        Do not remove parent material.

        Traces of brace can stay to get the slot dimensions.

        Use the electrochemical drilling machine.

    2. SUBTASK 72-50-25-110-053 Clean the Outer Diffuser Support Assembly

      1. Vapour degrease the outer diffuser support assembly.

      1. Refer to the SPM TASK 70-11-01-300-503.

    3. SUBTASK 72-50-25-230-055 Examine the Outer Diffuser Support Assembly for Cracks

      1. Do the test for cracks.

      1. Refer to the SPM TASK 70-23-05-230-501.

        Use crack detection kit and ultraviolet lamp.

        No cracks are permitted.

    4. SUBTASK 72-50-25-230-056 Examine the Outer Diffuser Support Assembly

      1. Examine the outer diffuser support assembly dimensionally.

      1. For dimensions refer to Figure.

        Use radius gage set, depth gage micrometer, dial caliper and vernier caliper.

    5. SUBTASK 72-50-25-310-051 Weld in the New Locating Key

      1. Tungsten inert gas weld the locating key in position.

      1. Clamp the locating key to prevent movement.

        Use tungsten inert gas system and CoMat 03-184 WELDING FILLER WIRE, NICKEL to weld the locating key.

        Refer to Figure and to the SPM TASK 70-31-13-310-501.

    6. SUBTASK 72-50-25-220-071 Do the Post Repair Inspection

      1. Examine the reworked area for completed weld.

      1. Refer to the SPM TASK 70-31-13-310-501.

        Too much weld material is not permitted.

        Use illuminated magnifier.

      2. Examine the welded locating key dimensionally.

      1. For finish dimensions refer to Figure.

        Use dial caliper and vernier caliper.

      3. Do the test for cracks.

      1. Refer to the SPM TASK 70-23-05-230-501.

        Use crack detection kit and ultraviolet lamp.

        No cracks are permitted.

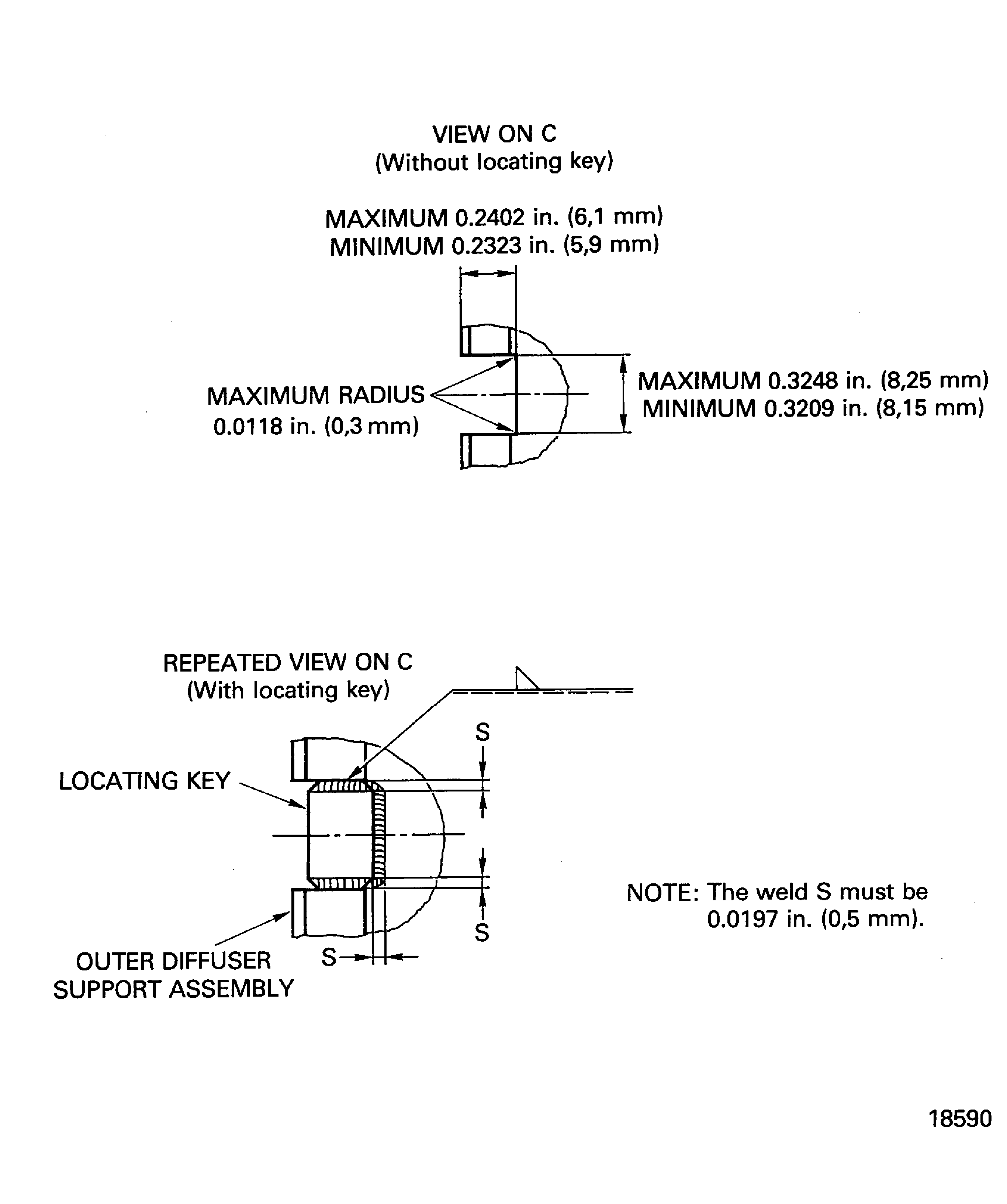

    7. Figure: Replace the locating key (01-070) of the outer diffuser support assembly (01-010)

    Replace the locating key (01-070) of the outer diffuser support assembly (01-010)

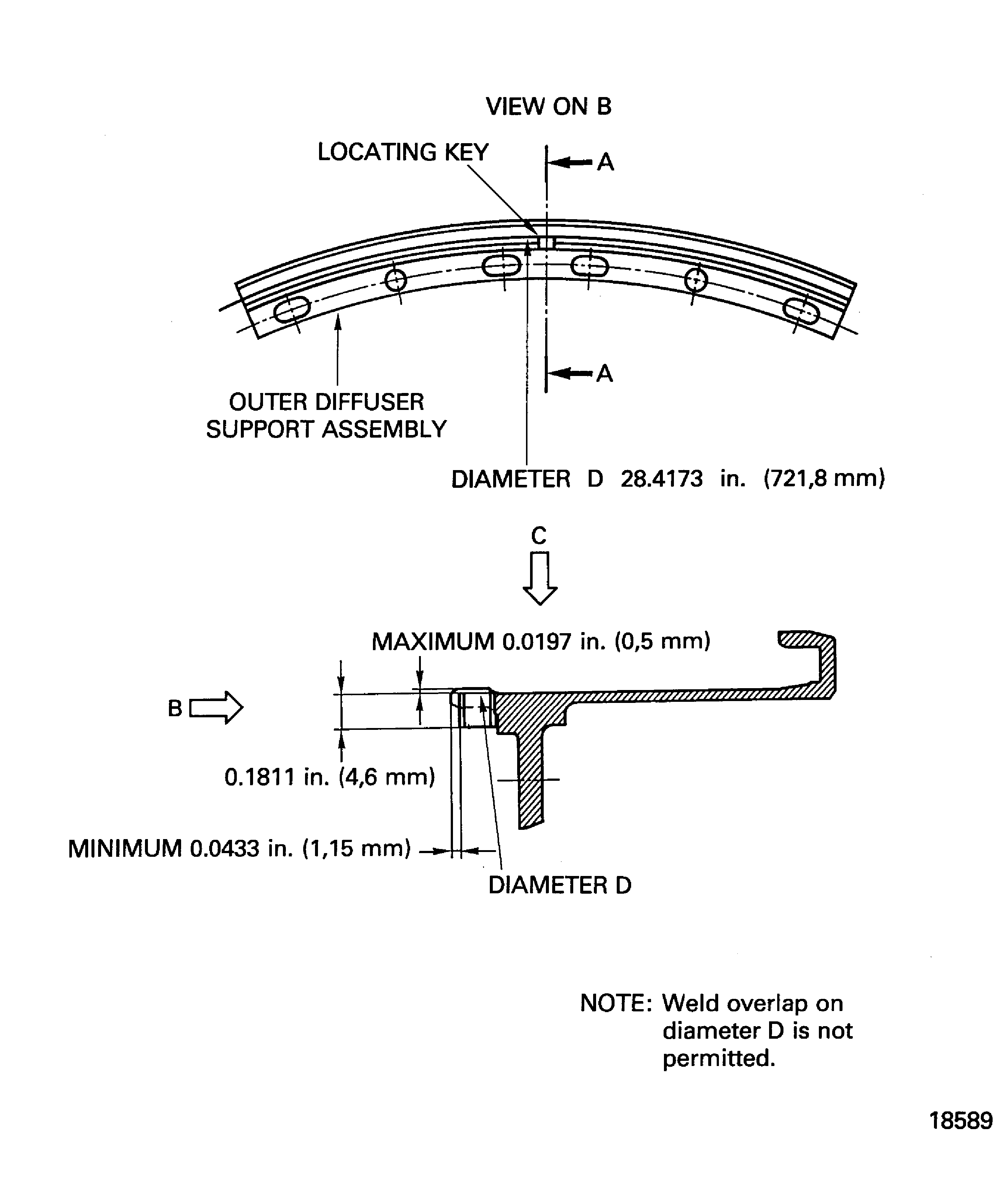

    Figure: Replace the locating key (01-070) of the outer diffuser support assembly (01-010)

    Replace the locating key (01-070) of the outer diffuser support assembly (01-010)

Requirements After Job Completion

Follow-On Conditions

NONE
