TASK 72-50-32-300-027 LPT Stage 3 Blade - Touch-Up,Repair-027 (VRS4205)

DMC:V2500-A0-72-50-3203-00A-609A-C|Issue No:002.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-50-32-300-027 LPT Stage 3 Blade - Touch-Up,Repair-027 (VRS4205)

Effectivity

FIG/ITEM

PART NO.

01-200

3A0883

01-200

3A2053

Material of component

IAE

DESCRIPTION

SYMBOL

MATERIAL

Stage 3 turbine blade

Inconel 100

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

A ** following repair referenced in this repair indicates that the repair is not yet published in the current revision of the manual and the part must be rejected. Contact IAE for additional information concerning FAA approved repair date.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Shot peen systemLOCALShot peen system
Gas furnaceLOCALGas furnace
Vibrating marking pencilLOCALVibrating marking pencil
Illuminated comparator magnifierLOCALIlluminated comparator magnifier
Vapor blast cabinetLOCALVapor blast cabinet

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-50-32-380-052 Touch-Up the Coating of the Stage 3 Turbine Blade (01-200) after the Blend Repair

      NOTE

      This repair is only permitted in connection with VRS4203, refer to TASK 72-50-32-300-025 (REPAIR-025).
      If the coating is badly damaged, refer to VRS4207, TASK 72-50-32-300-029 (REPAIR-029) or VRS4208, TASK 72-50-32-300-030 (REPAIR-030).
      Touch-up is only permitted in areas A3, refer to Figure.

      1. Prepare the material and the surface.

      1. Refer to the SPM TASK 70-38-14-380-501.

        Use vapor blast cabinet.

      2. Do the touch-up coating.

      1. Refer to the SPM TASK 70-38-14-380-501.

    2. SUBTASK 72-50-32-370-051 Do the Diffusion Heat Treatment of the Coated Stage 3 Turbine Blade (01-200)

      1. Diffuse the coating of the stage 3 turbine blade by heat treatment.

      1. Refer to the SPM TASK 70-38-14-380-501.

        Use gas furnace.

    3. SUBTASK 72-50-32-220-100 Do the Post Repair Inspection

      1. Visually examine the coated areas for defects.

      1. Use illuminated comparator magnifier.

        No defects in the surface are permitted.

    4. SUBTASK 72-50-32-370-052 Heat Treat of the Stage 3 Turbine Blades

      1. Heat treat the stage 3 turbine blades.

      1. Put the parts in gas furnace for 8 hours at 1652 deg F (900 deg C).

    5. SUBTASK 72-50-32-380-053 Shot Peen the Stage 3 Turbine Blade (01-200) in Area A1

    1. Refer to: Figure

      2. Prepare the stage 3 turbine blade for shot peening.

      1. Refer to the SPM TASK 70-38-04-380-503 and Figure.

      3. Install the blade to a fixture.

      1. Use fixture.

      4. Shot peen the area A1.

        NOTE

        Shot peening in area A2 is acceptable but need not be complete.

      1. Refer to the SPM TASK 70-38-04-380-503.

        Use S110 shot, shot peen system and shot peen to an intensity of 6A.

    5. Remove the blade from the fixture.

    6. Remove the masking tape.

    6. SUBTASK 72-50-32-220-101 Examine the markings on the Blade Root

    1. Examine the markings.

      2. Blade length, part numbers and heat code.

      1. If the marking is not readable, it must be renewed by the roll stamp method on the blade root.

        Refer to the SPM TASK 70-09-00-400-501.

      3. Part life.

      1. If the marking is not readable, it must be renewed by the vibration peening method on the blade root.

        Use vibrating marking pencil.

        Refer to the SPM TASK 70-09-00-400-501.

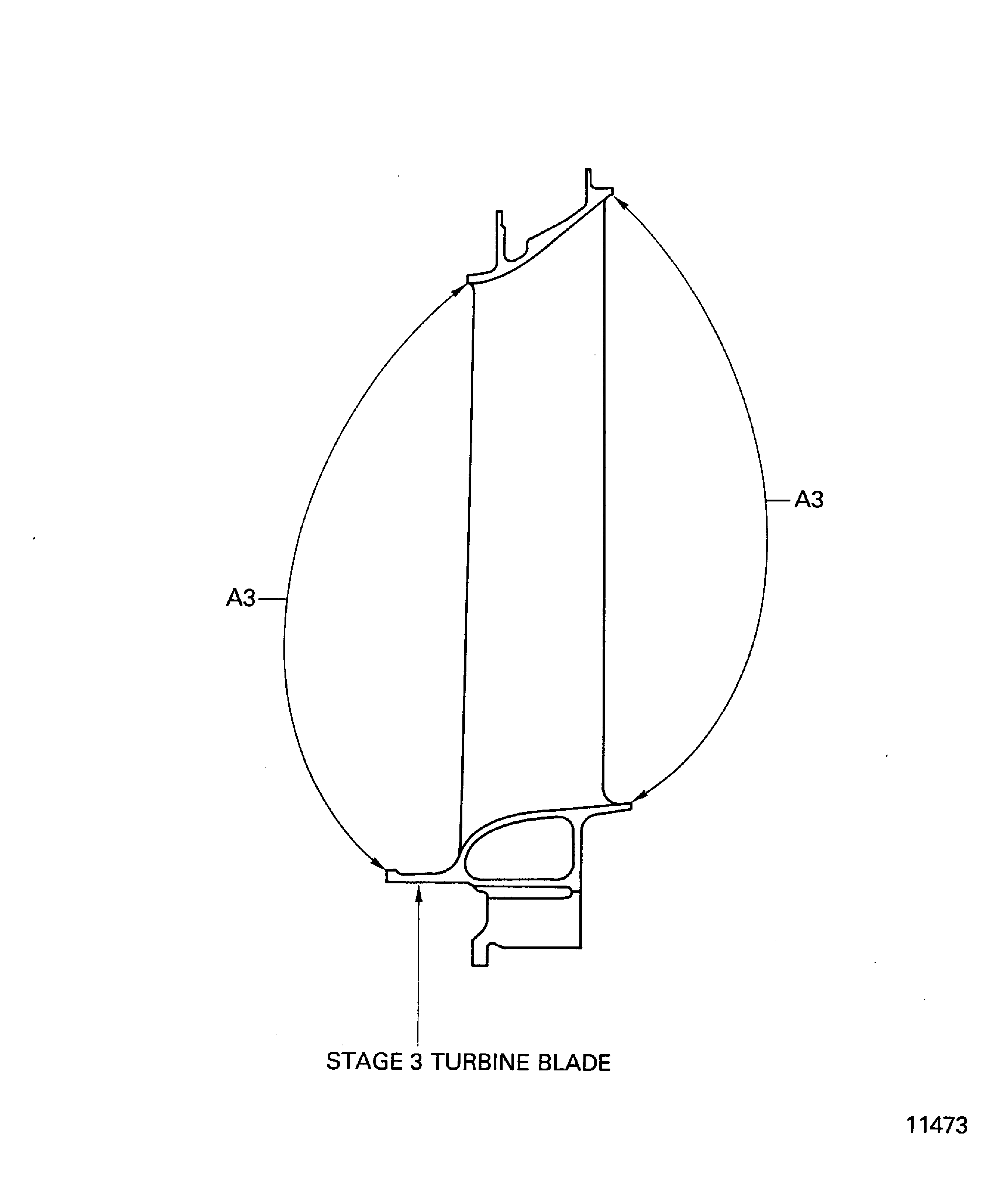

    7. Figure: Touch-up coat the stage 3 turbine blade (01-200)

    Touch-up coat the stage 3 turbine blade (01-200)

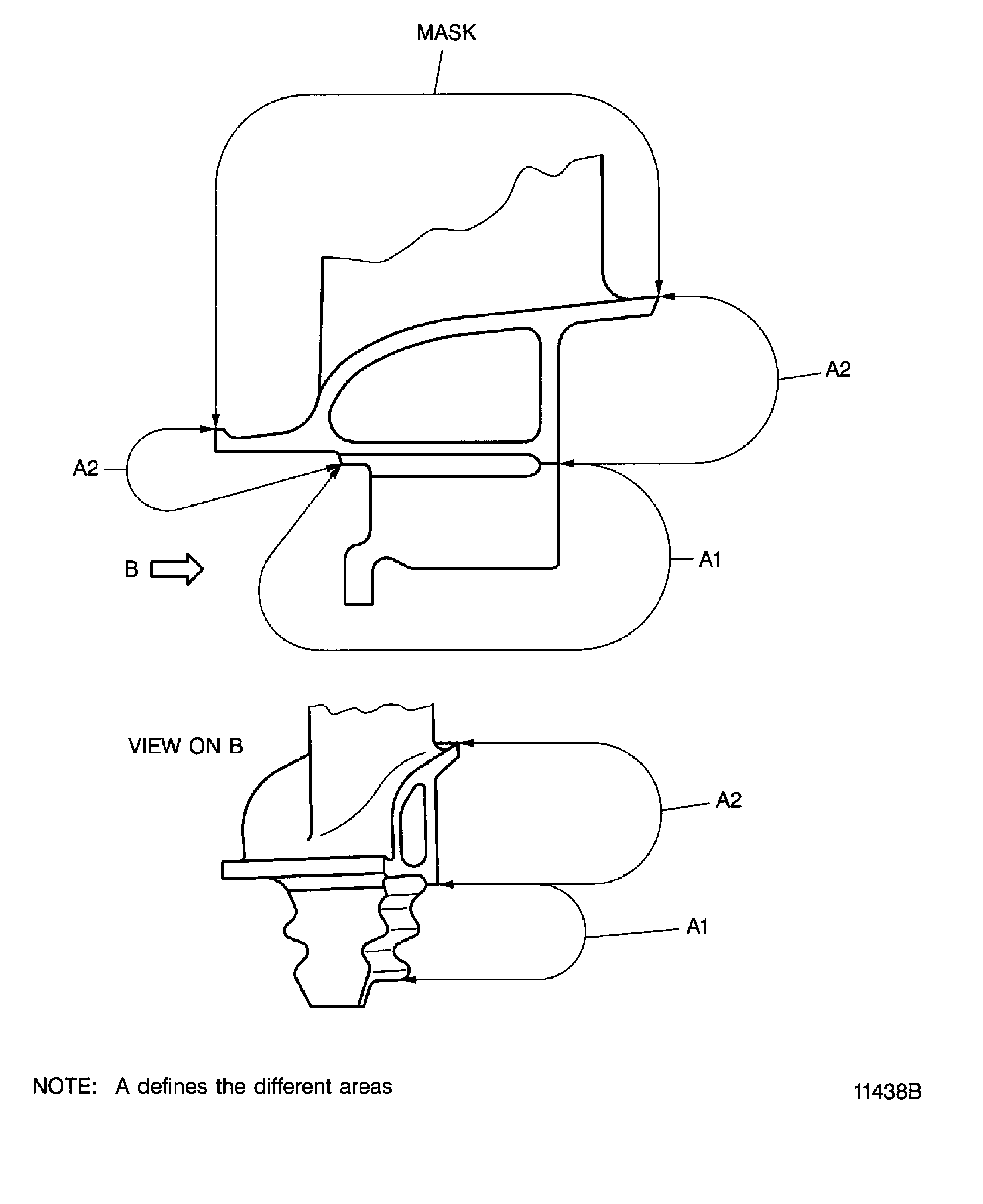

    Figure: Shot peen the stage 3 turbine blade (01-200)

    Shot peen the stage 3 turbine blade (01-200)

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Editorial correction due to conversion

Manufacturer Code:LOCAL
Enterprise Name:LOCALLY SUPPLIED
Manufacturer Code:LOCAL
Tool Number:Gas furnace
Tool Name:Gas furnace
Manufacturer Code:LOCAL
Tool Number:Illuminated comparator magnifier
Tool Name:Illuminated comparator magnifier
Manufacturer Code:LOCAL
Tool Number:Shot peen system
Tool Name:Shot peen system
Manufacturer Code:LOCAL
Tool Number:Vapor blast cabinet
Tool Name:Vapor blast cabinet
