TASK 72-50-32-300-011 LPT Stage 6 Blade - Weld Build Up Repair Of Outer Shroud Hardfacing, Repair-011 (VRS4189)

DMC:V2500-A0-72-50-3206-00A-627A-C|Issue No:002.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-50-32-300-011 LPT Stage 6 Blade - Weld Build Up Repair Of Outer Shroud Hardfacing, Repair-011 (VRS4189)

Effectivity

FIG/ITEM

PART NO.

01-050

3A0886

Material of component

DESCRIPTION

SYMBOL

MATERIAL

Stage 6 turbine blade

INCONEL 713C

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK number are in the SPM.

NOTE

For more equipment and materials necessary to do this repair refer to the SPM TASK 70-09-00-400-501, SPM TASK 70-11-01-300-503, SPM TASK 70-23-03-230-501, SPM TASK 70-23-08-230-501, SPM TASK 70-31-08-310-501, SPM TASK 70-37-00-370-501, SPM TASK 70-37-10-370-501 and SPM TASK 70-38-04-300-503.
Equivalent materials and equipment may be used.

NOTE

To identify the consumable materials refer to PCI

NOTE

Other tools locally manufactured.

NOTE

  1. If repair of pre-twist is also required, then do VRS4188 ** first, before the start of this repair.

  2. Before the start of the repair, record the stage 6 turbine blade manufacturing code part number, heat code, blade life figure and serial number, if marked on the blade.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Cleaning facilityLOCALCleaning facility
Welding facilityLOCALWelding facility
Inspection facilityLOCALInspection facility
Machining facilityLOCALMachining facility
Heat treatment facilityLOCALHeat treatment facility
Crack inspection equipmentLOCALCrack inspection equipment
Blasting facilityLOCALBlasting facility
Marking facilityLOCALMarking facility
IAE 2M14169 Inspection gage0AM53IAE 2M141691
IAE 3M14400 Welding mounting block0AM53IAE 3M144001
IAE 3M14499 Welding fixture0AM53IAE 3M144991
IAE 3M14511 Grinding fixture (convex/concae side)0AM53IAE 3M145111

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 03-283 COATING ALLOY0CZB2CoMat 03-283
CoMat 05-030 CAST STEEL SHOT DELETED0AM53CoMat 05-030
CoMat 02-001 ADHESIVE TAPE (MASKING)LOCALCoMat 02-001

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-50-32-110-070 Clean the Stage 6 Turbine Blade

      1. Vapor degrease.

      1. Refer to the SPM TASK 70-11-01-300-503.

    2. SUBTASK 72-50-32-310-053 Weld Build-Up Repair the Worn Surfaces

      1. Tungsten inert gas weld build-up surfaces.

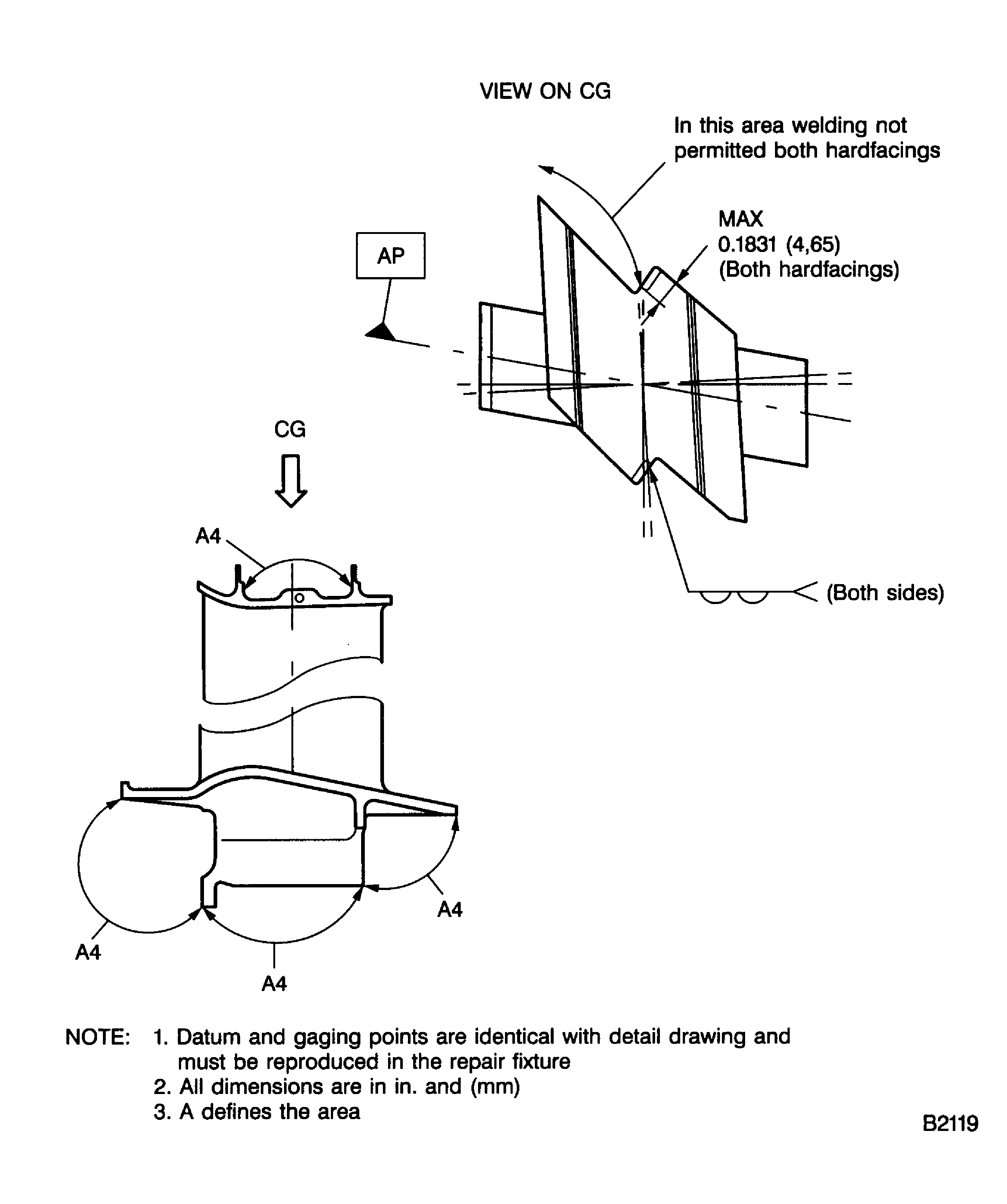

      1. Refer to Figure and the SPM TASK 70-31-08-310-501.

        Build up sufficient material to do the last machining. Use CoMat 03-283 COATING ALLOY.

        In area A4 electrical contact is permitted.

        No burning, pitting or selective attack is permitted.

    3. SUBTASK 72-50-32-220-164 Examine the Welded Areas

      1. Examine the hardness of weld nugget.

      1. Use rockwell hardness tester. Rockwell 40 HRC minimum or equivalent is required.

      2. Visually examine.

      1. Use 10x magnifying glass. Refer to the SPM TASK 70-31-08-310-501 for weld accept limits.

    4. SUBTASK 72-50-32-320-053 Machine the Welded Areas

      1. Grind the welded areas.

      2. Remove sufficient weld to get original contours on inner and outer surfaces.

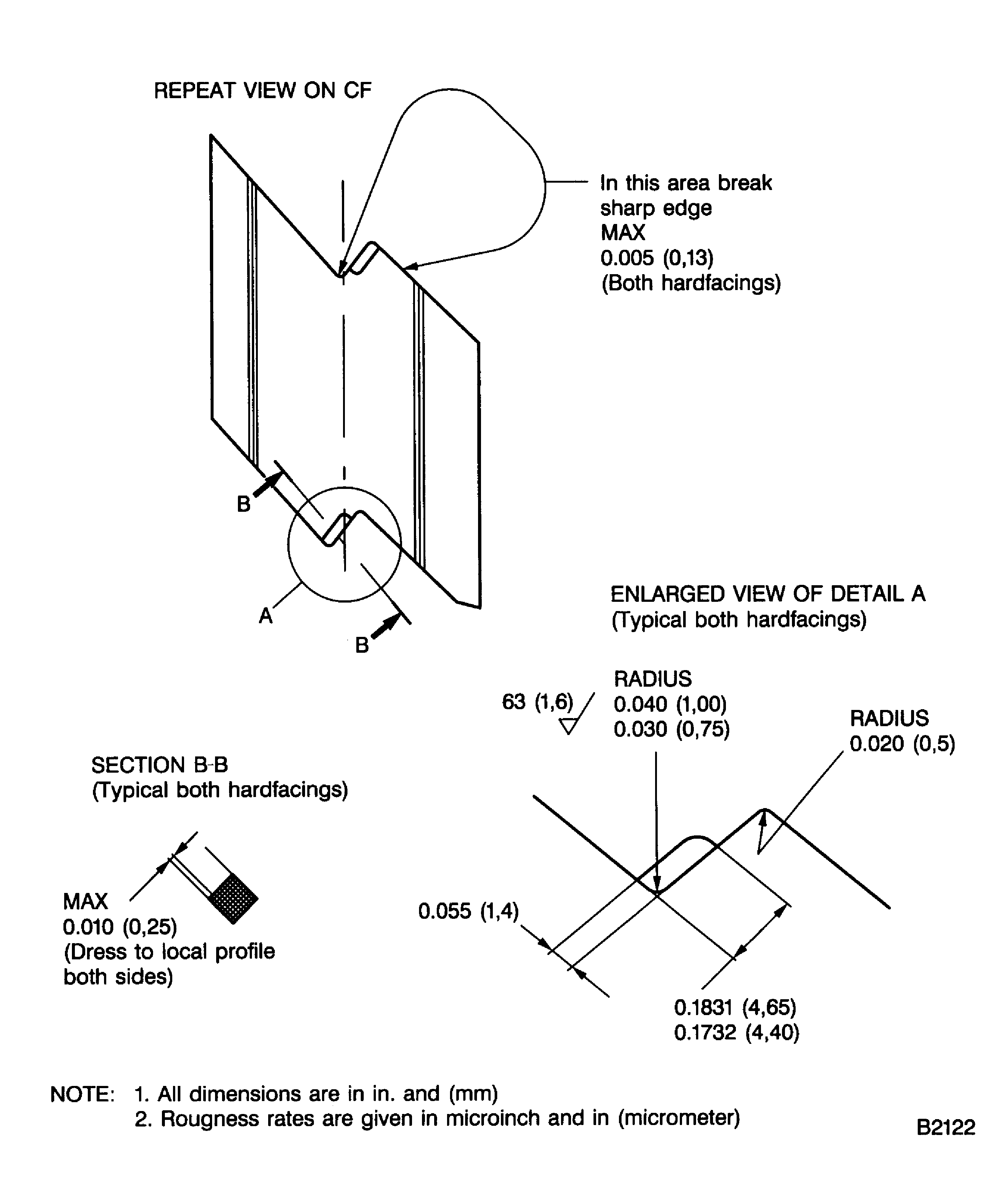

      1. Use a hand held rotating polishing wheel. Refer to Figure for dimensions. Use a radius gage set.

      3. Remove burrs and sharp edges.

      1. Use a pneumatic hand held grinder. Refer to Figure for dimensions and the affected areas.

    5. SUBTASK 72-50-32-220-165 Examine the Repaired Outer Shroud Hardfacing

      1. Visually examine the hardfacing.

      1. Use a 10x magnifying glass. The extension of linear discontinuities to any edge is not permitted.

      2. Dimensionally examine the hardfaced areas.

      1. Refer to Figure and Figure.

    6. SUBTASK 72-50-32-370-055 Heat Treat after Machining

      1. Heat treat the stage 6 turbine blade.

      1. Refer to the SPM TASK 70-37-00-370-501 and SPM TASK 70-37-10-370-501. Heating and cooling rate to be maximum 40 deg F (22 deg C) per minute.

    7. SUBTASK 72-50-32-230-079 Examine the Stage 6 Turbine Blade for Cracks after Heat Treatment

      1. Do the test for cracks.

      1. Refer to the SPM TASK 70-23-03-230-501 or SPM TASK 70-23-08-230-501. The maximum permitted length of discontinuities is 0.016 in. (0.4 mm) in the repaired areas.

    8. SUBTASK 72-50-32-110-071 Clean the Stage 6 Turbine Blade

      1. Vapor degrease.

      1. Refer to the SPM TASK 70-11-01-300-503.

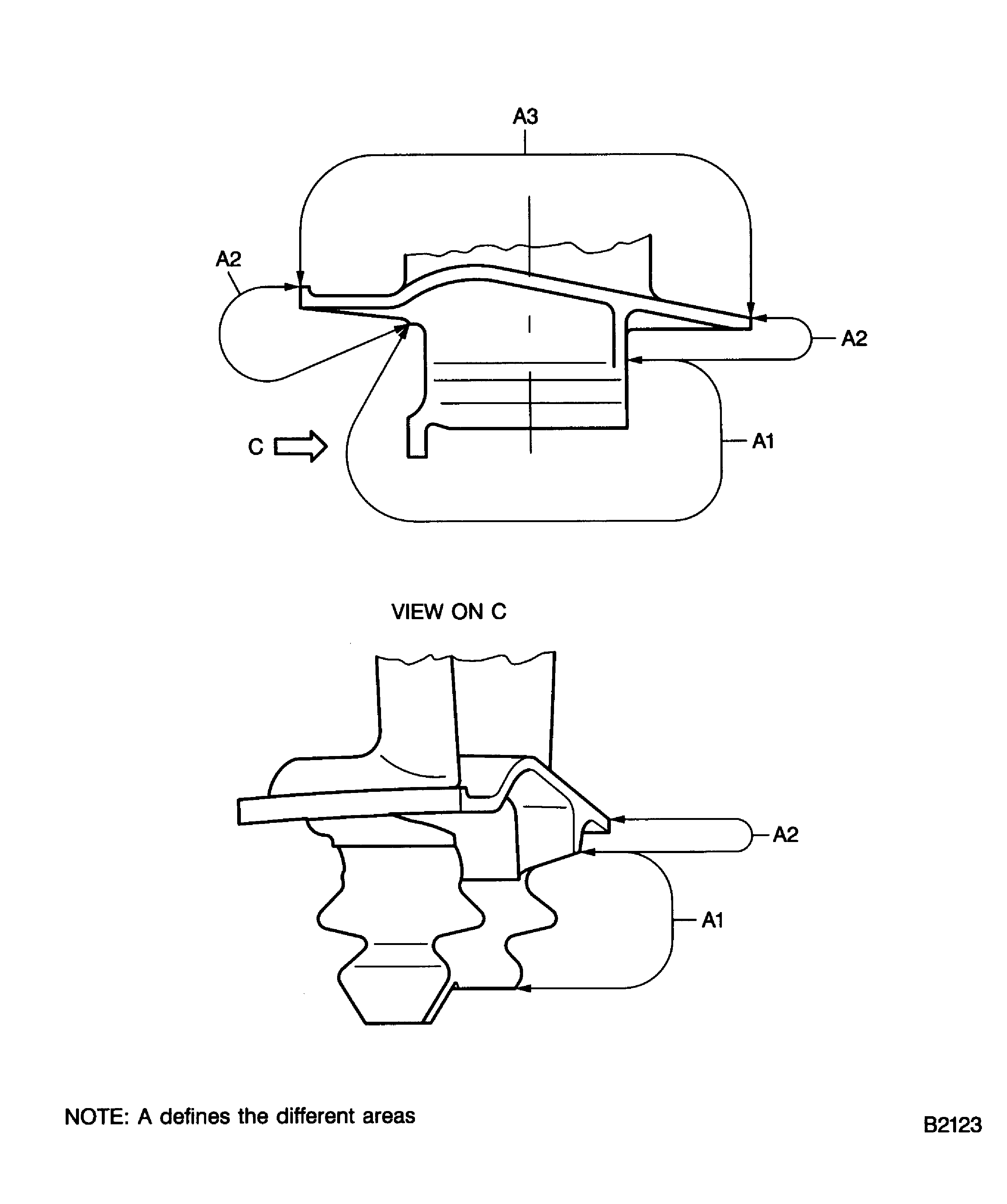

    9. SUBTASK 72-50-32-380-057 Shot Peen the Surface A1 of the Stage 6 Turbine Blade

      1. Mask the turbine blade surface in area A3.

      2. Shot peen area A1.

      1. Refer to the SPM TASK 70-38-04-300-503. Use CoMat 05-030 CAST STEEL SHOT DELETED to an intensity of 6A. Shot peening is permitted in area A2 but must not be complete. Refer to Figure.

    3. Remove all masking.

    10. SUBTASK 72-50-32-220-166 Examine the Blade Markings

      1. Examine the markings of the stage 6 turbine blade manufacturing code, part number, heat code and serial number.

      1. If you cannot read any of these, make new marks. Use the roll stamp method. Refer to the SPM TASK 70-09-00-400-501.

      2. Examine the marking of the stage 6 turbine blade life.

      1. If you can not read this marking, make a new mark. Use the vibrospeen method. Refer to the SPM TASK 70-09-00-400-501.

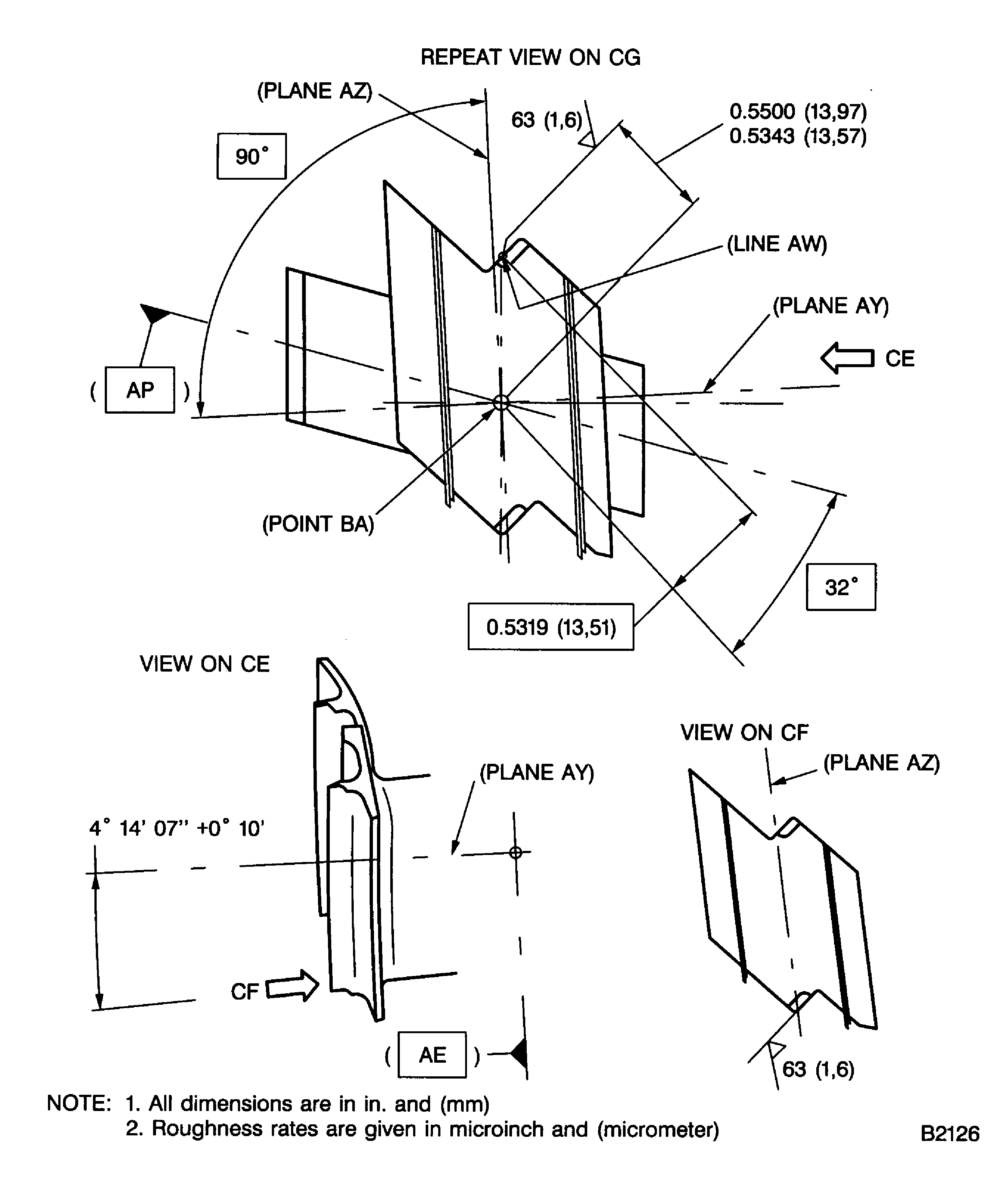

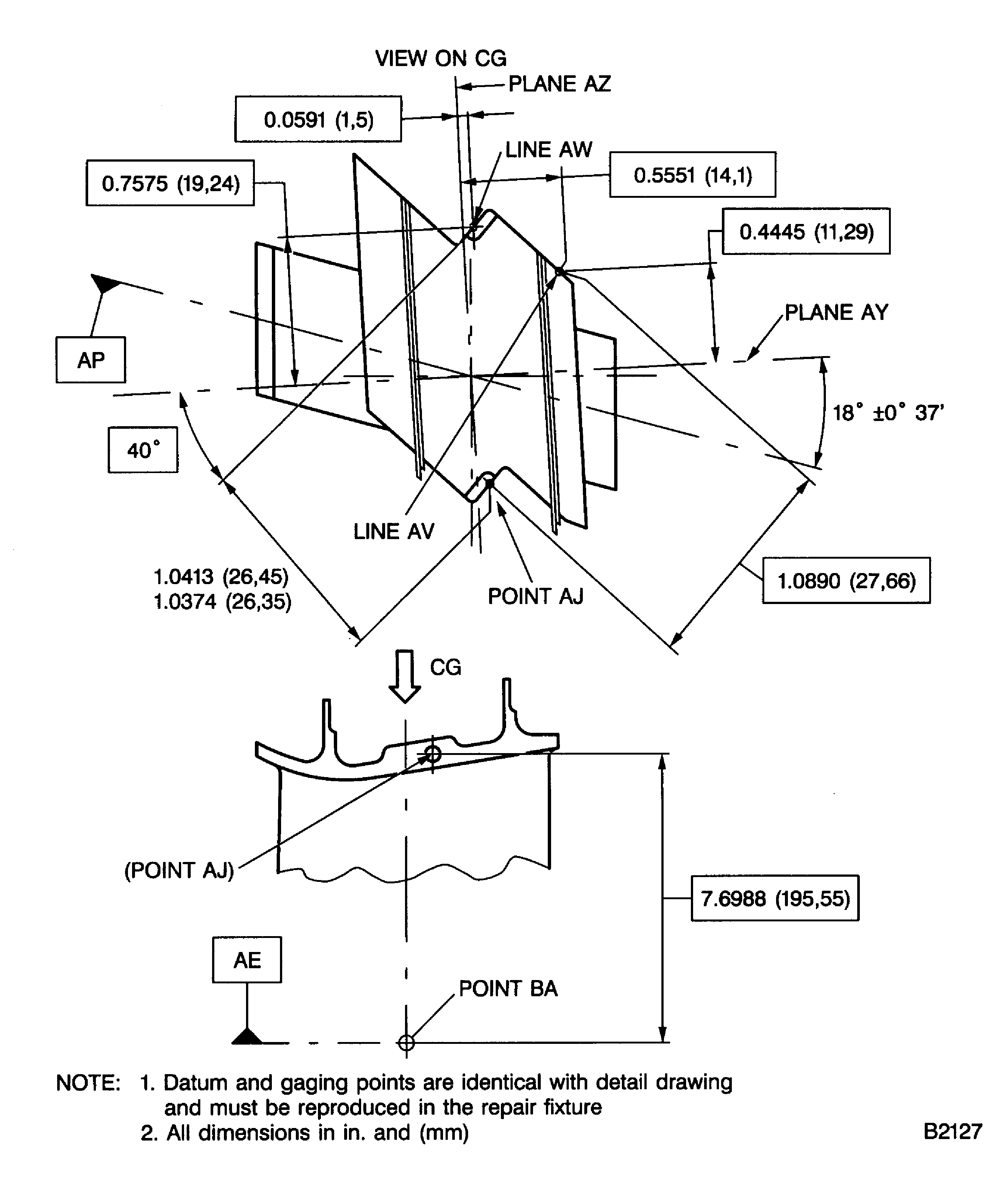

    11. Figure: Weld build-up of outer shroud hardfacing

    Weld build-up of outer shroud hardfacing

    Figure: Weld build-up of outer shroud hardfacing

    Sheet 1

    Legend
    Weld build-up of outer shroud hardfacing

    Sheet 1

    Close

    Figure: Weld build-up of outer shroud hardfacing

    Sheet 2

    Legend
    Weld build-up of outer shroud hardfacing

    Sheet 2

    Close

    Figure: Weld build-up of outer shroud hardfacing

    Weld build-up of outer shroud hardfacing

    Figure: Weld build-up of outer shroud hardfacing

    Weld build-up of outer shroud hardfacing

Requirements After Job Completion

Follow-On Conditions

NONE
