TASK 72-50-51-200-101 No. 5 Bearing Oil Transfer Tube - Examine, Inspection-001

DMC:V2500-A0-72-50-5101-00A-310A-C|Issue No:001.00|Issue Date:2013-03-20

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-50-51-200-101 No. 5 Bearing Oil Transfer Tube - Examine, Inspection-001

Effectivity

FIG/ITEM

PART NO.

01-140

4P8078

General

This TASK gives the procedure for the inspection of the oil transfer tube. For the other parts of the oil jet and filter refer to inspection-000 TASK 72-50-51-200-100.

Fig/item numbers in parentheses in the procedure agree with those used in the IPC.

The policy that is necessary for inspection is given in the SPM TASK 70-20-01-200-501.

All the parts must be cleaned before any part is examined. Refer to the SPM TASK 70-11-03-300-503.

All parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All parts must be examined to make sure that all the repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

Reference

Refer to the SPM for data on these items.

Definitions of Damage, SPM TASK 70-02-02-350-501.

Record and Control of the Lives of Parts, SPM TASK 70-05-00-220-501.

Inspection of Parts, SPM TASK 70-20-00-200-501.

Some data on these items is contained in this TASK. For more data on these items refer to the SPM.

Method of Testing for Crack Indications

Chemical Processes

Surface Protection

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Workshop Inspection EquipmentLOCALWorkshop Inspection Equipment
Flexible video borescopeLOCALFlexible video borescope

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-50-51-220-051 Examine the Oil Transfer Tube End Fittings at Locations 1

    1. Refer to Figure.

      2. Diameter

        1. Between 0.4712 and 0.4665 in. (11.97 and 11.85 mm)

        1. Accept

        2. Less than 0.4665 in. (11.85 mm)

        1. Reject

    2. SUBTASK 72-50-51-220-056 Examine the Internal Surfaces of Tube for Carbon or Coke

      1. Examine the internal surfaces of the tube for carbon or coke

        1. No coke or carbon

        1. Accept

        2. Coke or carbon

        1. Clean. Refer to Cleaning-001 TASK 72-50-51-100-101.

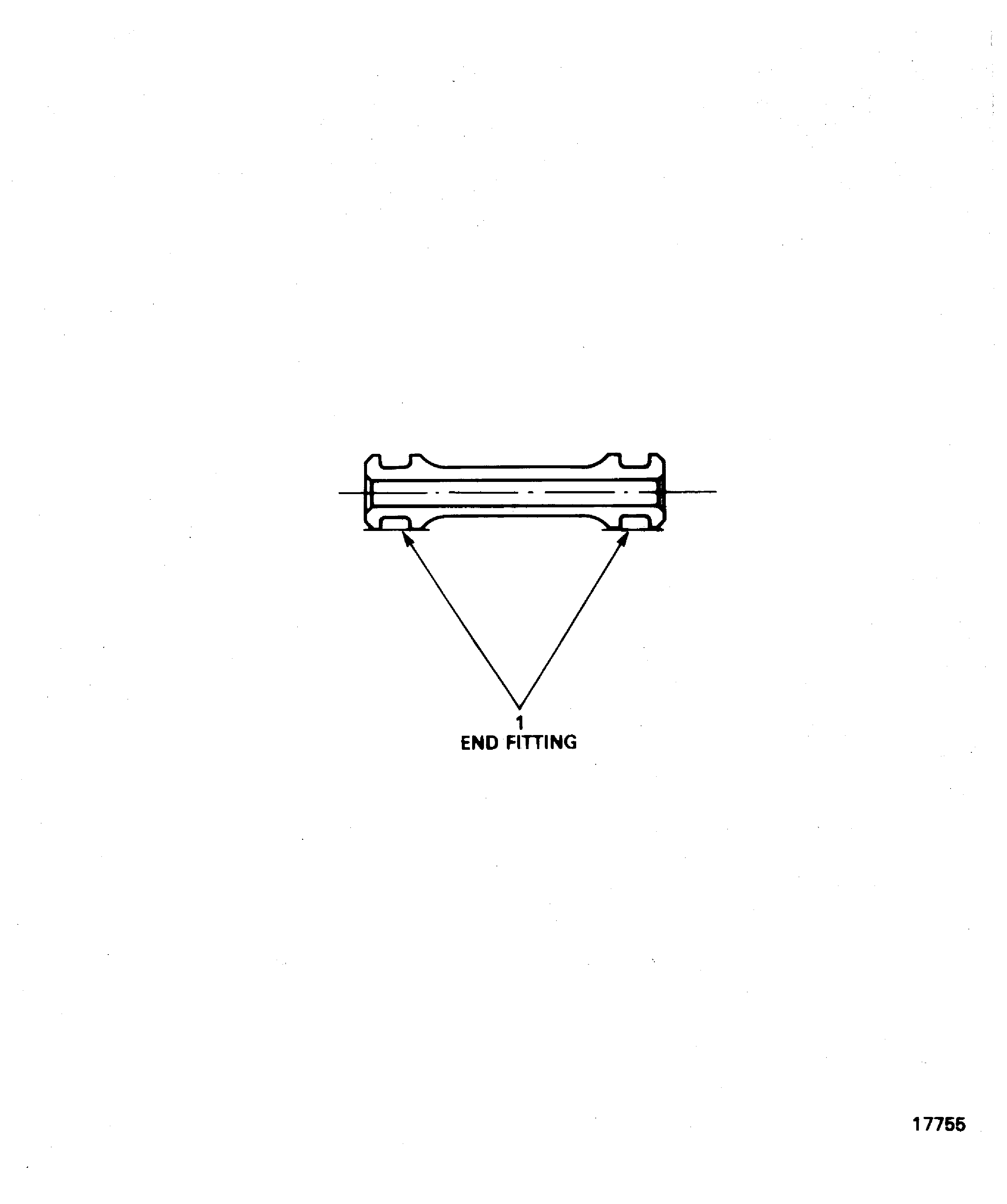

    3. Figure: Locations On The Oil Transfer Tube

    Locations On The Oil Transfer Tube

Requirements After Job Completion

Follow-On Conditions

NONE
