TASK 72-58-02-200-001 No. 5 Bearing Oil Transfer Tube - Examine, Inspection-001
General
This TASK gives the procedure for the inspection of the No. 5 bearing transfer tube. For other parts of the No. 5 bearing oil jet and filter, refer to TASK 72-58-02-200-000 (INSPECTION/CHECK-000).
Fig/item numbers in parentheses in the procedure agree with those used in the IPC.
The policy that is necessary for inspection is given in the SPM TASK 70-20-00-200-501.
All the parts must be cleaned before any part is examined. Refer to the TASK 72-58-02-100-000 (CLEANING-000).
The procedure for those parts which must have a crack test is given in SUBTASK 72-58-02-230-051. Do the test before the part is visually examined.
Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.
Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.
All parts must be examined to make sure that all the repairs have been completed satisfactorily.
The practices and processes referred to in the procedure by the TASK number are in the SPM.
References
Refer to the SPM for data on these items.
Definitions of Damage, SPM TASK 70-02-02-350-501
Inspection of Parts, SPM TASK 70-20-01-200-501
Some data on these items is contained in this TASK. For more data on these items refer to the SPM.
Method of Testing for Crack Indications
Chemical Processes
Surface Protection
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
NONEConsumables, Materials and Expendables
NONESpares
NONESafety Requirements
NONEProcedure
Clean the Part. Refer to TASK 72-58-02-100-000 (CLEANING-000).
SUBTASK 72-58-02-230-051-001 Examine the No. 5 Bearing Transfer Tube (01-030) for Cracks
Clean the Part. Refer to TASK 72-58-02-100-000 (CLEANING-000).
SUBTASK 72-58-02-230-051-002 Examine the No. 5 Bearing Transfer Tube (01-030) for Cracks
Refer to: Figure
Clean, TASK 72-58-02-100-000 (CLEANING-000)
Blockage, coke or carbon
Examine the filter at location 1 for blockage (coke or carbon) of internal tube bore.
SUBTASK 72-58-02-220-051 Examine the No. 5 Bearing Transfer Tube (01-030) for Blockage With a Flexible Video Borescope
Refer to: Figure
Repair, VRS3245 TASK 72-58-02-300-001 (REPAIR-001)
Other than (a)
Scratches.
Repair, VRS3245 TASK 72-58-02-300-001 (REPAIR-001)
Sharp edges
Examine the filter at locations 2, 3 and 4 for scratches, wear and sharp edges on the OD surface and the groove.
SUBTASK 72-58-02-220-052 Examine the No. 5 Bearing Transfer Tube (01-030) for Scratches, Wear and Sharp Edges on the Outside Diameter Surface and the Groove
Refer to Figure.
SUBTASK 72-58-02-220-059 Examine the No. 5 Bearing Transfer Tube (01-030) for Acceptable Limits

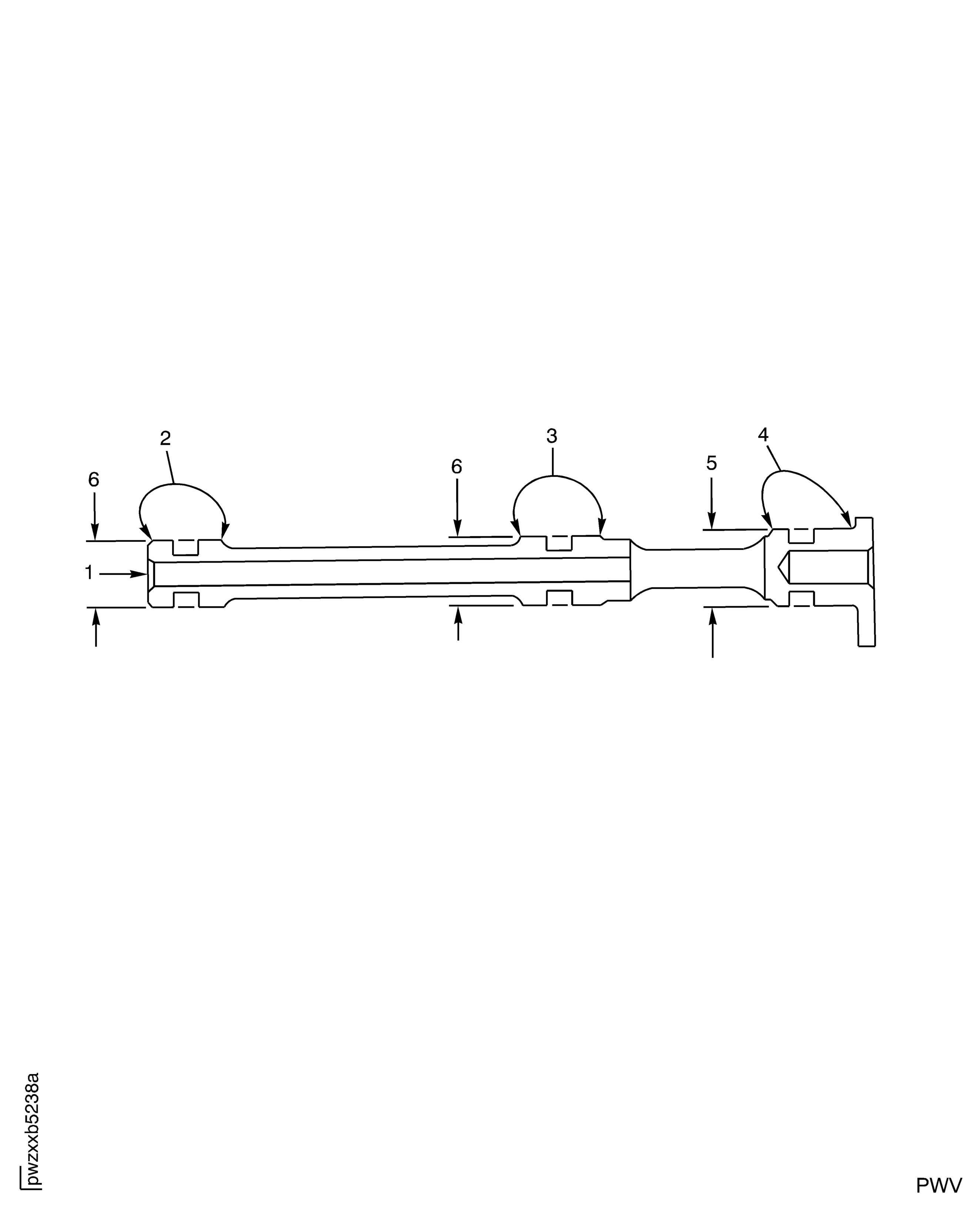

Figure: No. 5 Bearing Transfer Tube Inspection Locations
No. 5 Bearing Transfer Tube Inspection Locations
