TASK 72-60-21-300-034 Main Gearbox Casing - Repair The Bearing Mating Surface Of The Hydraulic Pump By Flanged Bushing, Repair-034 (VRS5269)

DMC:V2500-A0-72-60-2101-21A-664A-C|Issue No:003.00|Issue Date:2021-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-60-21-300-034 Main Gearbox Casing - Repair The Bearing Mating Surface Of The Hydraulic Pump By Flanged Bushing, Repair-034 (VRS5269)

Effectivity

FIG/ITEM

PART NO.

02-050

4B0053

02-050

4B0054

02-050

4B0055

02-050

4B0057

02-050

4B0400

02-050

4B0402

Material of component

PART IDENT

SYMBOL

MATERIAL

Casing

Aluminum alloy

Flanged Bushing

Wrought aluminum base alloy

General

NOTE

To identify the consumable materials, refer to the PCI.

NOTE

Special tools are identified in the procedure by the primary tool number.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Arbor PressLOCALArbor press
FreezerLOCALFreezer
IAE 3F10428 Guide pin0AM53IAE 3F104281
IAE 3F10336 Drift, bushing (dia 67)0AM53IAE 3F10336
Magnifying GlassLOCALMagnifying Glass
OvenLOCALOven
Workshop inspection equipmentLOCALWorkshop inspection equipment

Consumables, Materials and Expendables

NONE

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Bushing4L00081

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-60-21-350-121 Remove the Studs

    1. Refer to Figure.

      2. Remove the studs and lock rings.

      1. Refer to repair VRS5255 TASK 72-60-21-300-004 (REPAIR-004).

    2. SUBTASK 72-60-21-320-108 Machine the Hydraulic Pump Bearing Bore in the Gearbox Casing

    1. Refer to Figure.

      2. Machine the bearing bore.

      1. The diameter must be between 2.9118 in. and 2.9134 in. (73.960 mm and 74.000 mm) after the removal of the damage.

      2. Deleted.

    3. SUBTASK 72-60-21-320-109 Machine the Hydraulic Pump Bearing Mating Face in the Gearbox Casing

    1. Refer to Figure.

      2. Machine the bearing mating face.

      1. The dimensions must be between 4.6043 in. to 4.6083 in. (116.950 mm and 117.050 mm) in relation to surface F, after the removal of the damage.

      2. Deleted.

    4. SUBTASK 76-60-21-220-156 Examine the Gearbox Casing

      1. Inspect the casing for cracks in the area of the hydraulic pump bearing bore.

      1. Use a magnifying glass.

    5. SUBTASK 72-60-21-330-097 Apply the Chromate Conversion Coating

      1. Apply the chromate conversion coating to the machined surfaces.

    6. SUBTASK 72-60-21-350-122 Install the Flanged Bushing

    1. Refer to Figure.

      2. Install the guide pin.

      1. Put IAE 3F10428 Guide pin 1 off in threaded hole on bearing mating face, adjacent to machined bore.

    3. Install the bushing on the IAE 3F10336 Drift, bushing (dia 67) 1 off.

      4. WARNING

        DO NOT TOUCH THE HOT PARTS WITHOUT PROTECTIVE GLOVES.

        WARNING

        HOT PARTS CAN CAUSE REDDENING AND BLISTERING OF THE SKIN IF THE HANDS ARE NOT PROTECTED.

        WARNING

        IMMERSE THE CONTACTED AREA IN COLD WATER FOR 10 MINUTES IF THE SKIN IS BURNED. IMMEDIATELY GET THE MEDICAL ATTENTION IF PAIN OR BLISTERING PERSISTS.

        Increase the temperature of the casing and/or decrease the temperature of the assembled drift and bushing.

      1. Use an oven and/or a freezer.

      2. Do not increase the temperature of the casing above 284 deg F (140 deg C).

      3. Do not decrease the temperature of the assembled drift and bushing below minus 58 deg F (minus 50 deg C).

      5. NOTE

        The difference in temperature between the parts must be 216 deg F (120 deg C).

        Remove the casing from the oven and/or the assembled drift and bushing from the freezer.

      1. Use protective gloves.

      6. CAUTION

        INSTALL BUSHING IN MACHINED BORE IMMEDIATELY AFTER REMOVAL FROM FREEZER, OTHERWISE BUSHING CANNOT BE CORRECTLY INSTALLED.

        Install the bushing into machined bore.

      2. Give sufficient back-up support at bushing bore area to prevent casing distortion when you install the bushing.

    7. Let the parts get the ambient temperature.

      .

    8. Remove the drift and the guide pin.

    7. SUBTASK 72-60-21-320-110 Machine the Inner Diameter of the Flanged Bushing

    1. Refer to Figure.

      2. Machine the inner diameter of the bushing.

        1. The dimension must be between 2.7553 in. and 2.7561 in. (69.985 mm and 70.004 mm).

        1. Deleted.

        2. Chamfer where necessary.

    8. SUBTASK 72-60-21-320-111 Machine the Flange Surface of the Bushing

    1. Refer to Figure.

      2. Machine the flange surface of the bushing.

        1. The dimensions must be between 4.5236 in. to 4.5315 in. (114.900 mm to 70.004 mm).

        1. Deleted.

    9. SUBTASK 72-60-21-330-098 Apply the Chromate Conversion Coating

      1. Apply the chromate conversion coating to the machined surface of the bushing.

    10. SUBTASK 72-60-21-350-123 Install New Studs

    1. Refer to Figure.

      2. Install the new studs and the new lockrings.

      1. Refer to repair VRS5255 TASK 72-60-21-300-004 (REPAIR-004).

    11. SUBTASK 72-60-21-350-124 Identify the Repair

    1. Refer to Figure.

      2. Make a mark VRS5269 adjacent to the part number.

      1. Refer to TASK 70-09-00-400-501, SUBTASK 70-09-00-400-001 .

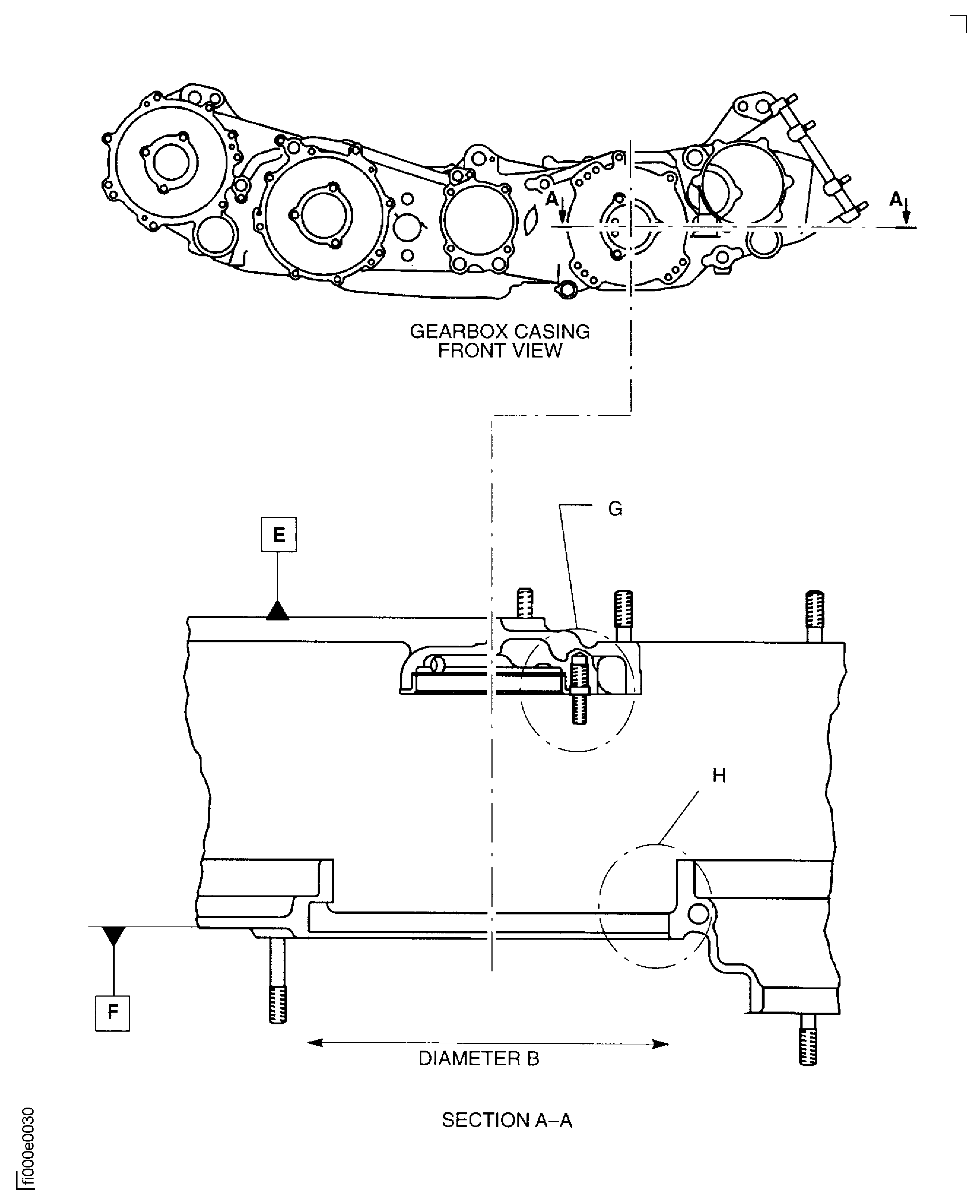

    12. Figure: Repair Details And Dimensions

    Sheet 1

    Legend
    Repair Details And Dimensions

    Sheet 1

    Close

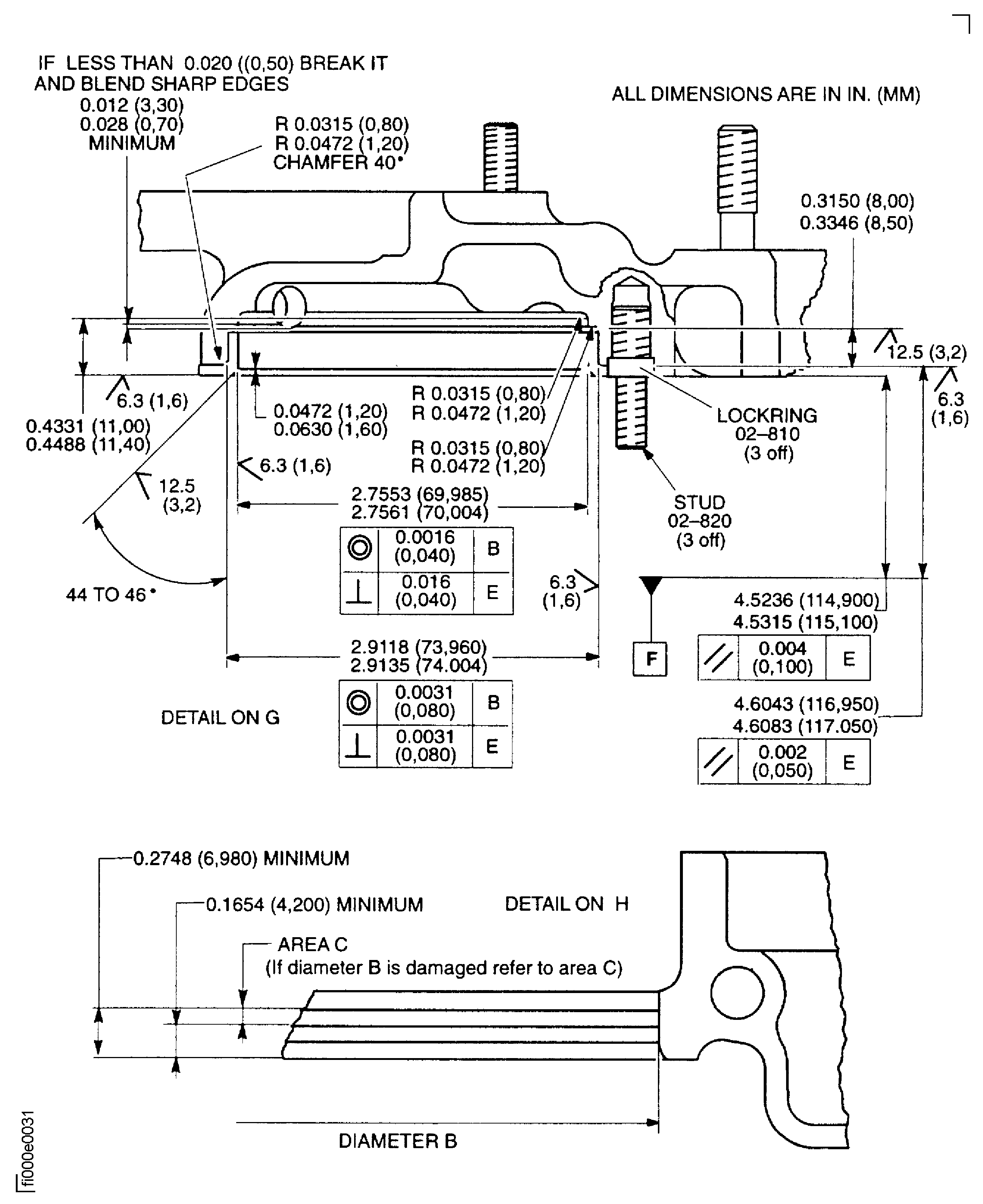

    Figure: Repair Details And Dimensions

    Sheet 2

    Legend
    Repair Details And Dimensions

    Sheet 2

    Close

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Deleted grinding machine from support equipment and procedural steps. (19VF825)
