TASK 72-60-21-300-038 Main Gearbox Casing - Repair The Extension Lay Shaft Bearing Mounting Face By Flanged Bushing, Repair-038 (VRS5277)

DMC:V2500-A0-72-60-2101-23A-664A-C|Issue No:004.00|Issue Date:2021-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-60-21-300-038 Main Gearbox Casing - Repair The Extension Lay Shaft Bearing Mounting Face By Flanged Bushing, Repair-038 (VRS5277)

Effectivity

FIG/ITEM

PART NO.

02-050

4B0053

02-050

4B0054

02-050

4B0055

02-050

4B0057

02-050

4B0400

02-050

4B0402

02-050

4B0423

Material of component

PART IDENT

SYMBOL

MATERIAL

Casing

-

Aluminum alloy

Flanged Bushing

-

Wrought aluminum base alloy

General

NOTE

Consumable materials are given in the PCI.

NOTE

Special tools are identified in the procedure by the primary tool number.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Arbor PressLOCALArbor press
FreezerLOCALFreezer
IAE 3F10340 Drift, Bushing (dia 88)0AM53IAE 3F103401
IAE 3F10459 Pin, guide0AM53IAE 3F104591
Magnifying GlassLOCALMagnifying Glass
OvenLOCALOven
Workshop inspection equipmentLOCALWorkshop inspection equipment

Consumables, Materials and Expendables

NONE

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Flanged BushingLOCAL4L00291

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-60-21-350-098 Remove the Helicoils

    1. Refer to Figure and Figure.

      2. Remove the 3 helicoils from the bearing mounting surface.

      1. Refer to repair VRS5345 TASK 72-60-21-300-006 (REPAIR-006).

    2. SUBTASK 72-60-21-320-087 Machine the Bearing Bore in the Gearbox Casing

    1. Refer to Figure and Figure.

      2. Machine the bearing bore.

      1. The diameter of the bore must be between 3.6992 in. and 3.7008 in. (93.960 mm and 94.000 mm) after the removal of the damage.

      2. Deleted.

    3. SUBTASK 72-60-21-320-088 Machine the Bearing Mounting Face in the Gearbox Casing

    1. Refer to Figure and Figure.

      2. Machine the bearing mounting surface.

        1. The dimensions must be between 4.7323 in. to 4.7362 in. (120.200 mm to 120.300 mm) after removal of the damage.

        1. Deleted.

    4. SUBTASK 72-60-21-220-148 Examine the Gearbox Casing

      1. Inspect the casing for cracks in the area of the bore.

      1. Use a magnifying glass.

    5. SUBTASK 72-60-21-330-082 Apply the Chromate Conversion Coating

      1. Apply the chromate conversion coating to the machined surfaces.

      1. Refer to the SPM TASK 70-38-02-300-503.

    6. SUBTASK 72-60-21-350-099 Install the Bushing

    1. Refer to Figure and Figure.

      2. Install the guide pin.

      1. Put IAE 3F10459 Pin, guide, 1 off in threaded hole on Roller bearing mating surface, adjacent to machined bore.

    3. Install the bushing on the IAE 3F10340 Drift, Bushing (dia 88), 1 off.

      4. WARNING

        DO NOT TOUCH THE HOT PARTS WITHOUT PROTECTIVE GLOVES.

        WARNING

        HOT PARTS CAN CAUSE REDDENING AND BLISTERING OF THE SKIN IF THE HANDS ARE NOT PROTECTED.

        WARNING

        IMMERSE THE CONTACTED AREA IN COLD WATER FOR 10 MINUTES IF THE SKIN IS BURNED. IMMEDIATELY GET THE MEDICAL ATTENTION IF PAIN OR BLISTERING PERSISTS.

        Increase the temperature of the casing and/or decrease the temperature of the assembled drift and bushing.

        1. Use an oven and/or a freezer.

        1. Do not increase the temperature of the casing above 284 deg F (140 deg C).

        2. Do not decrease the temperature of the assembled drift and bushing below minus 58 deg F (minus 50 deg C).

          NOTE

          The difference in temperature between the parts must be 216 deg F (120 deg C).

      5. Remove the casing from the oven and/or the assembled drift and bushing from the freezer.

      1. Use protective gloves.

      6. CAUTION

        INSTALL BUSHING IN MACHINED BORE IMMEDIATELY AFTER REMOVAL FROM FREEZER, OTHERWISE BUSHING CANNOT BE CORRECTLY INSTALLED.

        Install the bushing into machined bore.

        1. Use IAE 3F10340 Drift, Bushing (dia 88) and an arbor press.

        1. Give sufficient back-up support at bushing bore area to prevent casing distortion when you install the bushing.

    7. Let the parts get the ambient temperature.

    8. Remove the drift and the guide pin.

    7. SUBTASK 72-60-21-320-089 Machine the Inner Diameter of the Bushing

    1. Refer to Figure and Figure.

      2. Machine the inner diameter of the bushing.

        1. The dimension must be between 3.5426 in. and 3.5435 in. (89.982 mm and 90.004 mm).

        1. Deleted.

    8. SUBTASK 72-60-21-320-090 Machine the Flange Surface of the Bushing

    1. Refer to Figure and Figure.

      2. Machine the flange surface.

        1. The dimension must be between 4.6811 in. to 4.680 in. (118.900 mm to 1219.100 mm).

        1. Deleted.

        2. Chamfer where necessary.

    9. SUBTASK 72-60-21-330-083 Apply the Chromate Conversion Coating

      1. Apply the chromate conversion coating to the machined surfaces of the bushing.

      1. Refer to the SPM TASK 70-38-02-300-503.

    10. SUBTASK 72-60-21-350-100 Install the New Helicoils

    1. Refer to Figure and Figure.

      2. Install the 3 new helicoils.

      1. Refer to Repair, VRS5345 TASK 72-60-21-300-006 (REPAIR-006).

    11. SUBTASK 72-60-21-350-101 Identify the Repair

    1. Refer to Figure and Figure.

      2. Make a mark VRS5277 adjacent to the part number.

      1. Refer to the SPM TASK 70-09-00-400-501, SUBTASK 70-09-00-400-001.

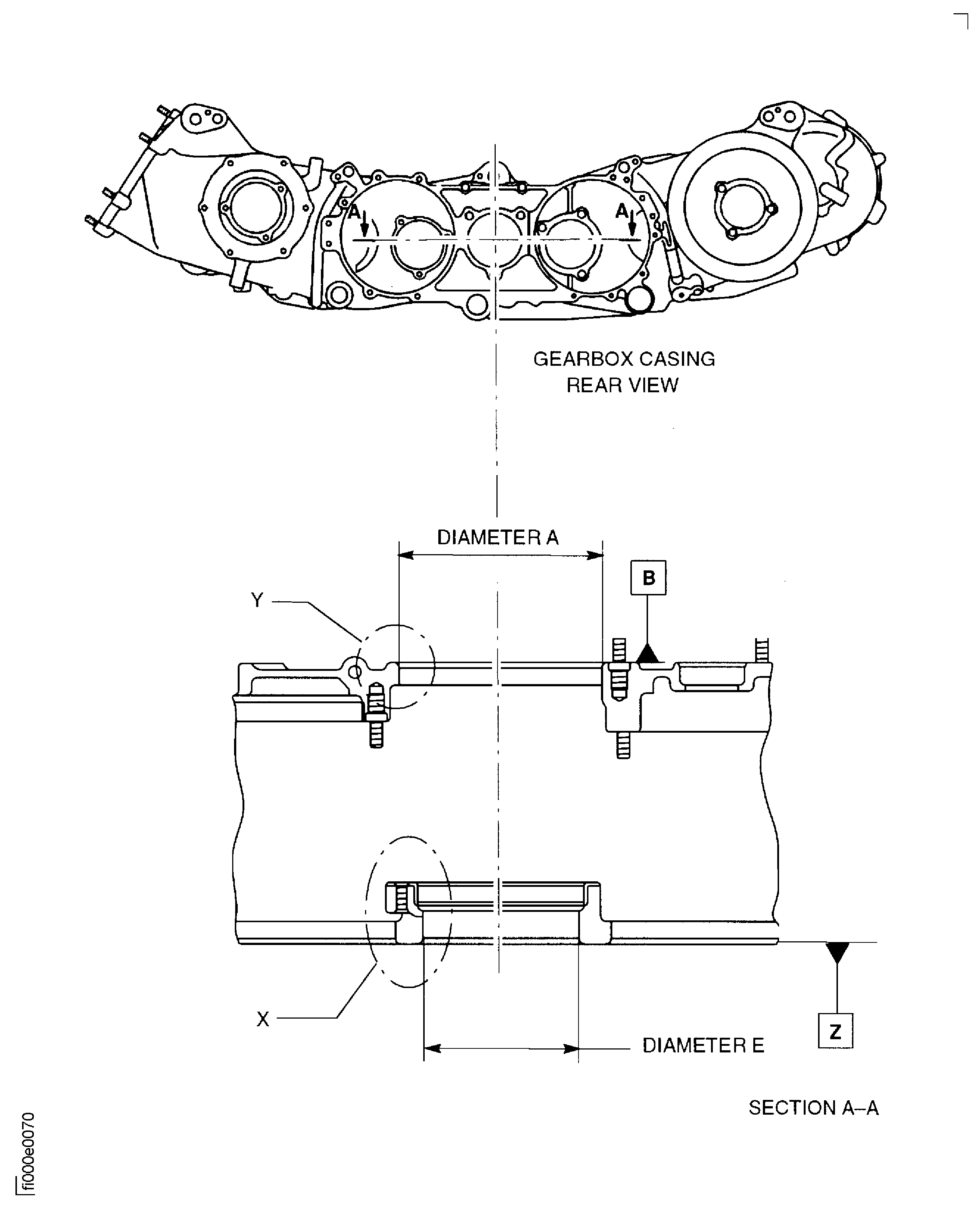

    12. Figure: Repair Details And Dimensions

    Sheet 1

    Legend
    Repair Details And Dimensions

    Sheet 1

    Close

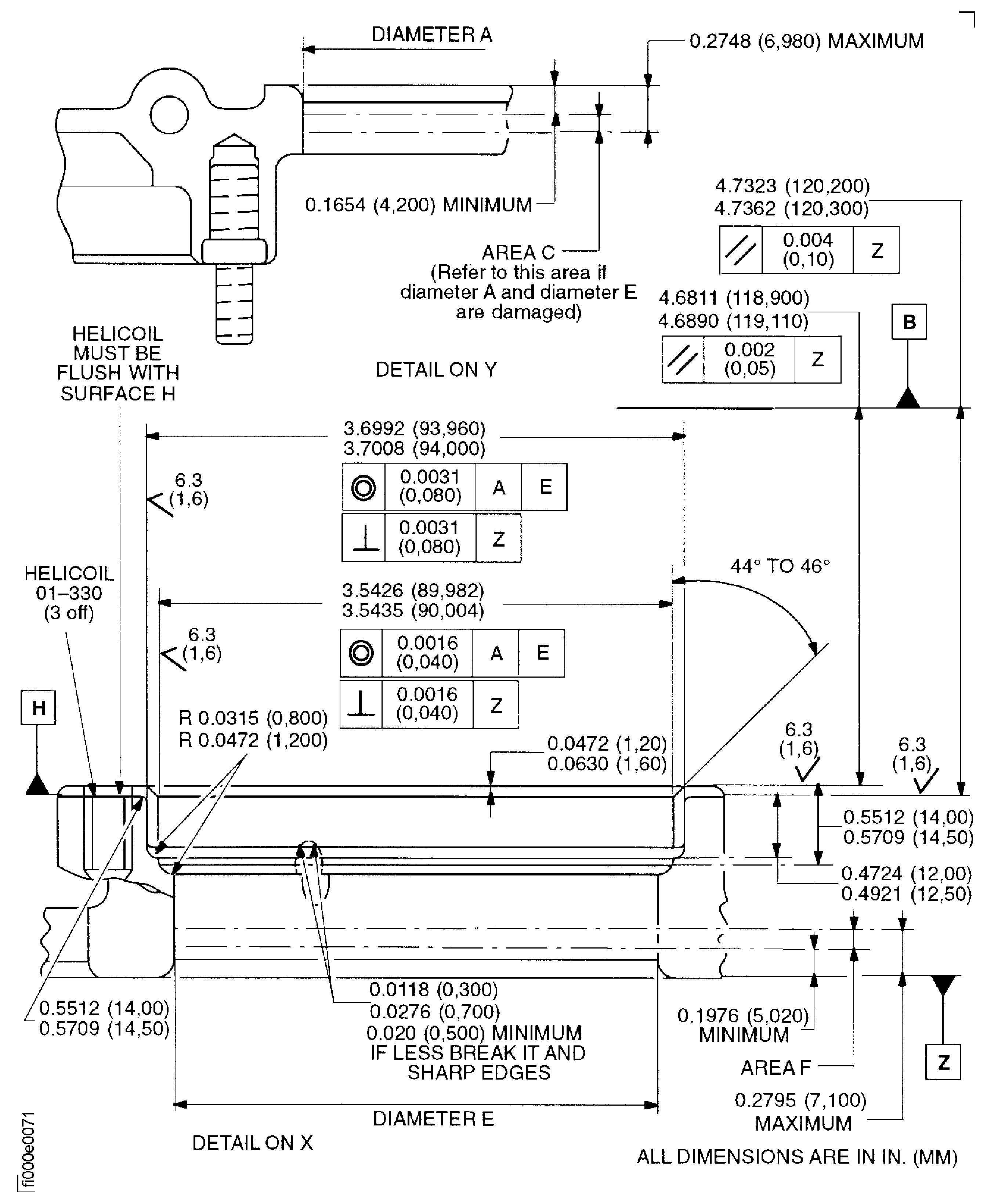

    Figure: Repair Details And Dimensions

    Sheet 2

    Legend
    Repair Details And Dimensions

    Sheet 2

    Close

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Deleted grinding machine from support equipment and procedural steps. (19VF825)
