TASK 72-60-22-300-016 Starter Drive Gear - Chromium Plate The Front Bearing Journal, Repair-016 (VRS5129)

DMC:V2500-A0-72-60-2201-01A-647A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-60-22-300-016 Starter Drive Gear - Chromium Plate The Front Bearing Journal, Repair-016 (VRS5129)

Effectivity

FIG/ITEM

PART NO.

01-260

4P0006

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

Drive gear

-

10NiCrMo4

(SAE 9840)

General

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Workshop inspection equipmentLOCALWorkshop inspection equipment
Grinding machineLOCALGrinding machine
Hot oil tankLOCALHot oil tank
BasketLOCALBasket
FurnaceLOCALFurnace
Magnifying glassLOCALMagnifying glass
Vibrating marking pencilLOCALVibrating marking pencil

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 01-001 SOLVENT, DELETED0AM53CoMat 01-001
CoMat 02-017 WAXLOCALCoMat 02-017
CoMat 02-034 METALLIC MASKING TAPE(LEAD FOIL)76381CoMat 02-034
CoMat 05-030 CAST STEEL SHOT DELETED0AM53CoMat 05-030

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-60-22-320-069 Machine the Front Bearing Journal of the Starter Drive Gear

    1. Refer to Figure.

      2. Machine the front bearing journal.

      1. Remove all damage and wear.

      2. Keep the removal of material to the minimum necessary to remove the damage.

      3. The journal diameter must be between 1.7710 to 1.7616 in. (44.984 to 44.745 mm).

      4. Surface rough must be 32 microinches (0.8 micron) before plating.

    2. SUBTASK 72-60-22-240-058 Examine the Starter Drive Gear

      1. Do the magnetic particle inspection for cracks.

      1. Refer to the SPM TASK 70-24-01-240-501.

      2. No cracks are permitted.

    3. SUBTASK 72-60-22-210-055 Nital Etch the Bearing Journal

      1. Do the nital etch on the bearing journal to find sign of burned metal.

      1. Refer to the SPM TASK 70-21-02-210-501.

      2. Machine the bearing journal if there is sign of burned metal.

      3. Keep the removal of material to the minimum necessary to remove the damage.

    4. SUBTASK 72-60-22-370-064 Do the De-embrittlement Treatment

      1. Put the starter drive gear into oil at 284 deg F (140 deg C) for 2 hours.

      1. Use a hot oil tank.

      2. Do this process as soon as possible in 2 hours after the etch.

    5. SUBTASK 72-60-22-380-055 Shot-peen the Bearing Journal

      1. Shot-peen the bearing journal surface to an intensity of 6 to 8A.

      1. Refer to the SPM TASK 70-38-04-300-503.

    6. SUBTASK 72-60-22-110-060 Clean the Starter Drive Gear

      1. WARNING

        WHEN YOU USE CoMat 01-001 SOLVENT, DELETED YOU MUST USE THE NECESSARY PROTECTIVE CLOTHING. DO NOT GET THE SOLVENT ON YOUR SKIN OR IN YOUR EYES. YOU MUST NOT SMOKE WHEN YOU USE THE SOLVENT AS THE VAPOR CHANGES AND BECOMES TOXIC.

        Do the vapor degreasing.

      1. Refer to the SPM TASK 70-11-01-300-503.

    7. SUBTASK 72-60-22-330-060 Chromium Plate the Front Bearing Journal

    1. Refer to Figure.

      2. Mask the areas of the gear not to be plated.

      3. Chromium plate the front bearing journal.

      1. Refer to the SPM TASK 70-33-02-330-501.

      2. Plate to a sufficient thickness to permit the machining to the last dimensions.

      3. Refer to the figure.

      4. The plating out of the front bearing journal area is permitted but must be removed.

    4. Remove the mask.

      5. Clean and dry the starter drive gear.

      1. Flush with cold water.

      2. Flush with hot water.

      3. Dry with air blast.

    8. SUBTASK 72-60-22-370-065 De-embrittle the Starter Drive Gear

      1. Put the drive gear into a furnace at 284 to 320 deg F (140 to 160 deg C) for 5 hours.

      1. Do this procedure as soon as possible in 4 hours after the plating.

    9. SUBTASK 72-60-22-220-087 Examine the Starter Drive Gear

      1. Do the visual inspection of the plating for finish, cracks and adhesion.

      1. Plating must have a constant color.

      2. No bubbles or sign of burned metal are permitted.

    10. SUBTASK 72-60-22-320-070 Machine the Front Bearing Journal of the Starter Drive Gear

    1. Refer to Figure.

      2. Machine the front bearing journal.

      1. The journal diameter must be between 1.7734 to 1.7730in. (45.045 to 45.034 mm).

      2. Clean up the edges of groove and chamfers, where necessary.

    11. SUBTASK 72-60-22-220-088 Examine the Chromium Plated Areas

    1. Refer to Figure.

      2. Do the visual inspection of chromium plated areas for cracks and adhesion.

      1. Use a 5X magnifying glass.

      2. The natural network crack, emphasised by grinding, is permitted.

      3. Measure the thickness of the plating.

      1. Do not accept thickness less than 0.001 in. (0.025 mm) after the last machining.

    12. SUBTASK 72-60-22-220-088 Examine the Chromium Plates Areas

    1. Refer to Figure.

      2. Do the visual inspection of chromium plated areas for cracks and adhesion.

      1. Use a 5X magnifying glass.

      2. The natural network crack, emphasized by grinding, is permitted.

      3. Measure the thickness of the plating.

      1. Do not accept thickness less than 0.001 in. (0.025 mm) after the last machining.

    13. SUBTASK 72-60-22-350-064 Record the Repair

      1. Vibro-engrave VRS5129 adjacent to the part number.

      1. Remove metal lifted by marking.

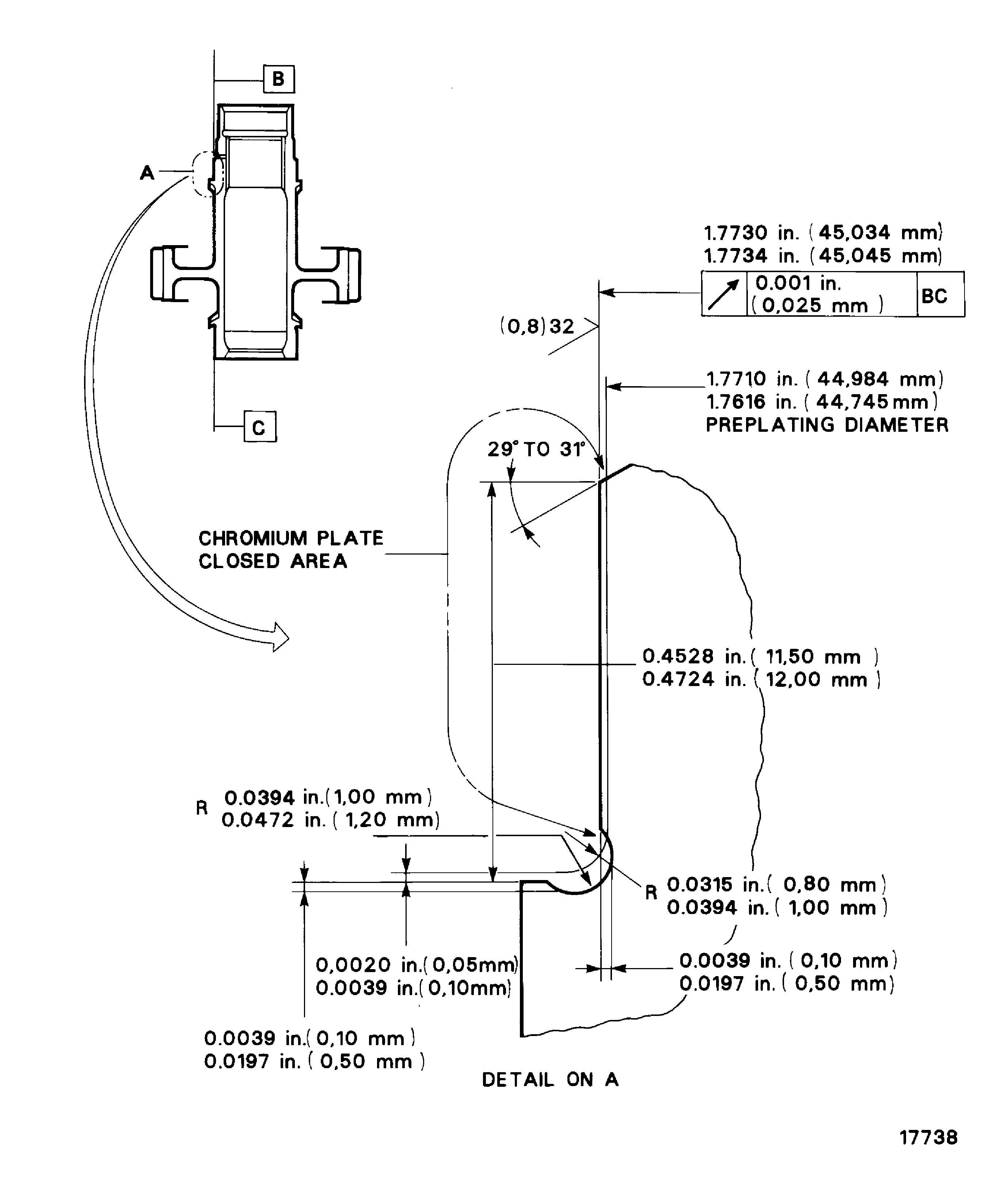

    14. Figure: Repair details and dimension

    Repair details and dimension

Requirements After Job Completion

Follow-On Conditions

NONE
