DMC:V2500-A0-72-60-2201-04A-647A-C|Issue No:001|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-60-22-300-019 Starter Drive Gear - Chromium Plate The Rotating Ring Journal, Repair-019 (VRS5132)

Effectivity

FIG/ITEM	PART NO.
01-260	4P0006

Material of component

	RR
DESCRIPTION	SYMBOL	MATERIAL
Drive gear		10NiCrMo4
		(SAE 9840)

General

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

Name	Manufacturer	Part Number / Identification	Remark
Workshop inspection equipment	LOCAL	Workshop inspection equipment
Grinding machine	LOCAL	Grinding machine
Magnetizing unit	LOCAL	Magnetizing unit	(Refer to SPM TASK 70-24-01-240-501)
Demagnetizing unit	LOCAL	Demagnetizing unit	(Refer to SPM TASK 70-24-01-240-501)
Hot oil tank	LOCAL	Hot oil tank
Pressure Shotpeen System	LOCAL	Pressure Shotpeen System	(Refer to SPM TASK 70-38-04-300-503)
Basket	LOCAL	Basket
Vapor degreaser	LOCAL	Vapor degreaser	(Refer to SPM TASK 70-11-01-300-503)
Process Plating Tanks	LOCAL	Process plating tanks	(Refer to SPM TASK 70-33-02-330-501
Furnace	LOCAL	Furnace
Magnifying glass	LOCAL	Magnifying glass
Vibrating marking pencil	LOCAL	Vibrating marking pencil

Consumables, Materials and Expendables

Name	Manufacturer	Part Number / Identification
CoMat 01-001 SOLVENT, DELETED	0AM53	CoMat 01-001
CoMat 01-007 ETHYL ALCOHOL C2H5OH (DENATURED)	LOCAL	CoMat 01-007
CoMat 01-022 SODIUM HYDROXIDE NaOH (SOLID)	LOCAL	CoMat 01-022
CoMat 01-023 CHROMIUM TRIOXIDE CrO3(CHROM.ACID)	LOCAL	CoMat 01-023
CoMat 01-030 SODIUM CARBONATE Na2CO3	LOCAL	CoMat 01-030
CoMat 01-043 SULFURIC ACID H2SO4	LOCAL	CoMat 01-043
CoMat 01-044 SODIUM METASILICATE Na2SiO3.5H2O	LOCAL	CoMat 01-044
CoMat 01-058 NITRIC ACID HNO3	LOCAL	CoMat 01-058
CoMat 01-079 TRI-SODIUM PHOSPHATE Na3PO4+12H2O	LOCAL	CoMat 01-079
CoMat 01-099 HYDROCHLORIC ACID	K6835	CoMat 01-099
CoMat 01-341 ADDITIVE - DELETED	IE540	CoMat 01-341
CoMat 01-342 RUST REMOVER - DELETED	LOCAL	CoMat 01-342
CoMat 02-017 WAX	LOCAL	CoMat 02-017
CoMat 02-034 METALLIC MASKING TAPE(LEAD FOIL)	76381	CoMat 02-034
CoMat 05-030 CAST STEEL SHOT DELETED	0AM53	CoMat 05-030
CoMat 10-023 MINERAL OIL	73277	CoMat 10-023

Spares

NONE

Safety Requirements

NONE

Procedure

1. Refer to Figure.
2. 1. The journal diameter must be between 1.6506 to 1.6417 in. (41.925 to 41.700 mm).
  2. Remove all damage and wear.
  3. Keep the removal of material to the minimum necessary to remove the damage.
  4. Surface rough must be 32 micro-inches (0.8 micron) before plating.
1. 1. Refer to the SPM TASK 70-24-01-240-501.
    No cracks are permitted.
1. 1. Refer to the SPM TASK 70-21-02-210-501.
  2. Machine the rotating ring journal if there is sign of burned metal.
  3. Keep the removal of material to the minimum necessary to remove the damage.
1. 1. Use a hot oil tank.
  2. Do this process as soon as possible in 2 hours after the etch.
1. 1. Refer to the SPM TASK 70-38-04-300-503.
  2. Use CoMat 05-030 CAST STEEL SHOT DELETED.
1. 1. Refer to the SPM TASK 70-11-01-300-503.
  2. Use CoMat 01-001 SOLVENT, DELETED.
1. Refer to Figure.
2. 1. Use CoMat 02-034 METALLIC MASKING TAPE(LEAD FOIL).
  2. Use CoMat 02-017 WAX.
3. 1. Refer to the SPM TASK 70-33-02-330-501.
  2. Plate to a sufficient thickness to permit the machining to the last dimensions.
  3. Refer to the figure.
  4. The plating out of the rotating ring journal areas is permitted but must be removed.
4. Remove the mask.
5. 1. Flush with cold water.
  2. Flush with hot water.
  3. Dry with air blast.
1. 1. Do this procedure as soon as possible in 4 hours after the plating.
1. 1. Plating must have a constant color.
  2. No bubbles or sign of burned metal are permitted.
1. Refer to Figure.
2. 1. The diameter must be between 1.6535 to 1.6526 in. (42.000 to 41.975 mm).
  2. Clean up the edges of groove and chamfers, where necessary.
1. Refer to Figure.
2. 1. Use a 5X magnifying glass.
  2. The natural network crack, emphasized by grinding, is permitted.
3. 1. Do not accept thickness less than 0.001 in. (0.025 mm) after the last machining.
1. 1. Remove the metal lifted by marking.

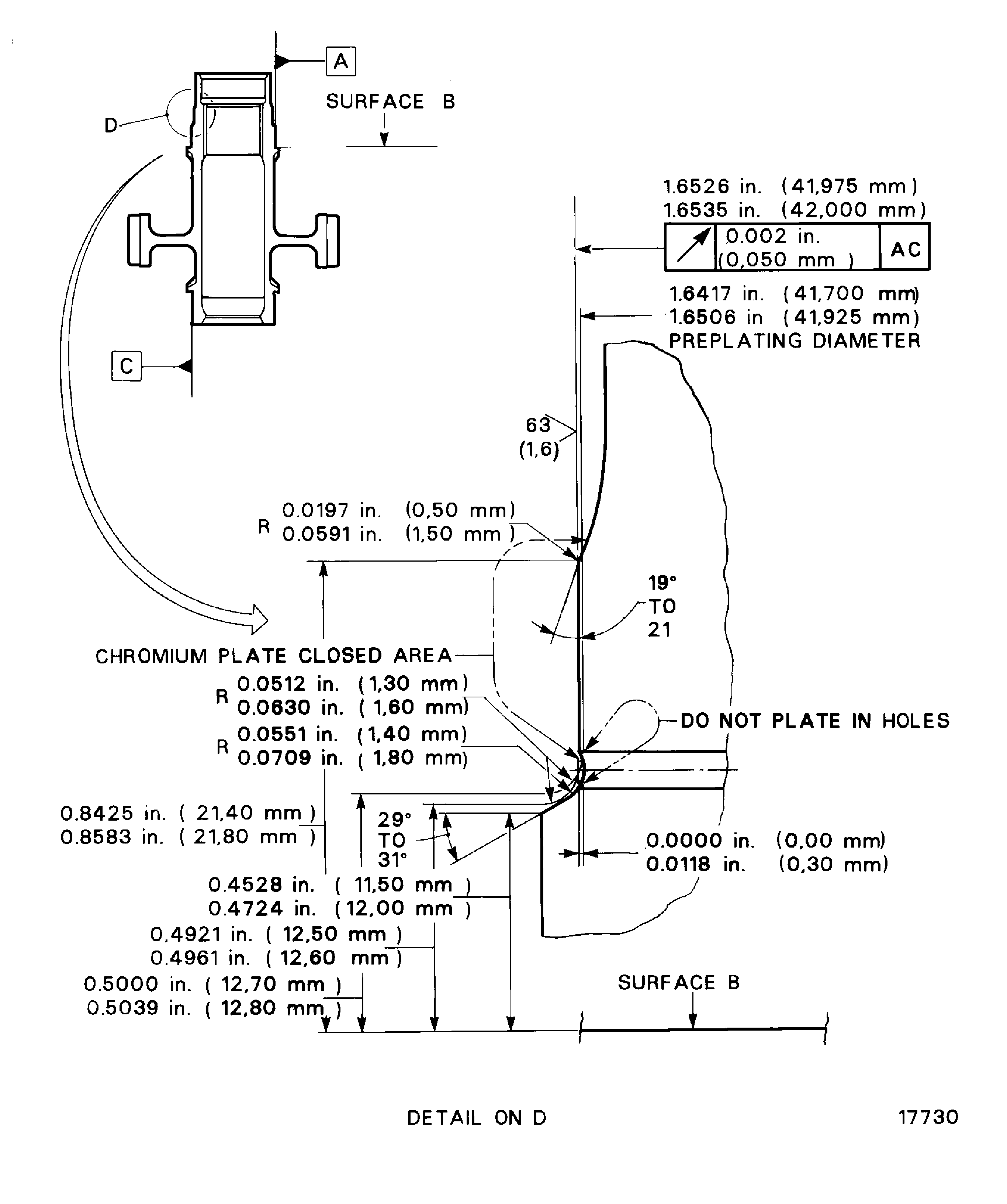

Repair details and dimension

Requirements After Job Completion

Follow-On Conditions

NONE
