TASK 72-60-23-300-014 Hydraulic Pump Drive Gear - Chromium Plate The Rotating Ring Journal, Repair-014 (VRS5134)

DMC:V2500-A0-72-60-2301-01A-647A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-60-23-300-014 Hydraulic Pump Drive Gear - Chromium Plate The Rotating Ring Journal, Repair-014 (VRS5134)

Effectivity

FIG/ITEM

PART NO.

01-440

4P0011

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

Drive gearshaft

10NiCrMo4

(SAE 9840)

General

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Workshop inspection equipmentLOCALWorkshop inspection equipment
Grinding machineLOCALGrinding machine
Magnetizing unitLOCALMagnetizing unit
Demagnetizing unitLOCALDemagnetizing unit
Hot oil tankLOCALHot oil tank
Pressure shotpeen systemLOCALPressure shotpeen system
BasketLOCALBasket
Vapor degreaserLOCALVapor degreaser
Process Plating TanksLOCALProcess plating tanks
OvenLOCALOven
Magnifying glass, 5xLOCALMagnifying glass, 5x
Vibrating marking pencilLOCALVibrating marking pencil

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 01-001 SOLVENT, DELETED0AM53CoMat 01-001
CoMat 01-023 CHROMIUM TRIOXIDE CrO3(CHROM.ACID)LOCALCoMat 01-023
CoMat 02-017 WAXLOCALCoMat 02-017
CoMat 02-034 METALLIC MASKING TAPE(LEAD FOIL)76381CoMat 02-034
CoMat 05-030 CAST STEEL SHOT DELETED0AM53CoMat 05-030
CoMat 10-023 MINERAL OIL73277CoMat 10-023

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-60-23-320-053 Machine the Rotating Ring Journal

    1. Refer to Figure.

      2. Machine the rotating ring journal.

      1. Remove all damage and wear.

      2. Keep the removal of material to the minimum necessary to remove the damage.

      3. The preplating diameter must be between 1.6506 to 1.6417 in. (41.925 to 41.700 mm).

      4. Surface rough must be 32 microin. (0.8 micron) before plating.

    2. SUBTASK 72-60-23-240-052 Examine the Hydraulic Pump Drive Gearshaft

      1. Do the magnetic particle inspection for cracks.

      1. Refer to the SPM TASK 70-24-01-240-501.

      2. No cracks are permitted.

    3. SUBTASK 72-60-23-210-051 Nital Etch the Rotating Ring Journal

      1. Do the nital etch on the rotating ring journal to find sign of burned metal.

      1. Refer to the SPM TASK 70-21-02-210-501.

      2. Machine the rotating ring journal if there is sign of burned metal.

      3. Keep the removal of material to the minimum necessary to remove the damage.

    4. SUBTASK 72-60-23-370-051 Do the De-embrittlement Treatment

      1. Put the gearshaft into oil at 284 deg F (140 deg C) for 2 hours.

      1. Use a hot oil tank.

      2. Do this process as soon as possible in less than 2 hours after the etch.

    5. SUBTASK 72-60-23-380-051 Shot-peen the Rotating Ring Journal

      1. Shot-peen the rotating ring journal to an intensity of 6 to 8 A.

      1. Refer to the SPM TASK 70-38-04-300-503.

    6. SUBTASK 72-60-23-110-051 Clean the Hydraulic Pump Drive Gearshaft

      1. Do the vapor degreasing.

      1. Refer to the SPM TASK 70-11-01-300-503.

    7. SUBTASK 72-60-23-330-053 Chromium Plate the Rotating Ring Journal

    1. Refer to Figure.

      2. Mask the areas of the gearshaft not to be plated.

      3. Do the chromium plating.

      1. Refer to the SPM TASK 70-33-02-330-501.

      2. Plate to a sufficient thickness to permit the machining to the last dimensions.

      3. The plating out of the rotating ring journal area is permitted but must be removed.

    4. Remove the mask.

      5. Clean and dry the gearshaft.

      1. Flush with cold water.

      2. Flush with hot water.

      3. Dry with air blast.

    8. SUBTASK 72-60-23-370-052 De-embrittle the Hydraulic Pump Drive Gearshaft

      1. Put the gearshaft into the oven at 284 to 320 deg F (140 to 160 deg C) for 5 hours.

      1. Do this procedure as soon as possible in less than 4 hours after the plating.

    9. SUBTASK 72-60-23-220-061 Examine the Plating

      1. Do the visual inspection of the plating for finish, cracks and adhesion.

      1. Plating must have a constant color.

      2. No bubbles or sign of burned metal are permitted.

    10. SUBTASK 72-60-23-320-054 Machine the Rotating Ring Journal

    1. Refer to Figure.

      2. Machine the rotating ring journal.

      1. The last dimension must be between 1.6535 to 1.6526 in. (42.000 to 41.975 mm).

      2. Clean up the edges of groove and chamfers, where necessary.

    11. SUBTASK 72-60-23-220-062 Examine the Chromium Plated Area

      1. Do the visual inspection of chromium plated area for cracks and adhesion.

      1. Use a 5x magnifying glass.

      2. The natural network crack, emphasized by grinding, is permitted.

      2. Measure the thickness of the plating.

      1. Do not accept thickness less than 0.001 in (0.025 mm) after the last machining.

    12. SUBTASK 72-60-23-350-060 Record the Repair

      1. Vibro engrave VRS5134 adjacent to the part number.

      1. Remove metal lifted by marking.

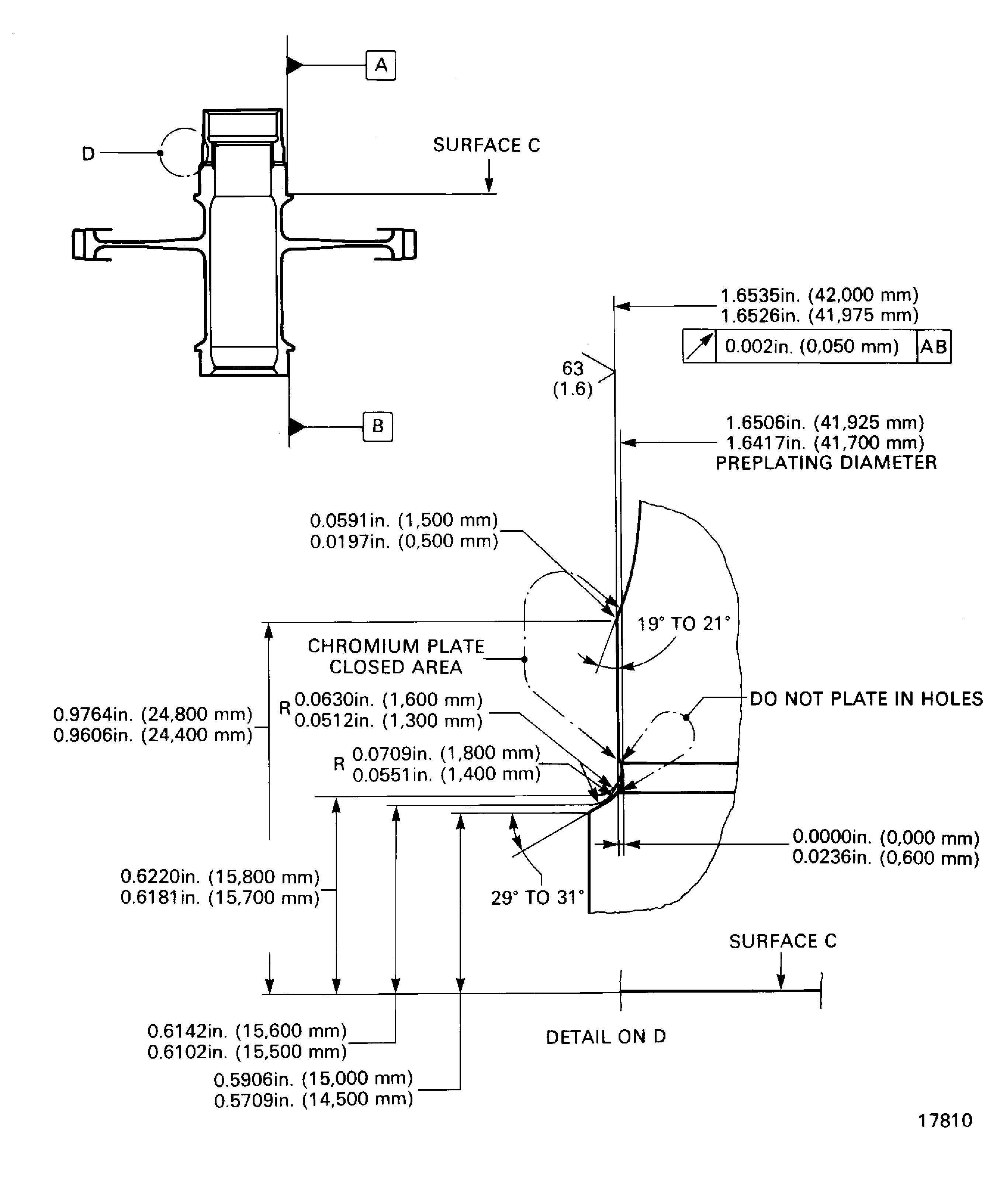

    13. Figure: Repair details and dimensions
