TASK 72-60-23-300-005 Hydraulic Pump Drive Gear Housing - Repair The Seal Housing Mating Surface By Flanged Bushing, Repair-005 (VRS5038)

DMC:V2500-A0-72-60-2304-00A-664A-C|Issue No:004.00|Issue Date:2021-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-60-23-300-005 Hydraulic Pump Drive Gear Housing - Repair The Seal Housing Mating Surface By Flanged Bushing, Repair-005 (VRS5038)

Effectivity

FIG/ITEM PART NO.

01-460

4B0192

01-460

4B0313

01-460

4B0350

01-460

4B0372

Material of component

RR

DESCRIPTION SYMBOL MATERIAL

Housing

-

Aluminum alloy

Flanged bushing

-

Wrougt aluminum base alloy

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

NOTE

  1. To identify the consumable materials refer to the PCI.

  2. Other consumable materials are given in the SPM.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
IAE 3F10336 Drift, bushing (dia 67)0AM53IAE 3F103361
IAE 3F10438 Guide pin0AM53IAE 3F104381
Magnifying Glass, 5xLOCALMagnifying Glass, 5x
OvenLOCALOven
Penetrant Crack Test EquipmentLOCALPenetrant crack test equipment
Process Plating TanksLOCALProcess plating tanks
Vibro-engraving equipmentLOCALVibro-engraving equipment

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 01-001 SOLVENT, DELETEDX111XCoMat 01-001

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Flanged bushingLOCAL4L0011

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-60-23-350-066 Remove the Threaded Inserts

    1. Refer to Figure.

      2. Remove the lock rings and the screw insert.

      1. Refer to Repair, VRS5036, TASK 72-60-23-300-003.

    2. SUBTASK 72-60-23-320-065 Machine the Seal Housing Bore in the Hydraulic Pump Housing

    1. Refer to Figure.

      2. Machine the seal housing bore.

      1. The diameter must be 2.8331 in. to 2.8346 in. (71.960 mm to 72.000 mm), after the removal of the damage, in relation to surface A and diameter B.

      2. Deleted.

      3. Blend the drain holes, if necessary.

      1. Blend the sharp edges around the three drain holes.

    3. SUBTASK 72-60-23-320-066 Machine the Seal Housing Mating Surface in the Hydraulic Pump Housing

    1. Refer to Figure.

      2. Machine the seal mating surface.

      1. The dimension must be 1.0650 in. to 1.0610 in. (27.050 mm to 26.950 mm), after the removal of the damage.

    4. SUBTASK 72-60-23-220-088 Examine the Hydraulic Pump Housing

      1. Inspect the housing for cracks, in the area of the bore.

      1. Use a 5x magnifying glass.

    5. SUBTASK 72-60-23-330-059 Apply the Chromate Conversion Coating

      1. Apply the chromate conversion coating to the machined surfaces.

      1. Refer to the SPM TASK 70-38-02-300-503.

    6. SUBTASK 72-60-23-350-067 Install the Flanged Bushing

    1. Refer to Figure.

      2. Install the guide pin.

      1. Put IAE 3F10438 Guide pin 1 off in threaded hole, on seal housing mating surface, adjacent to machined bore.

    3. Install the flanged bushing on the IAE 3F10336 Drift, bushing (dia 67) 1 off.

      4. WARNING

        DO NOT TOUCH THE HOT PARTS WITHOUT PROTECTIVE GLOVES.
        HOT PARTS CAN CAUSE REDDENING AND BLISTERING OF THE SKIN, IF THE HANDS ARE NOT PROTECTED.
        IMMERSE THE CONTACTED AREA IN COLD WATER FOR 10 MINUTES, IF THE SKIN IS BURNED. IMMEDIATELY GET MEDICAL ATTENTION IF PAIN OR BLISTERING PERSISTS.

        Increase the temperature of the housing and/or decrease the temperature of the assembled drift and flanged bushing.

      1. Use an oven and/or a freezer.

      2. Do not increase the temperature of the housing above 284 deg F (140 deg C). Do not decrease the temperature of the assembled drift and flanged bushing below -58 deg F (-50 deg C).

        NOTE

        The difference in temperature, between the parts, must be 216 deg F (120 deg C).

    5. Remove the housing from the oven and/or the assembled drift and flanged bushing from the freezer.

      6. CAUTION

        INSTALL THE FLANGED BUSHING IN MACHINED BORE IMMEDIATELY AFTER REMOVAL FROM FREEZER, OTHERWISE FLANGED BUSHING CANNOT BE CORRECTLY INSTALLED.

        Install the flanged bushing into the machined bore.

      1. Use IAE 3F10336 Drift, bushing (dia 67) drift and an arbor press.

      2. Give sufficient back-up support at bushing bore area, to prevent housing distortion, when you install the flanged bushing.

    7. Allow the parts to reach ambient temperature.

    8. Remove the drift and the guide pin.

    7. SUBTASK 72-60-23-320-067 Machine the Inner Diameter of the Flanged Bushing

    1. Refer to Figure.

      2. Machine the inner diameter of the bushing.

      1. The dimension must be 2.6791 in. to 2.6831 in. (68.050 mm to 68.150 mm), in relation to Surface A and Diameter B. Chamfer where necessary.

      2. Deleted.

    8. SUBTASK 72-60-23-320-068 Machine the Flange Surface of the Flanged Bushing

    1. Refer to Figure.

      2. Machine the flanged bushing surface.

      1. The dimension must be 1.1457 to 1.1378 in. (29.100 to 28.900 mm), in relation to Surface A.

    9. SUBTASK 72-60-23-330-060 Apply the Chromate Conversion Coating

      1. Apply the chromate conversion coating to the machined surface of the bushing.

      1. Refer to the SPM TASK 70-38-02-300-503.

    10. SUBTASK 72-60-23-350-068 Install the New Threaded Inserts

    1. Refer to Figure.

      2. Install the new screw inserts and the new lock rings.

      1. Refer to Repair, VRS5036, TASK 72-60-23-300-004.

    11. SUBTASK 72-60-23-350-069 Record the Repair

      1. Vibro-engrave VRS5038 adjacent to the part number.

      1. Remove the metal lifted by marking.

      2. Use vibro-engraving equipment.

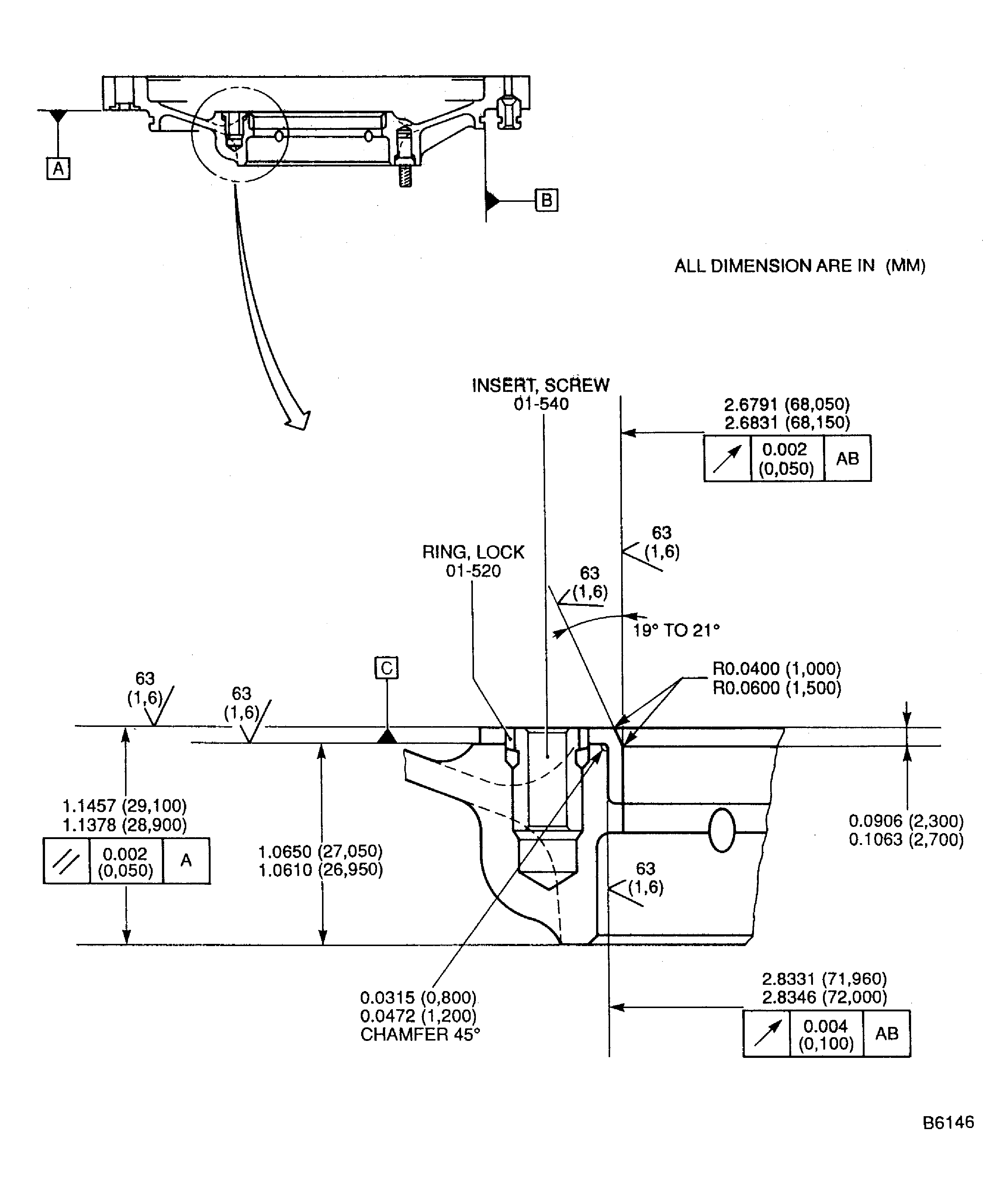

    12. Figure: Repair Details And Dimensions

    Repair Details And Dimensions

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Deleted grinding machine from support equipment and procedural steps. (19VF825)
